RAIL 48V

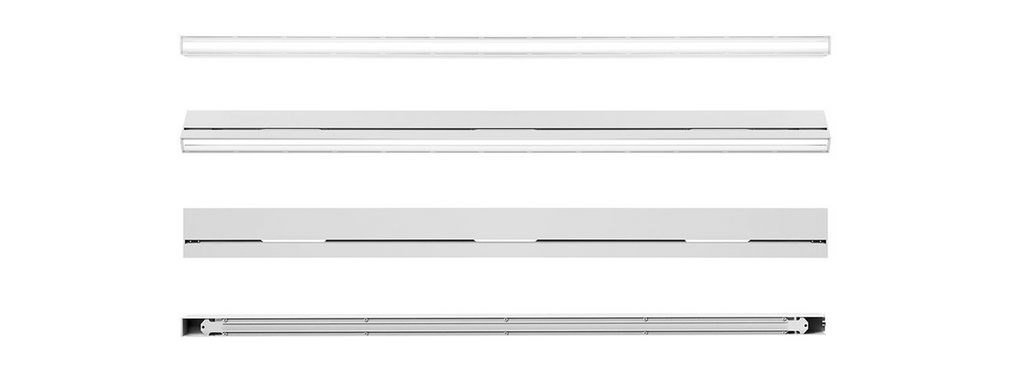

RAIL 48V is an architectural audio-plus-light luminaire from KSCAPE that integrates a distributed point-source loudspeaker array into a 1190 mm linear aluminium body. Designed for premium commercial interiors, it delivers tunable-white LED illumination alongside full-range or mid-high audio from a single ceiling-mounted fixture, supporting DALI and Casambi control.
Specifications
- Dimensions (W x H x D): 1190 x 35 x 92 mm
- Weight: 3 kg
- Body material: Extruded aluminium with stainless steel elements
- Colours: White, Black, Custom RAL
- IP rating: IP40
- LED source: Cree and Osram
- LED lifetime: Lm80 60,000 hours at 25 degrees C
- Input voltage: 48 Vdc constant voltage
- Colour temperature: Tunable White 2700 K to 5000 K
- Control interface: 48 Vdc on/off, DALI, Casambi
- Driver: Electronic remote driver (ordered separately)
- Audio type: Distributed point source
- Transducers: 3 x neodymium magnet drivers (1 inch x 5 inch) with 0.65 inch voice coil
- Frequency response (full range): 60 Hz to 20 kHz (-6 dB), 84 dB max SPL
- Frequency response (with subwoofer): 200 Hz to 20 kHz (-6 dB), 97 dB max SPL
- Rated power: 75 W peak
- Max SPL: 97 dB peak
- Coverage: Vertical 10 degrees, Horizontal 110 degrees
- Nominal impedance: 48 ohm
- Mounting options: Ceiling, suspension, wall, recessed, semi-recessed
Applications
Suited to retail, hospitality, corporate, and cultural venues where combining architectural lighting with background or foreground audio in a single low-profile fixture reduces ceiling clutter. The 48 V platform supports longer cable runs and is compatible with K-array KA-14 and KA-28 amplifiers.
Frequently asked questions
What amplifier is required?
The RAIL 48V is compatible with K-array KA-14 and KA-28 amplifiers. The LED driver is a separate remote electronic unit ordered in addition to the luminaire.
Can the RAIL 48V be used without a subwoofer?
Yes. In full-range preset it covers 60 Hz to 20 kHz at up to 84 dB max SPL. Pairing with a dedicated subwoofer extends the maximum SPL to 97 dB peak using the subwoofer preset.
What optic configurations are available?
The RAIL 48V is available with Symmetric, Asymmetric, and Diffused optics to suit different lighting distributions within a space.
