RAIL S - TRACK

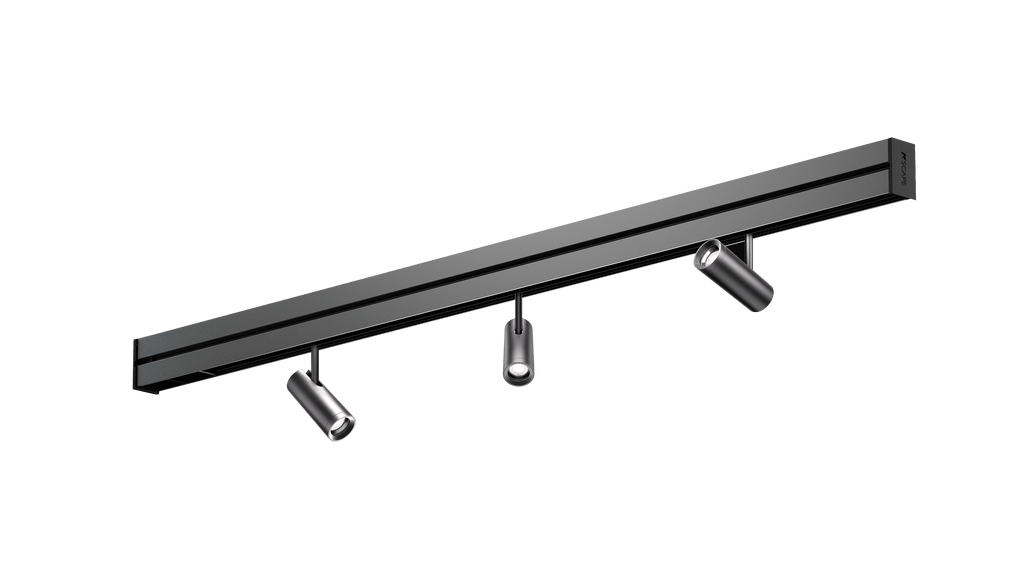

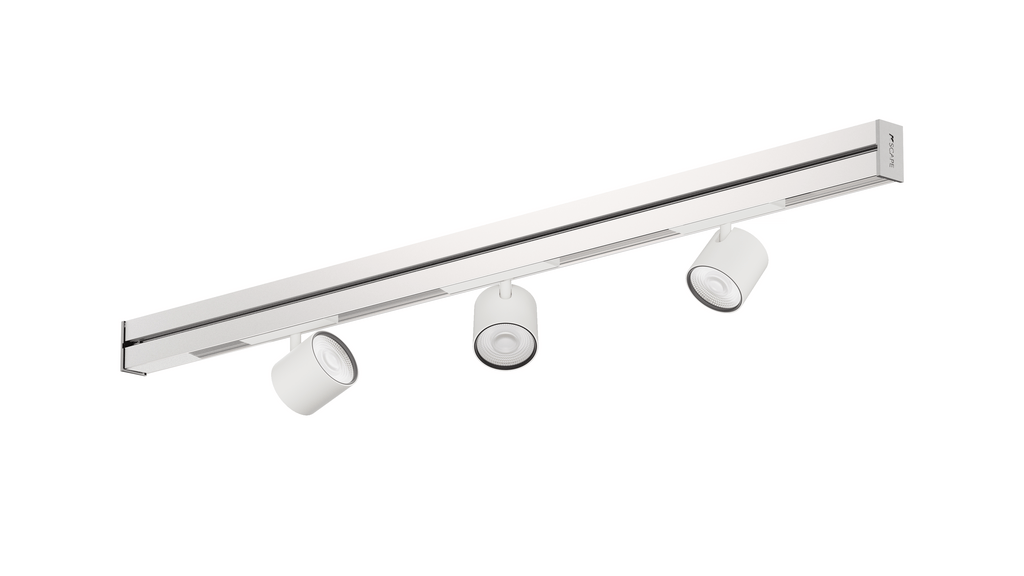

RAIL S - TRACK is a 1190 mm linear audio-plus-light system from KSCAPE that integrates a Stucchi Multisystem Evo track into its aluminium body, enabling KSCAPE projectors and spotlights to be mounted directly onto the bar. A K-array point-source loudspeaker is built into the same profile, combining flexible accent lighting with background audio in a single architectural element.
Specifications
- Dimensions (W x H x D): 1190 x 35 x 59 mm
- Weight: 2.5 kg
- Body material: Extruded aluminium with stainless steel elements
- Colours: White, Black
- IP rating: IP20
- LED source: Cree
- LED lifetime: Lm80 60,000 hours at 25 degrees C
- Input voltage: 24 Vdc constant voltage
- Control interface: 24 Vdc on/off, Casambi
- Driver: Electronic remote driver (ordered separately)
- Track system: Stucchi Multisystem Evo (dual circuits, 2 x 15 A, 0-60 Vdc, plus one data bus circuit)
- Optic: Multisystem Stucchi track for plug-in projectors
- Audio type: Point source
- Transducers: 1 x 0.5 inch neodymium magnet woofer
- Frequency response: 500 Hz to 18 kHz (-6 dB)
- Rated power: 3.5 W
- Max SPL: 86 dB peak
- Coverage: Vertical 140 degrees, Horizontal 140 degrees
- Nominal impedance: 16 ohm
Applications
Suited to retail, hospitality, and gallery environments where adjustable accent or display lighting is required alongside background audio. The integrated Stucchi track accepts KSCAPE projectors with zoom and fixed-lens optics, allowing precise re-aiming of spotlights without disturbing the audio-light bar mounting.
Frequently asked questions
What projectors are compatible with the RAIL S - TRACK?
The integrated Stucchi Multisystem Evo track accepts KSCAPE projectors designed for 24 V track systems, including fixed-lens and adjustable variants from the KSCAPE range.
Does the TRACK variant include DALI control?
The RAIL S - TRACK supports 24 Vdc on/off and Casambi Bluetooth control. DALI is not listed for this track-mounted variant; DALI-controlled versions are available in the OPAL and DARKLIGHT configurations.
Is the audio amplifier included?
No. The RAIL S requires an external K-array amplifier, and the remote LED driver is ordered separately from the luminaire body.
