RAIL TRACK READY 24V

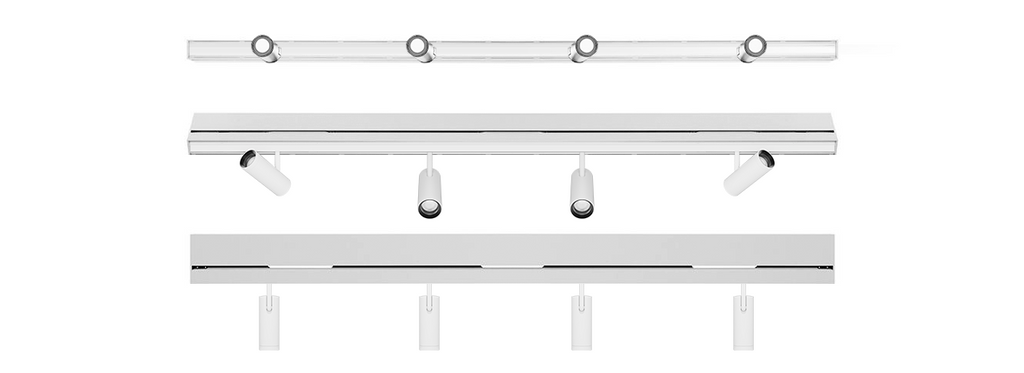

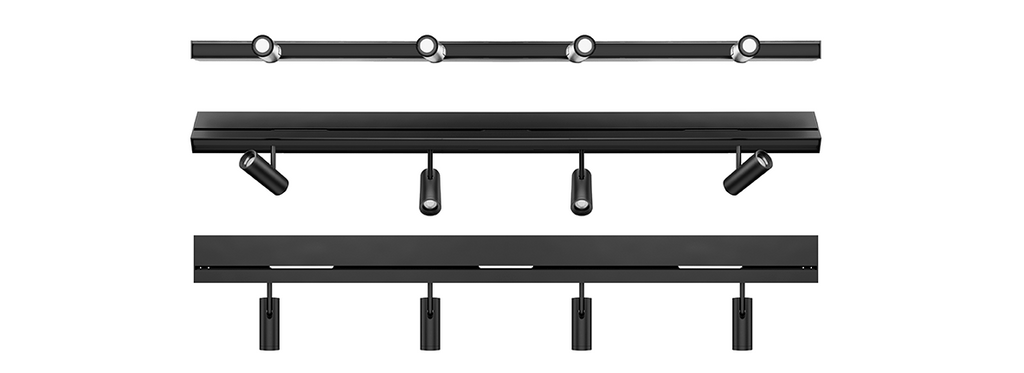

RAIL TRACK READY 24V is an architectural audio-plus-light luminaire from KSCAPE that embeds a 24 V multi-system track into its 1190 mm aluminium body, accepting KSCAPE projectors alongside three integrated full-range loudspeakers. It combines tunable-white LED illumination, adjustable track-mounted spotlights, and distributed audio in a single low-profile ceiling element.
Specifications
- Dimensions (W x H x D): 1190 x 35 x 92 mm
- Weight: 3 kg
- Body material: Extruded aluminium with stainless steel elements
- Colours: White, Black, Custom RAL
- IP rating: IP40
- LED source: Cree and Osram
- LED lifetime: Lm80 60,000 hours at 25 degrees C
- Input voltage: 24 Vdc constant voltage
- Colour temperature: Tunable White 2700 K to 5000 K
- Control interface: 24 Vdc on/off, DALI, Casambi
- Driver: Electronic remote driver 24 Vdc (ordered separately)
- Track system: Integrated 24 V Stucchi Multisystem track for KSCAPE projectors
- Audio type: Distributed point source
- Transducers: 3 x neodymium magnet drivers (1 inch x 5 inch) with 0.65 inch voice coil
- Frequency response (full range): 60 Hz to 20 kHz (-6 dB), 84 dB max SPL
- Frequency response (with subwoofer): 200 Hz to 20 kHz (-6 dB), 97 dB max SPL
- Rated power: 75 W peak
- Max SPL: 97 dB peak
- Coverage: Vertical 10 degrees, Horizontal 110 degrees
- Nominal impedance: 48 ohm
Applications
Intended for retail, hospitality, and exhibition environments where both ambient LED lighting and directable accent spotlights are needed in the same ceiling run. The 24 V platform integrates with KSCAPE's projector range (including zoom and fixed-lens options) and supports K-array amplifiers for the audio channel.
Frequently asked questions
What is the difference between the RAIL TRACK READY 24V and RAIL TRACK READY 48V?
Both share the same 1190 x 35 x 92 mm body and audio specifications. The 24 V version uses a 24 Vdc driver and is compatible with 24 V KSCAPE projectors; the 48 V version uses a 48 Vdc driver and supports the 48 V projector range with longer cable runs.
Can the RAIL TRACK READY 24V be used without projectors?
Yes. The integrated LED provides ambient illumination independently. Projectors are optional accessories that connect to the built-in Stucchi track when accent or directional lighting is required.
Is DALI dimming supported?
Yes. The lighting circuit accepts DALI protocol in addition to Casambi Bluetooth and standard 24 Vdc on/off control.
