Texture Panel Carre

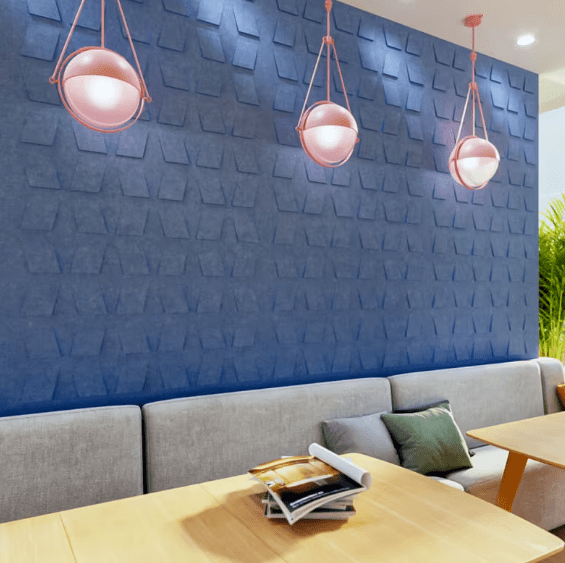

The Texture Panel Carre is a 3-dimensional acoustic wall and ceiling panel from Zintra, featuring a subtle square-relief surface pattern that scatters sound to reduce echoes. Made from recycled polyester fibre, it suits noisy public spaces including offices, hospitality venues, and educational facilities where both acoustics and visual interest are priorities.
Specifications

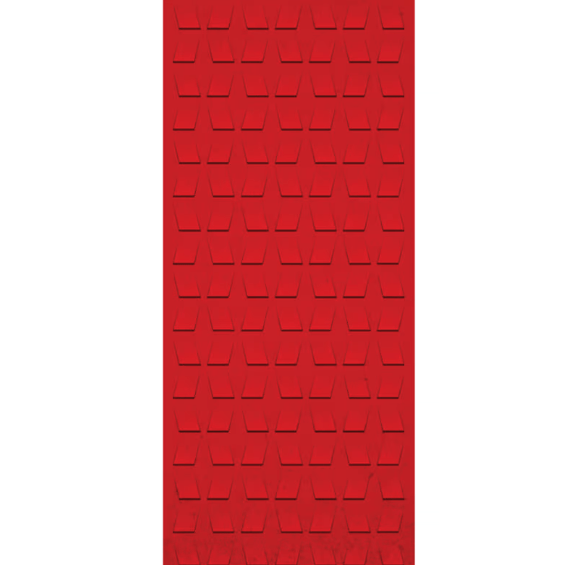

- Pattern: Carre (square relief)
- Dimensions (Pattern Only, 12mm): 1219mm x 2743mm x 12mm
- Dimensions (Pattern on Backer, 24mm): 1219mm x 2743mm x 24mm
- Density (12mm): 2.4 kg/m2
- Density (24mm): 3.6 kg/m2
- Material: 100% solution-dyed polyester (colour-through)
- Recycled content: 60% post-consumer PET bottles, 35% pre-consumer PET chips, 5% polylactic acid (PLA)
- NRC: 0.45 to 0.90
- Supply: Flat pack, not freestanding
- Colour options: 30 colours
Applications
The Carre panel is wall- or ceiling-mounted in commercial interiors where echo control and design are both required. Typical settings include open-plan offices, restaurants, hotel lobbies, retail spaces, and public reception areas. The panel requires lamination to a solid backer (such as MDF) when an air gap installation is intended.
Standards and compliance
ASTM-E84 Class A classification. AS ISO 9705-2003 Group 1 classification. EN-13501 B-s2-d0 classification.
Frequently asked questions
Can the Carre panel be used as a freestanding partition?
No. The Texture Panel Carre is not suitable as a freestanding product and must be fixed to a wall or ceiling surface, or laminated to a solid backer for air-gap installations.
What NRC rating does the Carre panel achieve?
The panel achieves an NRC range of 0.45 to 0.90 depending on thickness and installation method.
How is the panel cleaned?
Vacuum to remove dust. For marks, dab with a damp cloth and a mild detergent solution, then rinse with clean water and pat dry. Difficult stains can be treated with a 10% bleach solution, followed by a clean water wipe and pat dry. Always test in an inconspicuous area first.
