Texture Panel Echelle

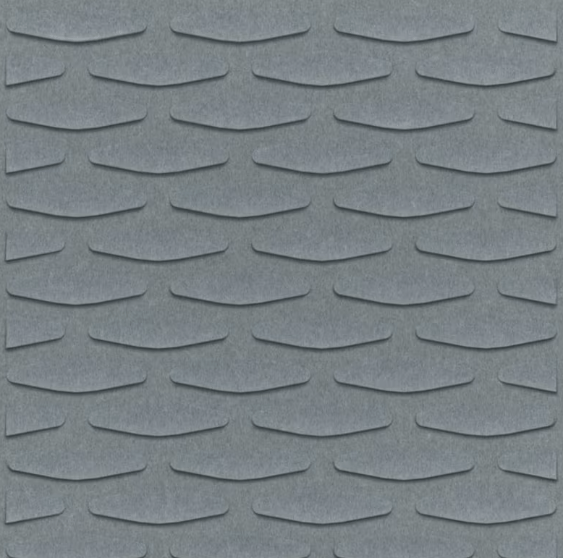

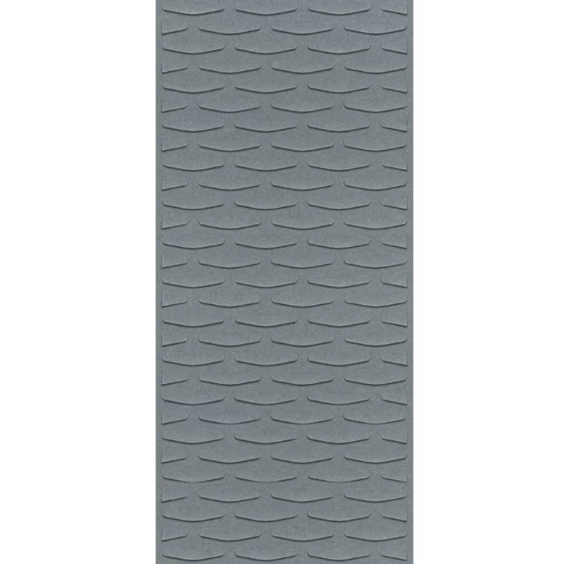

The Texture Panel Echelle is a three-dimensional acoustic wall panel from Zintra, featuring an interplay of horizontal and vertical lines that creates a sense of movement and depth. It is designed for wall-mounted installation in noisy public and commercial spaces where both noise control and visual interest are required.
Specifications
- Dimensions: 1219mm x 2743mm (48" x 108")
- Thickness options: 12mm (1/2") or 24mm (1")
- Density (12mm): 2.4 kg/m2
- Density (24mm): 3.6 kg/m2
- Material: 100% solution dyed (colour through) polyester
- Recycled content: 60% post-consumer recycled PET bottles, 35% pre-consumer recycled PET chips, 5% polylactic acid (PLA)
- NRC range: 0.45 to 0.90
- Supply: Ships flat pack, wall installation only
- Warranty: 5 years
Applications
Suitable for wall-mounted installation in commercial offices, hospitality venues, education facilities, retail environments, and public spaces where elevated noise levels affect comfort. The three-dimensional Echelle relief changes the angle at which sound reflects off the surface, reducing echoes. Not suitable as a freestanding product. Ceiling installation is not recommended.
Standards and compliance
ASTM-E84 Class A fire classification. AS ISO 9705-2003 Group 1 fire classification. EN 13501 B-s2-d0 fire classification. VOC testing: Standard Method Version 1.2 for CDPH 01350, pass for all testing scenarios.
Frequently asked questions
Can the Echelle panel be installed on a ceiling?
No. Zintra Texture Panels are designed for vertical wall installation only. Ceiling installation is not recommended by the manufacturer.
What recycled content does this panel contain?
Each panel is made from 95% recycled polyester, comprising 60% post-consumer content from PET bottles and 35% pre-consumer content from PET chips, with 5% polylactic acid (PLA).
Is the Echelle pattern available in multiple colours?
Yes. The Texture Panel range is available in a range of Zintra colours. Select the Echelle design and a Zintra colour when specifying.
