Texture Panel Tissage
Texture Panel Tissage is a three-dimensional acoustic wall panel from Zintra, featuring an intricate arrangement of lines and shapes that evokes a hand-crafted woven texture. The relief surface reduces echo by deflecting sound at varied angles, and the panel is made from solution-dyed recycled polyester suited to commercial and public interiors.
Specifications
- Dimensions: 1219 mm x 2743 mm x 24 mm (48" x 108" x 1")
- Density (12 mm): 2.4 kg/m2
- Density (24 mm): 3.6 kg/m2
- Noise Reduction Coefficient (NRC): 0.45 to 0.90 (varies by thickness and mounting)
- Material: 100% solution-dyed polyester
- Recycled content: 60% post-consumer recycled PET bottles, 35% pre-consumer recycled PET chips, 5% polylactic acid (PLA)
- Total recyclability: 100%
- Colour options: 30 or more standard finishes
- Supply format: flat pack
Applications
Texture Panel Tissage is installed on walls in commercial offices, hospitality venues, retail spaces, educational facilities, and public lobbies where noise control and decorative detail are both required. It is not suitable as a freestanding product. For mounting with an air gap, the panel must be laminated to a solid backer such as MDF so the relief shapes extend correctly from the substrate.
Standards and compliance
ASTM-E84 Class A. AS ISO 9705-2003 Group 1. EN-13501 B-s2-d0.
Frequently asked questions
What does the Tissage pattern look like?

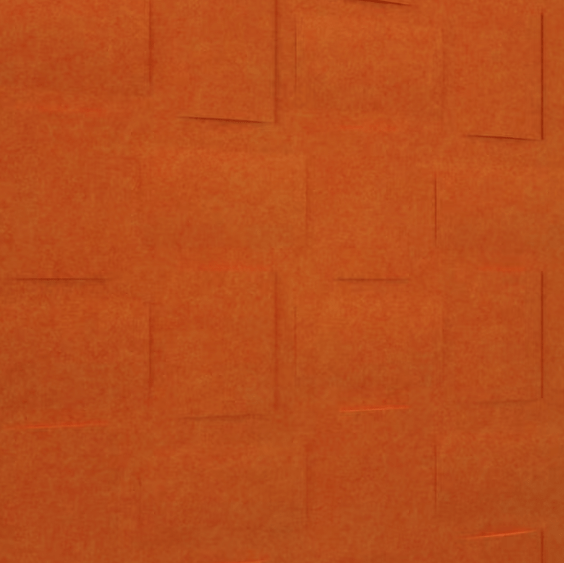

Tissage (French for weaving) features an intricate grid of lines and shapes that creates the appearance of a woven textile in relief, adding depth and craftsmanship-like detail to the wall surface.
Does the three-dimensional surface affect how much sound the panel absorbs?
Yes. The relief geometry changes the angle at which sound strikes the panel surface, which distributes absorption across a broader range of incident angles compared with a flat panel. NRC values of 0.45 to 0.90 are achievable depending on thickness and mounting configuration.
How is the panel cleaned?
Vacuum to remove dust. For general soiling, dab with a damp cloth and a mild liquid detergent solution, rinse with clean water, and pat dry with a lint-free cloth. A 10% household bleach solution can address difficult stains, followed by a clean water wipe and pat dry.
