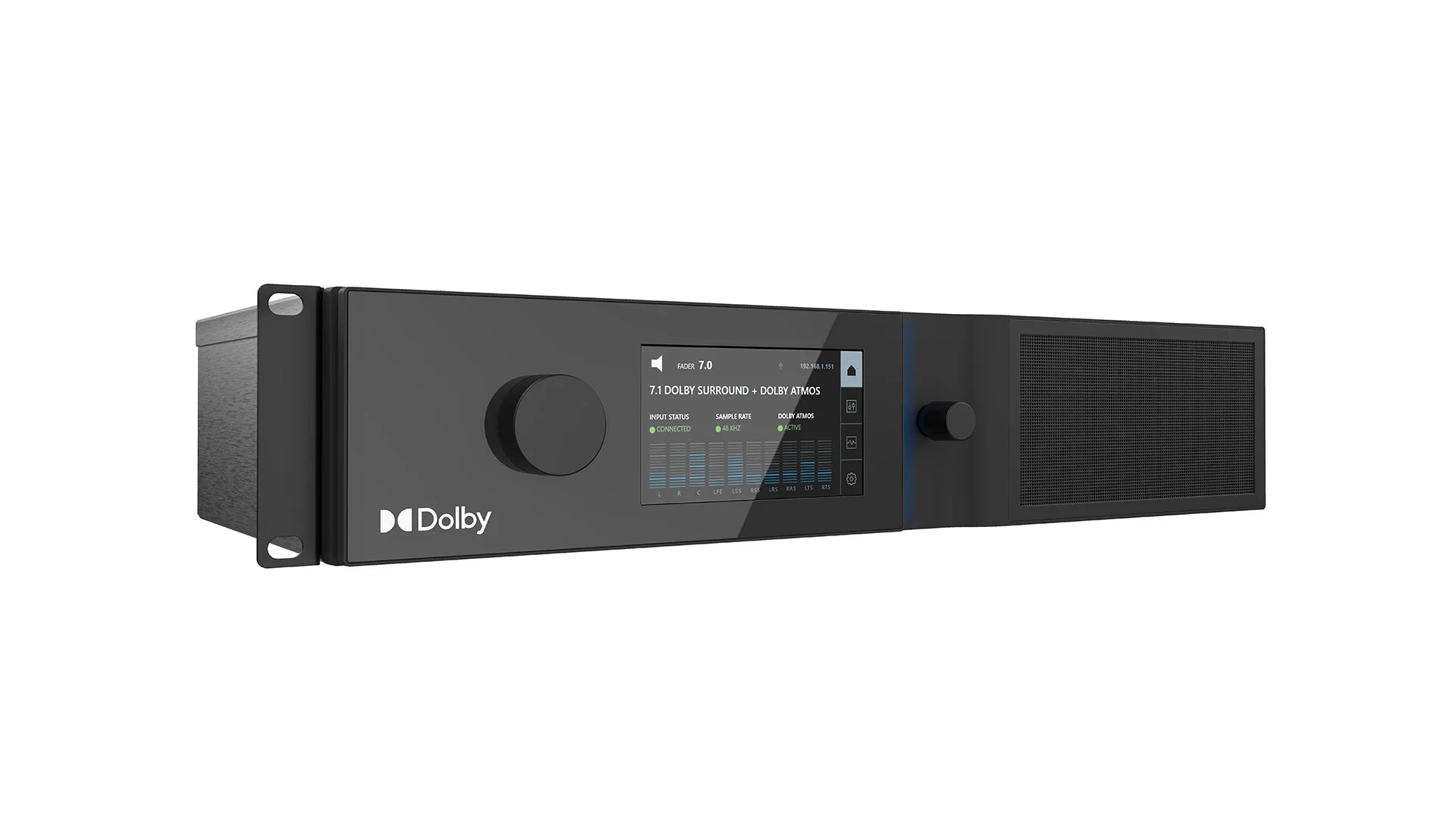

Dolby Atmos® Cinema Processor CP950A
Dolby Atmos Cinema Processor CP950A is a cinema audio processor from Dolby Professional, designed to deliver full Dolby Atmos immersive audio in commercial cinema installations. It renders object-based audio to up to 64 speaker feeds and ships with a built-in Dolby Atmos media block card, removing the need for a separate media server for audio processing.
Specifications
- Dolby Atmos speaker feeds: Up to 64
- Analogue audio outputs: 16 channels
- Digital audio outputs: Up to 64 channels via AES67 or BLU Link
- Integrated media block: Yes, Dolby Atmos media block card included
- Equalisation: High-resolution multi-rate EQ
- Internal crossovers: Yes
- Front panel: Colour touchscreen interface
- Remote access: Web user interface
- Booth monitor: Built-in
- Design: Modular, field-upgradable
Applications
Installed in commercial cinema projection booths to process and distribute Dolby Atmos and legacy surround audio formats to auditorium speaker arrays. Suitable for new builds and upgrades from the CP950, with compatibility with Dolby Atmos Designer for automated system calibration.
Standards and compliance
Full Dolby Atmos licence included. Compatible with Dolby Atmos Designer for precise system calibration. Supports AES67 and BLU Link digital audio standards for speaker feed distribution.
Frequently asked questions
What is the difference between the CP950 and the CP950A?
The CP950A includes an integrated Dolby Atmos media block card and a full Dolby Atmos licence, enabling up to 64 channels of digital output. The CP950 requires a separate upgrade kit (CP950-UPG) and licence to reach equivalent Dolby Atmos capability.
Can the CP950A be field-serviced?
Yes. The CP950A uses a modular mechanical design that allows individual components to be replaced or upgraded in the field without returning the unit for service.
What remote management options are available?
The CP950A provides a web user interface for remote configuration and control, and is compatible with Dolby Atmos Designer software for automated setup and calibration from a connected computer.
Dolby_CP950A_Digital_Brochure.pdf
