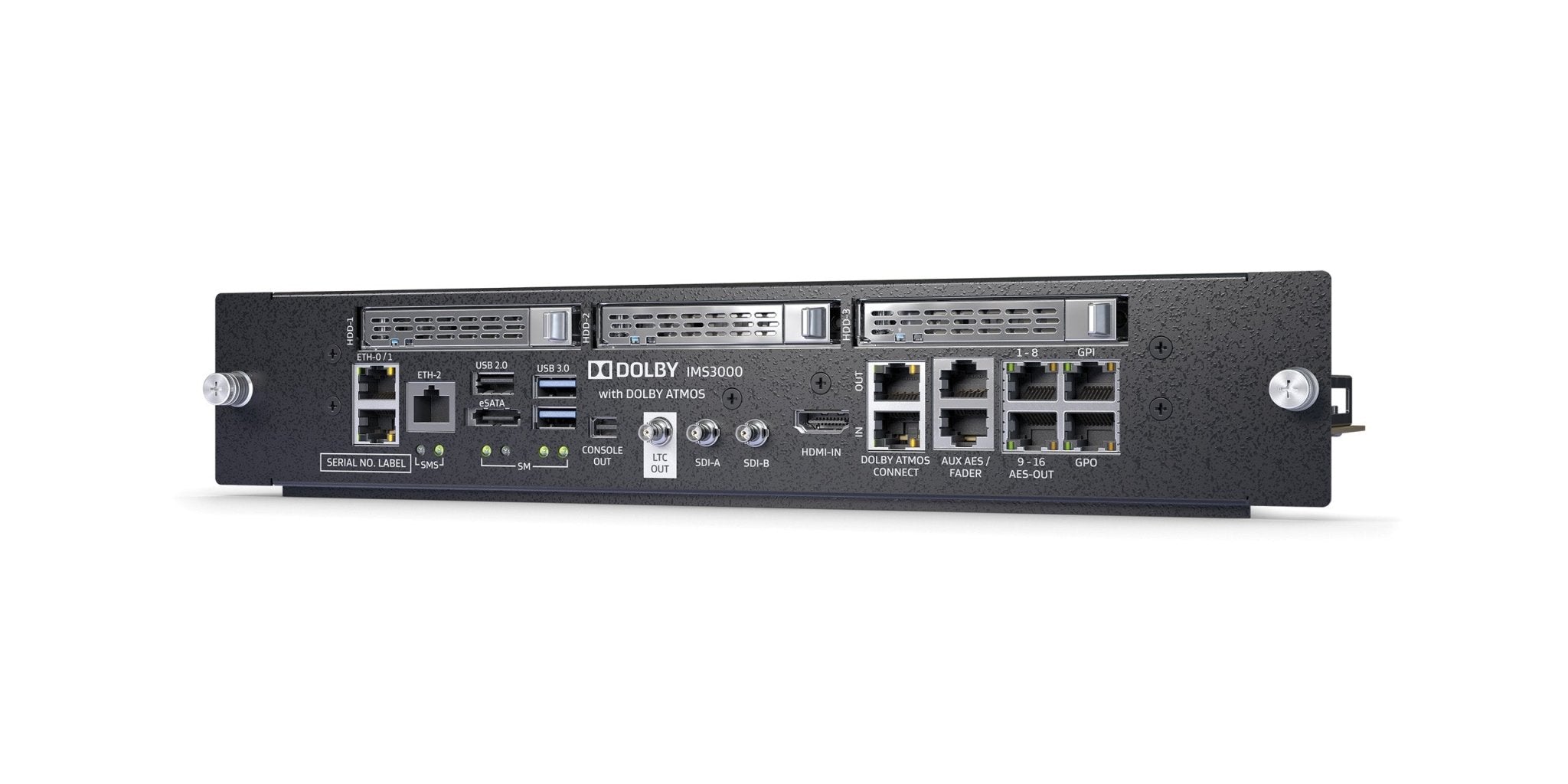

Dolby Integrated Media Server IMS3000
Dolby Integrated Media Server IMS3000 is a digital cinema media server from Dolby Professional, combining image playback and optional audio processing in a single unit for commercial cinema installations. It plays SMPTE and INTEROP digital cinema packages at bit rates up to 500 Mbps and supports resolutions up to 4K 60 fps on compatible displays, with a scalable design built to accommodate future format requirements.
Specifications
- Maximum playback bit rate: 500 Mbps
- Maximum resolution: 4K at 60 fps (on supported projectors and LED displays)
- Internal storage: 2 TB RAID
- Video codecs: JPEG 2000, MPEG-2, H.264
- Ingest interfaces: eSATA, USB 3.0, Ethernet
- General purpose outputs: 6 x GPO
- Timecode output: Linear timecode (LTC)
- HDMI: HDMI 2.0 with 4K 60 fps and HDCP 2.2
- Power consumption: 70 W (active)
- Drive design: Single-board with hot-swappable drives
- Audio processing: Optional internal 5.1/7.1 or Dolby Atmos (licence required)
- Dual projector support: Chase mode available on IMS3000-NB model (SDI inputs required)
Applications
Used as the primary image and audio server in commercial cinema projection booths. Pairs with external cinema processors such as the Dolby CP950 or CP950A, or operates as a standalone unit with internal audio processing enabled. Compatible with cinema LED wall installations via the IMS3-L-NB variant. Supports accessibility devices compliant with SMPTE ST430-10 and live-event Ethernet stream input.
Standards and compliance
DCI-compliant. Supports SMPTE and INTEROP digital cinema package formats. Supports SMPTE ST430-10 accessibility devices. HDMI 2.0 with HDCP 2.2 for secure content delivery.
Frequently asked questions
Can the IMS3000 process Dolby Atmos audio internally?
Yes, the IMS3000 can be field-enabled for internal Dolby Atmos processing up to 64 speaker feeds, removing the need for a separate external cinema processor. A licence purchase is required to activate this capability.
What is the difference between the IMS3000-NB and IMS3000-DS models?
The IMS3000-NB includes SDI inputs and supports Dual Projector Chase mode for installations with two projectors. The IMS3000-DS does not include SDI connections and is intended for single-projector installations only.
How can content be ingested into the IMS3000?
Content can be ingested via eSATA, USB 3.0, or Ethernet, including direct play from a shipping drive. The unit also supports play-while-ingest and offline ingest when used with the NAS storage option.
