Dragon-KXT18P

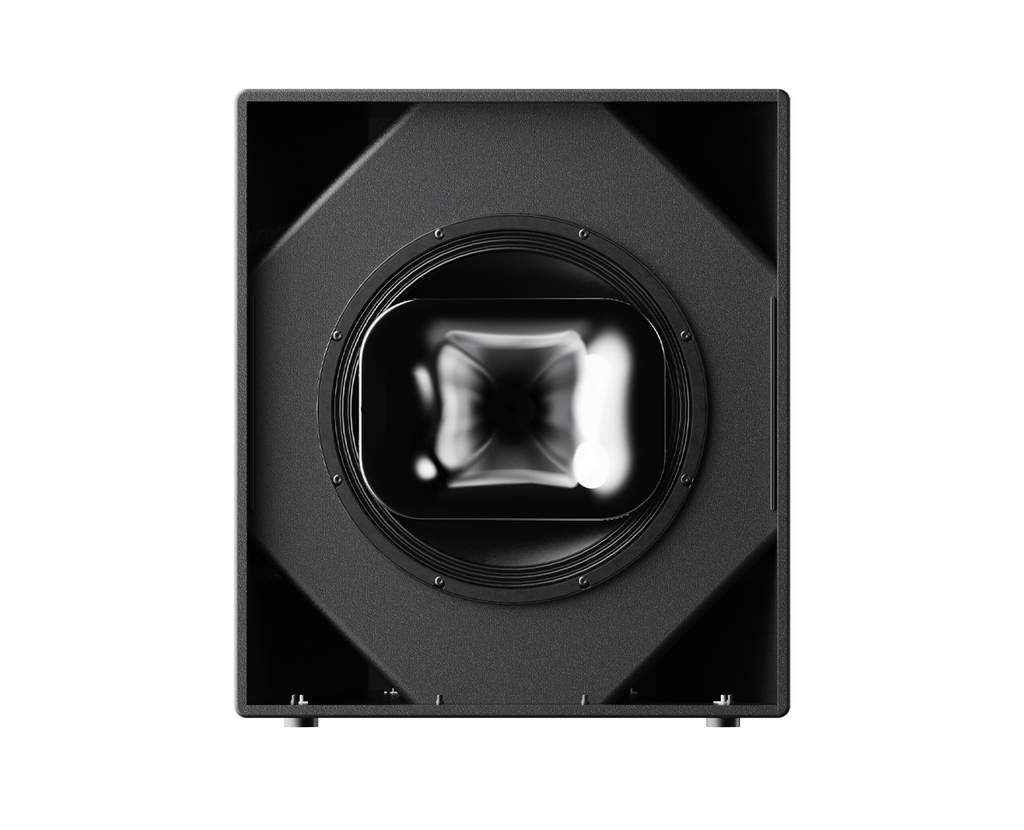

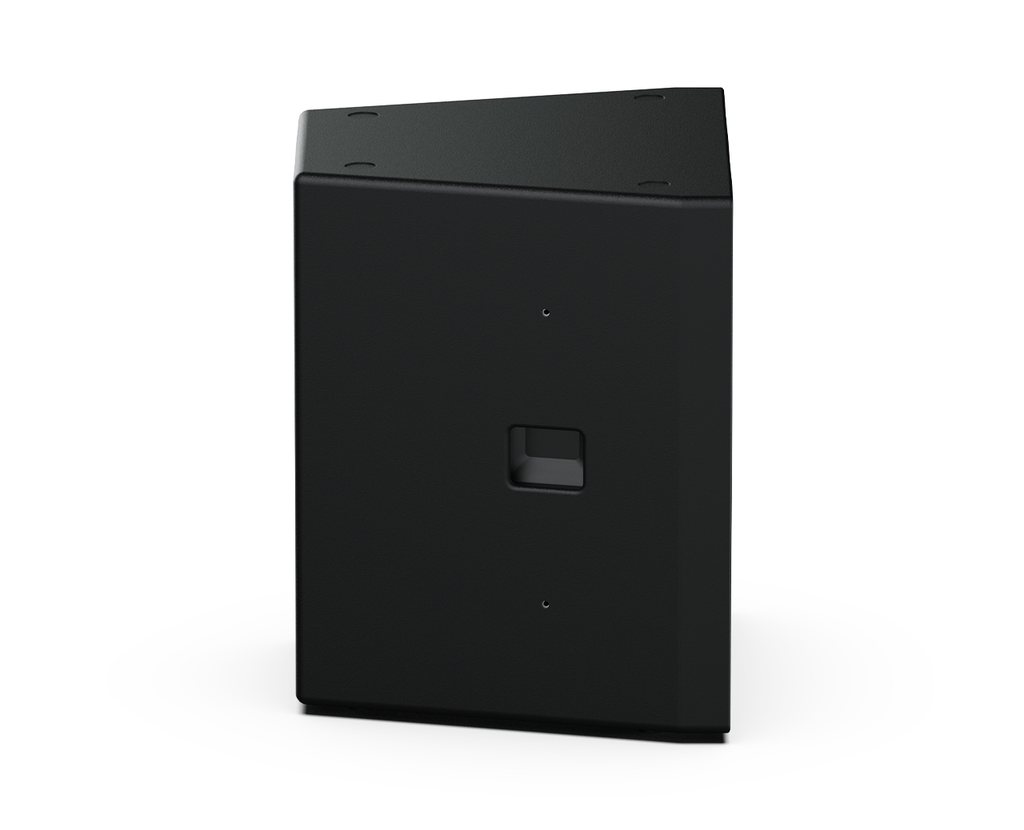

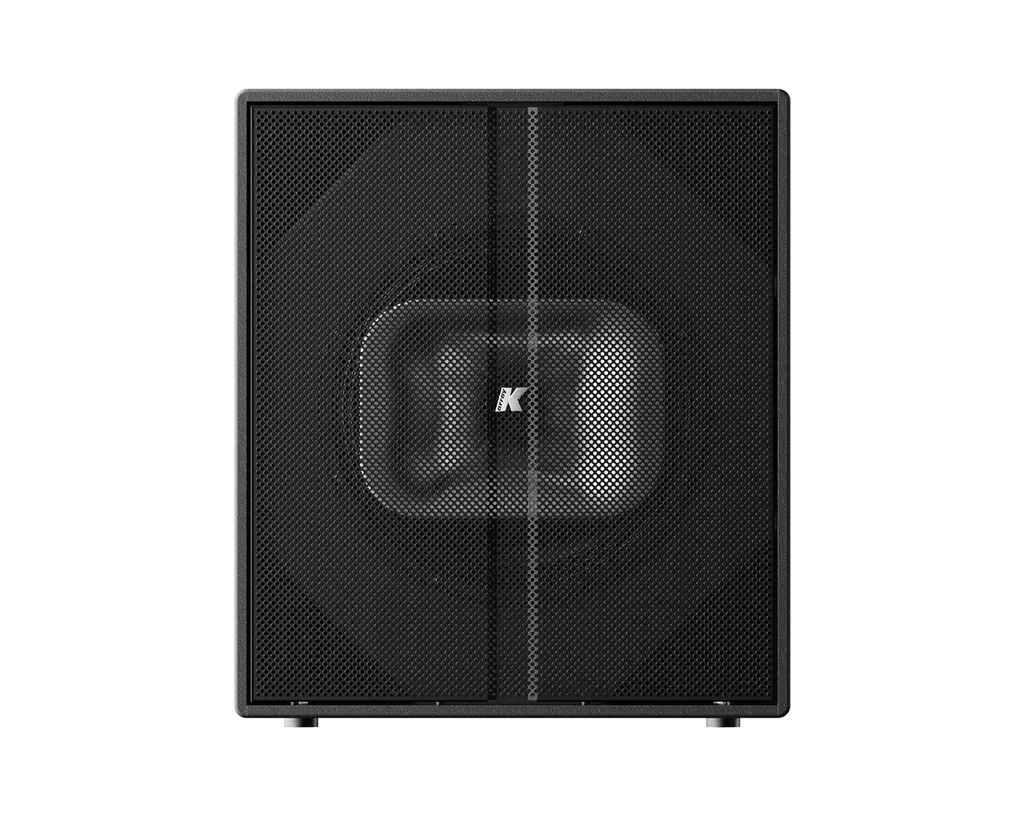

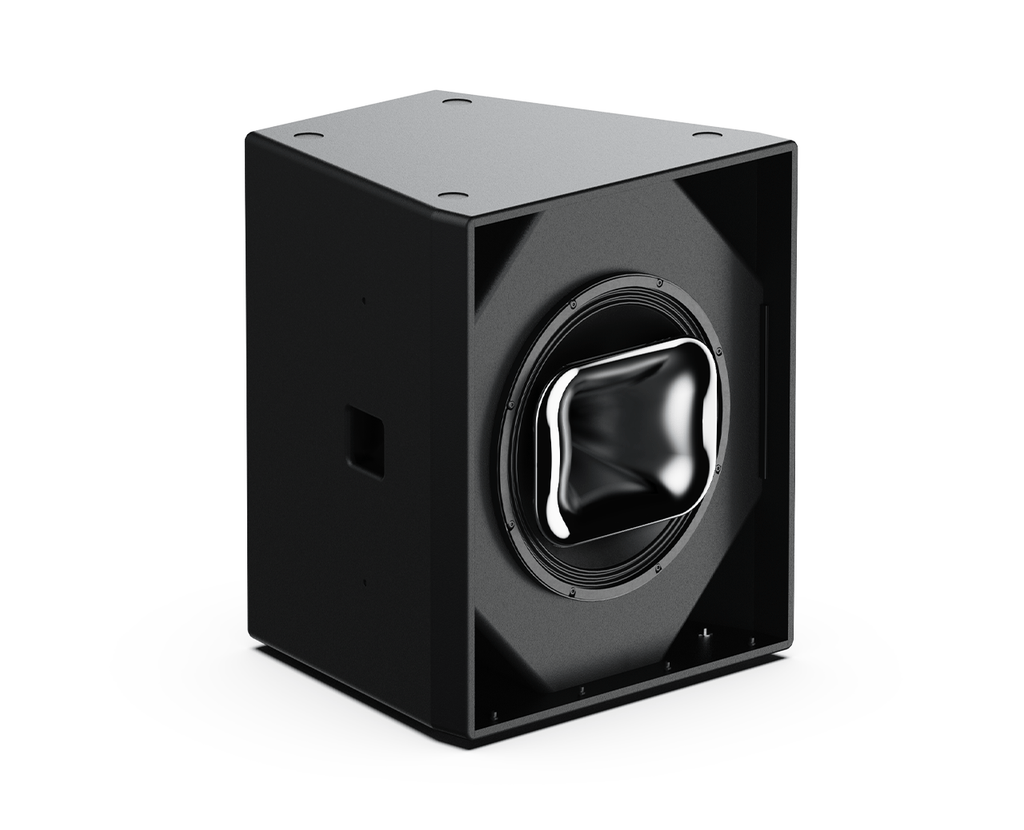

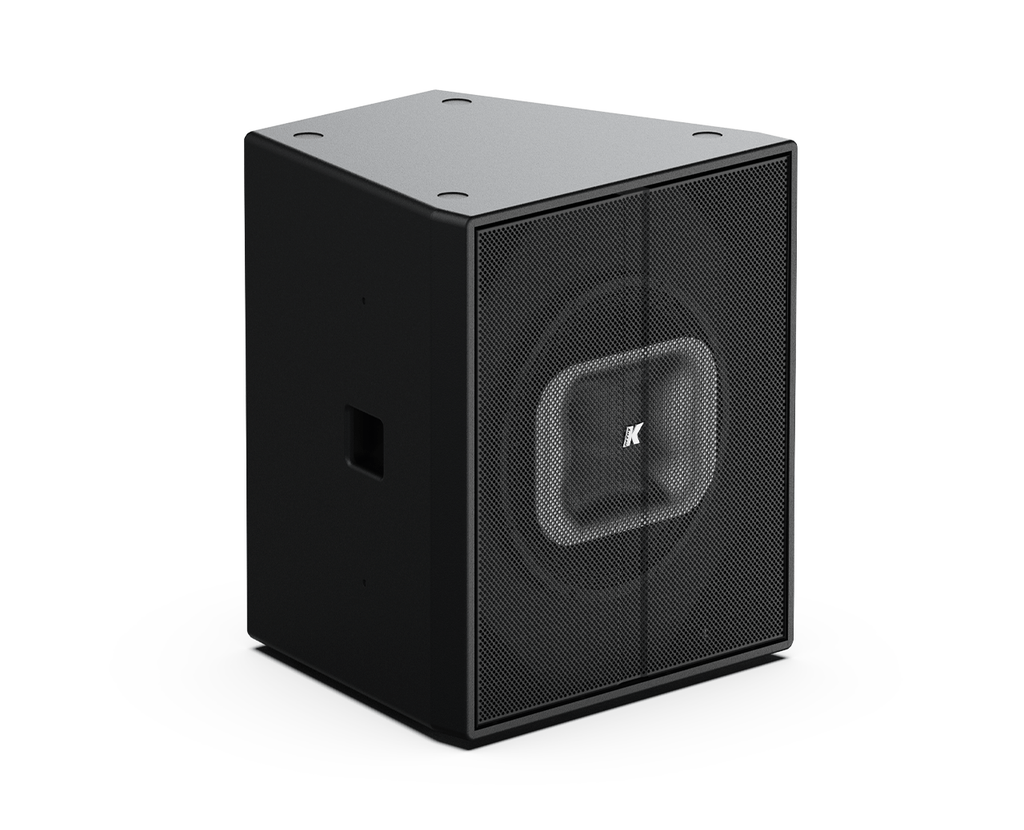

Dragon-KXT18P is a large-format tri-axial point source loudspeaker from K-Array, designed for high-output live sound and club applications. Its 18-inch neodymium woofer, 4-inch mid-frequency compression driver, and 2.5-inch high-frequency compression driver work in a coaxial arrangement, delivering up to 144 dB peak SPL with coherent, wide-bandwidth reproduction down to 48 Hz.
Specifications
- Type: Tri-axial point source
- Woofer: 18-inch neodymium magnet
- Mid-frequency driver: 4-inch compression driver
- High-frequency driver: 2.5-inch compression driver
- Frequency response: 48 Hz to 18 kHz (-6 dB, with dedicated preset)
- Maximum SPL: 144 dB peak (crest factor 12 dB, measured at 1 m)
- Rated power: 1600 W (LF) + 380 W (MHF), bi-amplified
- Coverage: 40 degrees vertical, 60 degrees horizontal (rotatable)
- Nominal impedance: 4 ohm (LF), 8 ohm (MHF)
- Connectors: 2 x SpeakOn NL4
- Dimensions (W x H x D): 650 x 735 x 580 mm
- Weight: 40.8 kg
- Cabinet material: Birch plywood
- Colours: Black, Custom RAL
- IP rating: IP43
Applications
Suited to nightclubs, live music venues, medium to large event spaces, and professional touring installations. The rotatable coverage horn and bi-amplified design allow standalone point-source use, stacked configurations, or vertical and horizontal cluster arrays using dedicated fly bars and mounting accessories.
Standards and compliance
IP43 rated for protection against solid objects larger than 1 mm and water spray at angles up to 60 degrees from vertical.
Frequently asked questions
What cabinet material is used in the Dragon-KXT18P?
The enclosure is constructed from birch plywood, providing structural rigidity for touring and installation use.
Can the Dragon-KXT18P be used outdoors?
Its IP43 rating provides limited weather resistance, offering protection against water spray but not sustained rain or full outdoor exposure without additional sheltering.
What amplifier wiring does the Dragon-KXT18P require?
It uses a bi-amplified configuration: the LF section connects via NL4 pins 2+ and 2-, and the MHF section via pins 1+ and 1-. Both sections are carried on standard SpeakOn NL4 connectors.
