Firenze-KX12F I

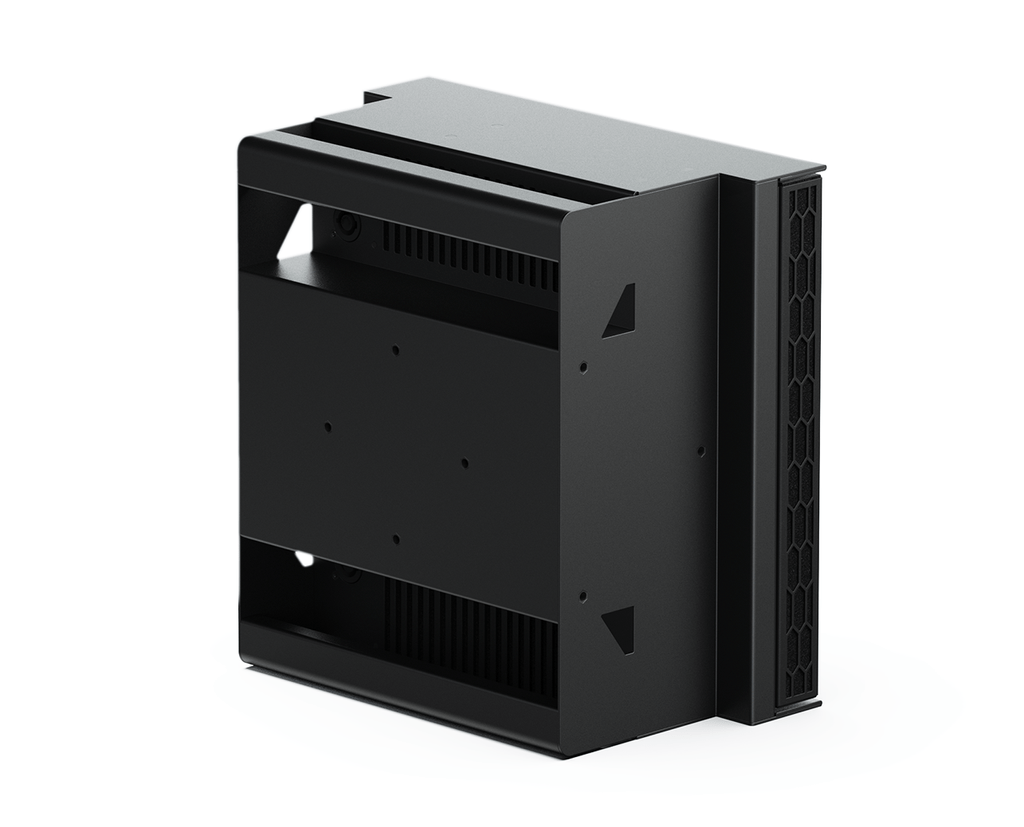

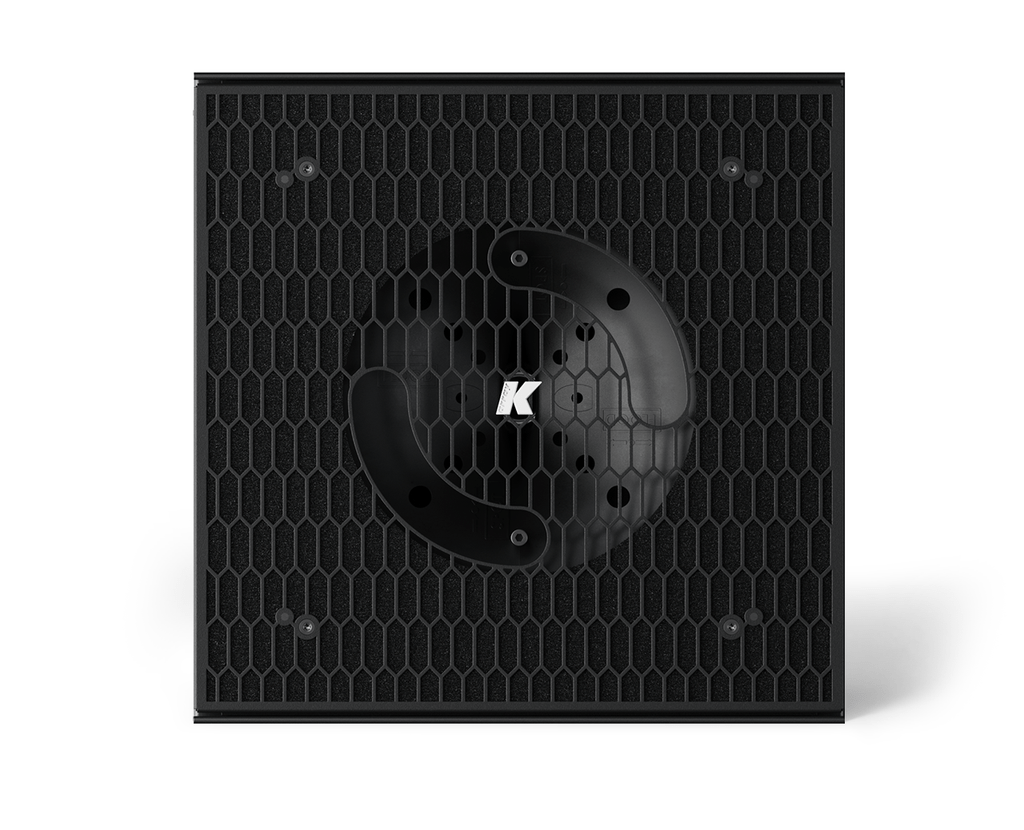

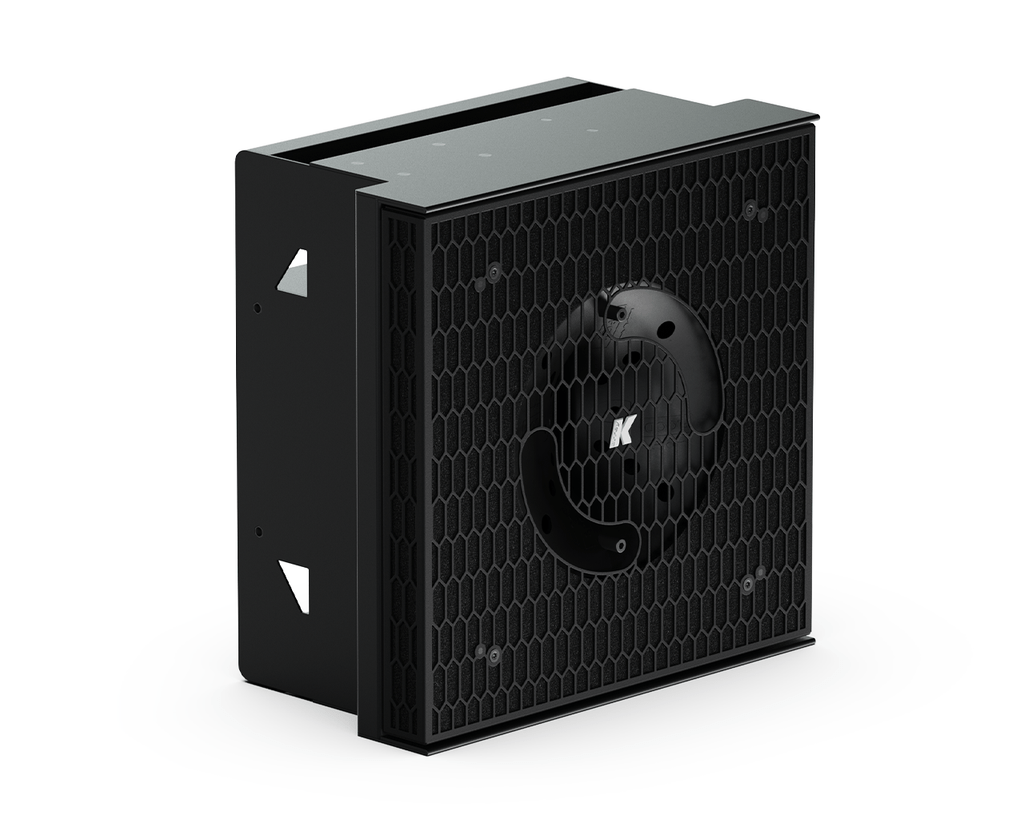

The Firenze-KX12F I is a passive coaxial point-source loudspeaker from K-Array, combining a 12-inch woofer with a 1.7-inch compression driver in a stainless steel enclosure. Delivering up to 134 dB peak SPL and 1200 W rated power, it provides user-selectable coverage angles for precise dispersion in touring and installed sound applications.
Specifications
- Type: Passive coaxial point source
- Transducers: 12-inch neodymium woofer and 1.7-inch compression driver (coaxial)
- Rated Power: 1200 W
- Frequency Response: 121 Hz to 18 kHz (-6 dB, with dedicated preset)
- Max SPL: 134 dB peak (measured at 1 m, crest factor 12 dB)
- Coverage: User-selectable: 30 degrees vertical / 90 degrees horizontal, or 90 degrees vertical / 30 degrees horizontal
- Nominal Impedance: 8 ohm
- Connectors: 2 x SpeakON NL4 (1+/1- signal; 2+/2- through)
- Dimensions (W x H x D): 351 x 350 x 203 mm
- Weight: 14 kg
- Enclosure: Stainless steel with wide-mesh grille
- Colours: Black, Custom RAL
- IP Rating: IP54
Applications
The Firenze-KX12F I is designed for DJ monitoring, club dancefloors, distributed sound systems, and touring step-array configurations. Its adjustable waveguide allows coverage angles to be set on site to suit the venue geometry. It is fully compatible with the Firenze-KH7P I line array element and the broader Firenze family, functioning as a fill speaker, front-fill, or standalone point source.
Frequently asked questions
How are the coverage angles adjusted on the KX12F I?
The speaker features a user-adjustable waveguide that can be set to either 30 degrees vertical by 90 degrees horizontal, or 90 degrees vertical by 30 degrees horizontal, to match the coverage requirements of the installation.
Is the Firenze-KX12F I compatible with the Firenze line-array system?
Yes. It is fully compatible with the Firenze-KH7P I line array element and is designed to integrate within the Firenze family for supplementary coverage in step-array and touring configurations.
Can the KX12F I be used outdoors?
Yes. The IP54 rating provides protection against dust and water splashes, making the unit suitable for outdoor stages and covered festival environments.
