Kayman-KY102

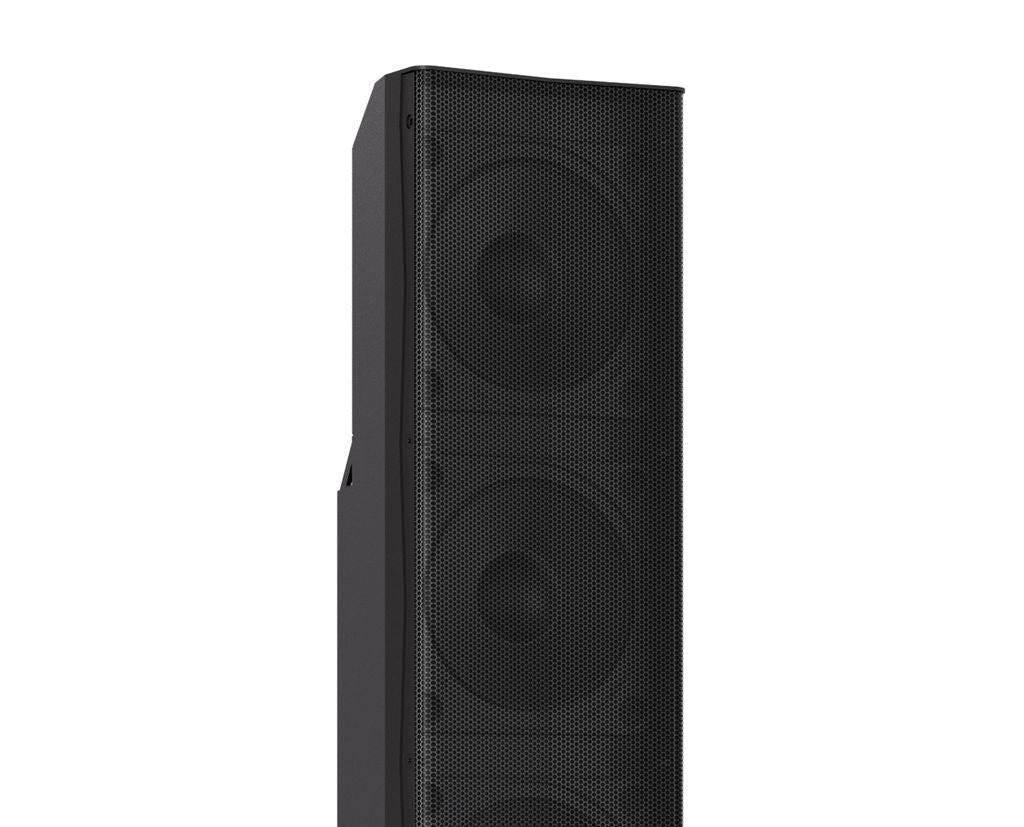

The Kayman-KY102 is a passive slim line-array loudspeaker from K-Array, built from stainless steel and housing eight 4-inch neodymium woofers. Rated to 138 dB peak SPL and designed for both indoor and outdoor installations, it delivers controlled vertical dispersion of 7 to 30 degrees with a 90-degree horizontal pattern.
Specifications
- Type: Passive slim line array
- Transducers: 8 x 4-inch neodymium magnet woofers
- Rated Power: 1200 W
- Frequency Response: 120 Hz to 20 kHz (-6 dB, with dedicated preset)
- Frequency Response (full-range preset): 70 Hz to 20 kHz (-6 dB)
- Max SPL: 138 dB peak (with dedicated preset)
- Max SPL (full-range preset): 126 dB peak
- Coverage: Vertical 7 to 30 degrees, Horizontal 90 degrees
- Nominal Impedance: 8 ohm or 32 ohm (selectable)
- Connectors: SpeakON NL4 (1+/1- signal; 2+/2- through)
- Dimensions (W x H x D): 116 x 1000 x 134 mm
- Weight: 14.9 kg
- Enclosure: Stainless steel

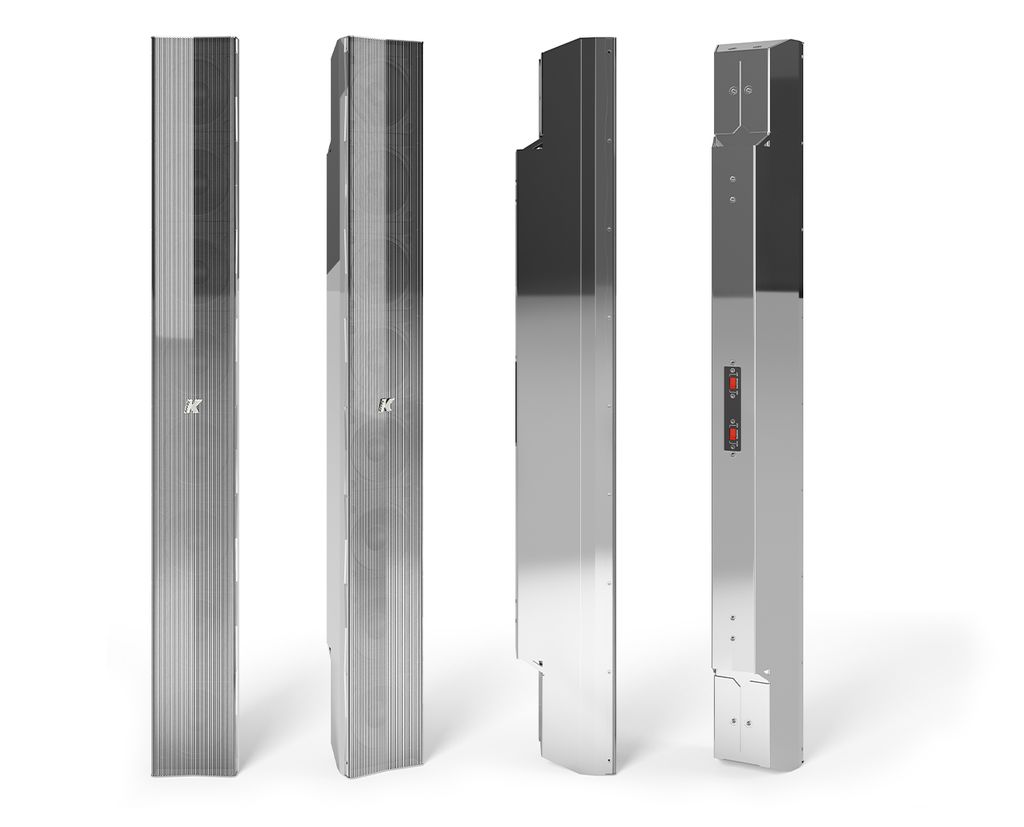

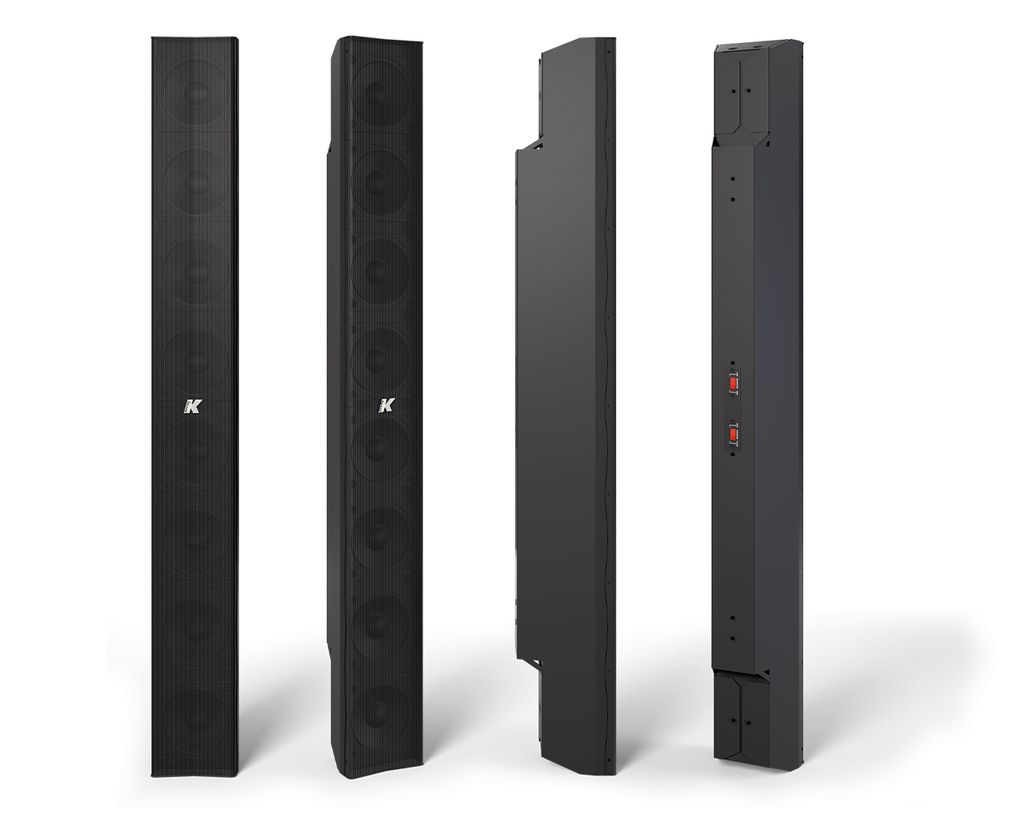

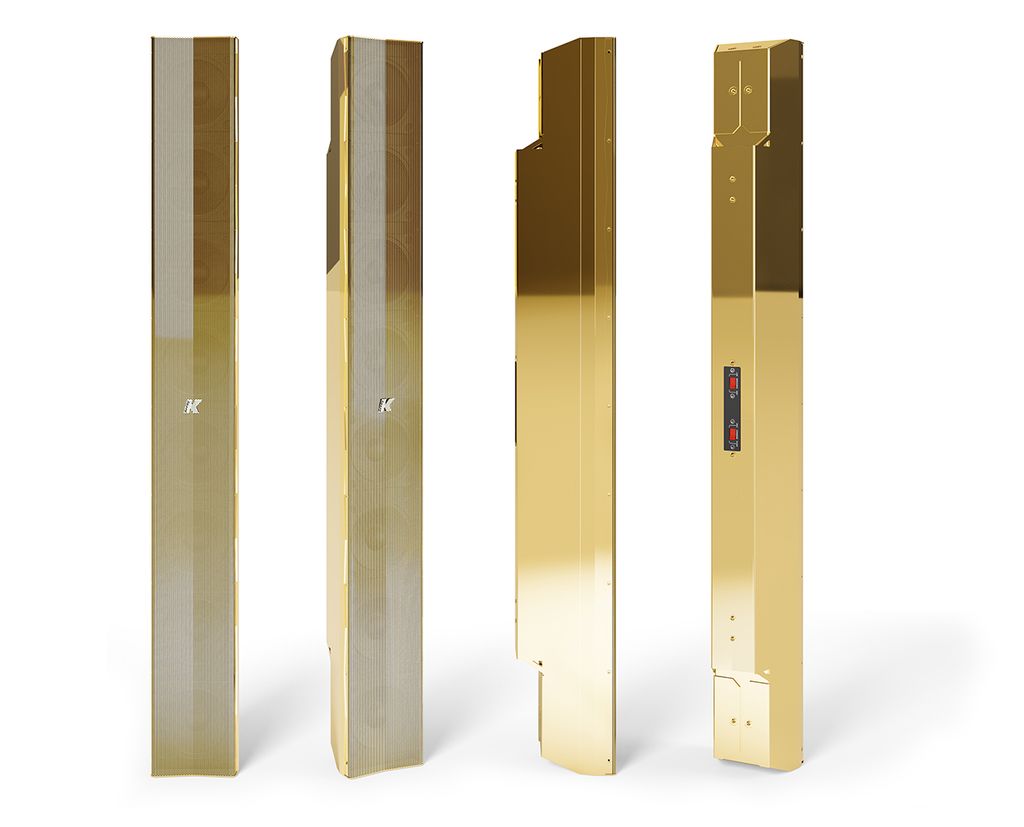

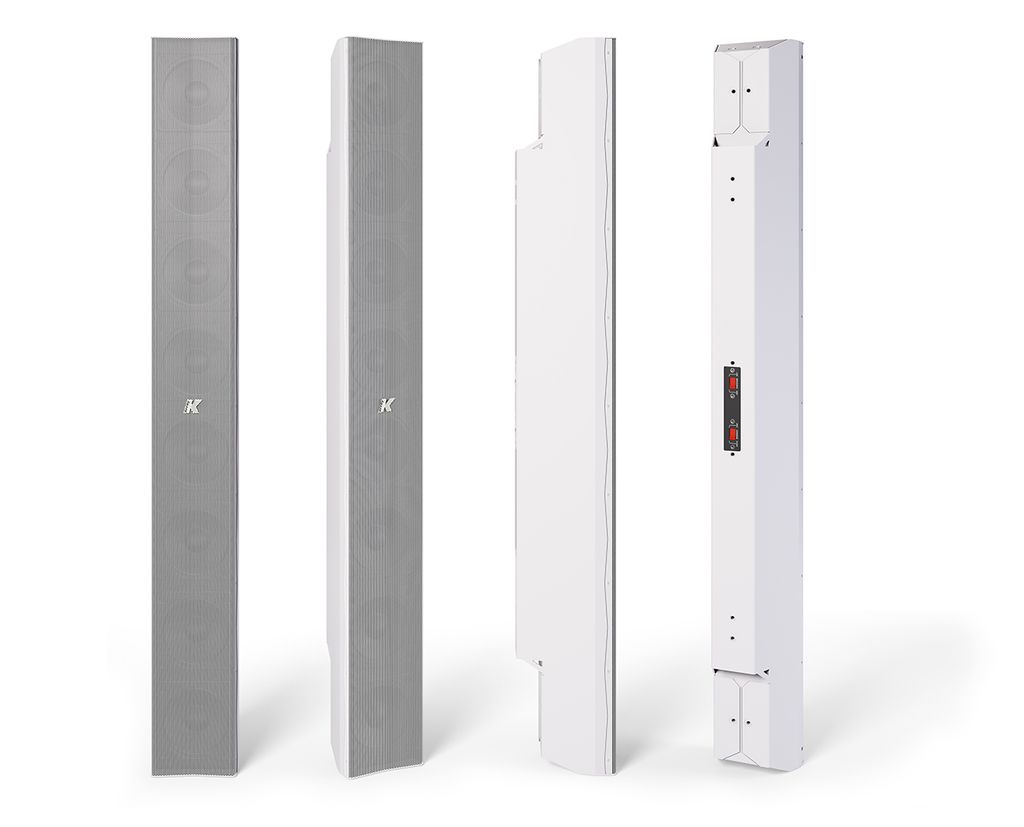

- Colours: Black, White, Custom RAL, Custom finishes
- IP Rating: IP64 (upgradeable to IP65 with K-IP65KITA or K-IP65KITB accessories)
Applications
The Kayman-KY102 suits hospitality venues, live event stages, residential installations, and yacht or marine environments. Its slim stainless steel profile integrates discreetly into architectural settings while providing coverage control through K-Array's rigging accessories, which support vertical and horizontal line-array configurations. It pairs with K-Array Thunder and Rumble subwoofers and is powered by Kommander amplifiers for optimised system performance.
Standards and compliance
The Kayman-KY102 carries an IP64 rating as standard. With the optional K-IP65KITA or K-IP65KITB accessory kits, the enclosure achieves IP65 compliance, including advanced anti-corrosion and salt-resistant protection for marine and coastal installations.
Frequently asked questions
What is the full-range preset and when should it be used?
The full-range preset extends frequency response to 70 Hz, allowing the KY102 to operate without a dedicated subwoofer in lower-demand settings. This preset is available only on four-channel amplifiers or amplifiers with EBS firmware, and reduces maximum SPL to 126 dB peak.
Can multiple KY102 units be linked to form a line array?
Yes. The KY102 supports a range of rigging accessories for vertical and horizontal linking, enabling continuous line-array configurations. Selectable impedance of 8 ohm or 32 ohm allows flexibility in multi-unit wiring.
Is the Kayman-KY102 suitable for permanent outdoor installation?
Yes. The standard IP64 rating protects against dust and water ingress, and the stainless steel enclosure resists corrosion. IP65 certification is achievable by adding the K-IP65KITA or K-IP65KITB accessory kits.
