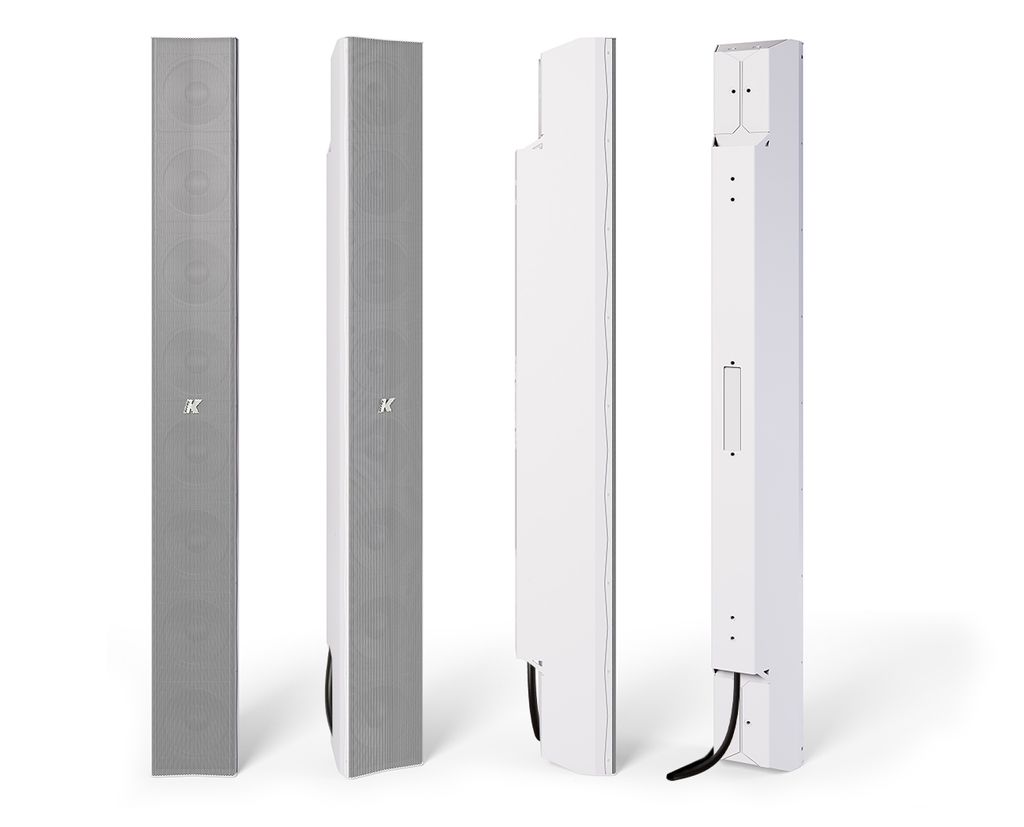

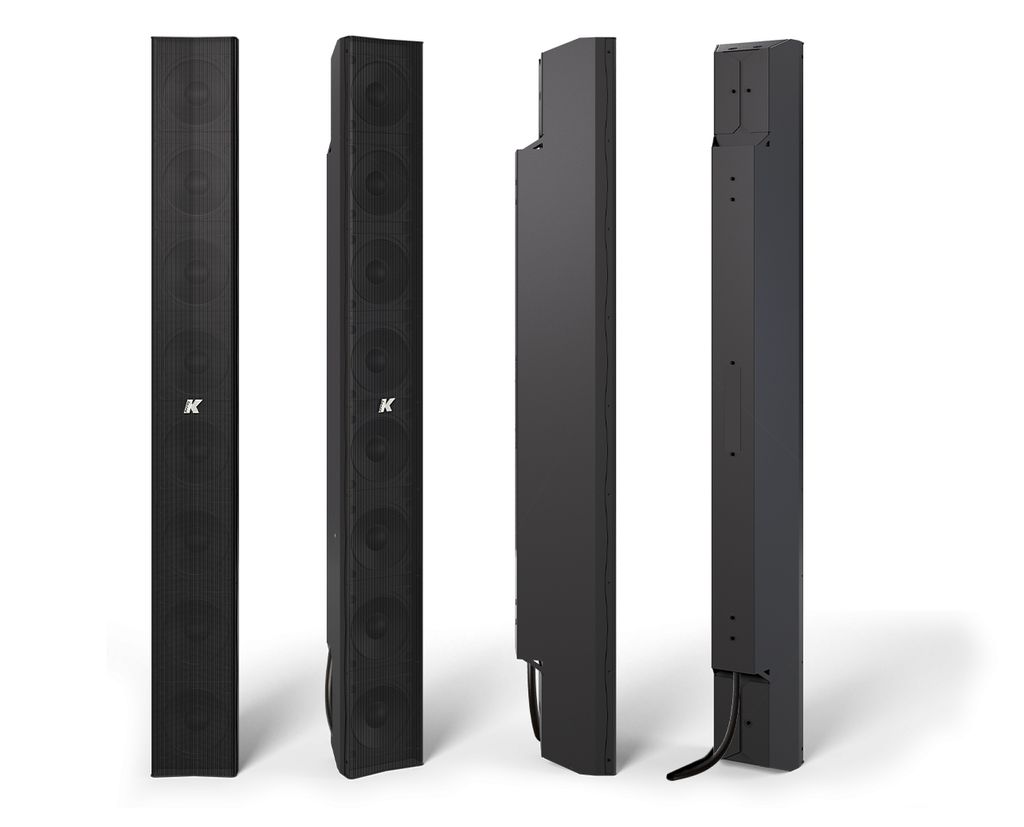

Kayman-KY102-EBS
Kayman-KY102 in a NEW VERSION!

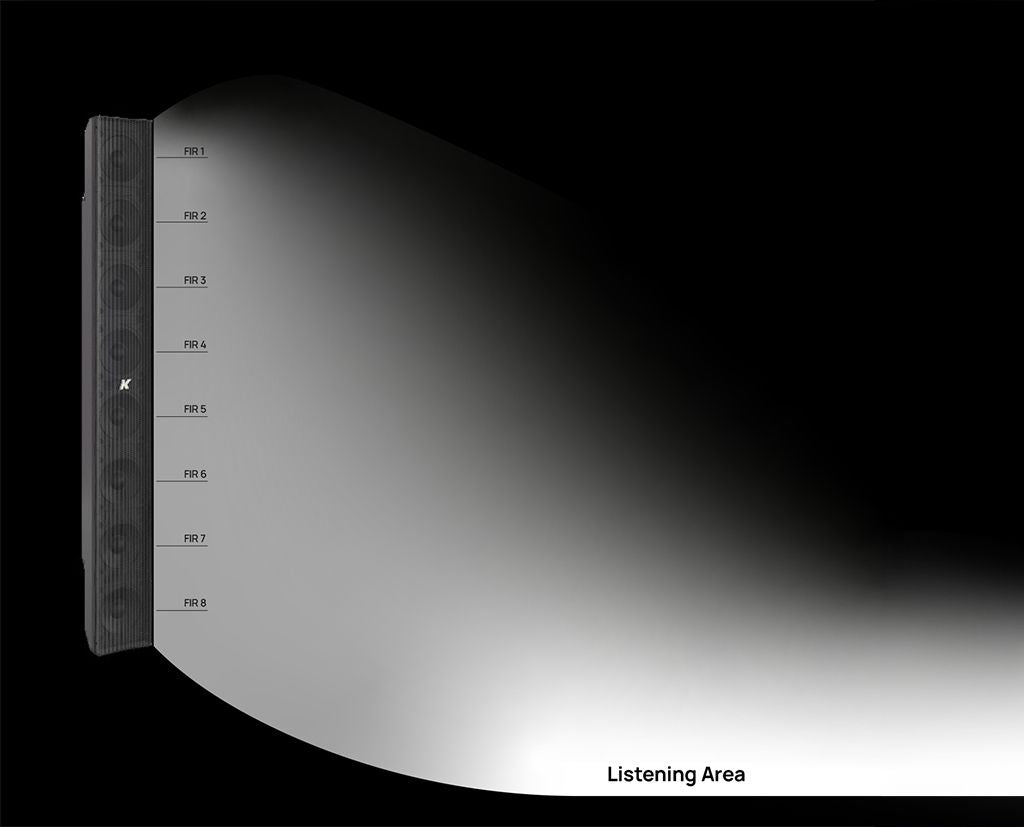

Steerable line array element thanks to EBS - Electronic Beam Steering
We designed the KY102-EBS to expand the possibilities and provide an advanced solution to control emission and directivity in various scalable applications that require beam steering, with the uncompromising sound quality and features of our famous Kayman speakers! This is the evolution of our most powerful massive column array element. With a maximum output SPL of 138 dB and advanced Electronic Beam Steering through FIR processing on 8 independent amp channels, the KY102-EBS sets new standards in precision and power.
All Kayman-KY102-EBS components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.
Specifications
- Type: Passive steerable line array element
- Transducers: 8 x 4" neodymium magnet woofers
- Frequency Response: 120 Hz – 20 kHz (-6 dB) (1)
- Max SPL: 138 dB (peak) (2)
- Rated Power: 8x 150W
- Coverage: Vertical digitally adjustable | Horizontal 90°
- Connectors: 16-wires multicore cable
- Nominal Impedance: 8x 4Ω
Handling and Finishes
- Dimensions (W x H x D): 116 x 1000 x 134 mm (4.6 x 39.4 x 5.3 in)
- Weight: 14.9 kg (32.8 lb)
- Material: Stainless Steel
- Colors: Black, White, Custom RAL

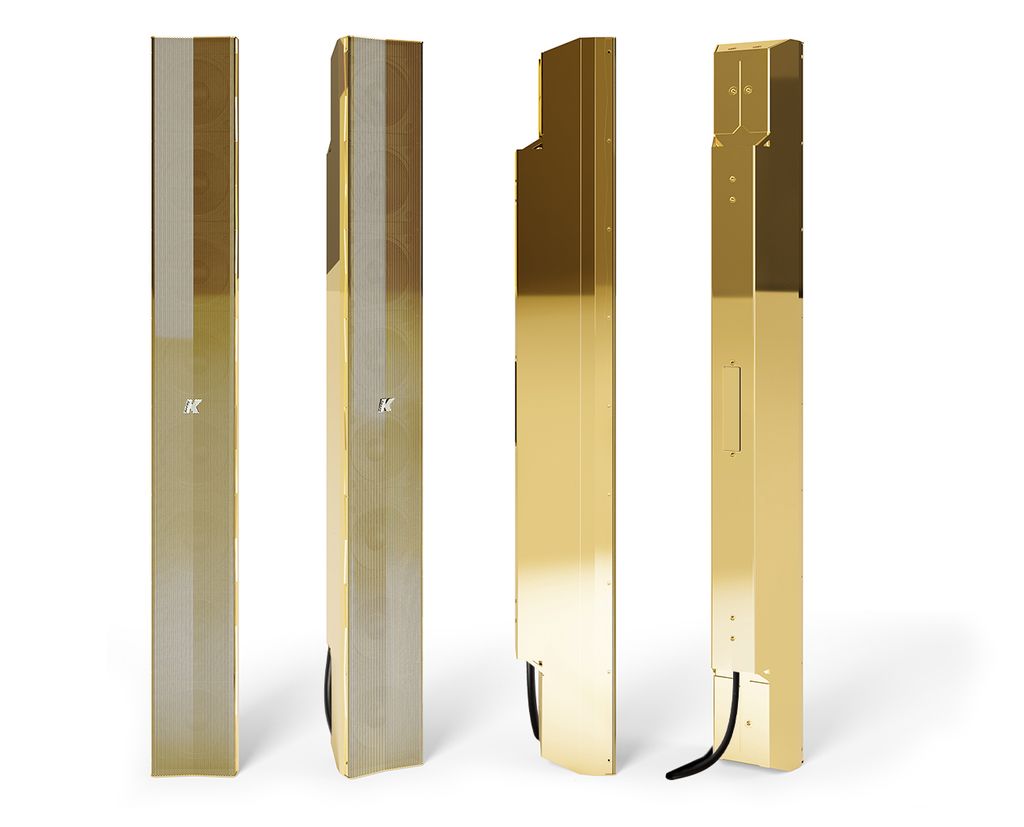

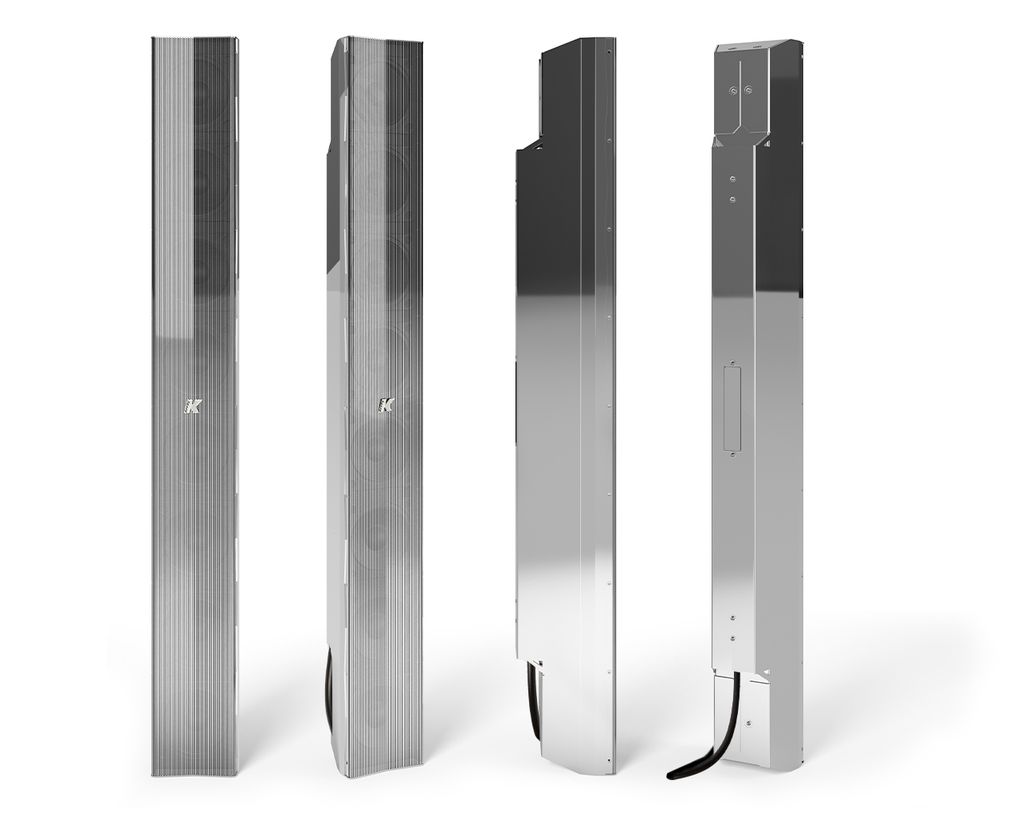

- Finishes: 24K Gold, Polished, Brushed
Regulations
- IP Rating: IP64 (3)
Notes:
(1) With dedicated preset.
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m – and may vary depending on steering settings.
(3) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant).
Disclaimer: Passive loudspeakers require dedicated presets loaded on board K-array amplifiers.
Passive loudspeakers require a dedicated K-array Kommander-KA amplifier with firmware-EBS (KA-EBS model on K-Monitor).
New materials and designs may be introduced without prior notice.
Documents
Click here to view the Technical Data
