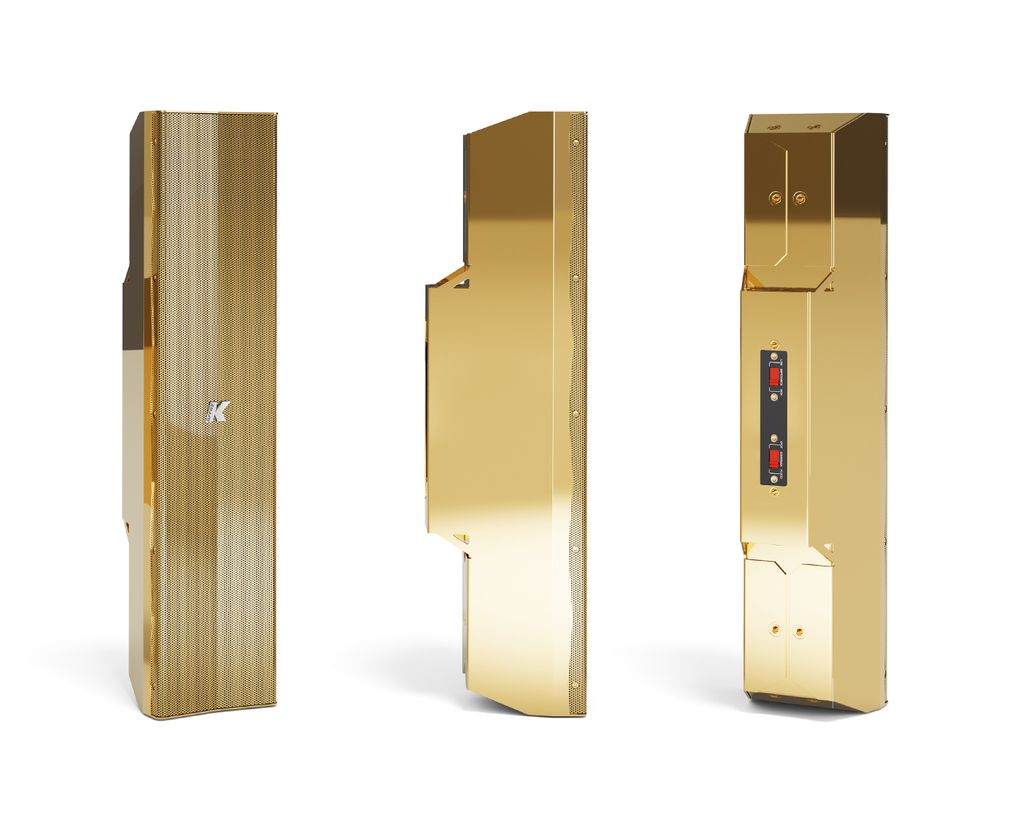

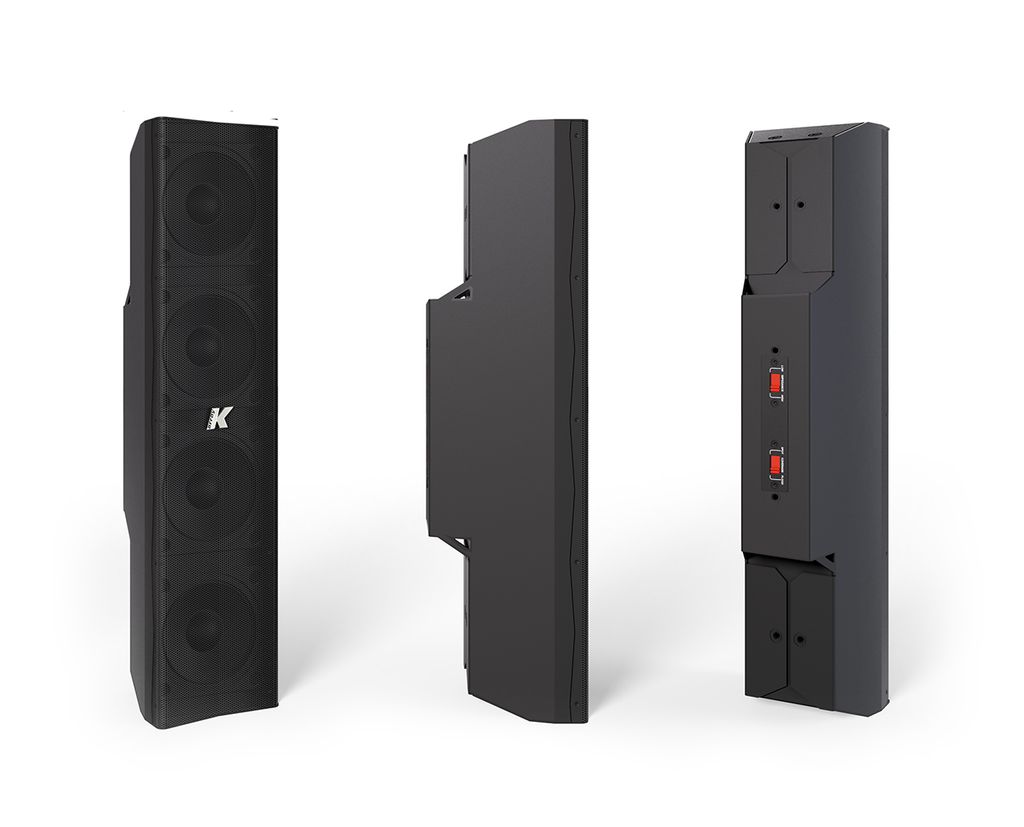

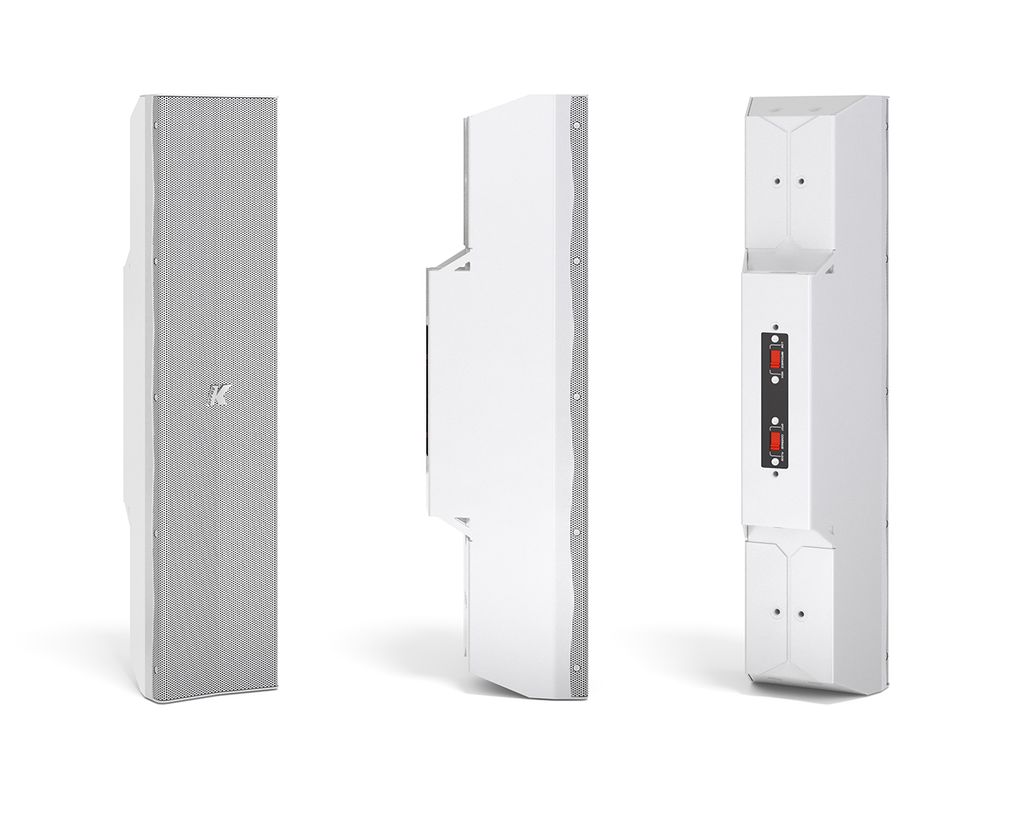

Kayman-KY52
The widest line array in our product collection, the Kayman-KY52 is a passive speaker comprised of four closely-spaced 4” neodymium magnet woofers. A true line array, the KY52 has a variety of rigging accessories to offer different linking and hanging options for vertical and horizontal line array configurations. For easier use and integration with other speakers or amplifiers, the KY52 features two different impedance values (4Ω – 16Ω).
All Kayman-KY52 components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.
Specifications
- Type: Line array
- Transducers: 4 x 4" neodymium magnet woofers
- Frequency Response: 120 Hz – 20 kHz (-6 dB) (1)
- Frequency Response (Full-range preset): 60 Hz – 20 kHz (-6 dB) (2)
- Max SPL: 132 dB (peak) (3)
- Max SPL (Full-Range preset): 120 dB (peak) (4)
- Rated Power: 600 W
- Coverage: Vertical 10° - 45° | Horizontal 90°
- Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
- Nominal Impedance: 4Ω / 16Ω selectable
Handling and Finishes
- Dimensions (W x H x D): 116 x 510 x 134 mm (4.6 x 20.1 x 5.3 in)
- Weight: 5.8 kg (12.78 lb)
- Material: Stainless Steel
- Colors: Black, White, Custom RAL
- Finishes: 24K Gold, Polished, Brushed
Regulations
- IP Rating: IP64 (5)
Notes:
(1) With dedicated preset.
(2) The specified frequency range applies only when using the dedicated FULL-RANGE preset. This preset is available exclusively on 4-channel amplifiers or amplifiers equipped with firmware EBS.
(3) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m.
(4) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m.
(5) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant).
Disclaimer: Passive loudspeakers require dedicated presets loaded on board K-array amplifiers.
New materials and designs may be introduced without prior notice.
Documents
Click here to view the Technical Data
