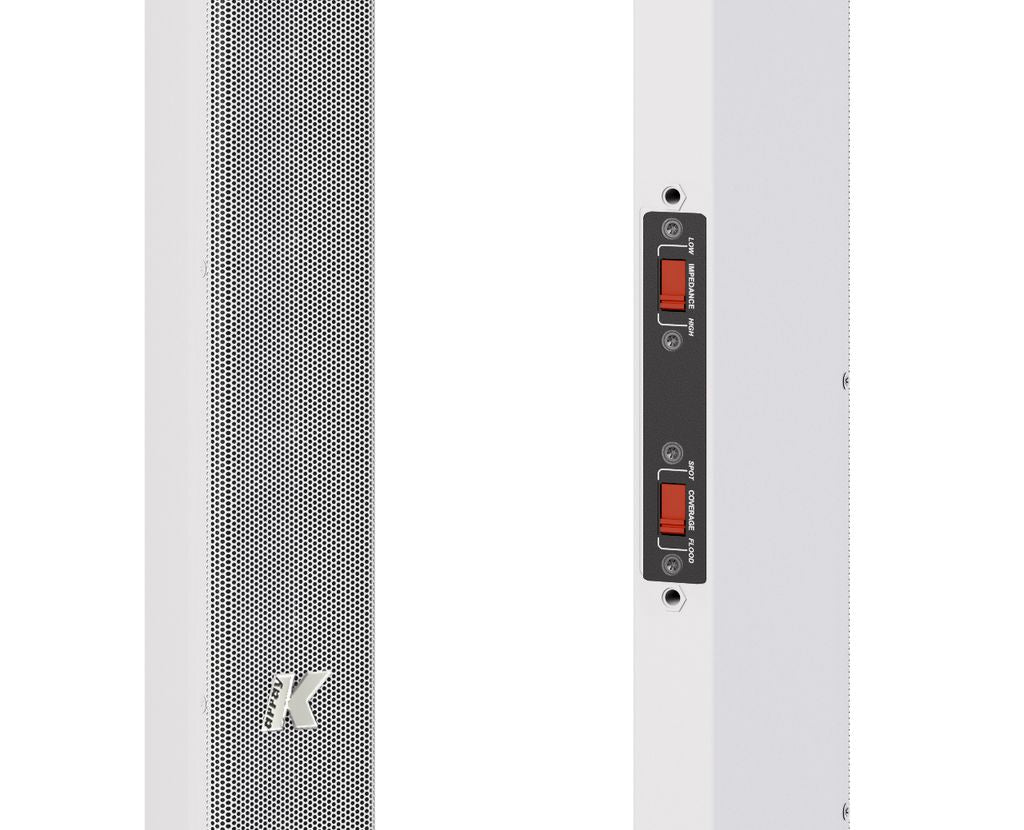

Kobra-KK102 I
One meter long, the Kobra-KK102 I is a passive loudspeaker comprised of sixteen 2" neodymium magnet woofers. With two different impedance values 8Ω / 32Ω, the Kobra-KK102 allows the user to select between wide or narrow coverage. Featuring true line array characteristics, the Kobra-KK102 is an excellent design element for retail, restaurants and hotels.
All Kobra-K102 I components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.
Line Array Speaker
Specifications
- Type: Line array
- Transducers: 16 x 2" neodymium magnet woofers
- Frequency Response: 150 Hz - 18 kHz (-6 dB) (1)
- Max SPL: 126 dB (peak) (2)
- Rated Power: 400 W
- Coverage: Vertical 7° - 35° | Horizontal 120°
- Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
- Nominal Impedance: 8Ω / 32Ω selectable
Handling and Finishes
- Dimensions (W x H x D): 59 x 1000 x 81 mm (2.3 x 39.4 x 3.2 in)
- Weight: 4.8 kg (10.6 lb)
- Material: Stainless Steel

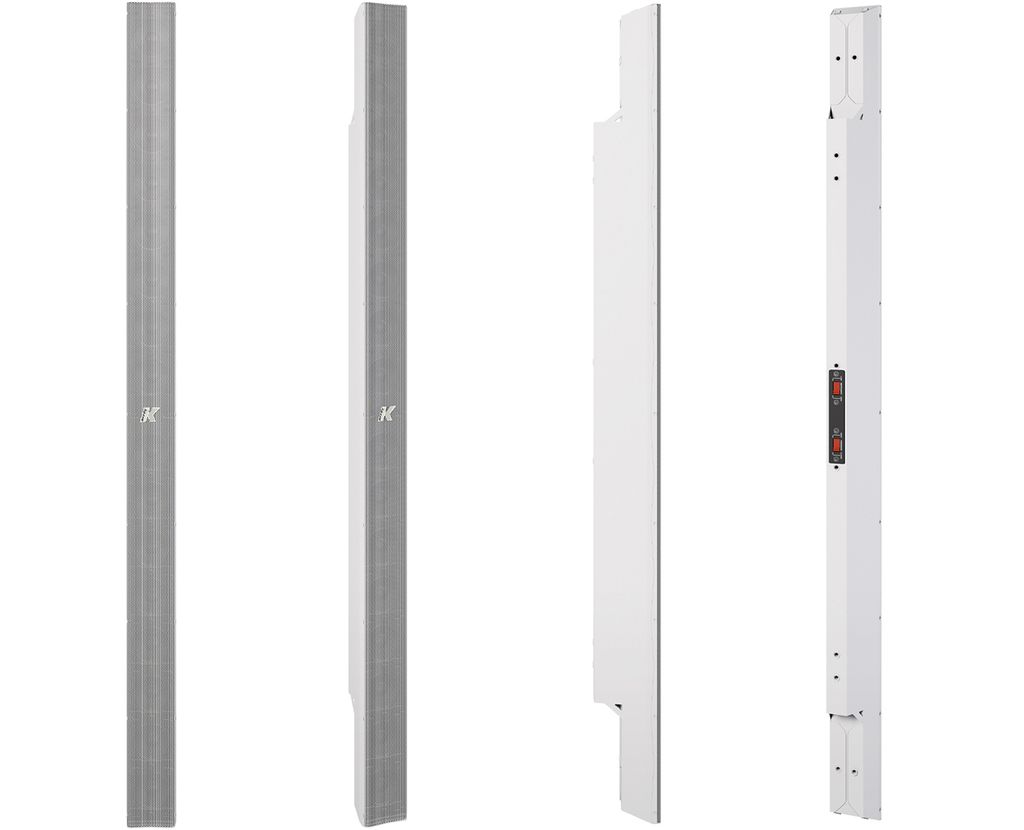

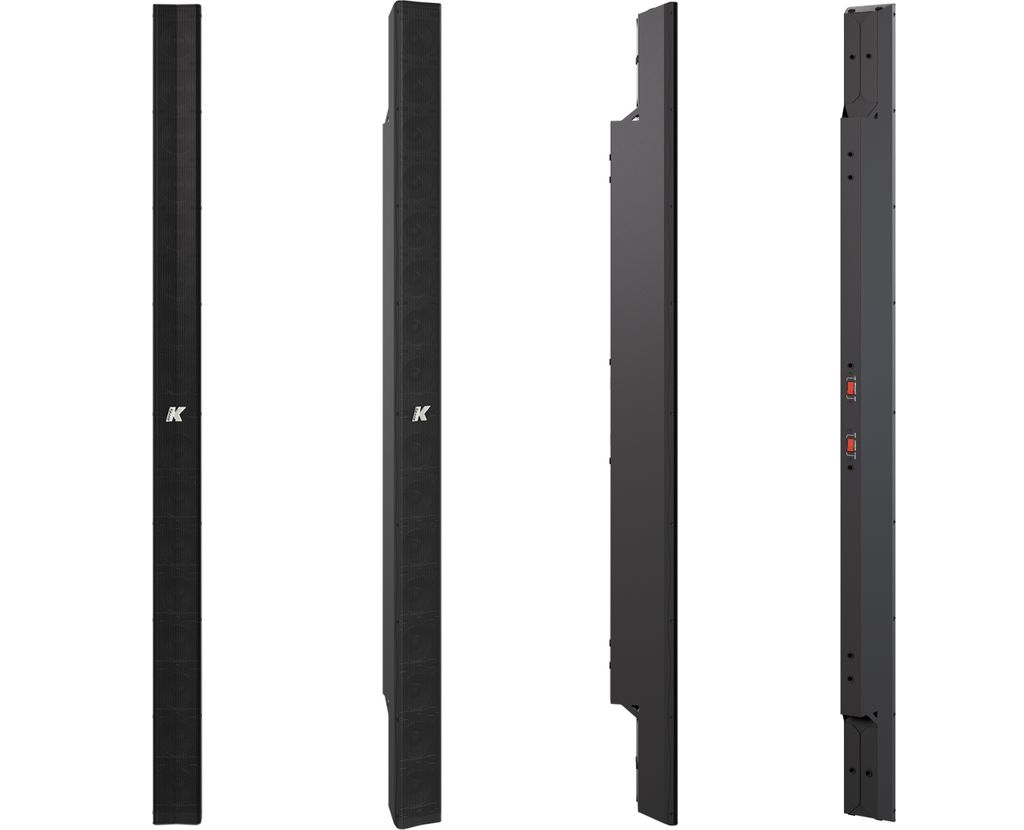

- Colors: Black, White, Custom RAL

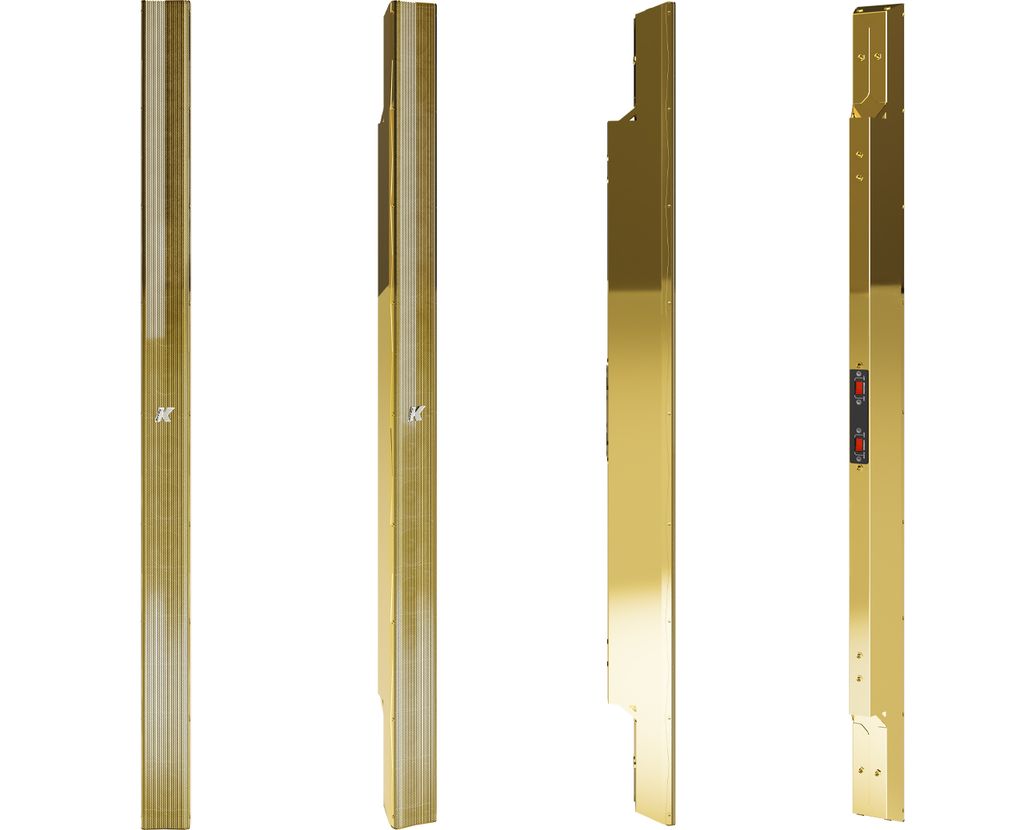

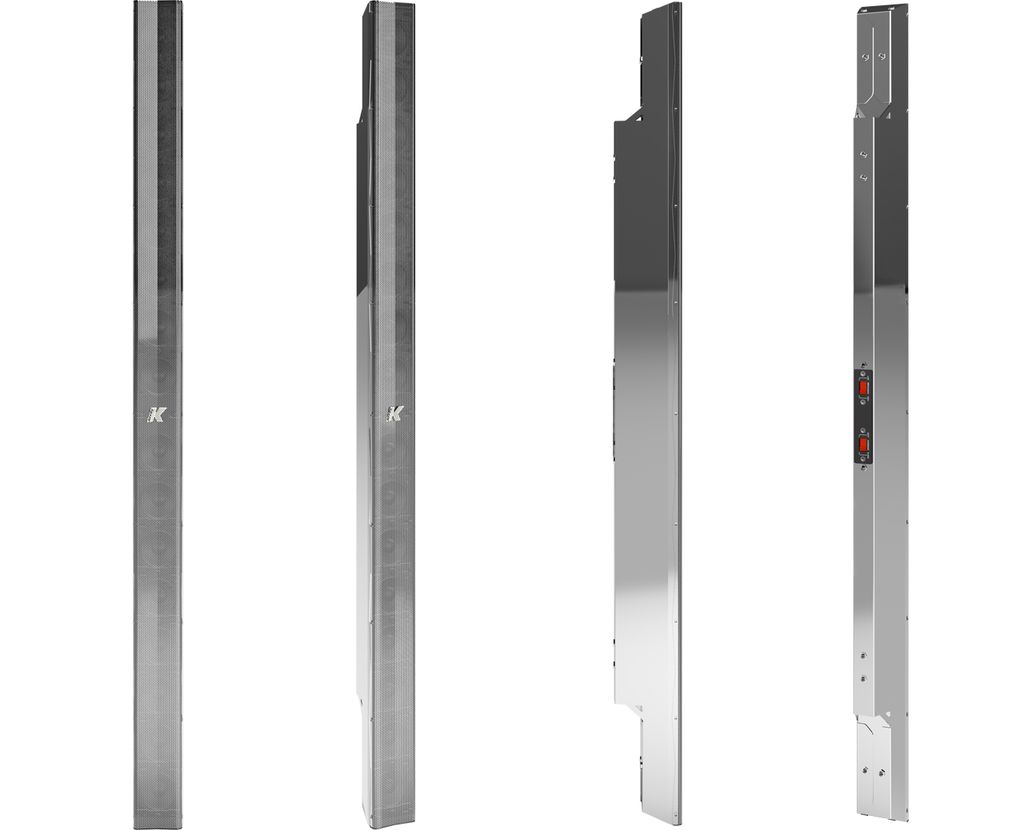

- Finishes: 24K Gold, Polished, Brushed
Regulations
- IP Rating: IP64 (3)
- EN54-24: EN 54-24:2008 compliant
Notes:
(1) With dedicated preset.
(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m.
(3) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant).
Disclaimer: Passive loudspeakers require dedicated presets loaded on board K-array amplifiers.
New materials and designs may be introduced without prior notice.
