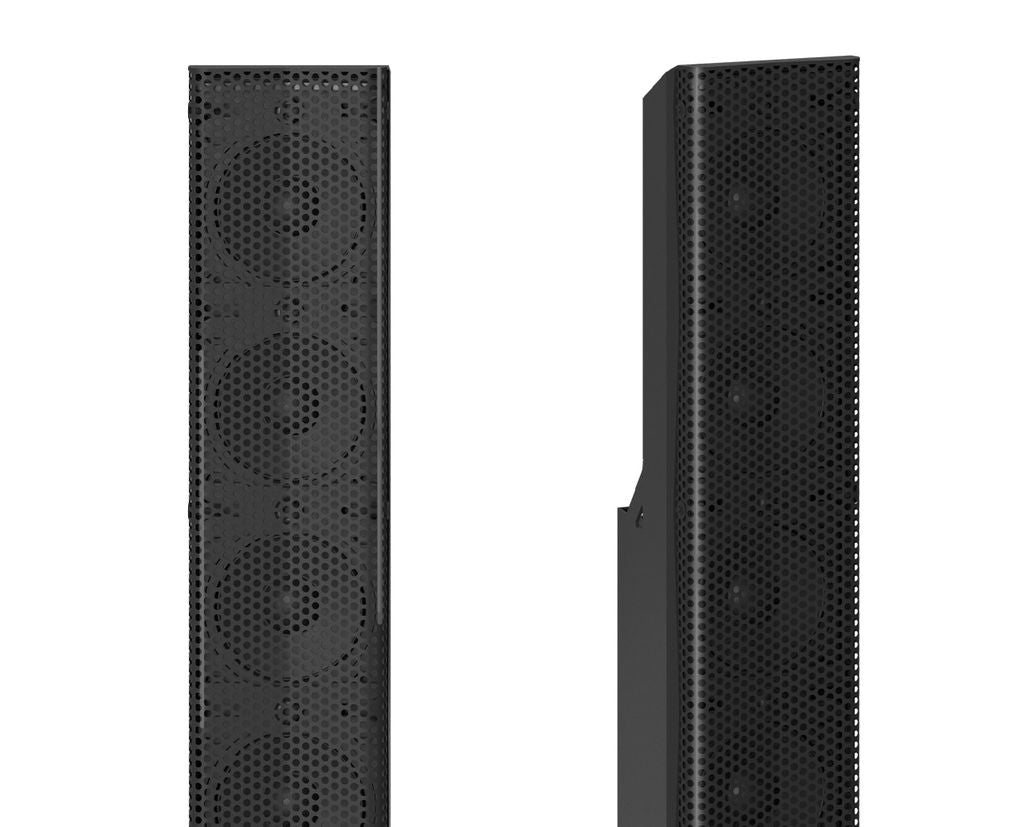

Kobra-KK52 I
The Kobra-KK52 I is a passive line array speaker from K-Array, measuring approximately half a metre in length and housing eight closely-spaced 2-inch neodymium magnet woofers in a stainless steel frame. Its selectable impedance (16 ohms or 64 ohms) and compact profile suit discreet, architecturally integrated installations.
Specifications
- Type: Passive line array speaker
- Transducers: 8 x 2-inch neodymium magnet woofers
- Frequency Response: 150 Hz to 18 kHz (-6 dB), dedicated preset required
- Max SPL: 120 dB peak
- Rated Power: 200 W
- Nominal Impedance: 16 ohms or 64 ohms (selectable)
- Coverage: Vertical 10 to 60 degrees; horizontal 120 degrees
- Connectors: SpeakOn NL4
- Dimensions (W x H x D): 59 x 497 x 81 mm
- Weight: 2.3 kg
- Material: Stainless steel

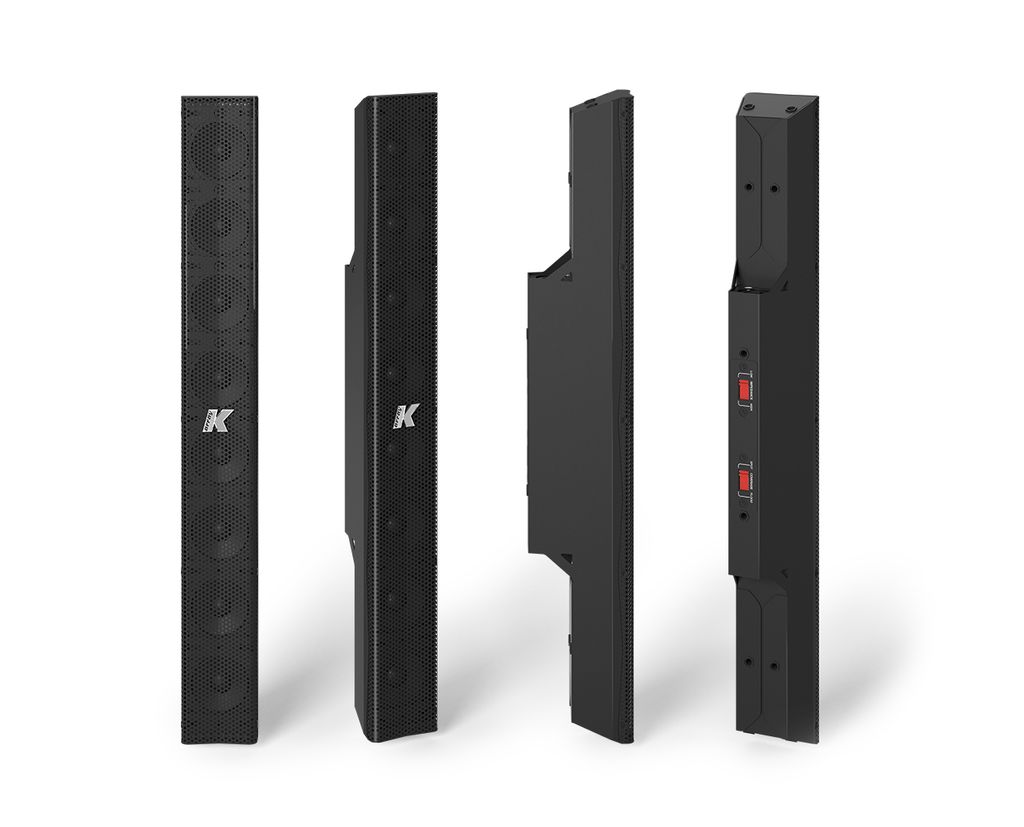

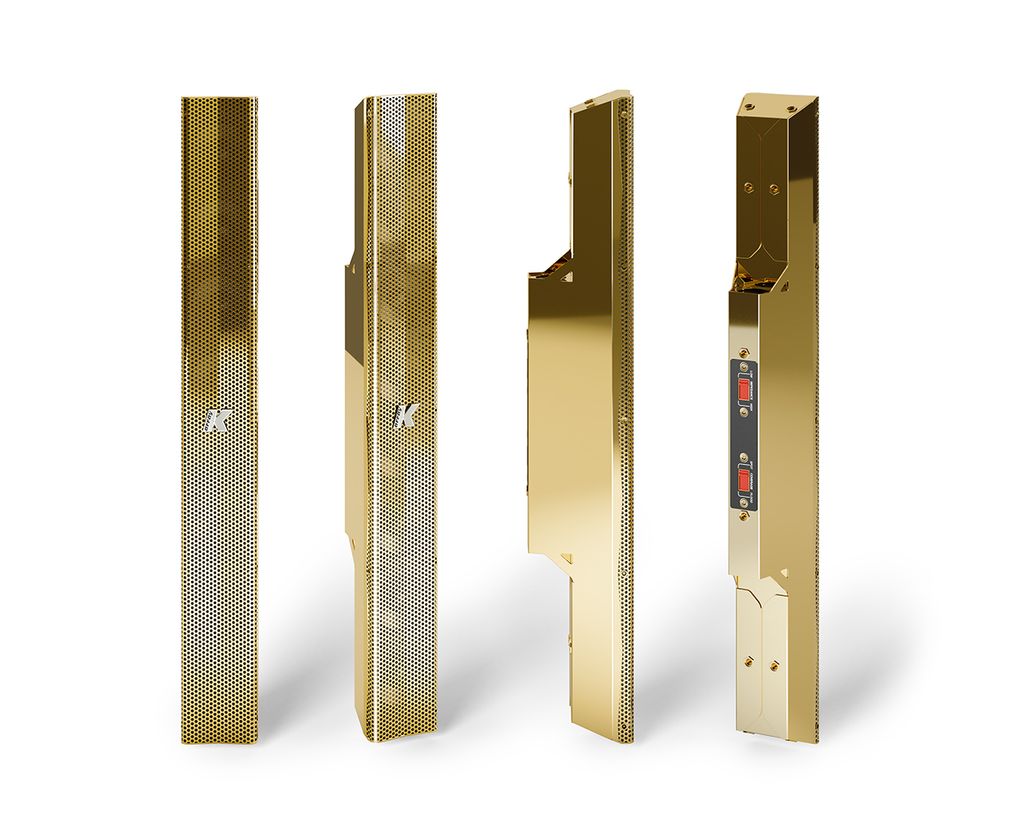

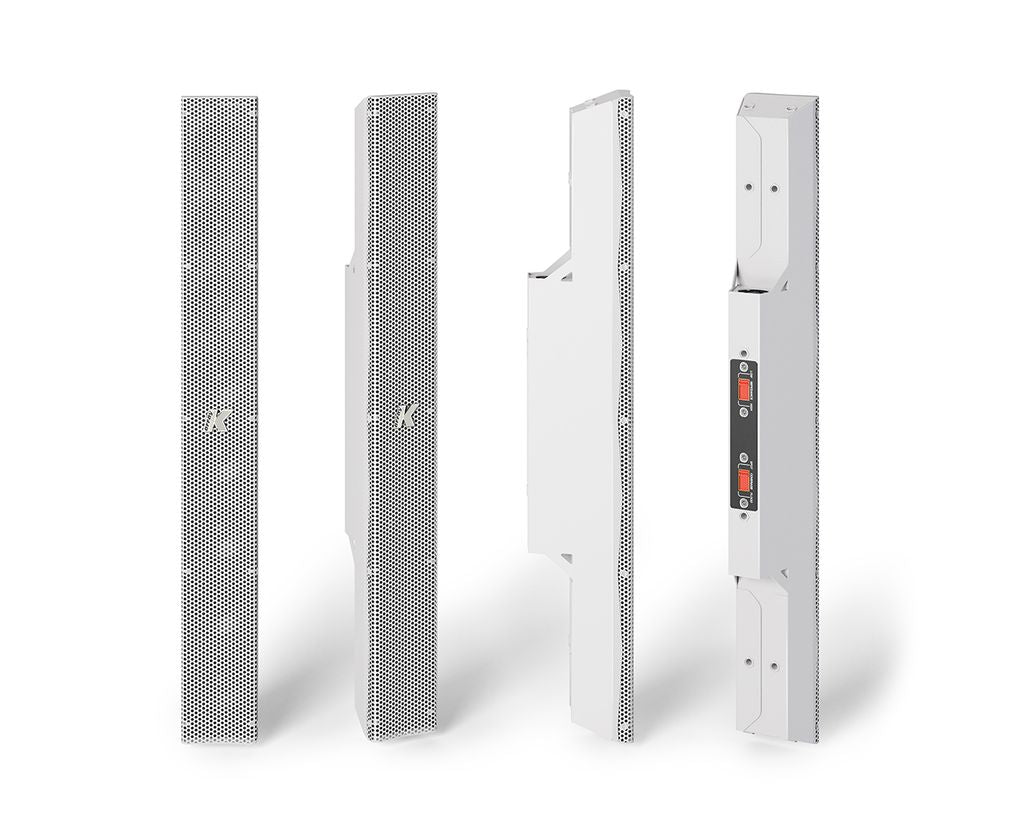

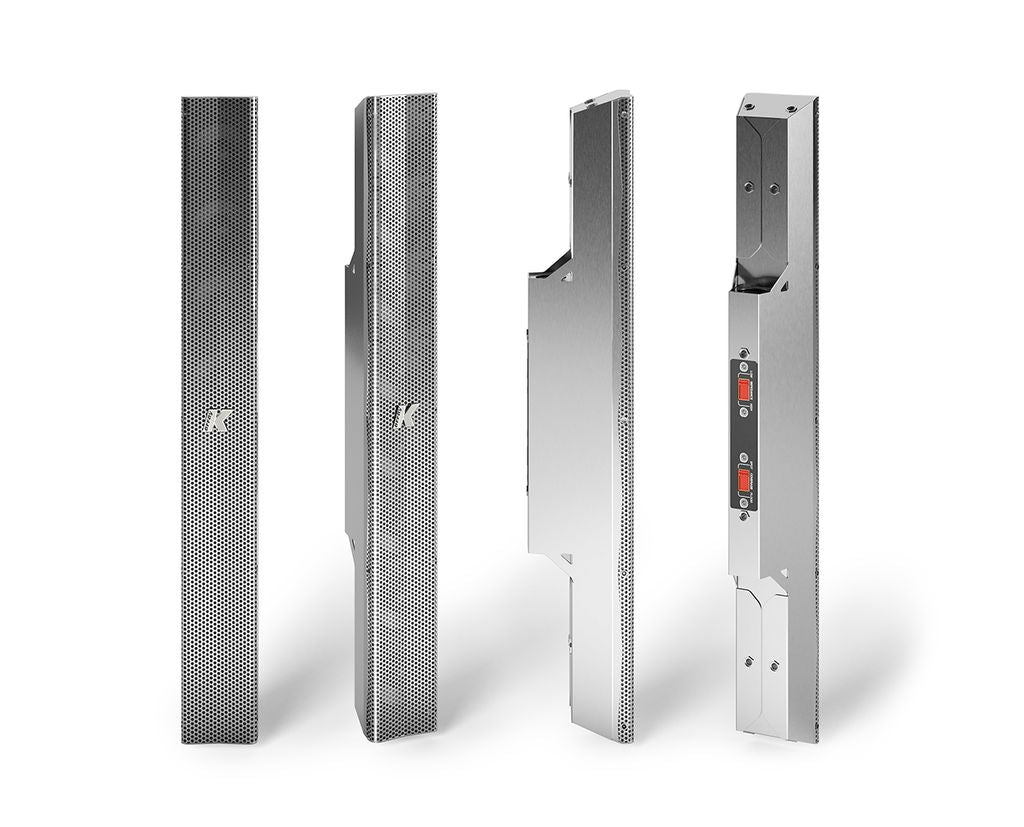

- Finishes: Black, White, Custom RAL, 24K Gold, Polished, Brushed
- IP Rating: IP64; IP65 with K-IP65KITA or K-IP65KITB accessories
Applications
The KK52 I suits smaller or lower-headroom spaces including restaurants, houses of worship, retail, and event venues. Its wider vertical dispersion range (10 to 60 degrees) gives flexibility in compact environments. Passive operation requires dedicated presets on a compatible K-Array Kommander amplifier.
Standards and compliance
IP64 rated as standard. IP65 compliance available with optional accessories. EN 54-24:2008 compliant for voice alarm applications in fire detection systems.
Frequently asked questions
How does the KK52 I compare to the KK102 I?
The KK52 I is half the length (497 mm), uses eight woofers instead of sixteen, and delivers 120 dB peak SPL versus 126 dB. Its impedance values (16 ohms / 64 ohms) are higher than the KK102 I's 8 ohms / 32 ohms.
Is the KK52 I suitable for voice alarm systems?
Yes. EN 54-24:2008 compliance supports use in fire detection voice alarm systems. Consult the user guide for application requirements.
