Kommander-KA104LIVE
The Kommander-KA104LIVE is a 4-channel Class D amplifier platform from K-Array, delivering 4x 2500 W at 4 ohm with integrated DSP and SpeakON NL4 plus CA-COM outputs. Designed for live sound reinforcement, it suits touring line array systems and portable high-output PA setups requiring compact, self-contained amplification.
Specifications
- Type: 4-channel switching mode, Class D amplifier
- Output power: 4x 2500 W at 4 ohm
- Minimum impedance: 4 ohm
- Frequency response: 20 Hz to 20 kHz (+/-1 dB)
- Analogue inputs: 4x XLR-F balanced

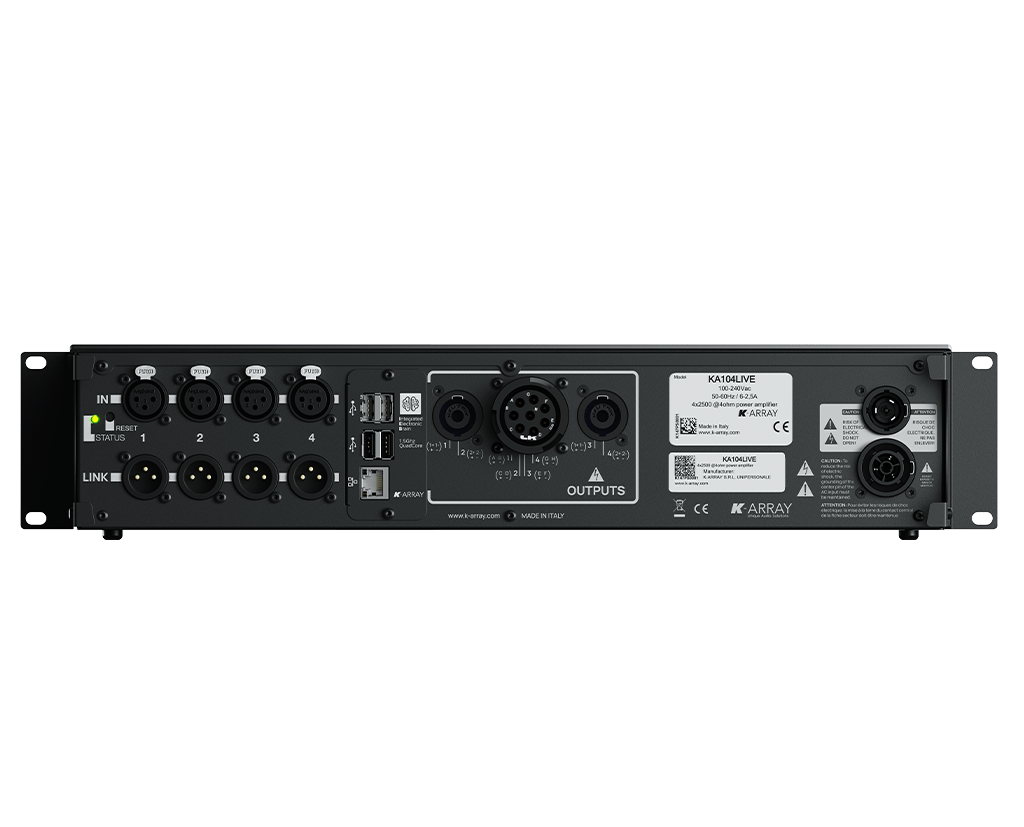

- Speaker outputs: 2x SpeakON NL4, 1x CA-COM multichannel
- Digital connectivity: 1x RJ45 Ethernet, 4x USB-A, Wi-Fi 802.11 b/g/n
- Power inlet: PowerCon TRUE IN, PowerCon TRUE Link
- Mains operating range: 100 to 240 V AC, 50 to 60 Hz with PFC
- Power consumption: 600 W at 4 ohm load, pink noise, 1/8 rated power
- IP rating: IP20
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in)
- Weight: 8.15 kg (18 lb)
Applications
Touring line arrays, festival stages, and portable PA systems. SpeakON NL4 and CA-COM outputs connect directly to K-Array line array elements. Also deployable in fixed installations where SpeakON termination is preferred.
Frequently asked questions
What distinguishes the KA104LIVE from the standard KA104?
SpeakON NL4 connectors and a CA-COM multichannel output replace the Euroblock speaker outputs, suiting live touring use. Power output and DSP capability are the same.
Does the KA104LIVE include network audio transport?
No. Audio inputs are analogue XLR-F only. The RJ45 port is for DSP remote control, not networked audio.
