Kommander-KA104LIVE+
The Kommander-KA104LIVE+ is the ultimate amplifier platform from K-array electronics, delivering 4x 2500W @ 4Ω and featuring the renowned DSP functionalities of the Kommander-KA104. Specifically designed for live entertainment applications, it includes SpeakON and CA-COM connections, ensuring pristine sound quality and full control over connected line array elements or systems.
The Kommander-KA104LIVE+ seamlessly integrates into portable setups for live applications, offering the complete processing power of a full control platform in a compact and convenient design.
Enhanced Connectivity
With the IEB-Pro platform, the Kommander-KA104LIVE+ now supports remote connectivity via Ethernet and compatibility with major Audio over IP protocols. The integrated 2-port etherCON switch and Ethernet protocol support enable seamless digital integration.
Specifically compatible with DanteReady™ and DANTE protocol.
Software Integration
K-ARRAY offers a comprehensive suite of dedicated control software and mobile apps (K-connect, K-control, K-monitor) for easy remote access to DSP features across any KA amplifier.
K-framework3 is the managing and control software designed for professionals and operators who require a powerful tool for loudspeaker system design and tuning over a wired LAN.
Specifications
- Type: 4ch switching mode, Class D Amplifier
- Output Power: 4 x 2500W @ 4Ω (1)
- Impedance: Minimum 4 Ω
- Frequency Response: 20 Hz - 20 kHz (±1 dB)

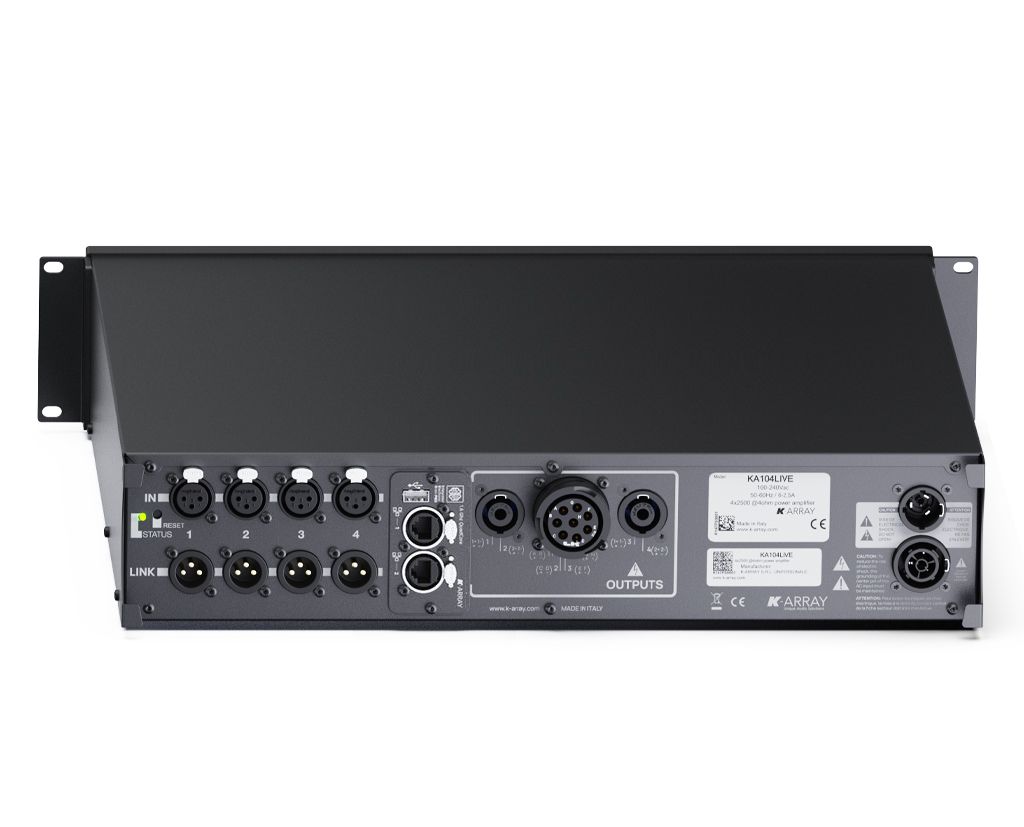

Connections
- Input: 4x XLR-F balanced input, 4x XLR-M balanced LINK output
- Output: 2x SpeakON NL4 speaker output, 1x CA-COM multichannel output
- Remote connectivity: 2x Ethernet RJ45 (Digital channel count: 4 IN, Dante Ready compatible), 1x USB-A
- Power: 1x PowerCon TRUE IN, 1x PowerCon TRUE Link
Built-in DSP
- Grouping
- Equalization
- Limiters
- Routing
- Level
- Loudspeaker presets
Remote Control
Wi-Fi and Ethernet dedicated APP and Desktop software
Power Handling
- Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter
- MAIN Operating Range: 100-240V AC, 50-60 Hz with PFC
- Power Consumption: 600 W @ 4 Ω load, Pink noise, 1/8 rated power
Handling and Finishes
- Colors: Black
- Material: Stainless Steel
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in)
- Weight: 8.15 kg (18 lb)
Regulations
- IP Rating: IP20
Documents
Click here to view the Technical Data
