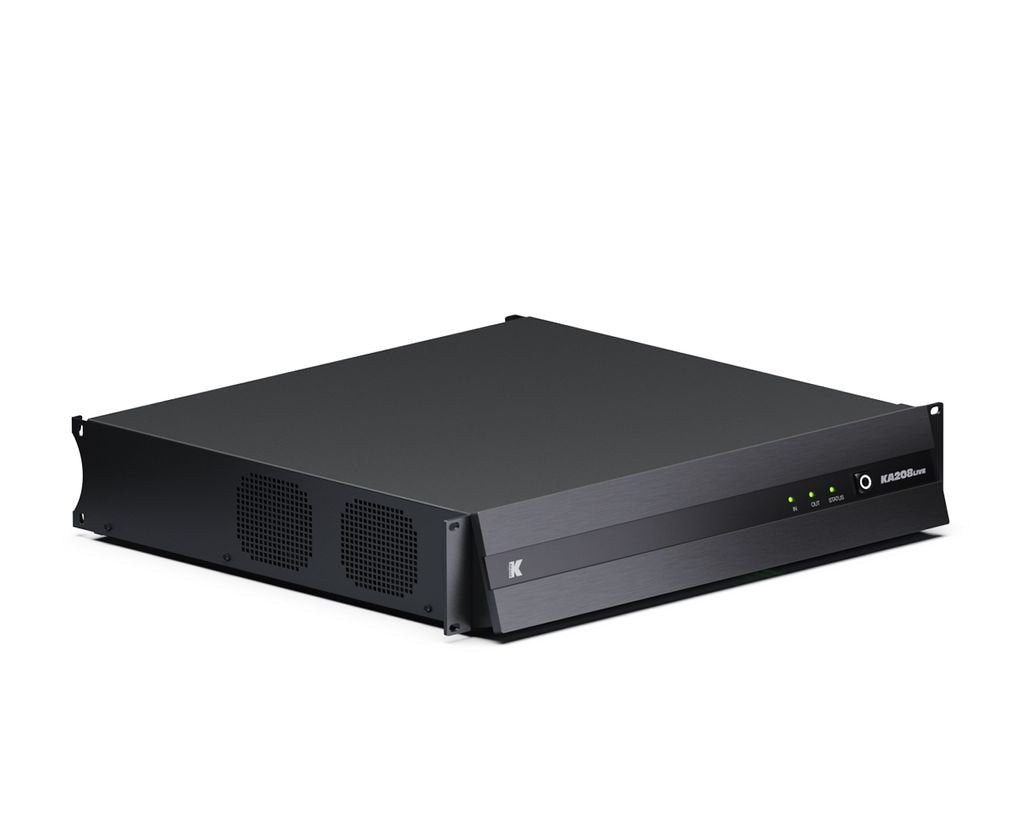

Kommander-KA208LIVE+
The Kommander-KA208LIVE+ is the powerful amplifier platform of K-array electronics, featuring 8x 2500W @ 4Ω and the well-known DSP functions of the Kommander-KA208. Designed specifically for the demands of live entertainment, it incorporates SpeakON and CA-COM connections to ensure pristine sound quality and complete control over connected line array elements or systems.
Enhanced Connectivity
The Kommander-KA208LIVE+ version introduces remote connectivity via Ethernet and compatibility with major Audio over IP protocols, made possible by the advanced IEB-Pro platform. This includes a 2-port EtherCON switch and full Ethernet protocol support.
It is specifically compatible with DanteReady™ and the DANTE protocol, allowing seamless integration into modern audio network environments.
Comprehensive Control Software
K-array provides a full suite of dedicated control software and mobile apps, including:
- K-connect
- K-control
- K-monitor
These tools allow easy remote access to DSP features across all KA amplifiers.
K-framework3 is the advanced managing and control software, designed for professionals who require powerful tools for loudspeaker system design and tuning over a wired LAN.
Specifications
- Type: 8ch switching mode, Class D Amplifier
- Output Power: 8 x 2500W @ 4Ω (1)
- Impedance: Minimum 4 Ω
- Frequency Response: 20 Hz - 20 kHz (±1 dB)

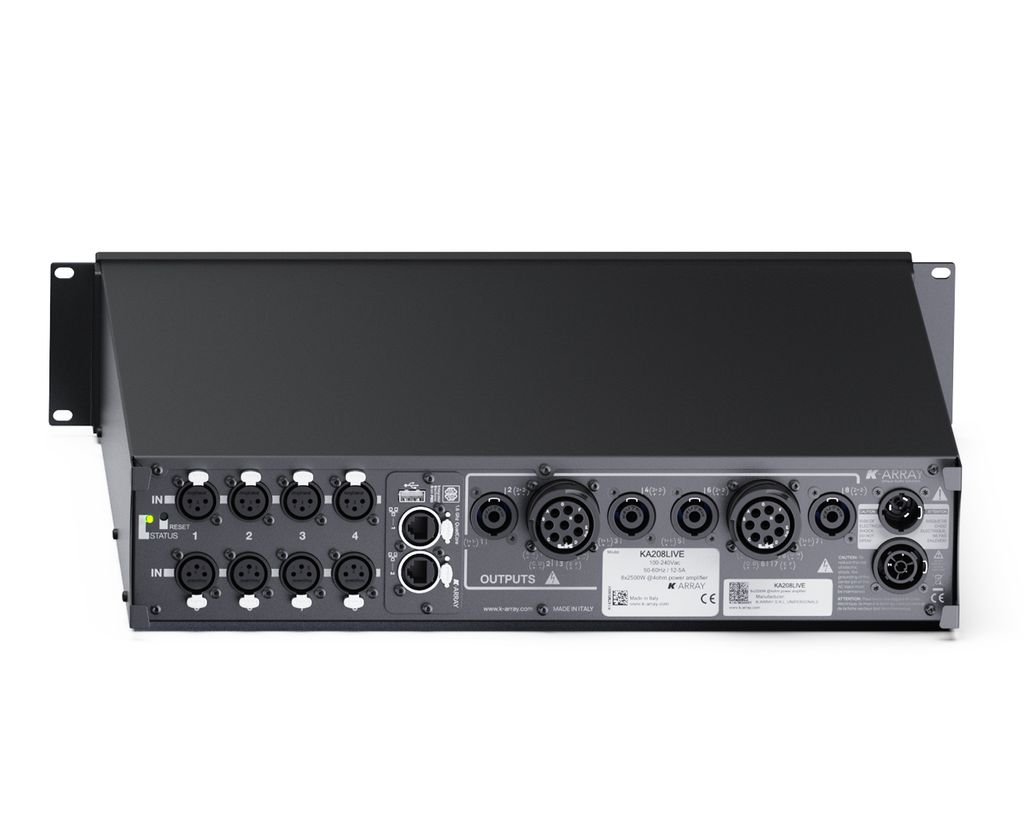

Connections
- Input: 8x XLR-F balanced input
- Output: 4x SpeakON NL4 speaker output, 2x CA-COM connections
-
Remote Connectivity:
- 2x Ethernet RJ45 - EtherCON
- 1x USB-A
- Digital Channel Count: 8x IN
-
Power:
- 1x PowerCon TRUE IN
- 1x PowerCon TRUE Link
Built-in DSP
- Grouping
- Equalization
- Limiters
- Routing
- Level control
- Loudspeaker presets
Remote Control
Web-based dedicated app and desktop software (connected via Ethernet).
Power Handling
- Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
- Main Operating Range: 100-240V AC, 50-60 Hz with PFC
- Power Consumption: 1200 W @ 4 Ω load, Pink noise, 1/8 rated power
Handling and Finishes
- Color: Black
- Material: Stainless Steel
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in)
- Weight: 10 kg (22 lb)
Regulations
- IP Rating: IP20
(1) CTA-2006 Standard single channel driven
Documents
Click here to view the Technical Data
