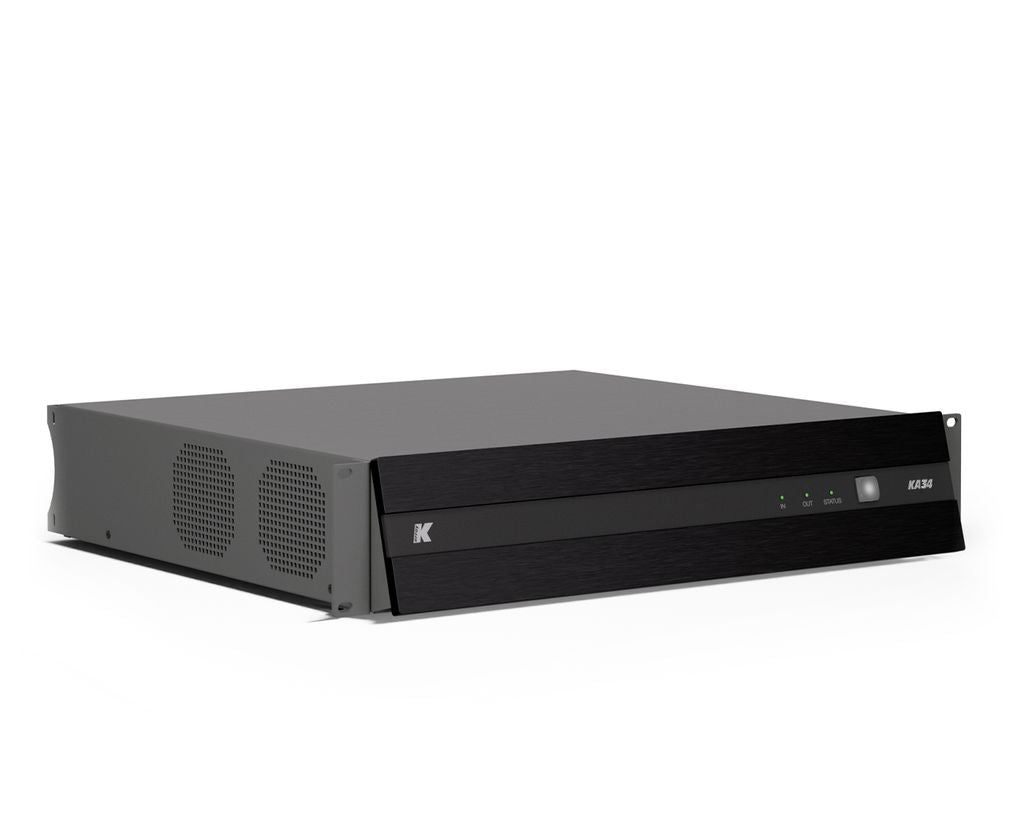

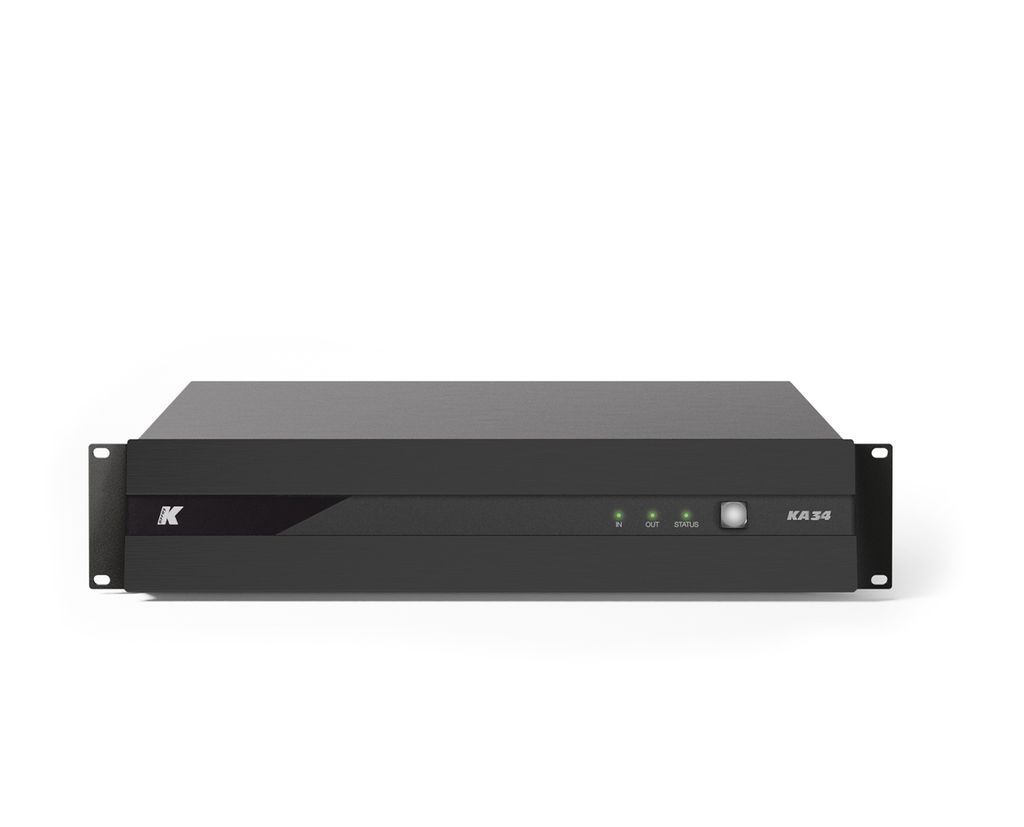

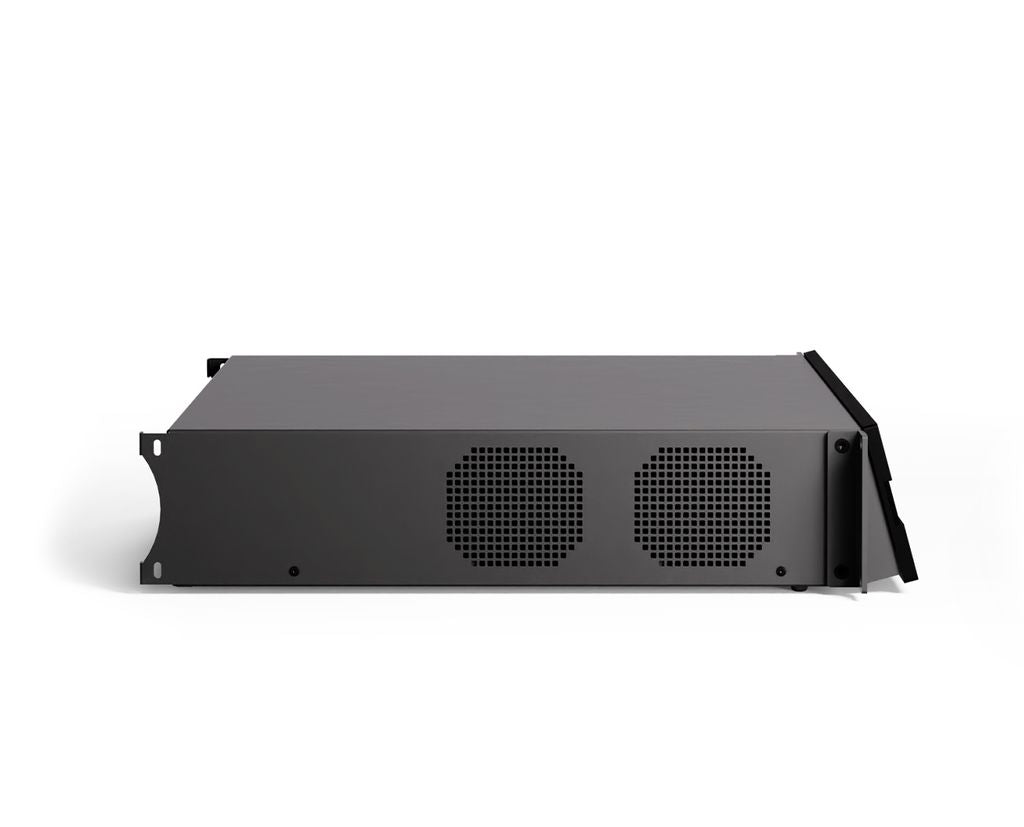

Kommander-KA34
The Kommander-KA34 is a 4-channel Class D amplifier platform from K-Array, delivering 4 x 750 W at 4 ohms with integrated DSP. It supports both standalone and multi-amplifier deployments and includes balanced XLR link outputs, Wi-Fi and Ethernet control, and a comprehensive onboard DSP suite including delay for precise system alignment.
Specifications
- Type: 4-channel switching mode, Class D amplifier
- Output power: 4 x 750 W at 4 ohms (CTA-2006, single channel driven)
- Minimum impedance: 4 ohms
- Frequency response: 20 Hz to 20 kHz (+/-1 dB)

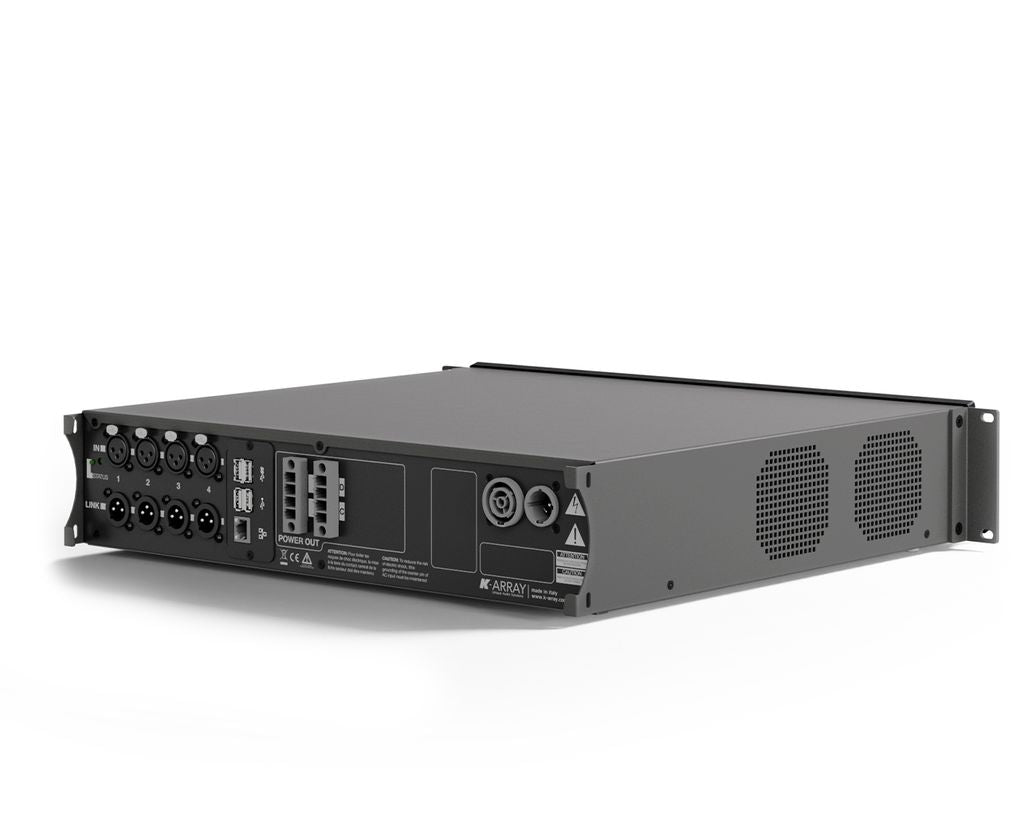

- Analogue inputs: 4 x XLR-F balanced
- Link outputs: 4 x XLR-M balanced
- Speaker outputs: 2 x PC 4/4-ST-7.62 terminal block
- Network connectivity: 1 x Ethernet RJ45, 4 x USB-A, Wi-Fi IEEE 802.11 b/g/n
- Power input: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
- Mains operating range: 100 to 240 V AC, 50 to 60 Hz with PFC
- Power consumption: 600 W at 4 ohms load, pink noise, 1/8 rated power
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in)
- Weight: 7 kg (15.4 lb)
- IP rating: IP20
- Colour: Black; stainless steel chassis
Applications
Fixed installations and touring applications driving 4-ohm K-Array loudspeaker systems. The balanced XLR link outputs suit signal distribution across multiple amplifiers, making the KA34 well-suited to corporate AV, hospitality, theatre, and any installation where delay alignment and output EQ are required per zone.
Standards and compliance
IP20 enclosure rating. CE certified. Mains supply compliant with 100 to 240 V AC global operating range.
Frequently asked questions
Does the KA34 include delay in its DSP?
Yes. The onboard DSP includes input EQ, output EQ, signal routing, level adjustment, dynamic limiters, grouping, and delay, enabling time alignment of loudspeaker zones directly from the amplifier.
Can the KA34 be controlled wirelessly?
Yes. Both Wi-Fi (IEEE 802.11 b/g/n) and Ethernet control are supported via the K-array Connect mobile app or K-framework3 desktop software.
What is the purpose of the XLR-M link outputs?
The 4 x XLR-M balanced link outputs allow the analogue input signal to be passed through to additional amplifiers, simplifying signal distribution in multi-amplifier system configurations.
