Lyzard-KZ14 I

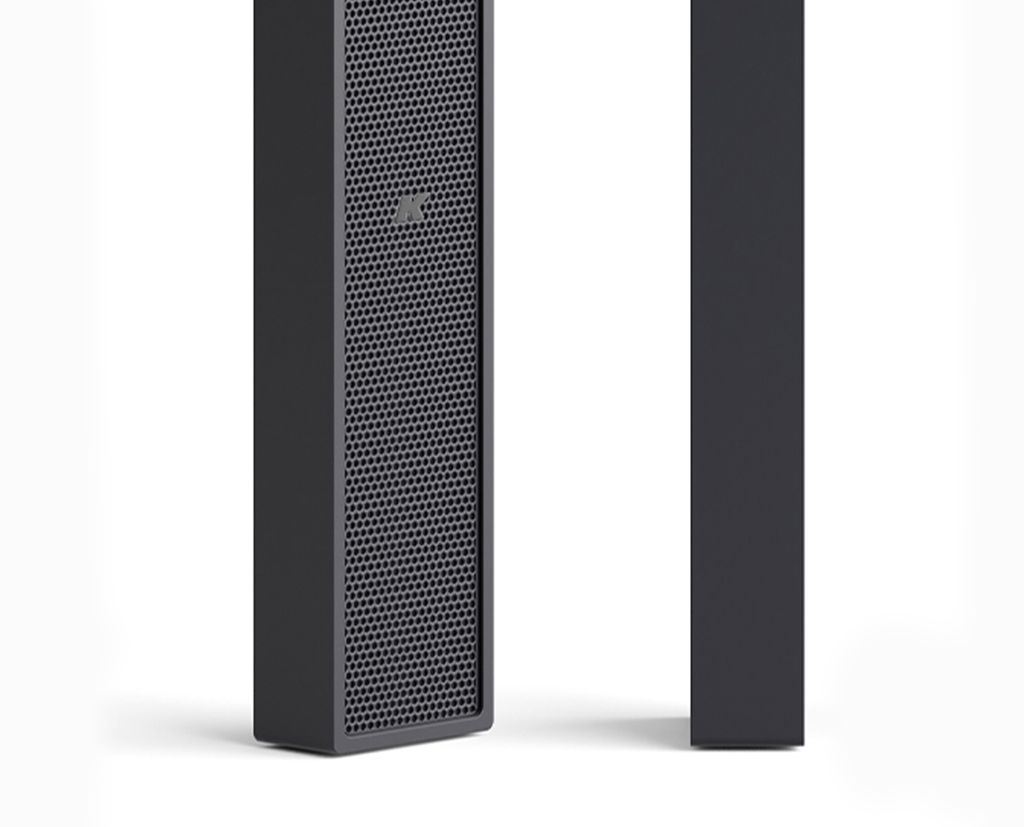

The Lyzard-KZ14 I is an ultra-compact line array loudspeaker from K-Array, housed in a 22 x 100 x 11 mm precision-milled aluminium enclosure weighing 59 g. It uses four 0.5 in neodymium transducers with PAT array technology to deliver controlled vertical dispersion in a near-invisible form factor.
Specifications
- Type: Line array
- Transducers: 4 x 0.5 in long-excursion neodymium magnet woofers
- Frequency response: 500 Hz to 18 kHz (-6 dB, with dedicated amplifier preset)
- Maximum SPL: 98 dB peak (measured at 8 m then scaled to 1 m, signal crest factor 12 dB)
- Rated power: 15 W
- Coverage: 40 degrees vertical, 140 degrees horizontal
- Nominal impedance: 16 ohms
- Connector: 2-pole screw euro-block (IN+/IN-)
- IP rating: IP64
- Dimensions (W x H x D): 22 x 100 x 11 mm (0.9 x 3.9 x 0.4 in)
- Weight: 59 g (0.130 lb)
- Material: Aluminium

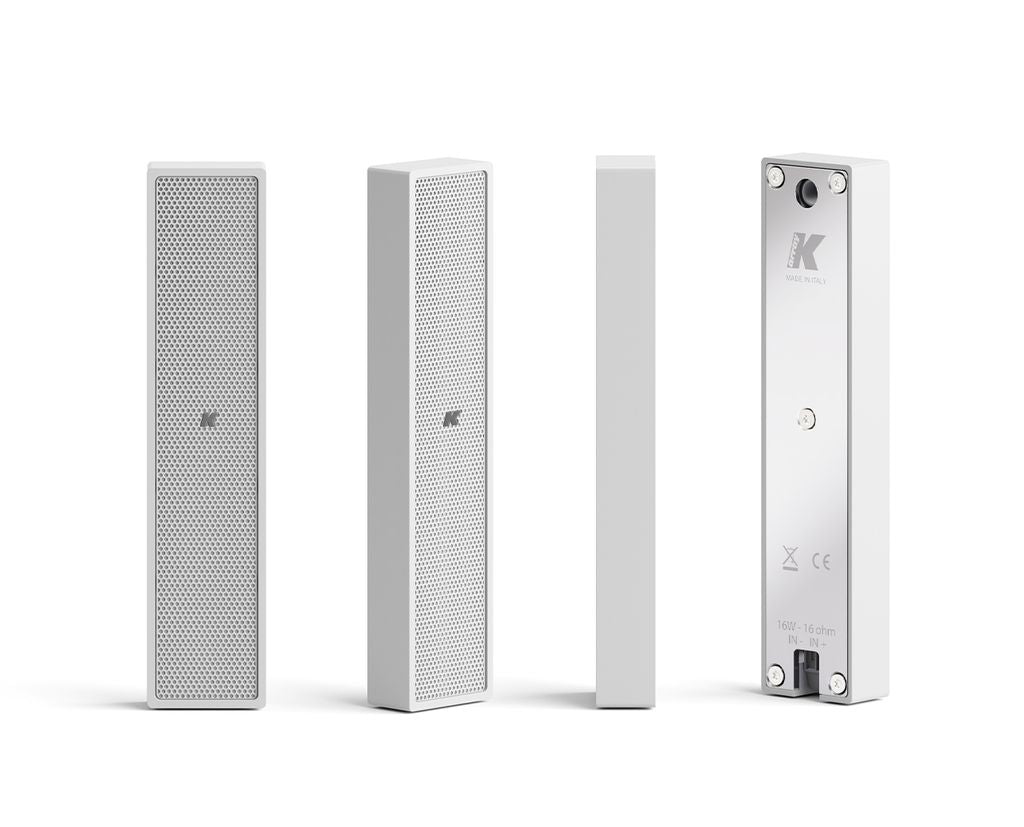

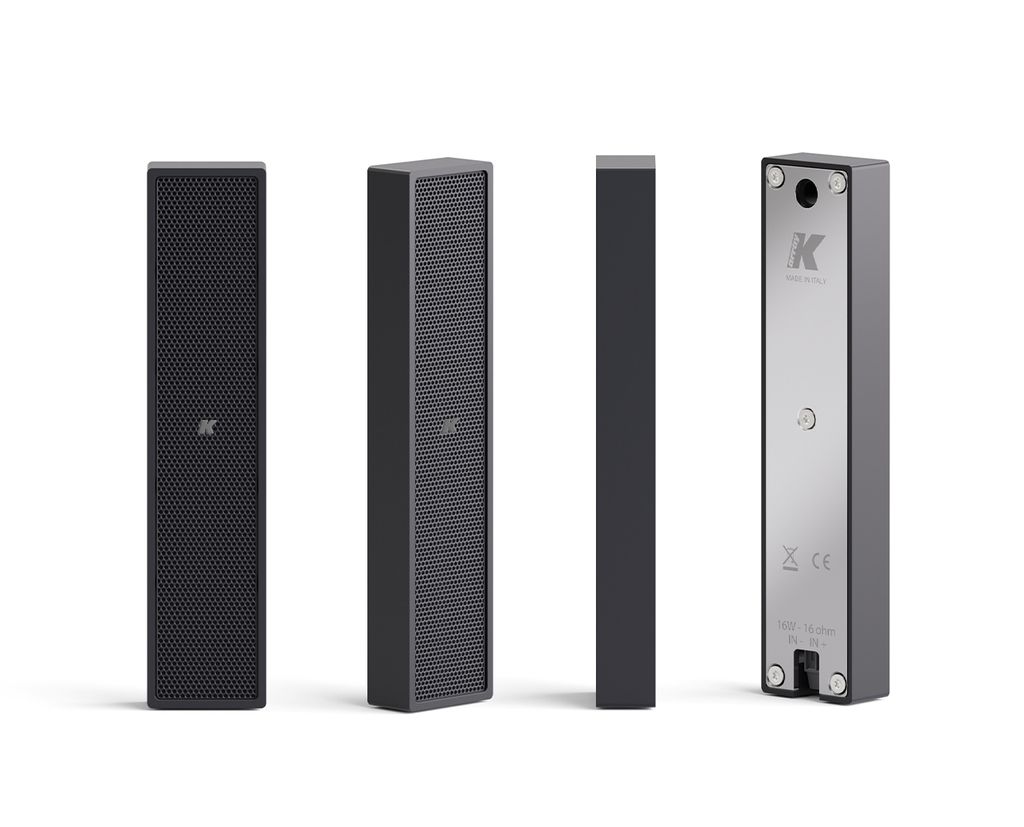

- Colours: Black, White, Custom RAL

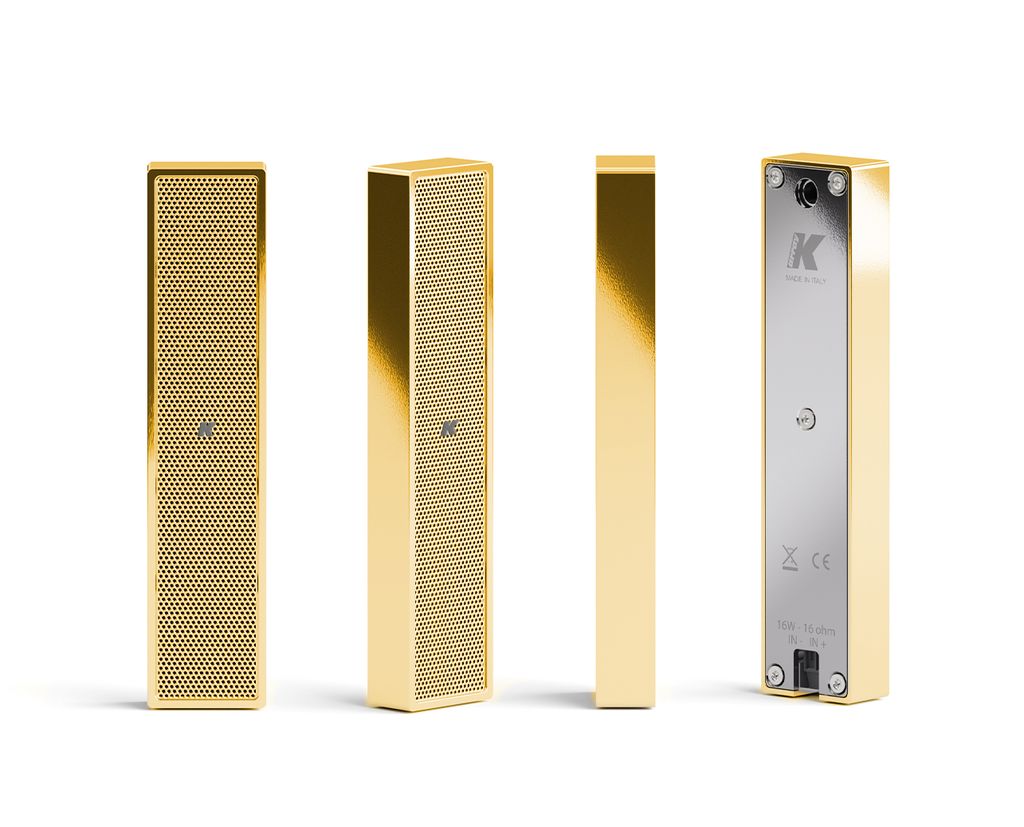

- Finishes: 24K Gold, Polished
Applications
Suited to installations where precise horizontal coverage and minimal visual intrusion are required: retail spaces, hotel corridors, lounges, bars, museums, and residential audio systems. The 40-degree vertical dispersion focuses sound toward listeners while limiting ceiling reflections. The unit must be paired with a K-Array Truffle or Rumble subwoofer and driven by a Kommander amplifier (KA02 I or KA04 I) with the dedicated loudspeaker preset loaded.
Frequently asked questions
What is PAT array technology?
PAT (Phased Array Technology) is K-Array's method of arranging the four neodymium transducers within the KZ14 I enclosure to produce controlled vertical directivity of 40 degrees while maintaining wide 140-degree horizontal coverage.
How does the KZ14 I differ from the KZ1 I?
The KZ14 I houses four transducers instead of one, delivering a higher maximum SPL of 98 dB compared to 86 dB for the KZ1 I, and provides tighter vertical dispersion of 40 degrees rather than 140 degrees, making it suited to longer throws.
Does the Lyzard-KZ14 I require a subwoofer?
Yes. The KZ14 I covers 500 Hz to 18 kHz and must be paired with a K-Array Truffle or Rumble subwoofer to reproduce bass frequencies and achieve full-range audio performance.
