Lyzard-KZ1R I

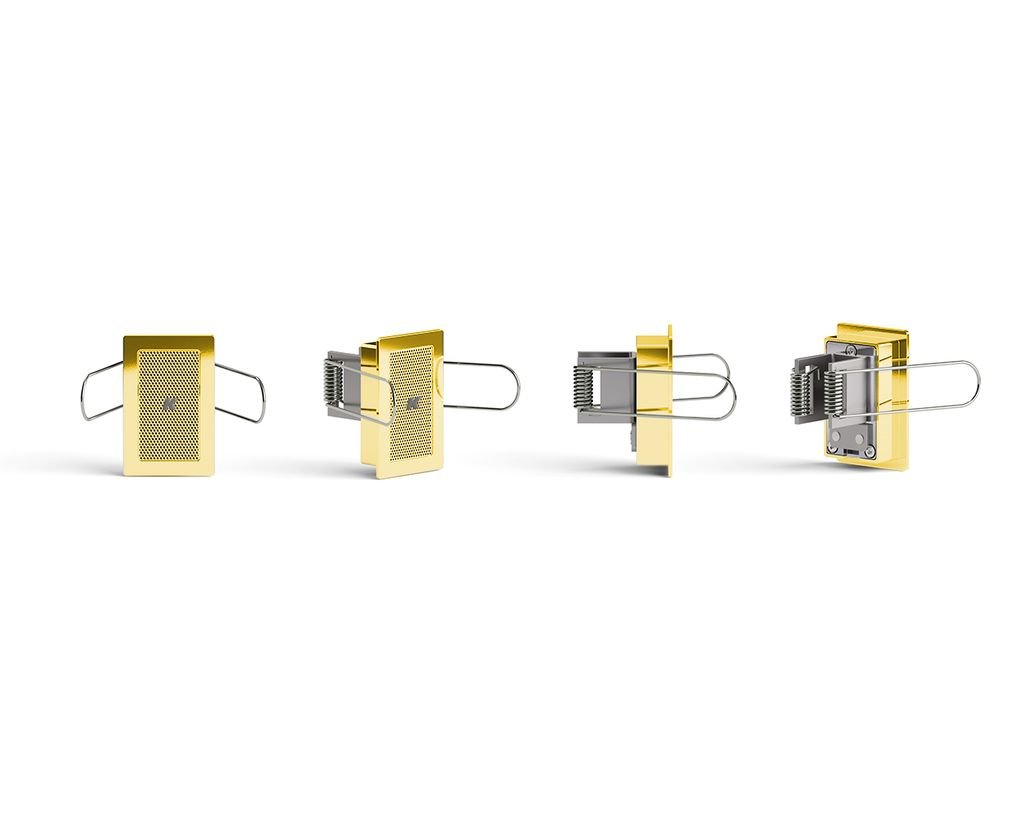

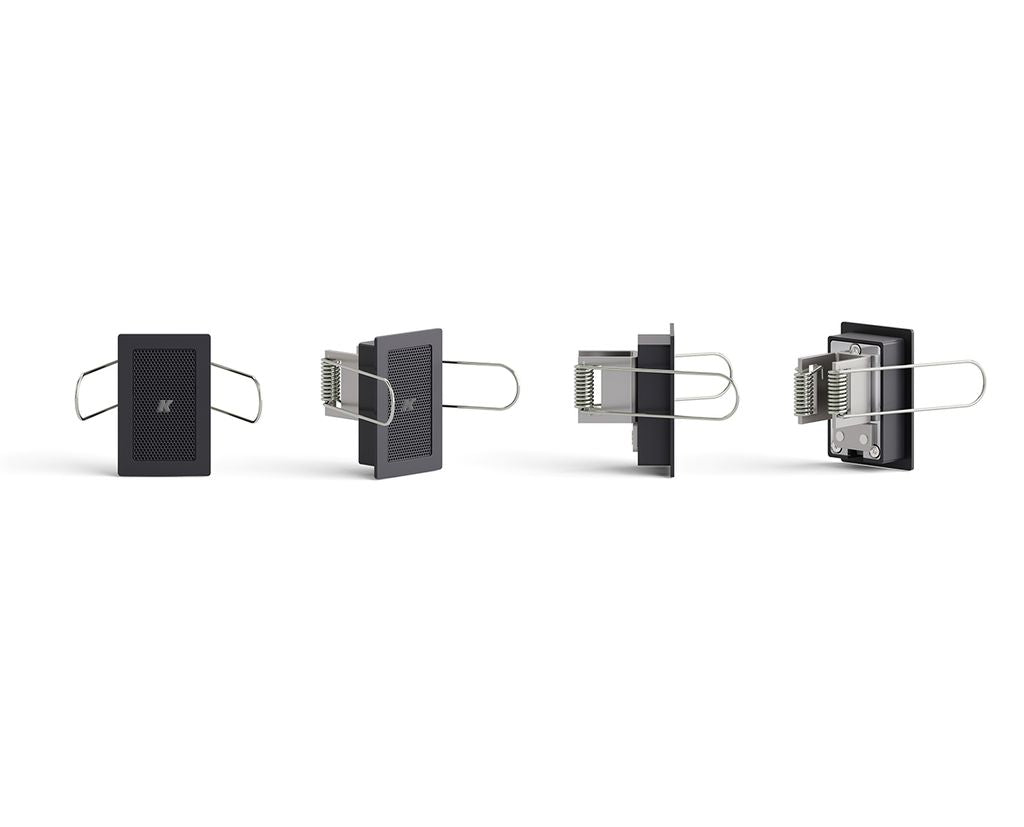

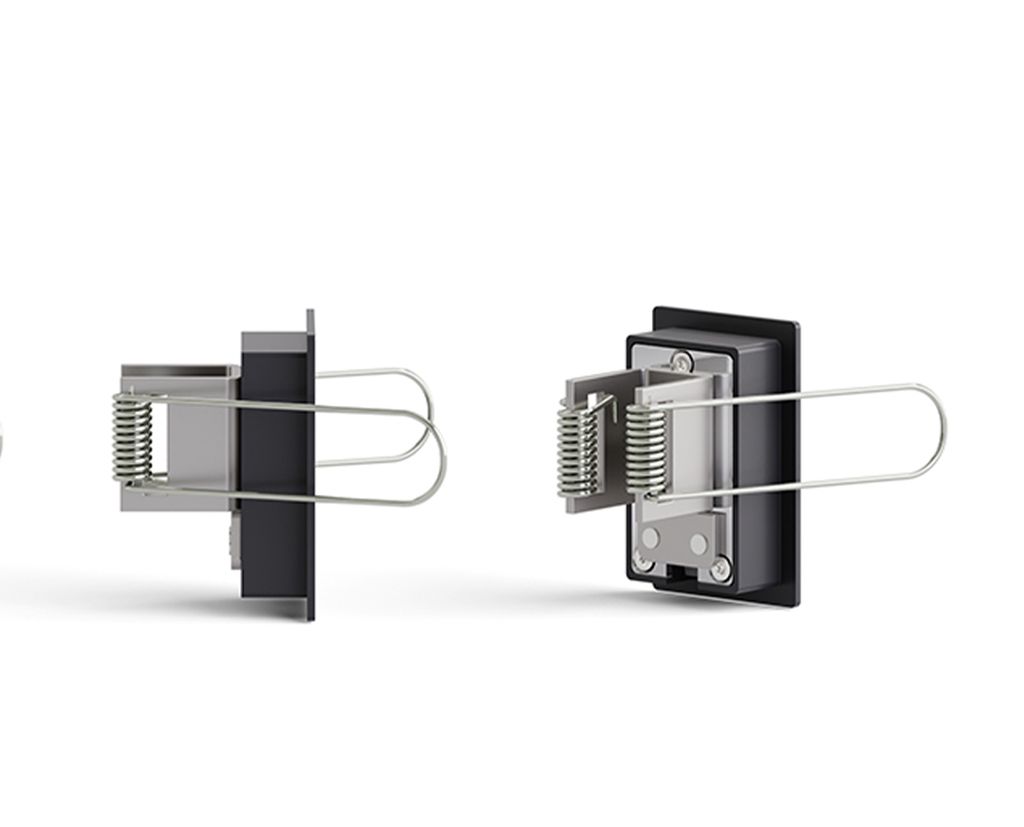

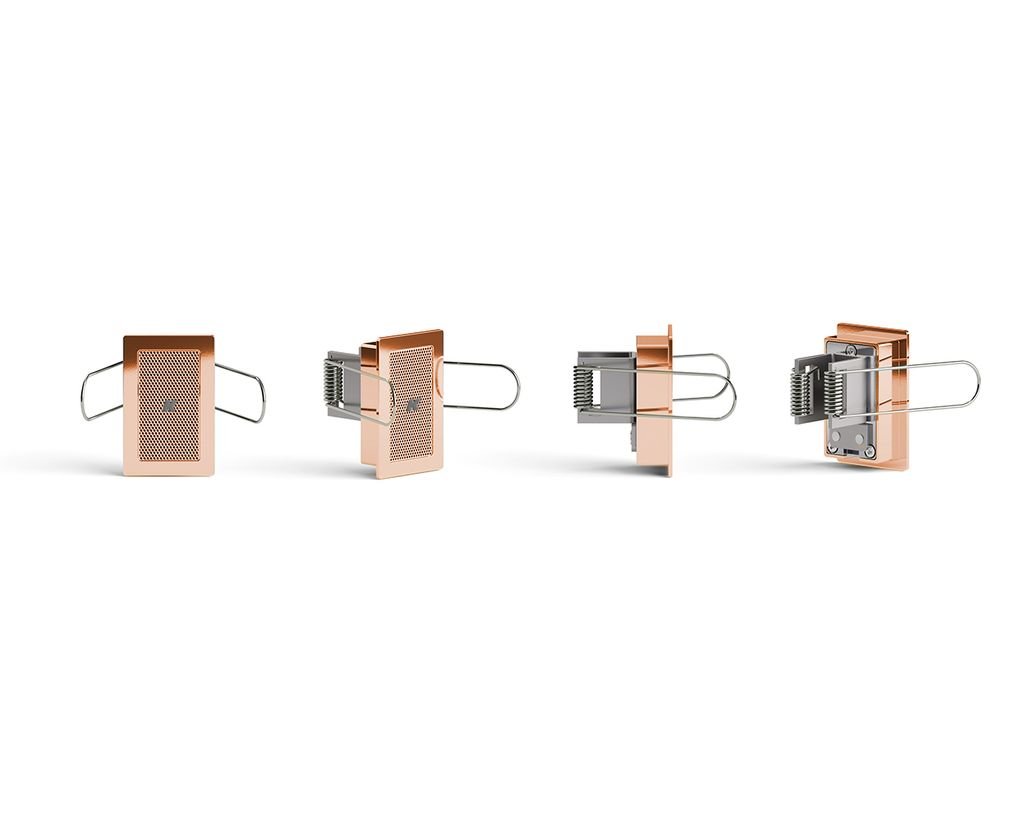

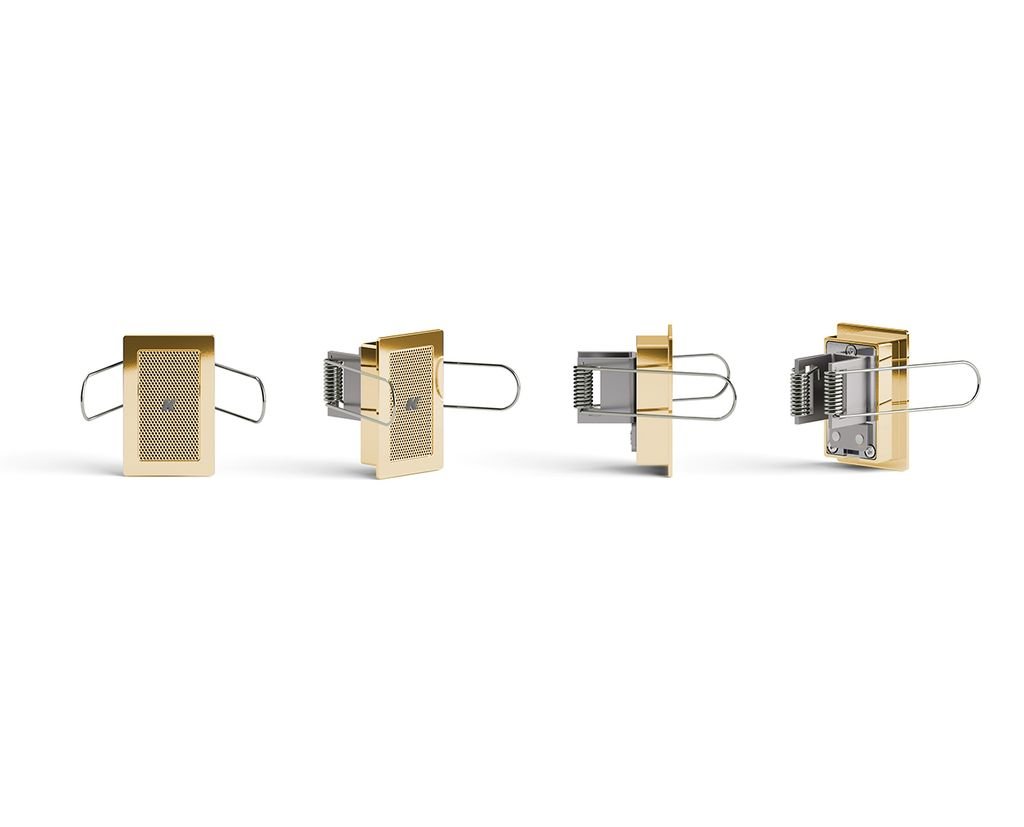

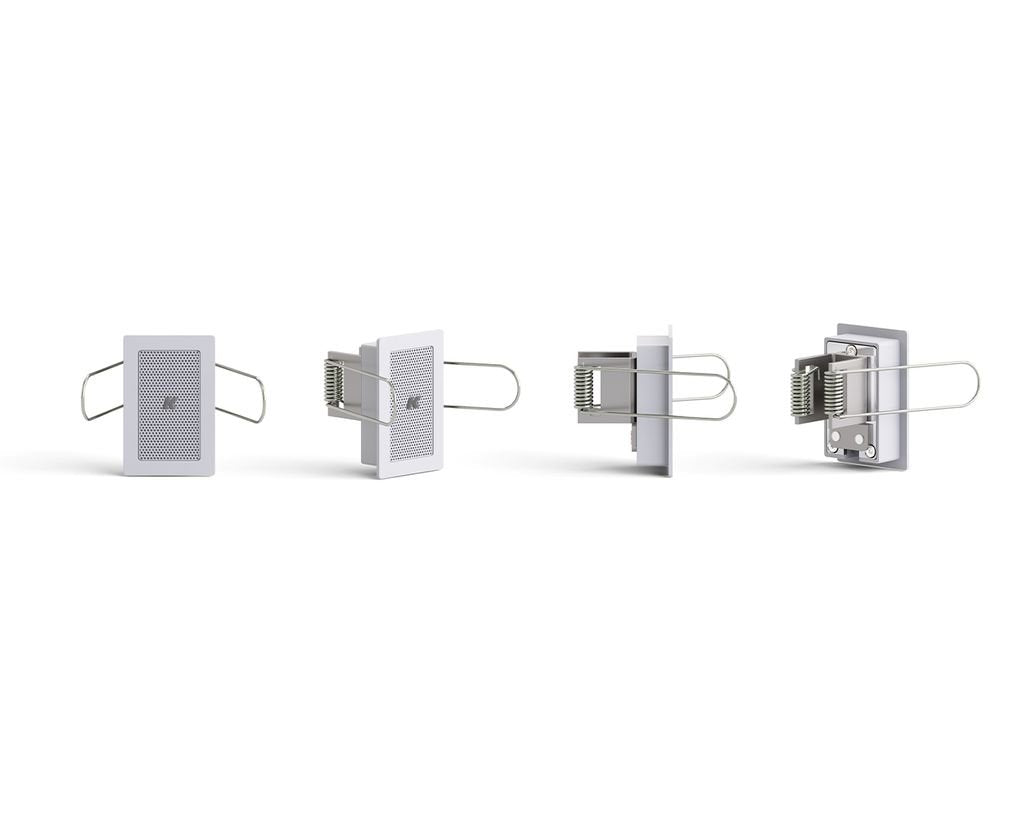

The Lyzard-KZ1R I is an ultra-compact recessed point-source loudspeaker from K-Array, housed in a 28 x 43 x 11 mm precision-milled aluminium enclosure weighing 21 g. It is the in-wall recessed variant of the KZ1 I, adding a metallic spring clip for flush installation into plasterboard and similar wall surfaces.
Specifications
- Type: Point source (recessed)
- Transducer: 1 x 0.5 in long-excursion neodymium magnet woofer
- Frequency response: 500 Hz to 18 kHz (-6 dB, with dedicated amplifier preset)
- Maximum SPL: 86 dB peak (measured at 1 m, signal crest factor 12 dB)
- Rated power: 3.5 W
- Coverage: 140 degrees vertical, 140 degrees horizontal
- Nominal impedance: 16 ohms
- Connector: 2-pole screw euro-block (IN+/IN-)
- IP rating: IP64
- Dimensions (W x H x D): 28 x 43 x 11 mm (1.1 x 1.7 x 0.4 in)
- Weight: 21 g (0.046 lb)
- Material: Aluminium
- Colours: Black, White, Custom RAL
- Finishes: 24K Gold, Antique Gold, Rose Gold, Polished
Applications
Suited to high-end hospitality, retail, museum, and residential installations where the speaker must be fully recessed and invisible within the wall surface. The metallic spring clip allows rapid tool-assisted fitting into a standard cut-out. Like all Lyzard loudspeakers, the KZ1R I must be paired with a K-Array Truffle or Rumble subwoofer and driven by a Kommander amplifier with the dedicated loudspeaker preset loaded.
Frequently asked questions
What is the difference between the KZ1 I and the KZ1R I?
The KZ1R I is the recessed variant, with a slightly larger enclosure (28 x 43 x 11 mm versus 22 x 37 x 11 mm) to accommodate a metallic spring clip that locks the speaker flush into a cut-out. Audio specifications are identical between the two models.
Does the KZ1R I require a subwoofer?
Yes. The KZ1R I covers 500 Hz to 18 kHz and must be paired with a K-Array Truffle or Rumble subwoofer to reproduce low frequencies for full-range audio performance.
What finishes are available for the KZ1R I?
The KZ1R I is available in black, white, and custom RAL colours, with special finish options including 24K Gold, Antique Gold, Rose Gold, and Polished aluminium.
