Mastiff-KM112P

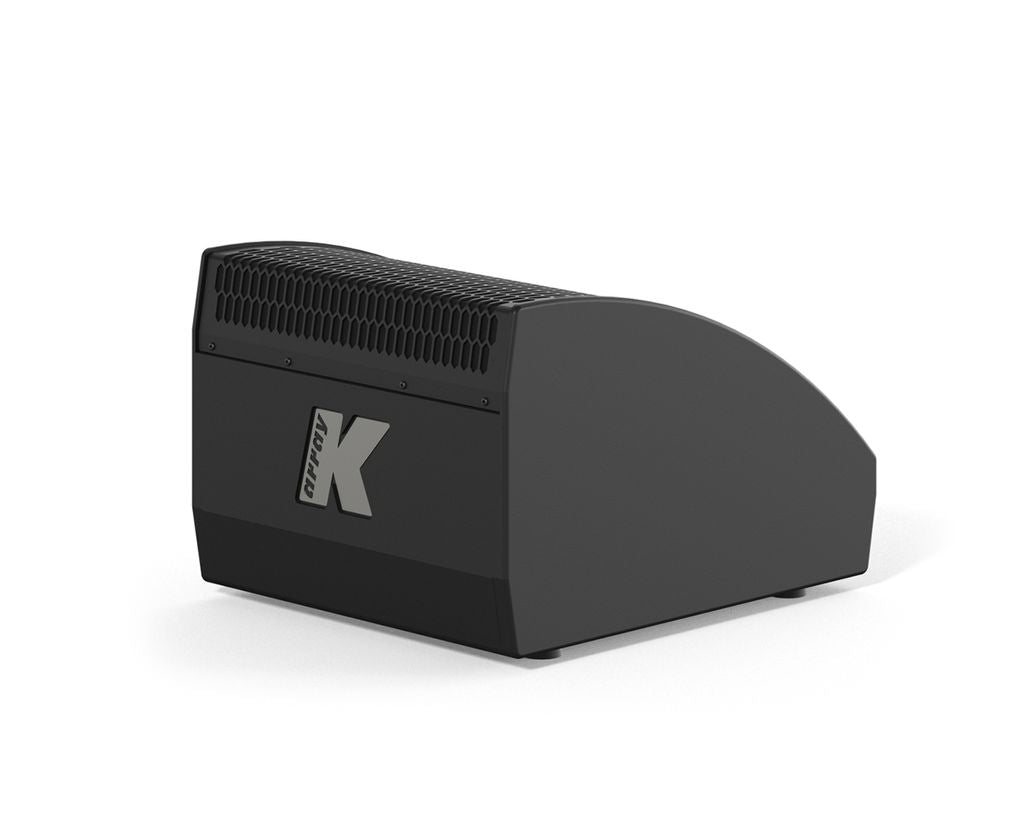

The Mastiff-KM112P is a compact passive stage monitor from K-Array, built around a coaxial 12-inch woofer and 2.4-inch compression driver. Designed as the passive companion to the self-powered Mastiff-KM112, it delivers up to 133 dB peak SPL for professional stage monitoring and drum fill applications.
Specifications
- Type: Passive compact stage monitor
- Transducers: Coaxial 12-inch woofer with 2.4-inch compression driver
- Frequency Response: 70 Hz to 19 kHz (-6 dB, with dedicated preset)
- Max SPL: 133 dB peak (crest factor 4, measured at 1 m)
- Rated Power: 1200 W
- Nominal Impedance: 8 ohm
- Coverage: Selectable 30 x 100 degrees or 100 x 30 degrees (V/H)

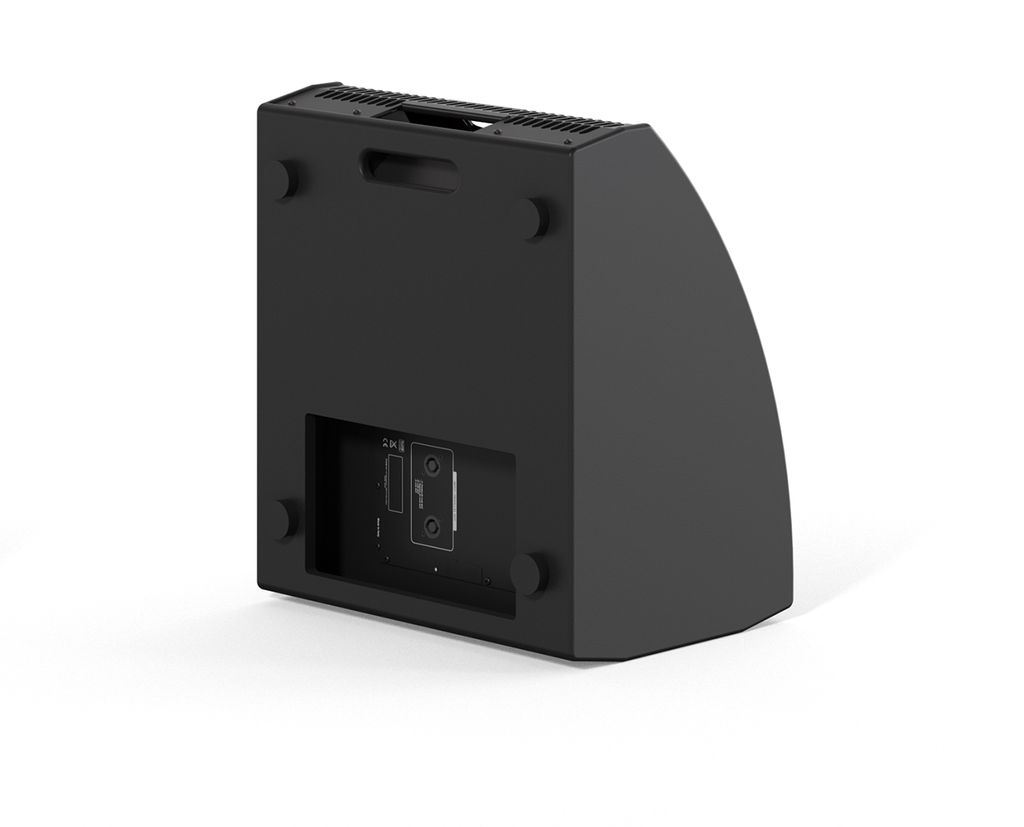

- Connectors: SpeakON NL4 (signal: 1+/1-, through: 2+/2-)
- Dimensions (W x H x D): 450 x 351 x 530 mm (includes 17 mm removable rubber feet)
- Weight: 21.2 kg
- Material: Birch wood cabinet with stainless steel grille
- Colours: Black, White, Custom RAL
- IP Rating: IP20
Applications
Professional stage monitoring for live performances, touring productions, and rehearsal environments. The selectable dispersion horn allows performers to choose wide or narrow coverage to suit stage layout. Suitable as a drum fill driven by the self-powered Mastiff-KM112.
Frequently asked questions
Does the Mastiff-KM112P require a specific amplifier?
Yes. As a passive loudspeaker it requires a compatible K-Array amplifier loaded with a dedicated preset to achieve its rated frequency response and SPL performance.
Can the dispersion pattern be changed on site?
Yes. The horn supports selectable coverage of 30 x 100 degrees or 100 x 30 degrees (vertical by horizontal), allowing flexible positioning on stage.
Is the Mastiff-KM112P suitable for outdoor use?
Its IP20 rating makes it appropriate for indoor applications. It is not rated for direct exposure to moisture or outdoor environments without additional protection.
