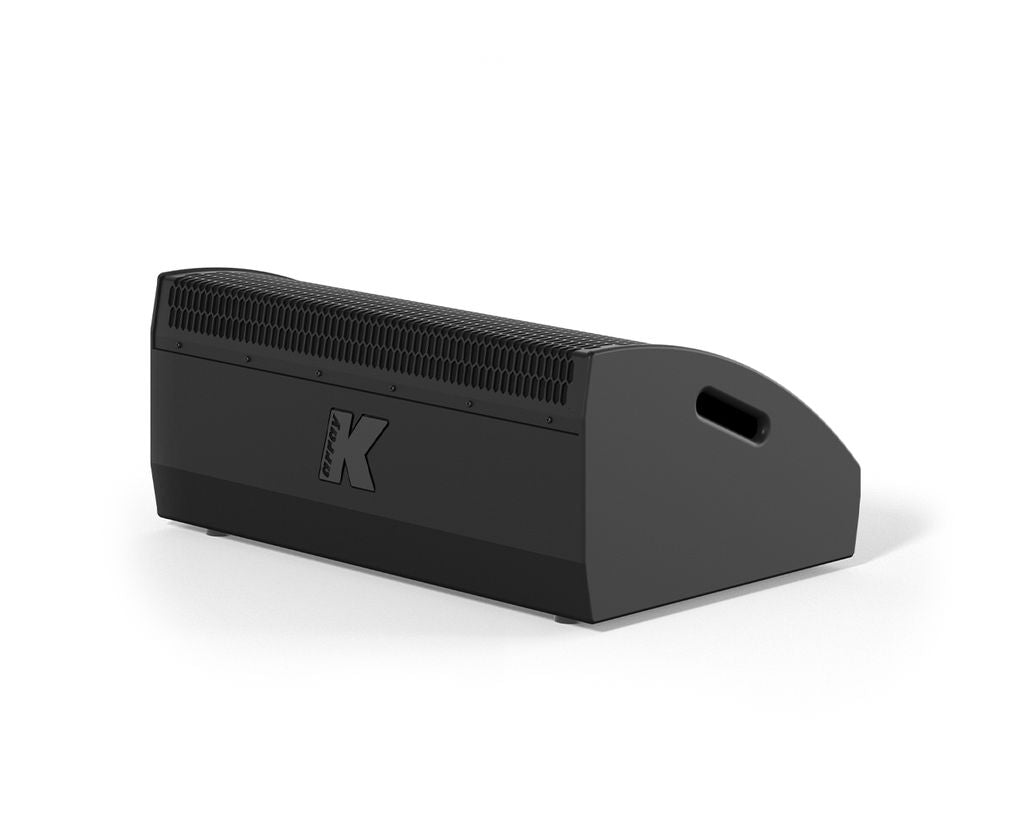

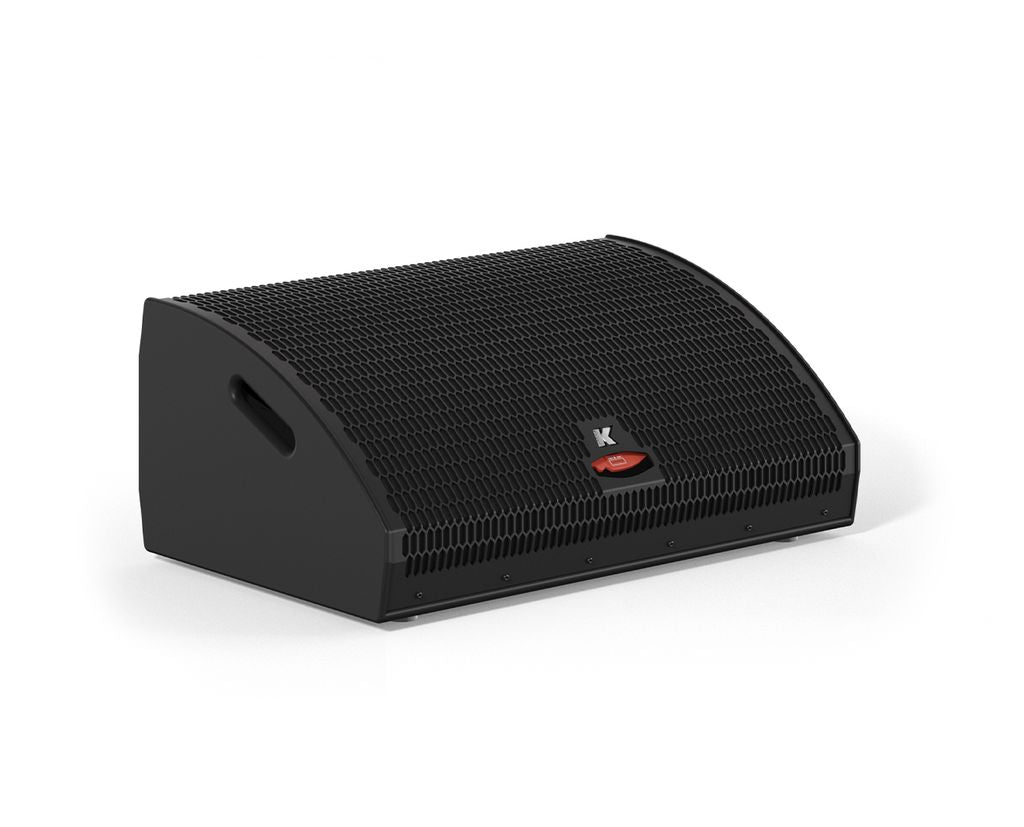

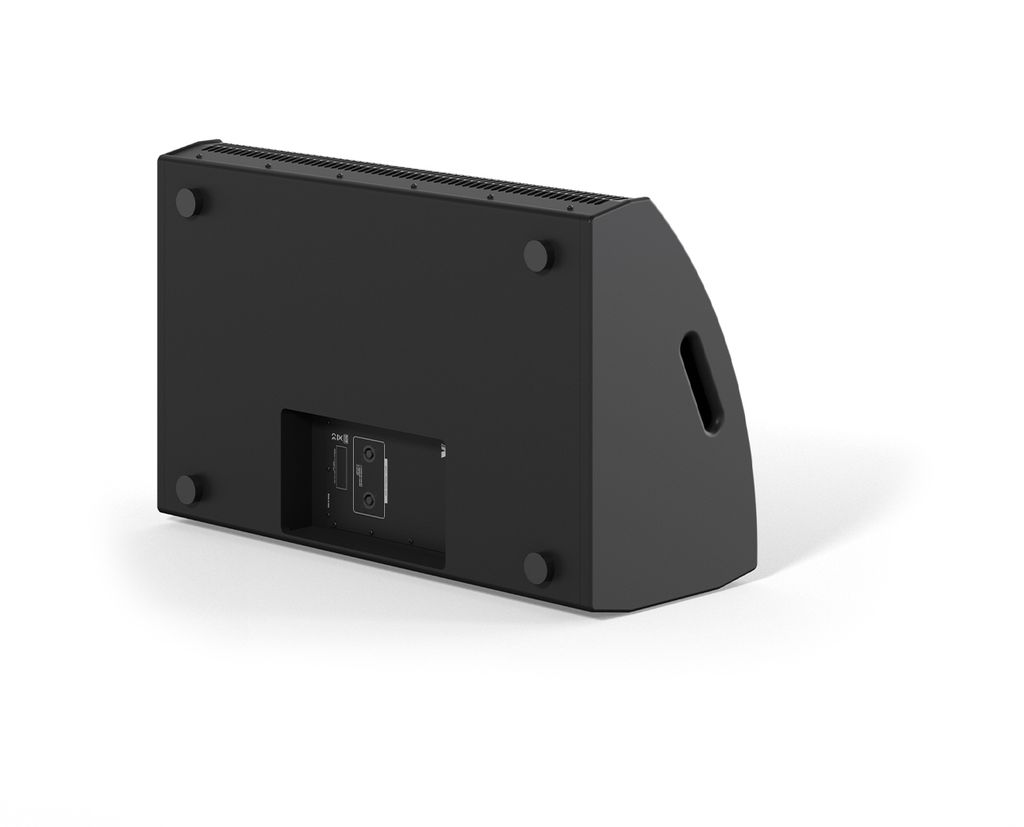

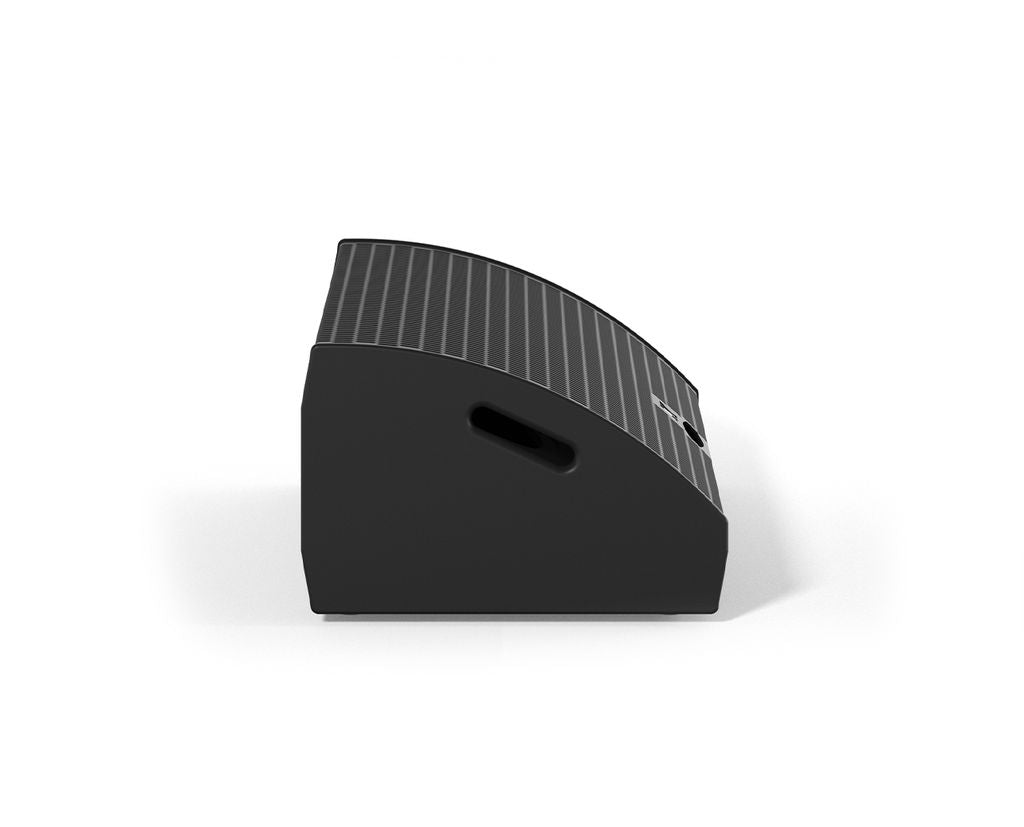

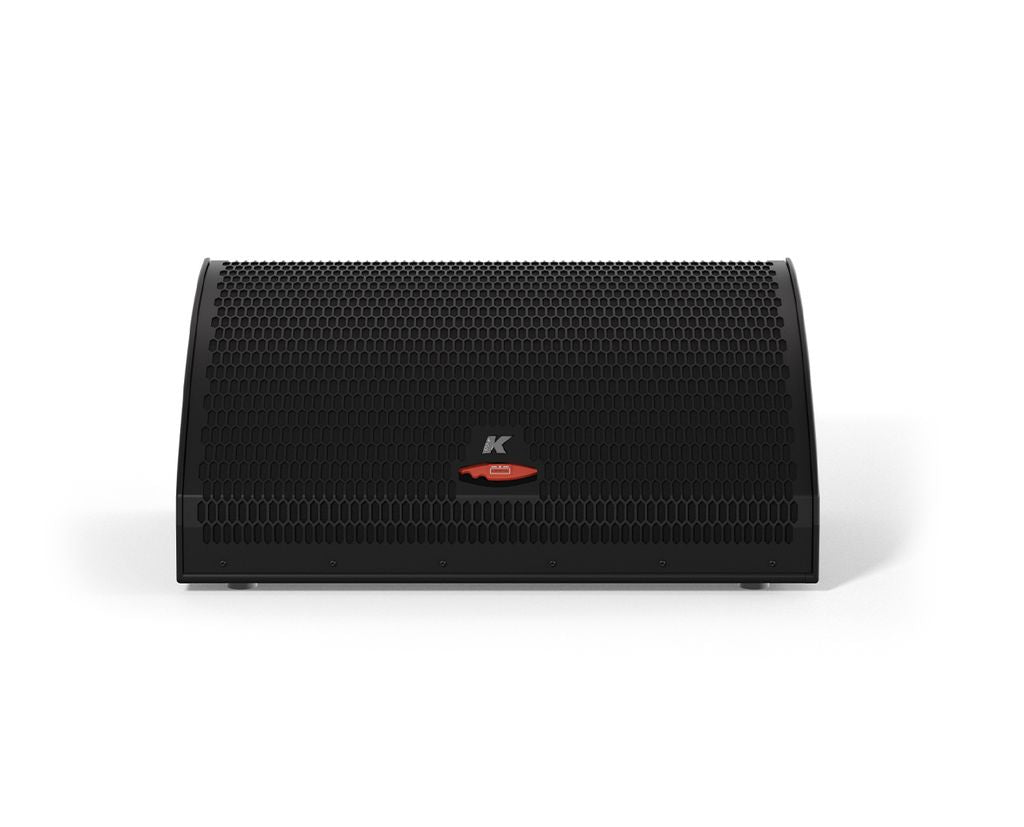

Mastiff-KM312P
The Mastiff-KM312P is a high-power passive stage monitor from K-Array, featuring three 12-inch drivers: two neodymium woofers and one coaxial 12-inch woofer with a 2.4-inch compression driver. It produces up to 138 dB peak SPL, covering the full audible spectrum without an external subwoofer.
Specifications
- Type: Passive high-power stage monitor
- Transducers: 2 x 12-inch neodymium woofer; 1 x coaxial 12-inch woofer with 2.4-inch compression driver
- Frequency Response: 60 Hz to 19 kHz (-6 dB, with dedicated preset)
- Max SPL: 138 dB peak (crest factor 4, measured at 1 m)
- Rated Power: LF: 2000 W, MF-HF: 1000 W
- Nominal Impedance: LF: 4 ohm, MF-HF: 8 ohm
- Coverage: Selectable 30 x 100 degrees or 100 x 30 degrees (V/H)
- Connectors: SpeakON NL4 (MF-HF: 1+/1-, LF: 2+/2-)
- Dimensions (W x H x D): 820 x 351 x 530 mm (includes 17 mm removable rubber feet)
- Weight: 37.5 kg
- Material: Birch wood cabinet with stainless steel grille
- Colours: Black, White, Custom RAL
- IP Rating: IP20
Applications
Large-scale touring productions, music festivals, concerts, and demanding drum fill applications where high output and full-range coverage from a single enclosure are required. The selectable dispersion horn accommodates both wide and narrow stage configurations.
Frequently asked questions
Does the KM312P require a specific amplifier?
Yes. As a passive loudspeaker it requires a compatible K-Array amplifier with a dedicated preset to achieve rated frequency response and SPL.
How does the KM312P differ from the KM112P?
The KM312P has three 12-inch drivers, 138 dB peak SPL, and extends to 60 Hz. The KM112P uses one coaxial 12-inch driver rated at 133 dB peak from 70 Hz.
Does the KM312P need a subwoofer?
Its 60 Hz lower extension covers the full audible spectrum without an external subwoofer in most monitoring applications.
