Mugello-KH2P I

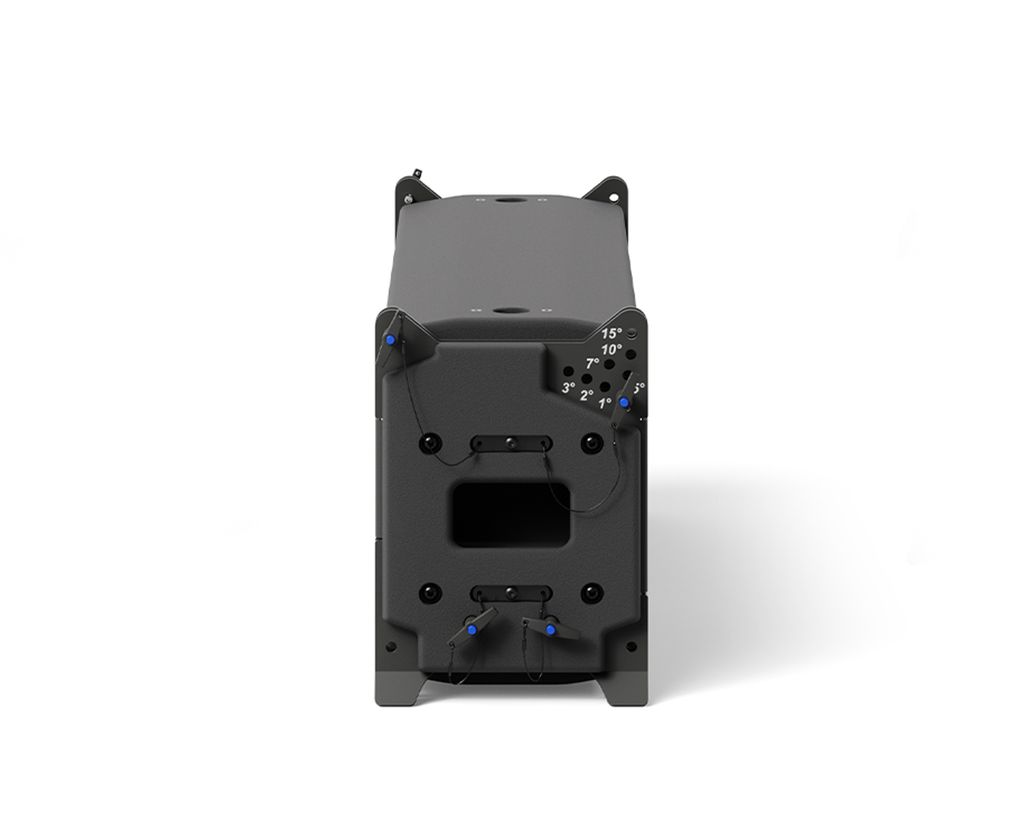

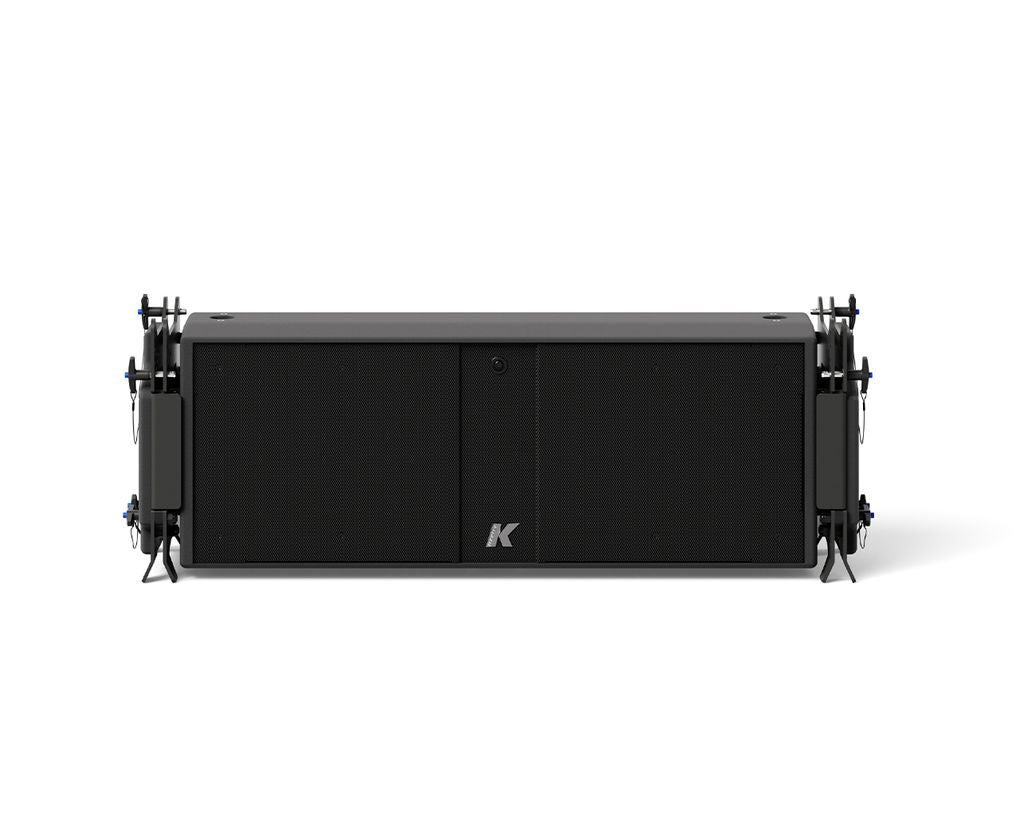

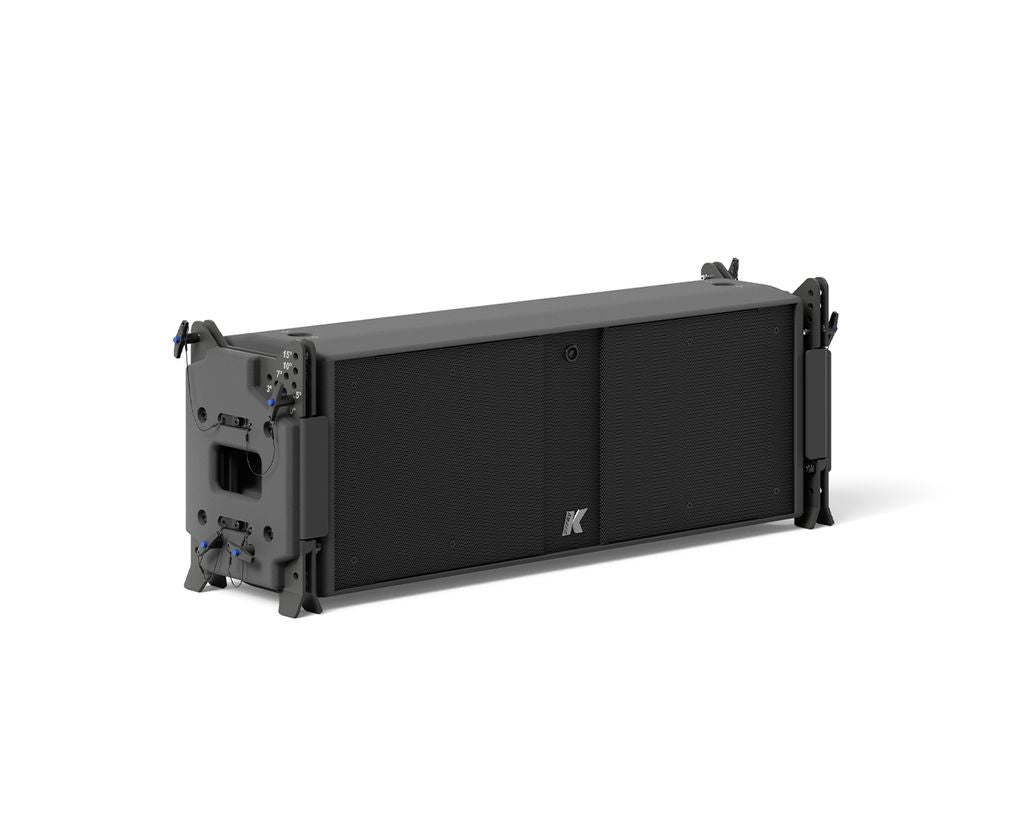

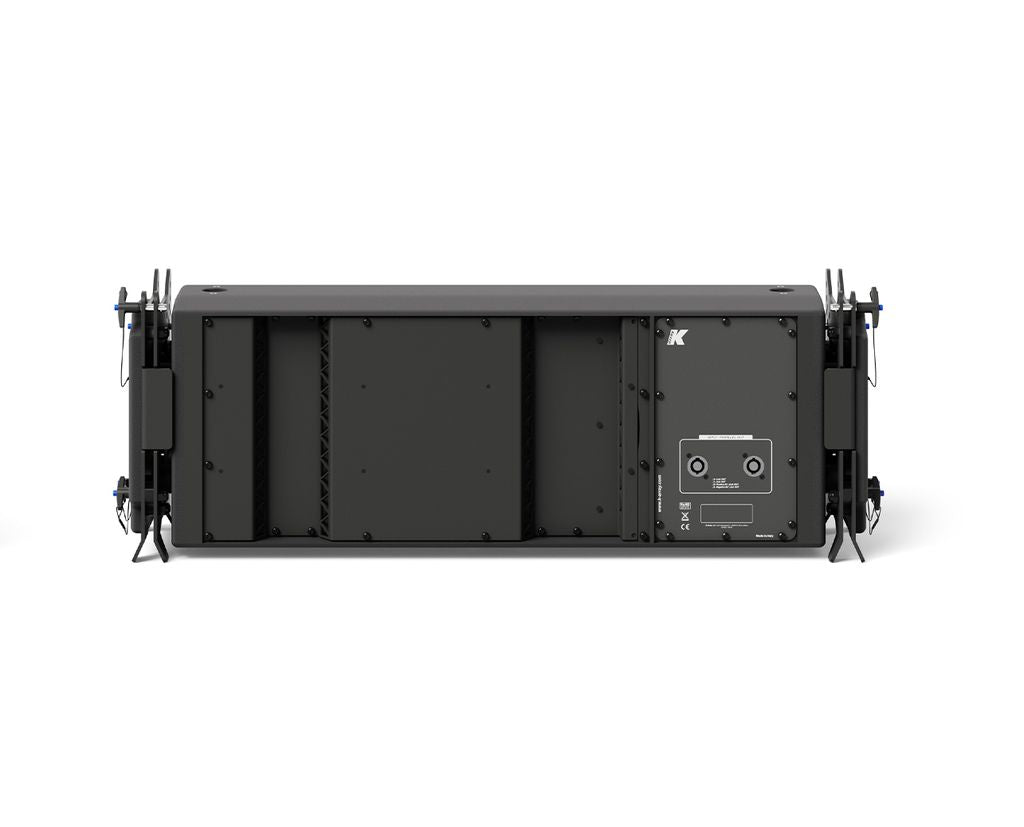

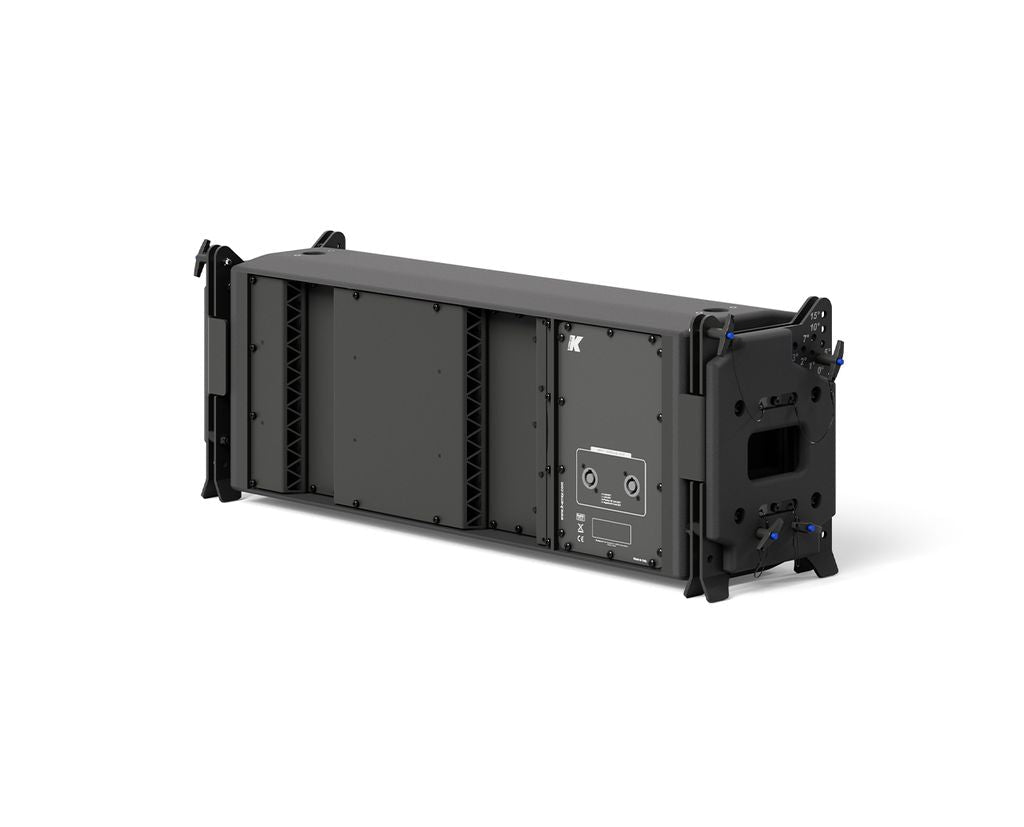

The Mugello-KH2P I is a compact passive line array element from K-Array, housing two 8-inch neodymium woofers and two compression drivers in a flat birch plywood enclosure. Slim Array Technology (SAT) delivers a cardioid polar pattern across the full operating range, while Electronic Beam Steering enables digital vertical dispersion control in array configurations.
Specifications
- Type: Passive line array element
- Transducers: 2 x 8-inch neodymium woofer (2.5-inch voice coil); 2 x compression driver (2.5-inch voice coil)
- Frequency Response: 120 Hz to 19 kHz (-6 dB, with dedicated preset)
- Max SPL: 142 dB peak (crest factor 4, measured at 8 m, scaled to 1 m)
- Rated Power: HF: 250 W peak; LF: 1200 W peak (bi-amp)
- Nominal Impedance: HF: 16 ohm; LF: 8 ohm
- Coverage: 20 degrees vertical (digitally adjustable in array); 110 degrees horizontal
- Connectors: SpeakON 1 (1+/1- driver 250 W at 16 ohm; 2+/2- woofer 1200 W at 8 ohm); SpeakON 2 (link)
- Dimensions (W x H x D) with rigging: 860 x 370 x 210 mm (33.8 x 14.6 x 8.3 in)
- Net dimensions (W x H x D): 735 x 285 x 200 mm (28.9 x 11.2 x 7.9 in)
- Weight with rigging: 24 kg
- Material: Polyurea-coated birch plywood
- Colours: Black, White, Custom RAL
- IP Rating: IP54
Applications
Concert touring, live events, fixed installations, and outdoor performances requiring high output in a lightweight, compact format. Compatible with K-Framework3 software for system configuration, equalisation, and beam steering. Pairs with Thunder-KS3P I subwoofers as part of the SYST12 system package.
Frequently asked questions
What amplifier is required?
The KH2P I is passive and requires a compatible K-Array amplifier with a dedicated preset, using bi-amp SpeakON wiring for separate HF and LF paths.
How is vertical coverage controlled in an array?
Each element covers 20 degrees vertically; K-Framework3 software applies Electronic Beam Steering to set the total beam angle and direction for each deployment.
Is the KH2P I suitable for outdoor use?
IP54 provides dust and water-spray protection for outdoor events. For permanent long-term outdoor installation, contact K-Array for recommended additional weatherproofing.
