Mugello-KH3P I

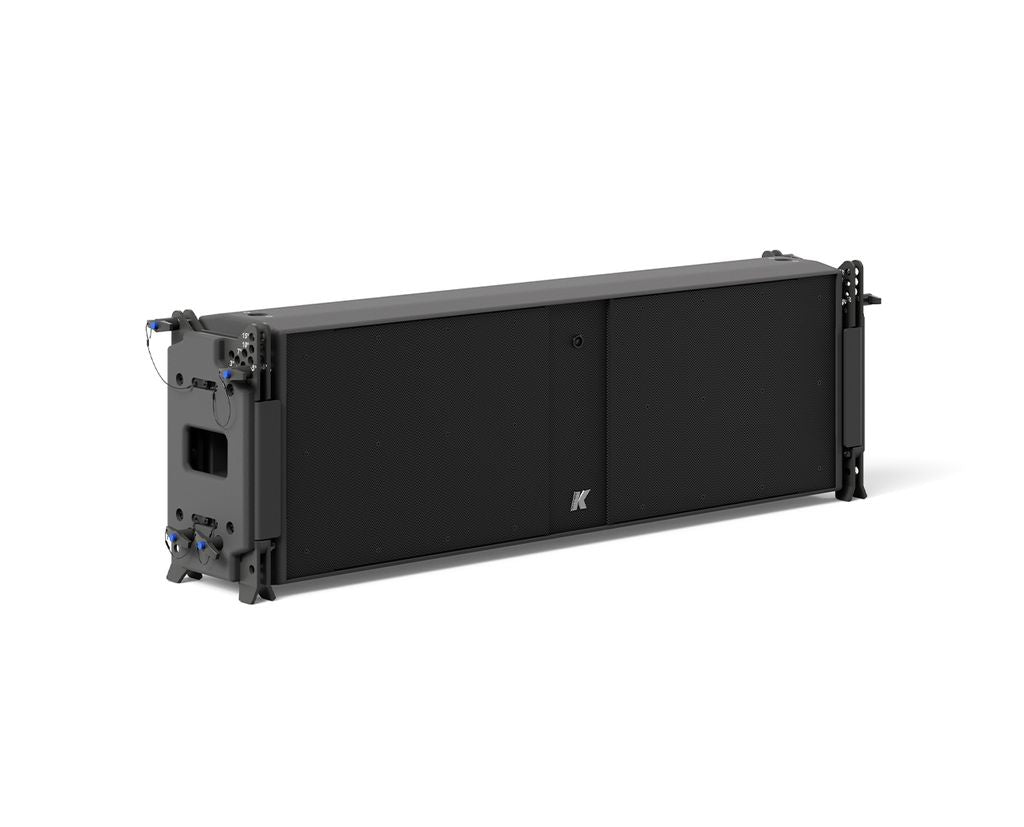

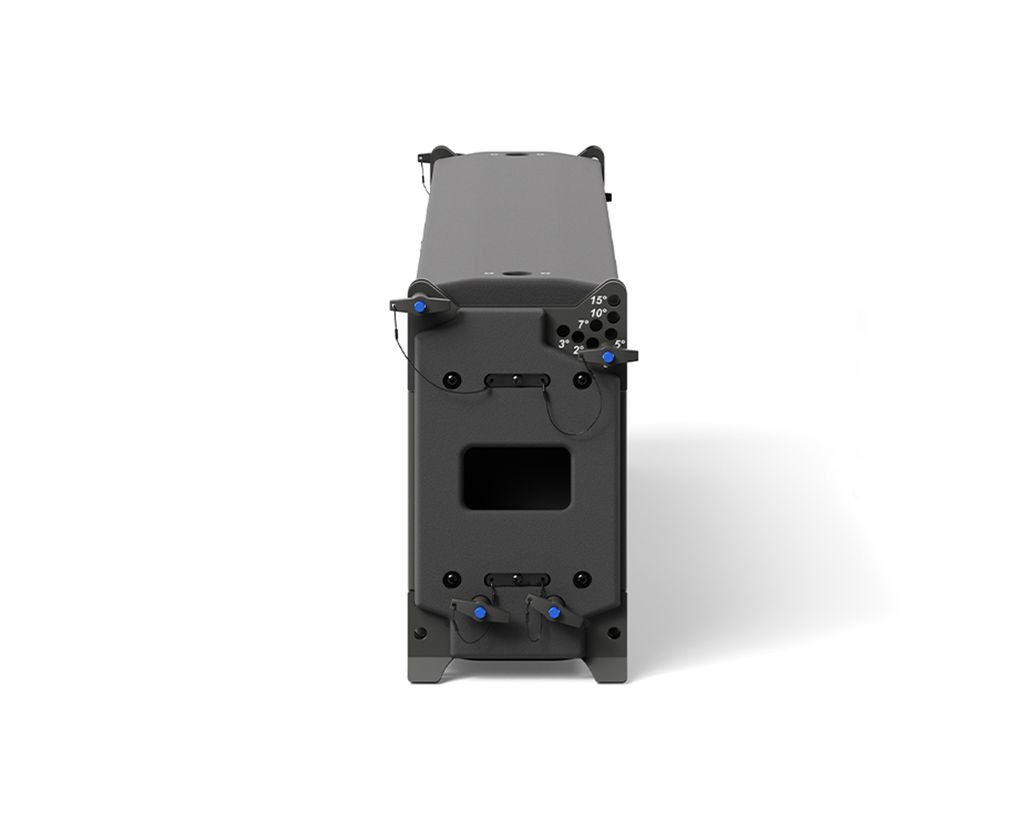

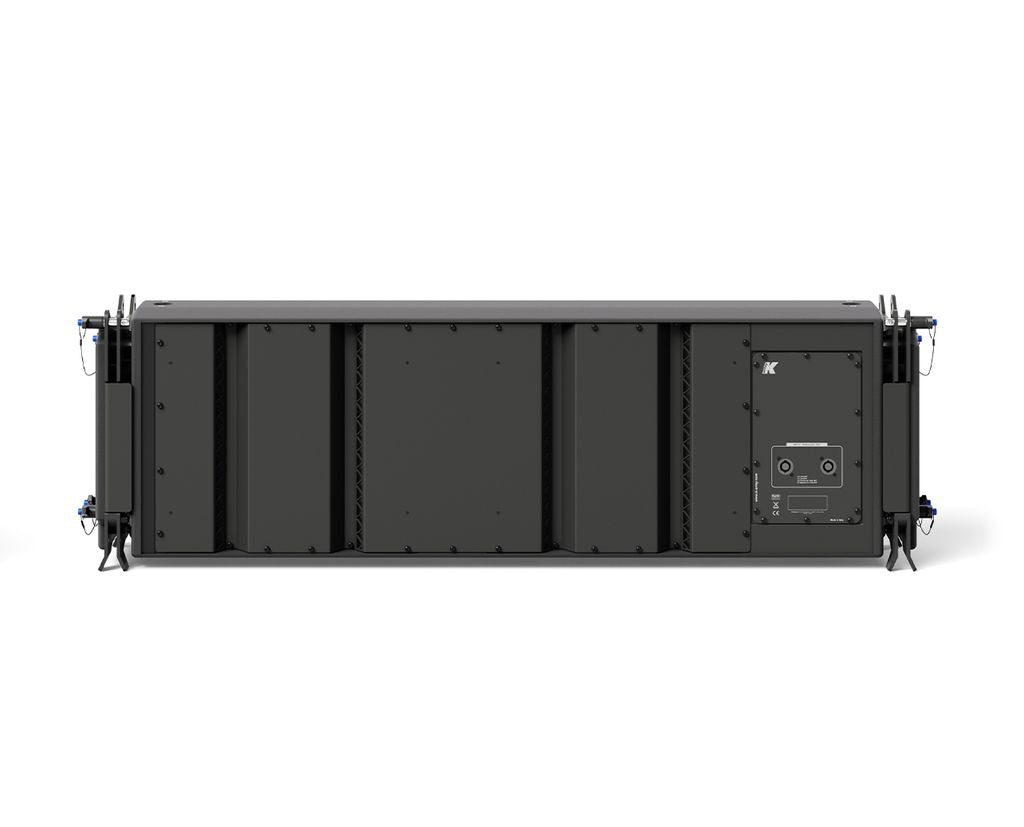

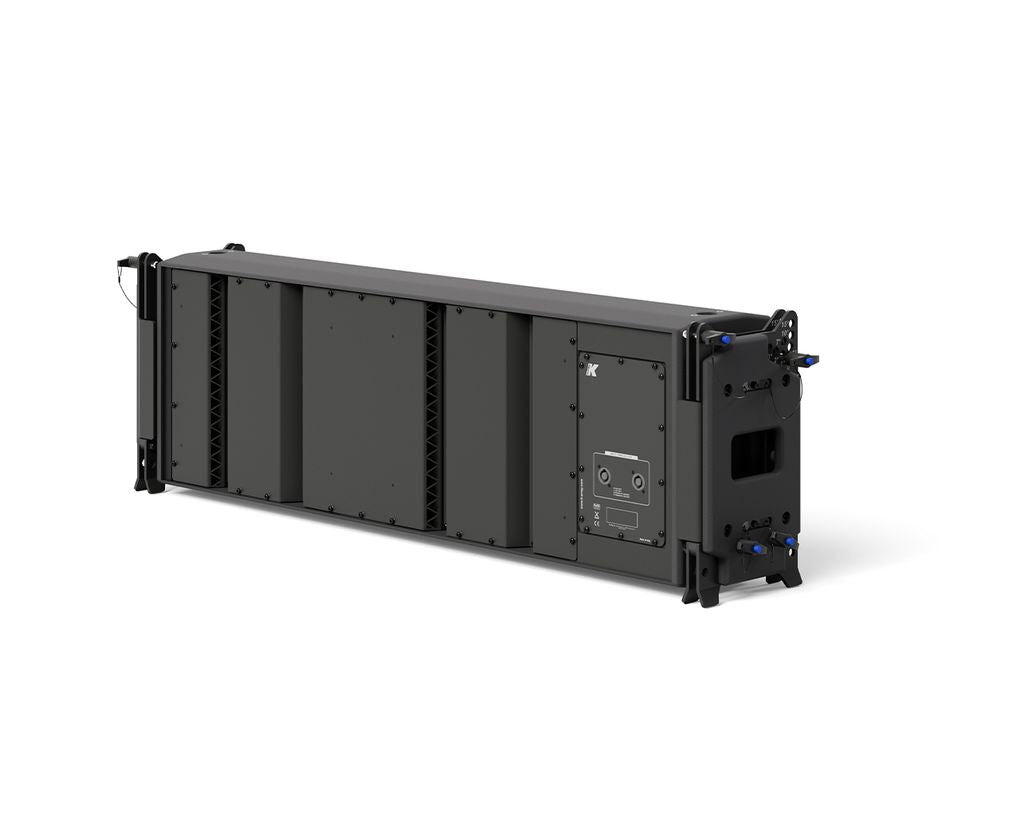

The Mugello-KH3P I is a medium-format passive line array element from K-Array, housing two 12-inch neodymium woofers and two compression drivers in a flat polyurea-coated birch plywood enclosure. It delivers 144 dB peak SPL with Slim Array Technology for consistent cardioid polar pattern control across its full operating range.
Specifications
- Type: Passive line array element
- Transducers: 2 x 12-inch neodymium woofer (2.5-inch voice coil); 2 x compression driver (2.5-inch voice coil)
- Frequency Response: 120 Hz to 19 kHz (-6 dB, with dedicated preset)
- Max SPL: 144 dB peak (crest factor 4, measured at 8 m, scaled to 1 m)
- Rated Power: HF: 250 W peak; LF: 1200 W peak (bi-amp)
- Nominal Impedance: HF: 16 ohm; LF: 8 ohm
- Coverage: 20 degrees vertical (digitally adjustable in array); 110 degrees horizontal
- Connectors: SpeakON 1 (1+/1- driver; 2+/2- woofer); SpeakON 2 (link)
- Dimensions (W x H x D) with rigging: 1218 x 456 x 210 mm (47.9 x 17.9 x 8.3 in)
- Net dimensions (W x H x D): 1104 x 370 x 200 mm (43.5 x 14.5 x 7.9 in)
- Weight with rigging: 38.6 kg
- Material: Polyurea-coated birch plywood
- Colours: Black, White, Custom RAL
- IP Rating: IP54
Applications
Large-scale concerts, touring productions, outdoor festivals, and permanent installations where high power density and compact form factor are required in a single module. Electronic Beam Steering via K-Framework3 software allows precise vertical aiming without mechanical inclination adjustment. Positioned between the KH2P I and the larger KH5P I in the Mugello series.
Frequently asked questions
How does the KH3P I differ from the KH2P I?
The KH3P I uses two 12-inch woofers versus the KH2P I's two 8-inch woofers, producing 144 dB peak versus 142 dB. Its wider cabinet suits larger-scale deployments requiring more output per element.
What amplifier is required?
The KH3P I is passive and requires a compatible K-Array amplifier with a dedicated preset, using bi-amp SpeakON wiring for separate HF and LF paths.
Is the KH3P I rated for outdoor use?
IP54 provides dust and water-spray protection for outdoor events. For permanent long-term outdoor installation, contact K-Array for additional weatherproofing guidance.
