Mugello-KH5P I

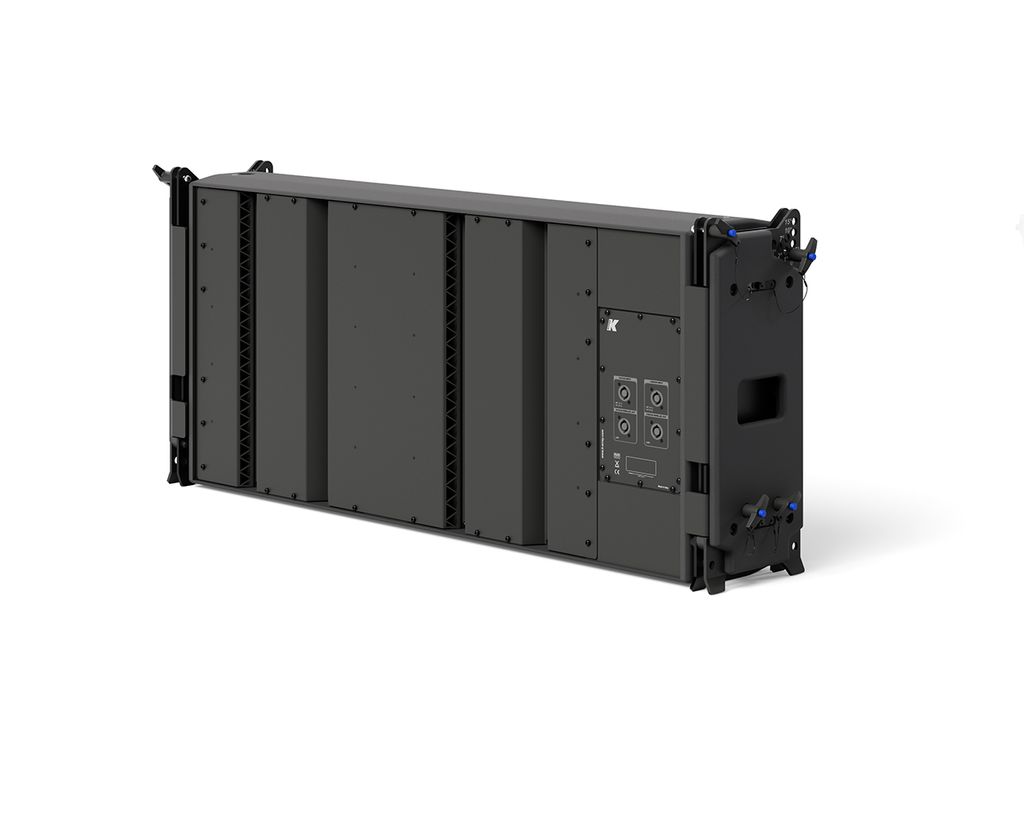

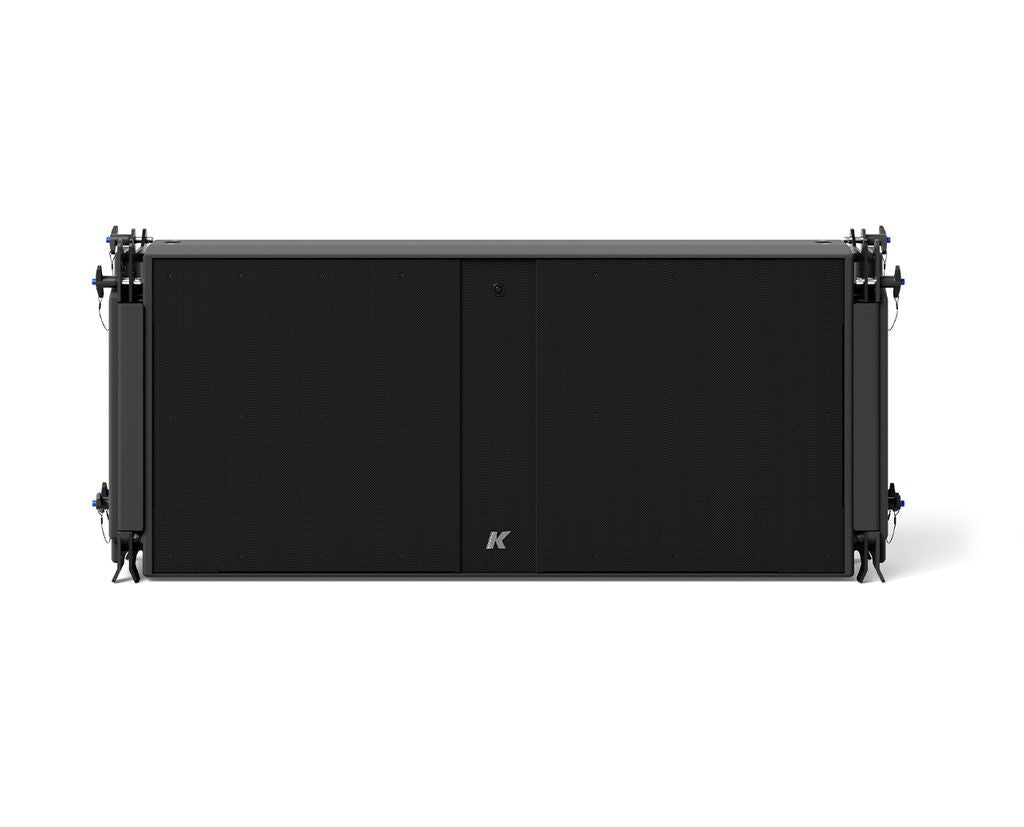

The Mugello-KH5P I is a passive line array element from K-Array, designed for large-scale concerts, touring, and live events. It combines two 15-inch neodymium woofers with four horn-loaded compression drivers inside a shallow polyurea-coated birch plywood cabinet, delivering high output with a tight vertical pattern suited to long-throw reinforcement.
Specifications
- Type: Passive line array element
- Woofers: 2 x 15 inch neodymium, 2.5 inch voice coil
- Compression drivers: 4 x horn-loaded, 2.5 inch voice coil
- Frequency response: 120 Hz to 19 kHz (-6 dB, with dedicated preset)
- Maximum SPL: 147 dB peak
- Rated power (HF): 2 x 250 W peak at 16 ohm
- Rated power (LF): 2 x 800 W peak at 8 ohm
- Nominal impedance (HF): 2 x 16 ohm
- Nominal impedance (LF): 2 x 8 ohm
- Vertical coverage: 7 degrees (digitally adjustable within array configuration)
- Horizontal coverage: 110 degrees

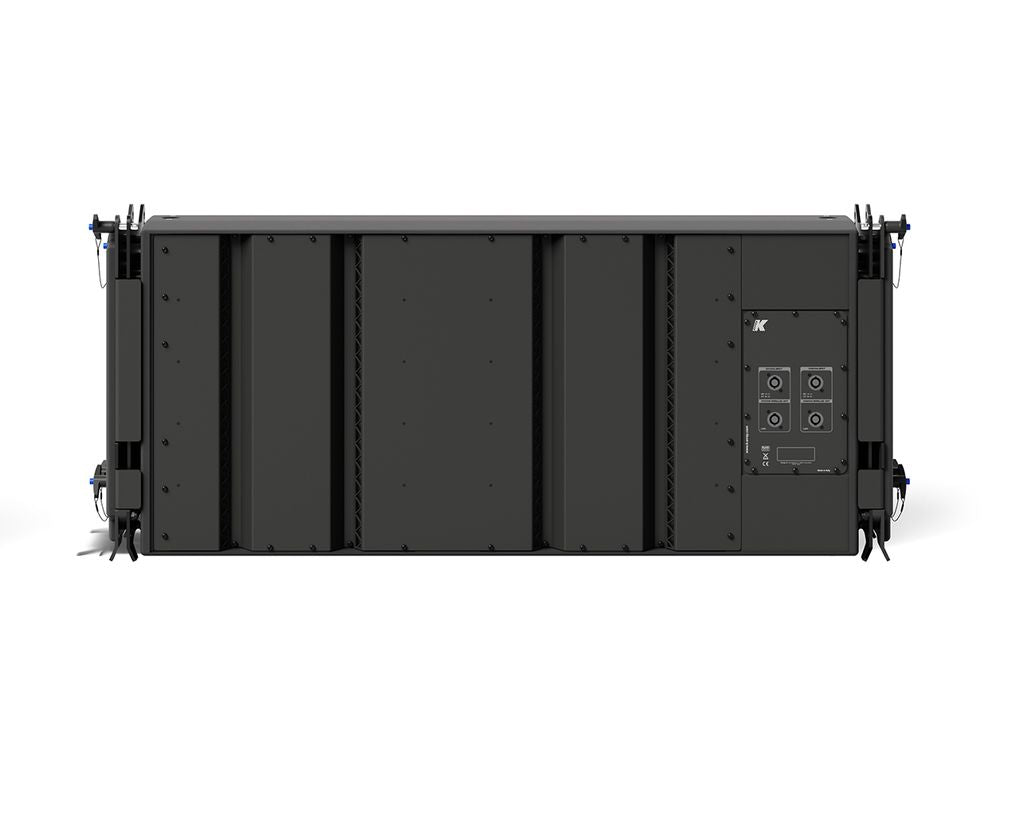

- Connectors: 4 x SpeakON (2 active, 2 link-through)
- Dimensions with rigging (W x H x D): 1218 x 604 x 210 mm
- Dimensions net (W x H x D): 1104 x 520 x 200 mm
- Weight with rigging: 59 kg
- Cabinet material: Polyurea-coated birch plywood
- Colours: Black, White, Custom RAL
- IP rating: IP54
Applications
Suited to arenas, stadiums, outdoor festivals, and large-scale touring productions where high output, precise vertical directivity, and weather resistance are required. Arrays can be mechanically steered and electronically beam-steered using K-Array Electronic Beam Steering technology to optimise coverage across different venue geometries.
Standards and compliance
Rated IP54, providing protection against dust ingress and water splashing from any direction.
Frequently asked questions
Can the vertical dispersion angle be changed after the array is rigged?
Yes. The vertical coverage of 7 degrees can be digitally adjusted within an array configuration using K-Array Electronic Beam Steering technology, without requiring physical repositioning of the cabinet.
What amplification does the Mugello-KH5P I require?
The cabinet is passive and requires an external amplifier. The HF section accepts up to 250 W peak per channel at 16 ohm, and the LF section accepts up to 800 W peak per channel at 8 ohm, connected via SpeakON connectors.
Is the Mugello-KH5P I suitable for permanent outdoor installation?
The IP54 rating and polyurea-coated birch plywood cabinet provide protection against dust and water splashing, making it suitable for covered outdoor applications and touring use.
