Prisma-KPR00+
The Prisma-KPR00+ is a matrix processing platform from K-Array, built around the Integrated Electronic Brain-Pro (IEB-Pro). It provides up to 16 x 16 audio channels combining analog and Dante inputs and outputs, with a comprehensive onboard DSP and compatibility with a range of control ecosystems. The unit is expandable via accessory boards and suits a wide range of fixed-installation audio applications.
Specifications
- Type: Matrix processing platform with IEB-Pro and osKar operating system
- Maximum channels (combined): 16 x 16 (analog plus Dante)
- Dante channels: Up to 8 x 8 (Dante-Ready, license activation required)
- Analog inputs: 0 base, expandable to 8 via K-PRIN4 accessory board
- Analog outputs: 0 base, expandable to 8 via K-PROUT4 accessory board
- Input EQ: 15-band fully parametric equaliser per channel
- Output EQ: 15-band fully parametric with selectable filter types (peaking, high/low shelf, high/low pass, Butterworth)
- Output delay: Up to 50 ms per channel
- Signal routing: Freely assignable input-to-output with crosspoint level adjustment
- Additional DSP: Noise gate on analog signals, audio priority/fail-over on router inputs 1 to 4
- Remote control: Web App, K-Connect (mobile), K-Control (dashboard), REST API for third-party integration
- Material: Stainless steel
- Form factor: 1U rack-mount
- Dimensions (W x H x D): 480 x 43 x 221 mm
- Colour: Black
- IP rating: IP20
Applications
Suited to corporate AV, hospitality, retail, conference rooms, and distributed audio systems where a scalable, network-connected processing platform is required. Third-party control integration is supported via Q-SYS, Crestron, Control4, and REST API, making the unit compatible with existing building management and AV control systems.
Frequently asked questions
Does the Prisma-KPR00+ include built-in amplification?
No. The KPR00+ is a processing platform only with no amplified outputs. Amplification is provided separately; the unit is intended to be paired with external amplifiers or powered speaker systems.
Is Dante available out of the box?
The unit is Dante-Ready, meaning the hardware supports up to 8 x 8 Dante channels but requires a Dante license activation to enable network audio functionality.

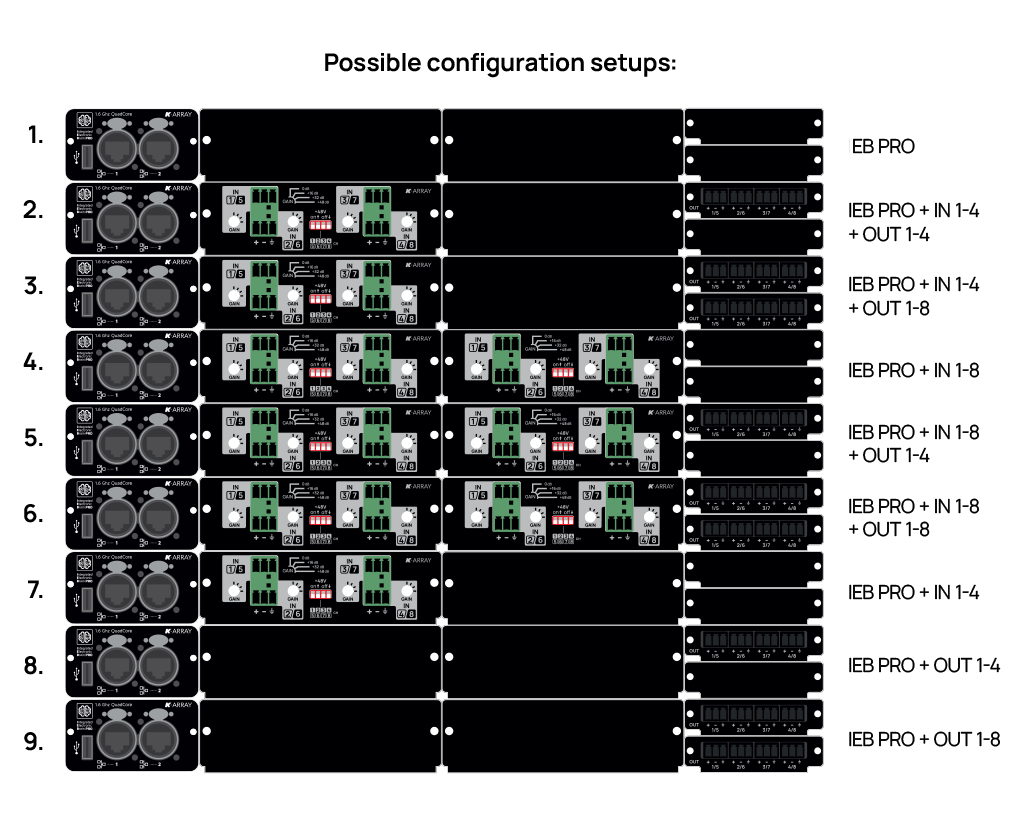

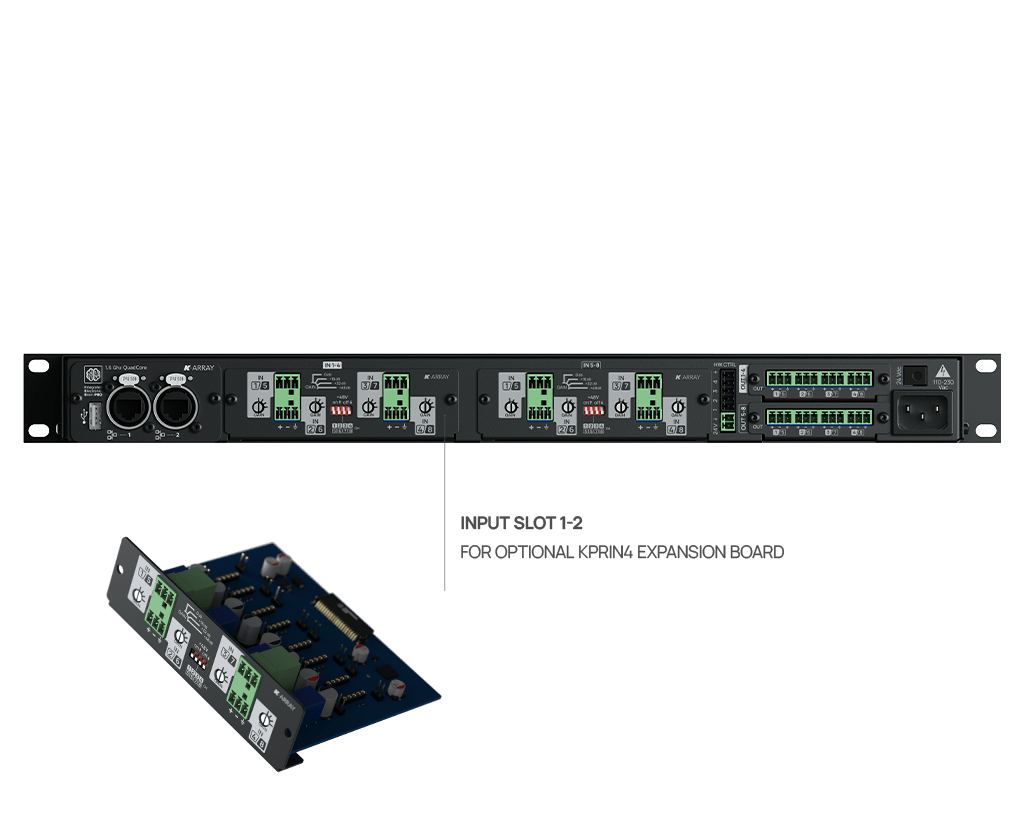

Can the number of analog inputs and outputs be increased?
Yes. The K-PRIN4 accessory board adds 4 analog inputs and the K-PROUT4 adds 4 outputs, allowing expansion up to 8 analog inputs and 8 analog outputs alongside the Dante channels.
