Prisma-KPRA02+

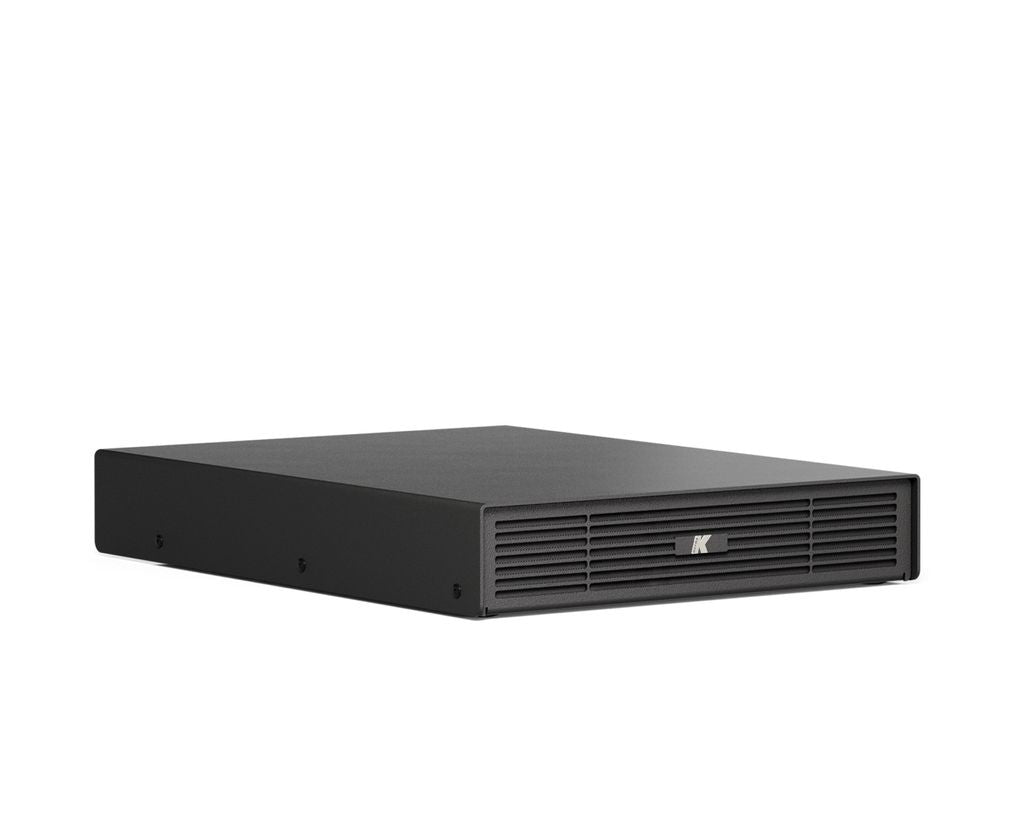

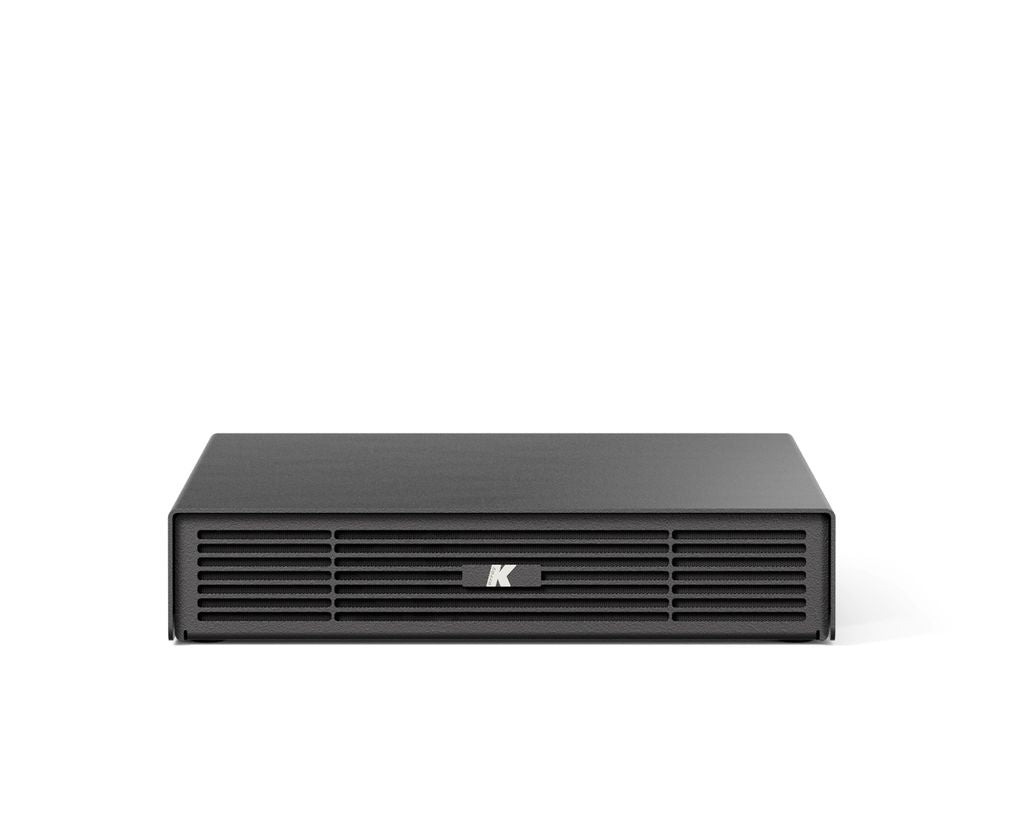

The Prisma-KPRA02+ is a compact amplified matrix platform from K-Array, combining the Integrated Electronic Brain-Pro (IEB-Pro) processor with a four-channel Class D amplifier. It provides four balanced analog inputs, four amplified outputs, Dante-Ready networking, and a full onboard DSP in an aluminium chassis, making it suitable for small-to-medium fixed installations.
Specifications
- Type: Amplified matrix with IEB-Pro, 4-channel analog inputs and 4-channel powered outputs
- Output power: 4 x 50 W at 4 ohm
- Amplifier class: Class D switching mode
- Minimum impedance: 4 ohm (2 ohm PBTL)
- Frequency response: 20 Hz to 20 kHz (+/-1 dB)
- Dante channels: Up to 8 x 8 (Dante-Ready, license activation required)

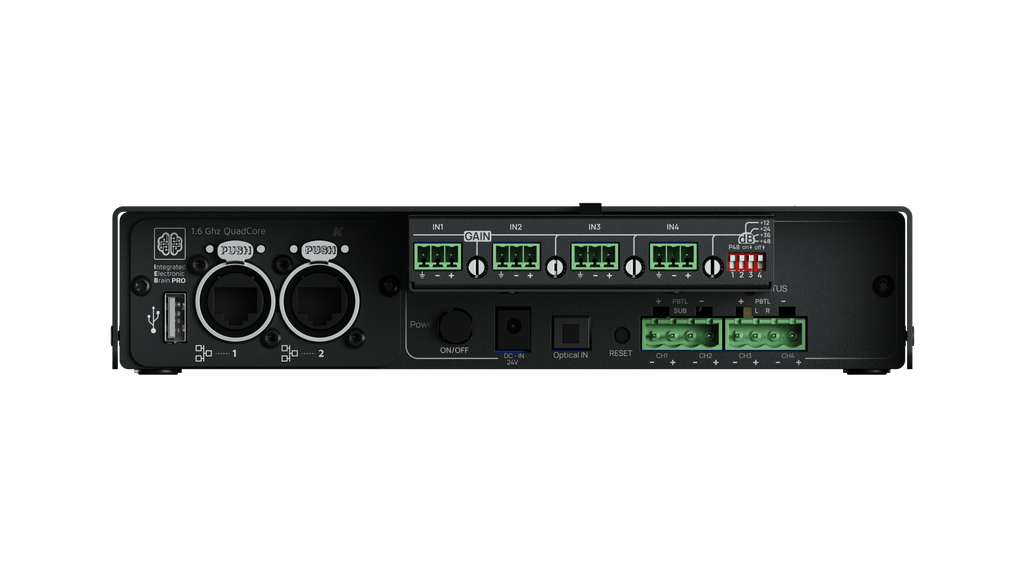

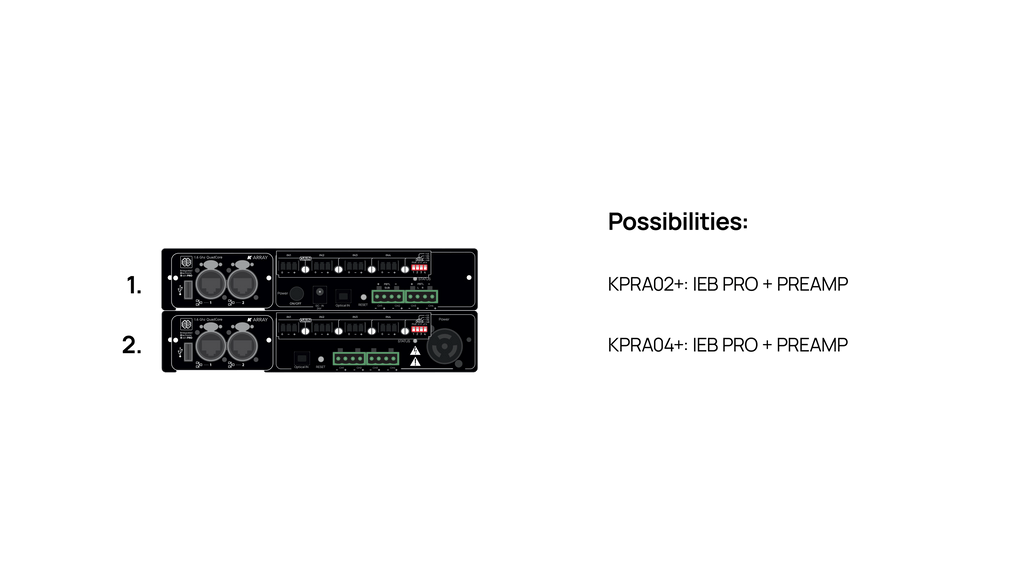

- Analog inputs: 4 x balanced via Euroblock 1.5/3-ST-3.81 connector (plus K-PREAMPS4 module), 1 x 3.5 mm unbalanced stereo AUX, 1 x TOSLINK optical
- Analog outputs: 4 x via Euroblock 2.5/4-G-5.08 connector
- Digital connectivity: 1 x USB-A 2.0, 2 x RJ45 Ethernet
- Built-in DSP: Grouping, equalisation, limiters, routing, level control, loudspeaker presets
- Remote control: Wi-Fi and Ethernet, dedicated app and desktop software
- Power supply: External AC/DC adapter, 100 to 240 V AC, 50/60 Hz input, 24 V/4 A DC output
- Power consumption: 20 W at 4 ohm, 1/8 rated power (pink noise)
- Material: Aluminium
- Dimensions (W x H x D): 219 x 46 x 170 mm
- Weight: 0.7 kg
- Colour: Black
- IP rating: IP20
Applications
Designed for conference rooms, corporate environments, retail spaces, and hospitality installations where a compact, self-contained amplified matrix is required. The combination of analog inputs, optical input, and Dante networking in a small form factor simplifies installation in space-constrained equipment racks or above-ceiling locations.
Frequently asked questions
Does the Prisma-KPRA02+ require an external power supply?
Yes. The unit operates from a dedicated external AC/DC adapter supplying 24 V DC, which accepts 100 to 240 V AC mains input. The adapter is included with the unit.
Is Dante networking available immediately on purchase?
The Prisma-KPRA02+ is Dante-Ready, supporting up to 8 x 8 Dante channels, but Dante functionality requires a separate license activation before use.
What control options are available?
The unit can be configured and controlled via a dedicated Wi-Fi and Ethernet app and desktop software. This covers DSP functions including grouping, equalisation, limiters, routing, level, and loudspeaker presets.
