Prisma-KPRA14+
The Prisma-KPRA14+ is an amplified matrix platform from K-Array, combining the Integrated Electronic Brain-Pro (IEB-Pro) processor with a four-channel Class D amplifier rated at 600 W per channel at 2 ohm. It supports Dante-Ready networking with up to 8 x 8 Dante channels, onboard DSP, and PowerCon mains connectivity in an aluminium chassis suited to demanding fixed installations.
Specifications
- Type: Amplified matrix with IEB-Pro, Dante-Ready (8 x 8 channels, license activation required)
- Output power: 4 x 600 W at 2 ohm
- Amplifier class: Class D switching mode
- Minimum impedance: 2 ohm
- Frequency response: 20 Hz to 20 kHz (+/-1 dB)
- Dante inputs: 8 x 8 Dante channels (enabling)

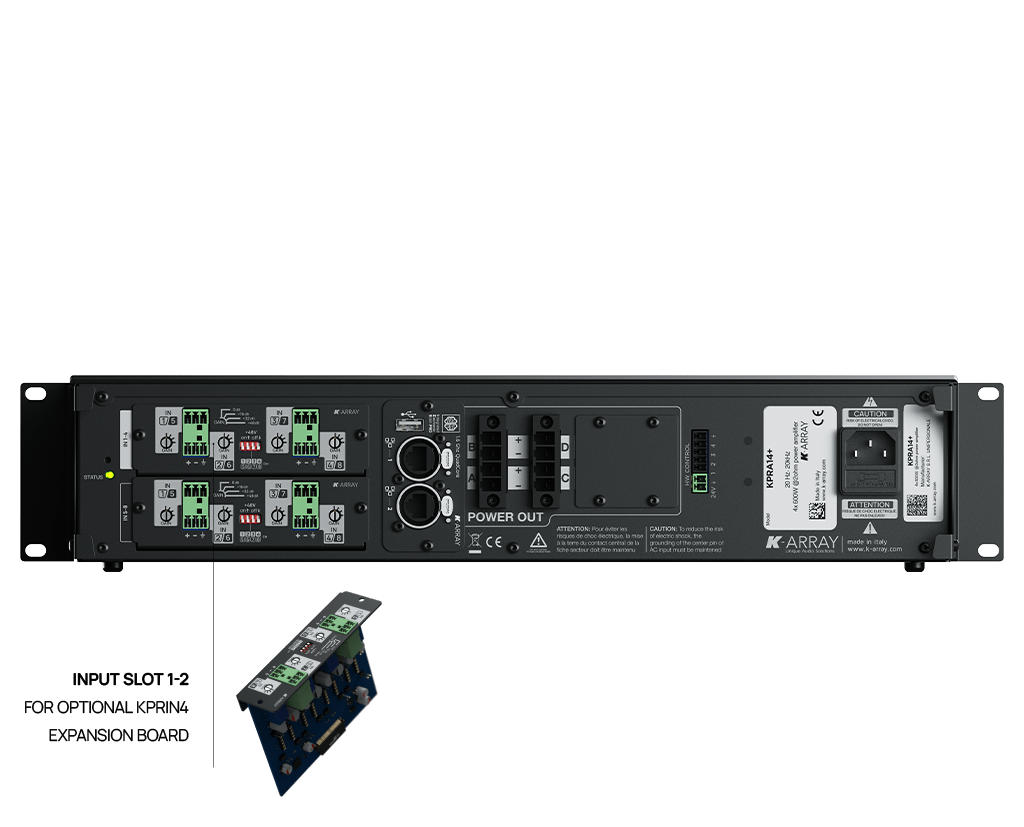

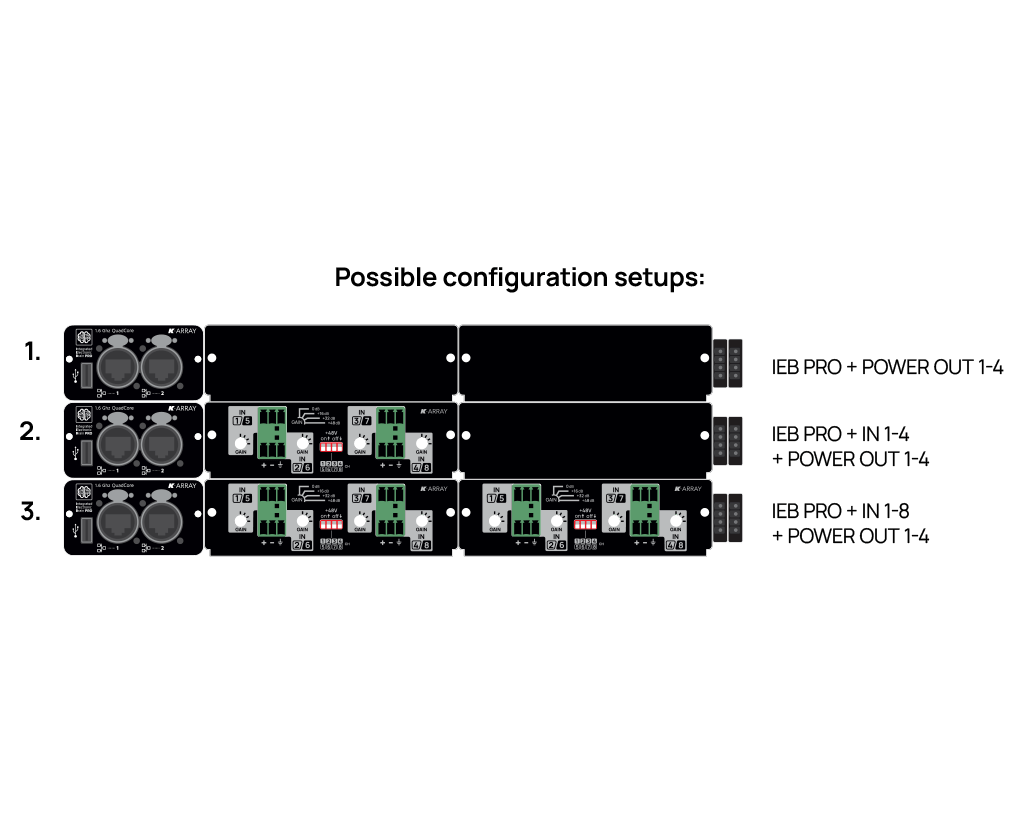

- Analog inputs: 0 base, expandable to 8 via K-PRIN4 accessory board
- Analog outputs: 4 channels via 2 x PC 4/4-ST-7.62 speaker output connectors
- Remote connectivity: 2 x EtherCON RJ45 (1 Gbit, primary and secondary), 1 x USB-A
- Power: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
- Built-in DSP: Grouping, equalisation, limiters, routing, level control, loudspeaker presets
- Remote control: Wi-Fi and Ethernet, dedicated app and desktop software
- Mains input: 100 to 240 V AC, 50/60 Hz with PFC
- Power consumption: 400 W at 8 ohm, pink noise, 1/4 rated power
- Material: Aluminium
- Dimensions (W x H x D): 219 x 46 x 320 mm
- Weight: 1.2 kg
- IP rating: IP20
Applications
Suited to hospitality, corporate, and distributed audio systems where high amplifier output power is required alongside network audio capability. The Dante-Ready platform, 1 Gbit EtherCON ports with primary/secondary redundancy, and expandable analog input via the K-PRIN4 board make the KPRA14+ a practical choice for installations with existing network audio infrastructure or complex signal routing requirements.
Frequently asked questions
Does the Prisma-KPRA14+ include analog inputs by default?
No. The unit ships with zero analog inputs. Up to 8 analog inputs can be added using the separately available K-PRIN4 input and preamp expansion board. Dante network audio channels are available immediately after license activation.
What is the difference between the KPRA14+ and the KPRA04+?
The KPRA14+ delivers 600 W per channel at 2 ohm, compared to 150 W per channel at 4 ohm for the KPRA04+. The KPRA14+ also starts with no analog inputs (expandable via accessory), uses EtherCON connectors with primary/secondary redundancy, and supports a Dante-only input architecture suitable for fully networked installations.
Is network redundancy supported for Dante connectivity?
Yes. The KPRA14+ provides two EtherCON RJ45 ports at 1 Gbit, designated as primary and secondary, supporting Dante network redundancy for reliable operation in critical installations.
