Prisma-KPRA34+

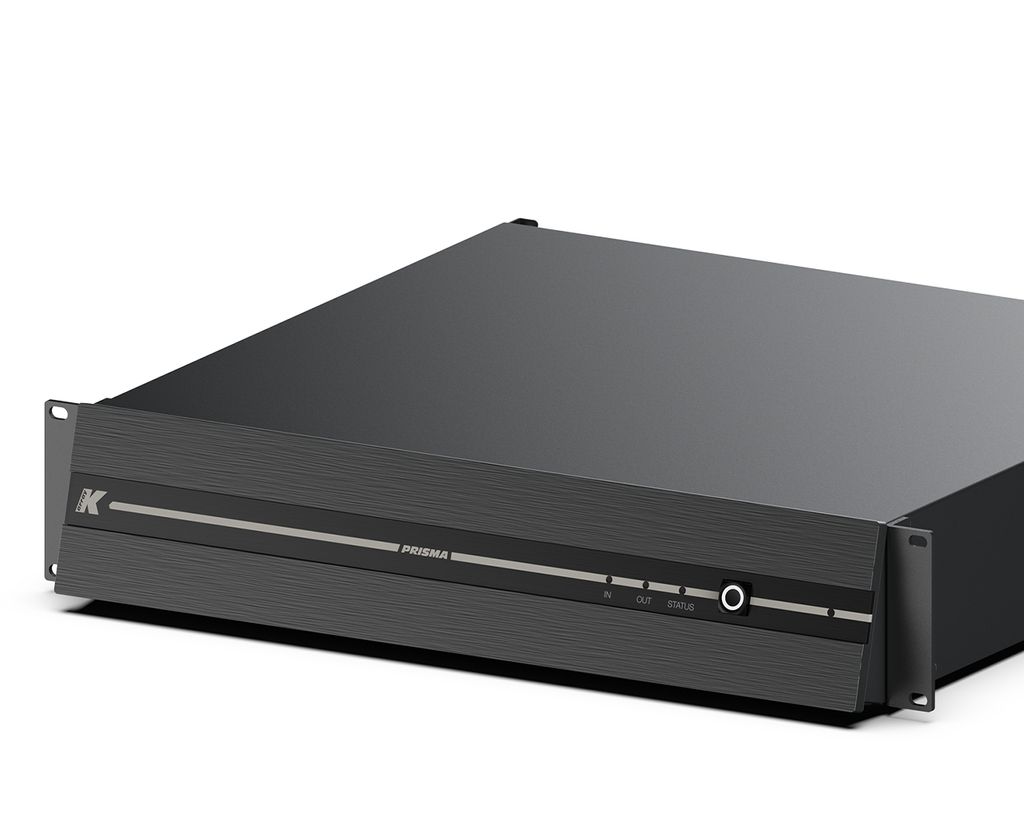

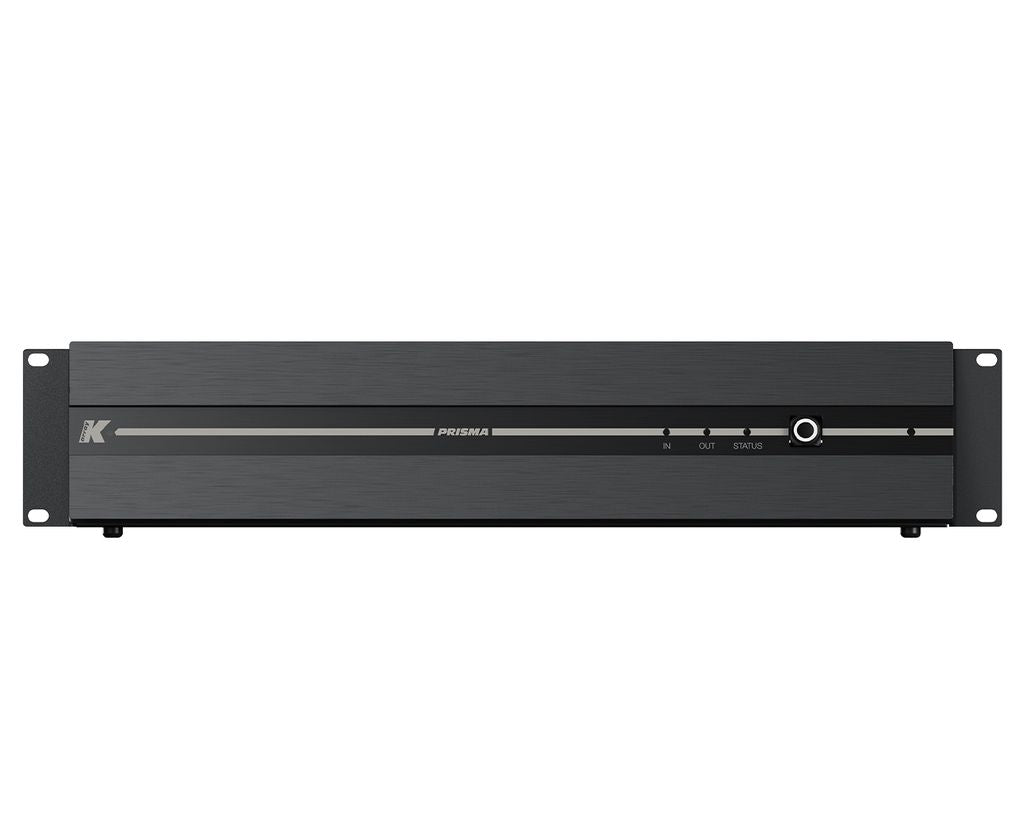

Prisma-KPRA34+ is a 4-channel amplified matrix processor from K-Array, designed for professional installed-sound systems. Powered by K-Array's Integrated Electronic Brain-Pro, it combines four 750 W amplifier channels with Dante-Ready networking and full DSP processing in a 2U rack chassis, serving hospitality, corporate AV, and distributed audio installations.
Specifications
- Type: Amplified matrix with Integrated Electronic Brain-Pro
- Output power: 4 x 750 W at 4 ohms
- Minimum impedance: 4 ohms
- Frequency response: 20 Hz to 20 kHz (+/-1 dB)
- Dante channels: Up to 8 in / 8 out (Dante-Ready, enabled at purchase)

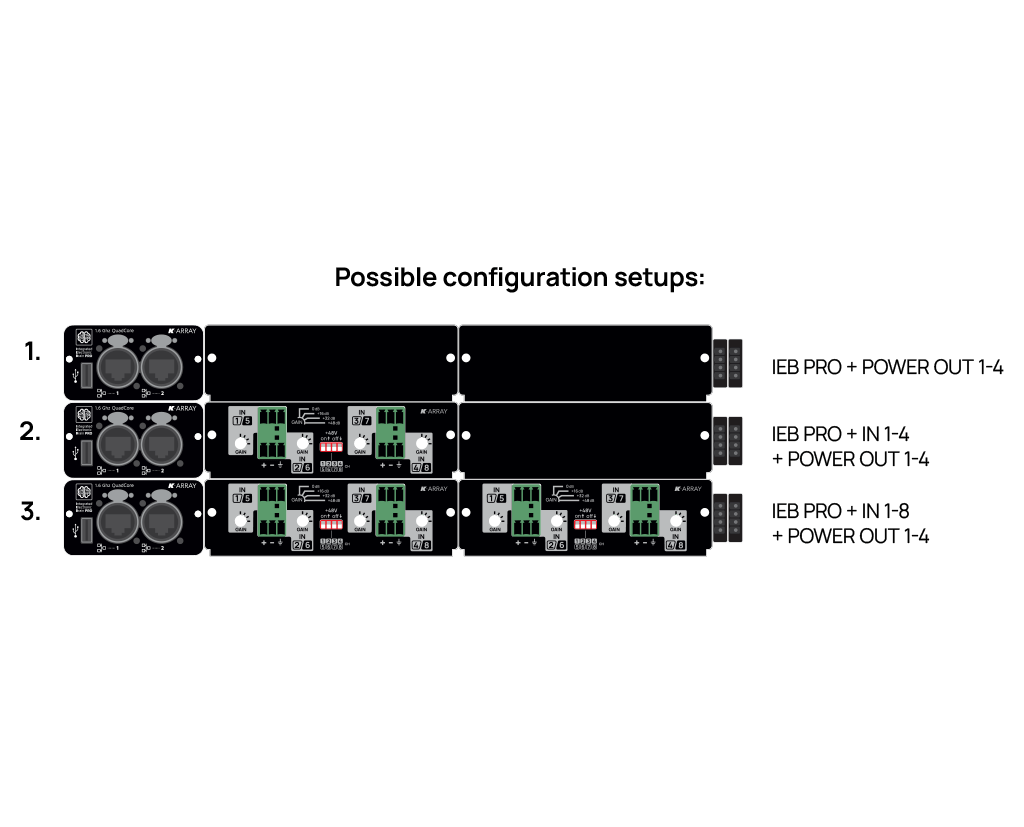

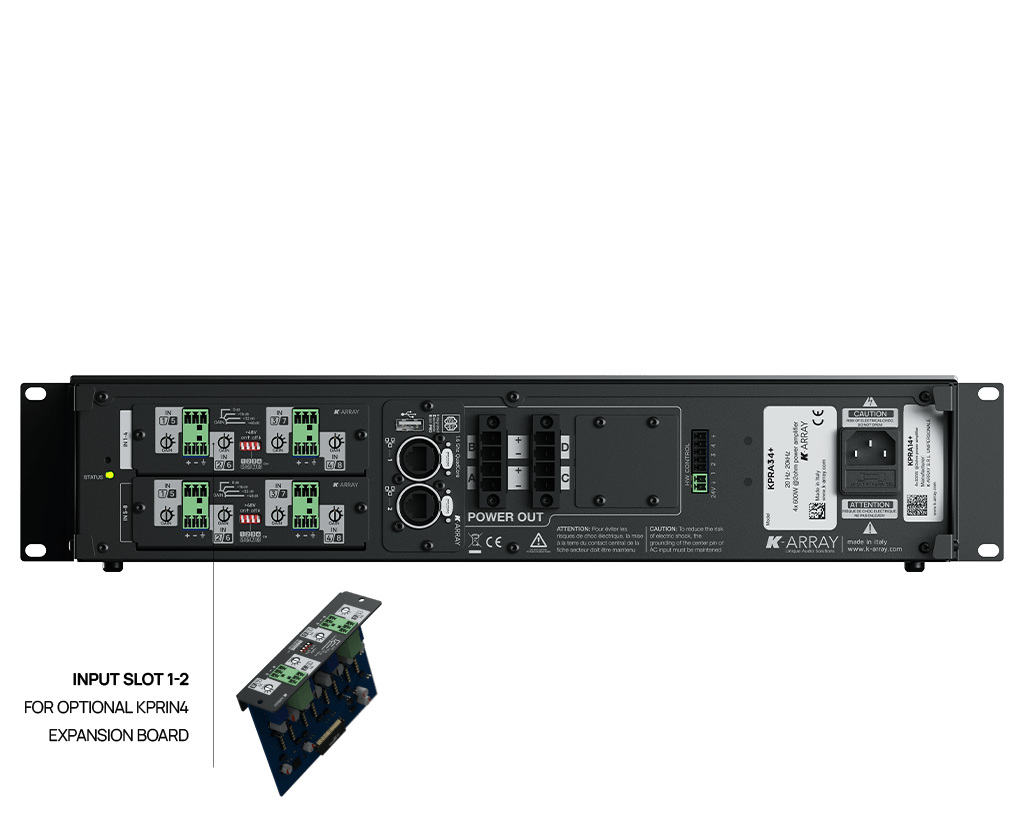

- Analog inputs: 0 standard, expandable to 8 with optional K-PRIN4 input board

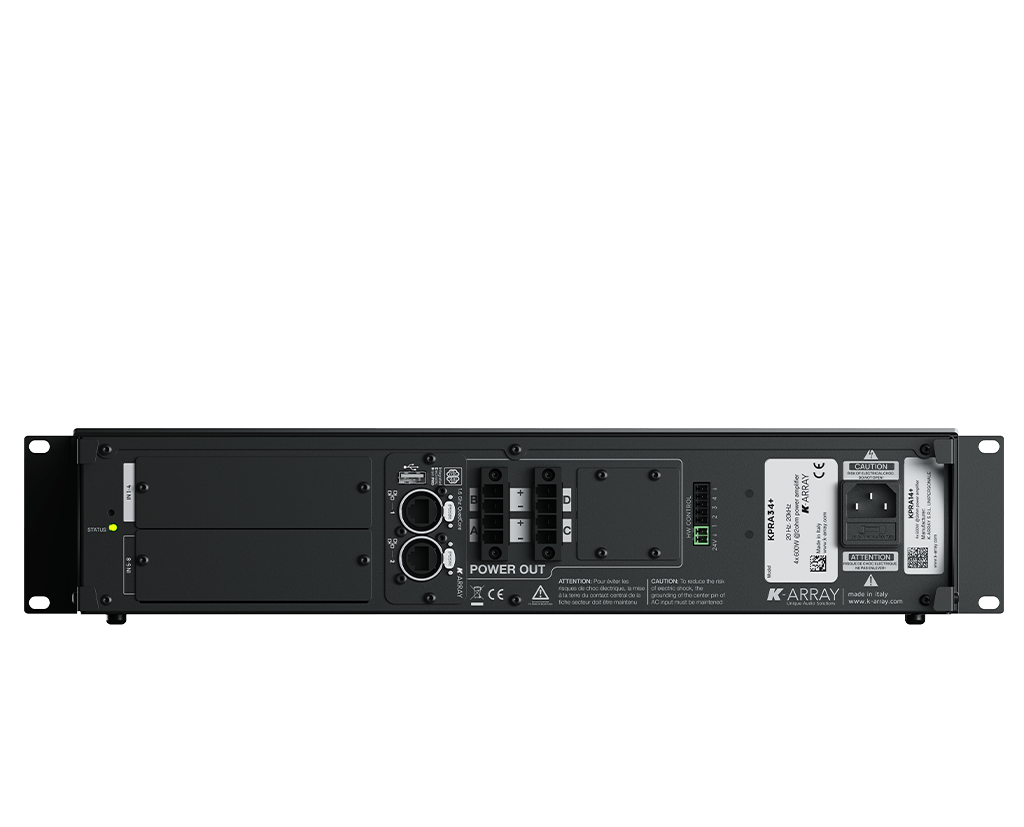

- Analog outputs: 4 amplified outputs via 2 x PC4/4-ST-7.62 connectors
- Digital connectivity: 2 x RJ45 Ethernet 1 Gbit (primary and secondary), 1 x USB-A
- Power: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link; 100-240 V AC, 50-60 Hz with PFC
- Power consumption: 600 W at 8 ohm load, pink noise, 1/4 rated power
- Built-in DSP: Input EQ, output EQ, signal routing, level adjustment, delay, dynamic limiters, loudspeaker presets, grouping
- Remote control: Wi-Fi and Ethernet via dedicated app and desktop software
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in), 2U
- Weight: 7 kg (15.4 lb)
- Material: Stainless steel
- Colour: Black
- IP rating: IP20
Applications
The Prisma-KPRA34+ suits permanent installations requiring both amplification and audio-network distribution: hospitality venues, corporate meeting rooms, houses of worship, retail environments, and distributed background-music systems. The optional K-PRIN4 accessory allows integration with analogue signal sources while Dante connectivity enables connection to Dante-enabled mixers, processors, and media servers.
Frequently asked questions
Does the Prisma-KPRA34+ include analog inputs as standard?
No. The unit ships with zero analog inputs. Up to 8 analog inputs can be added by fitting the optional K-PRIN4 input board accessory.
How many units can share a single Dante network?
The Prisma-KPRA34+ supports up to 8 Dante input channels and 8 Dante output channels per unit. Multiple units can share a single Gigabit Ethernet network using the dual RJ45 ports for primary and secondary connections.
What protection circuits are built in?
The amplifier includes thermal protection, output short-circuit protection, RMS output current protection, high-frequency protection, power limiter, and clip limiter.
