Truffle-KTR26

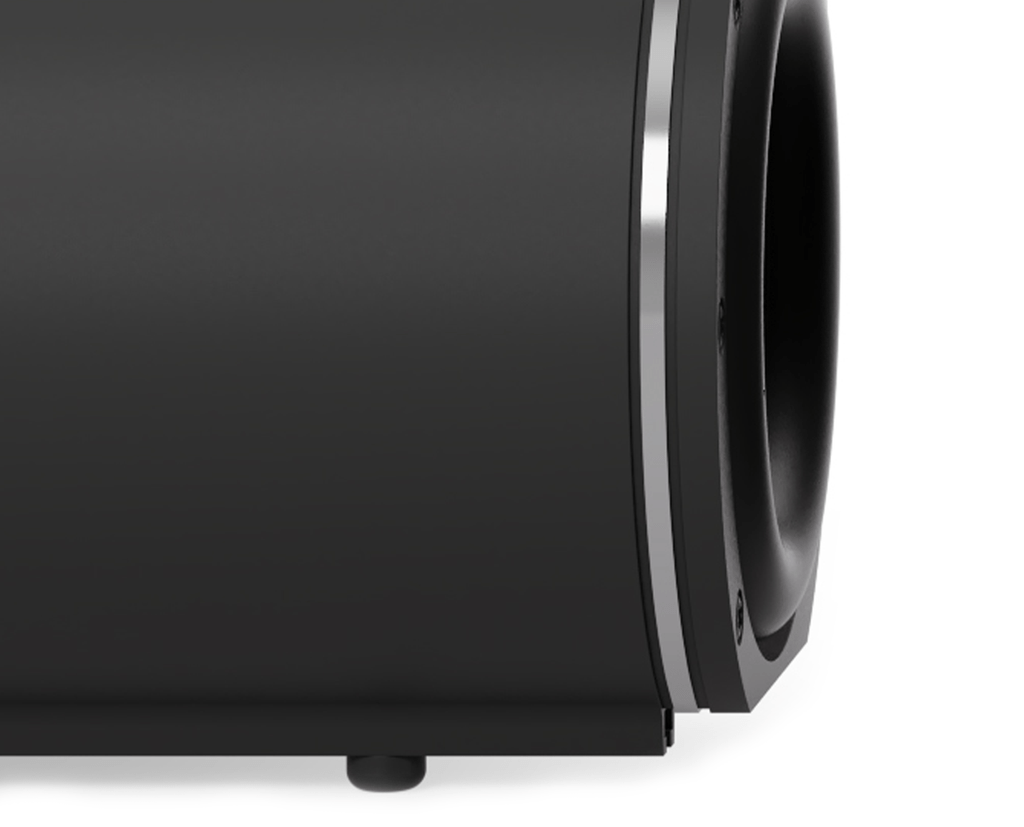

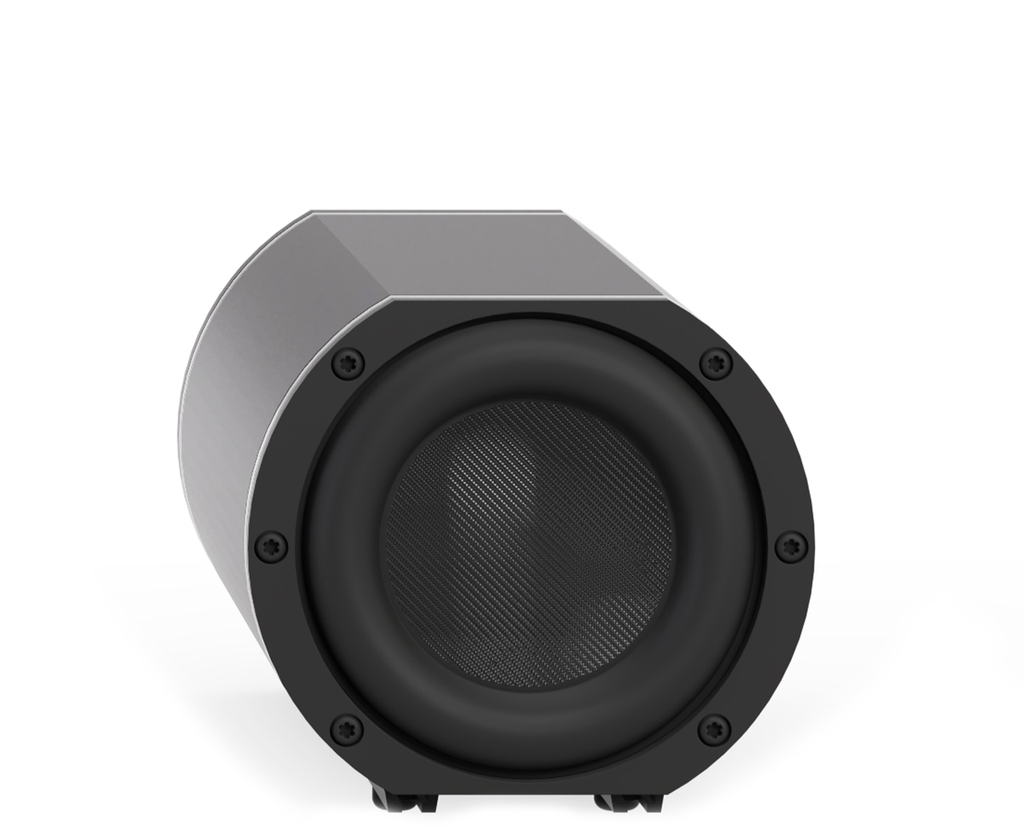

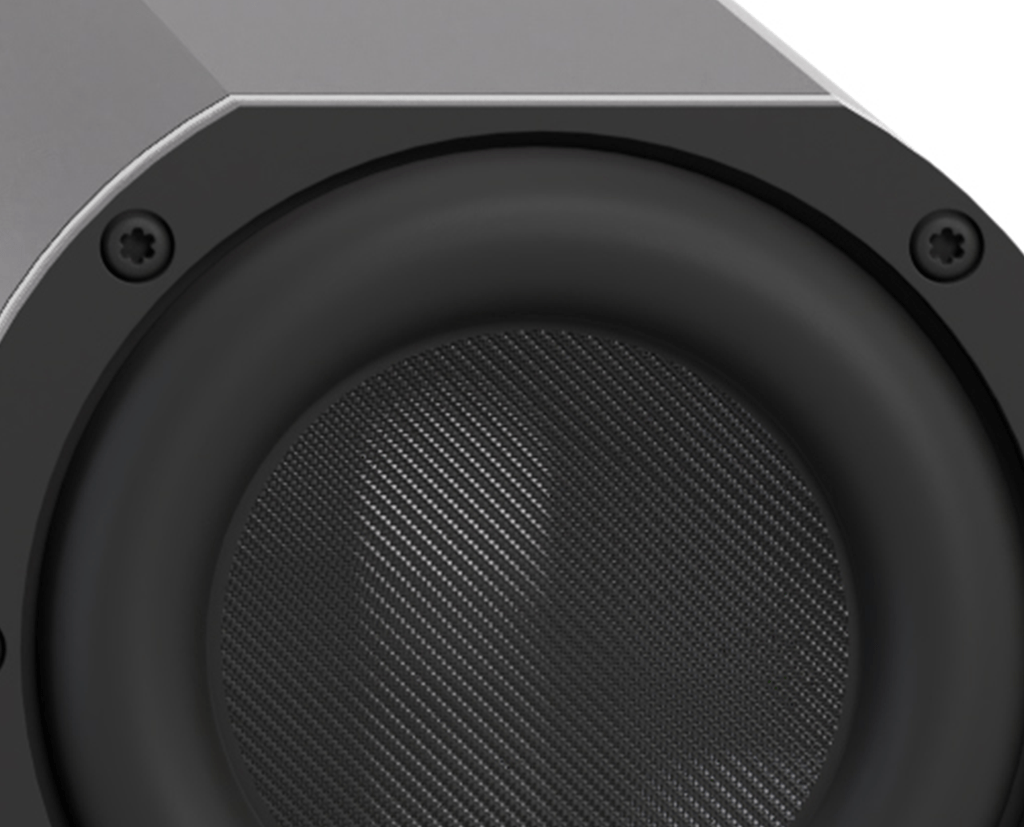

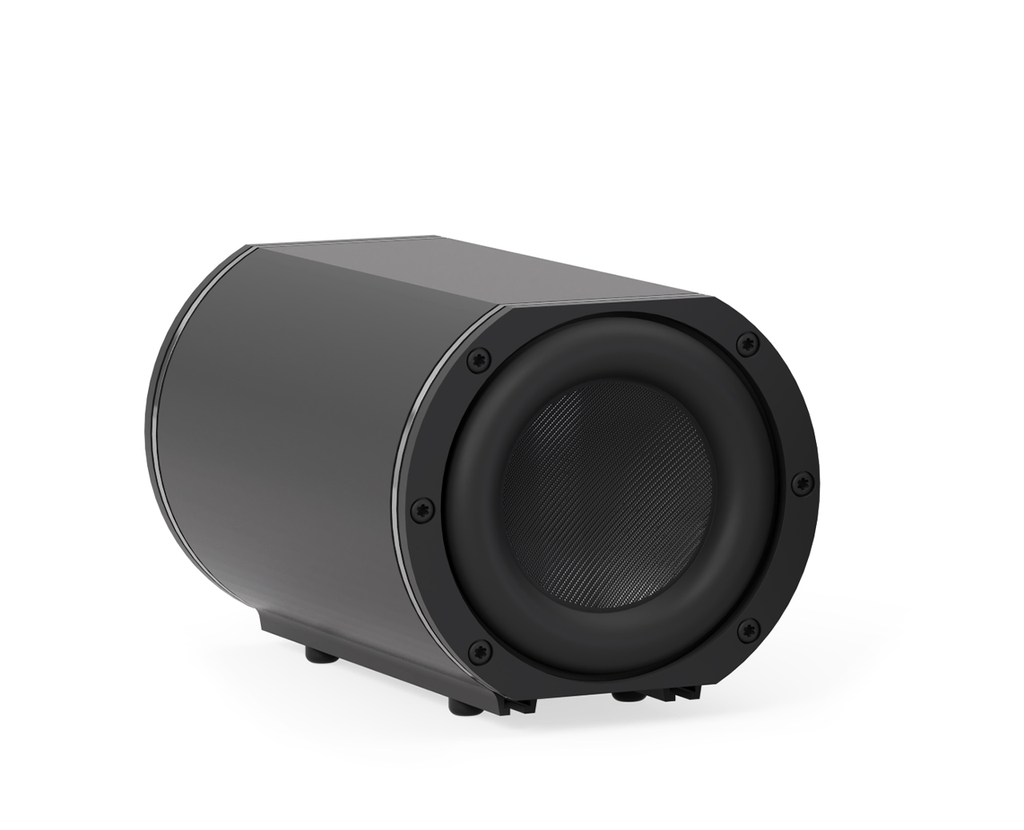

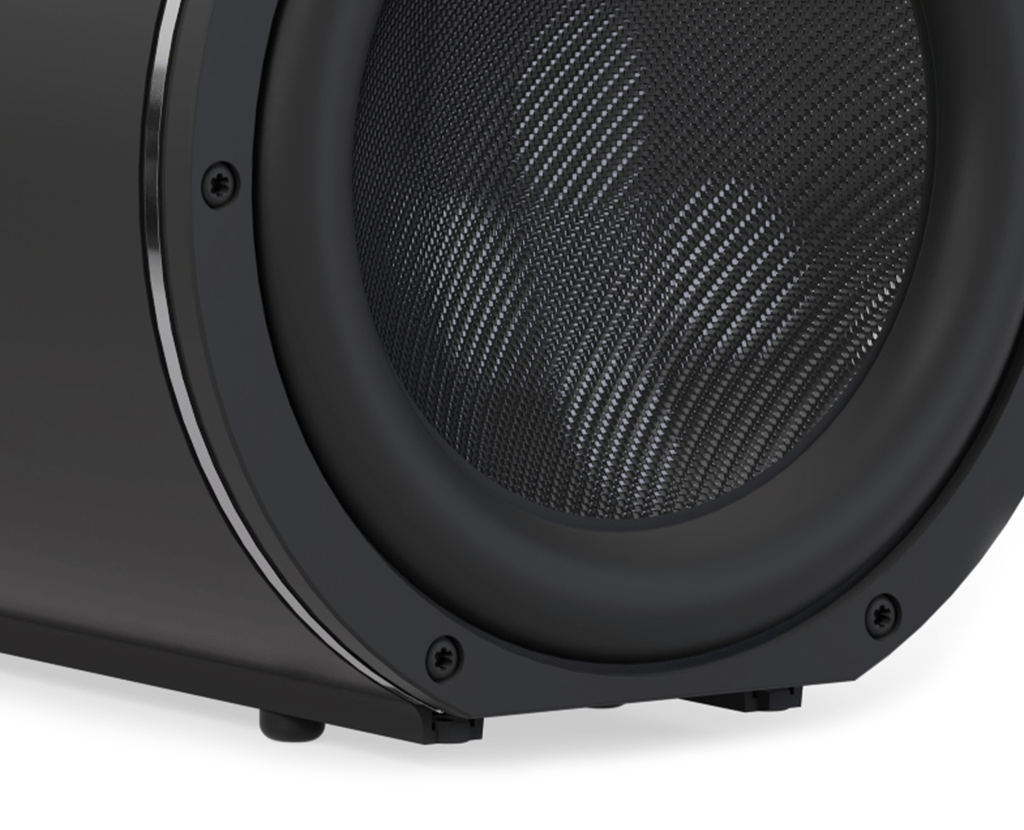

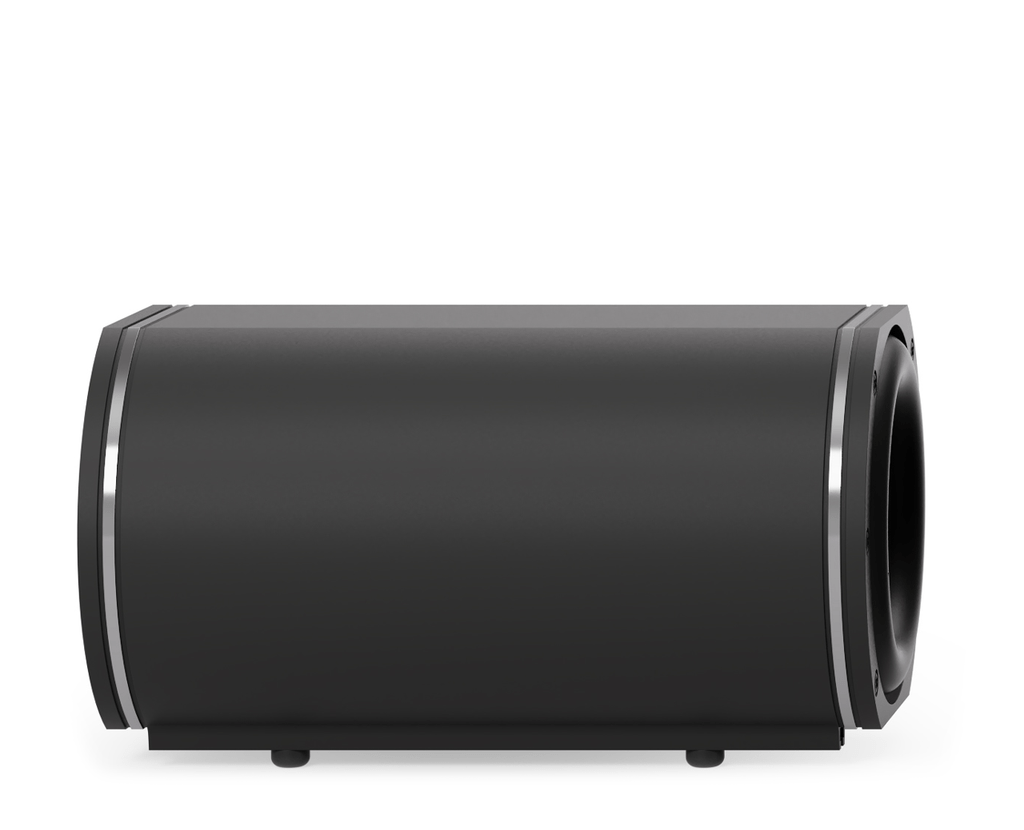

The Truffle-KTR26 is the largest model in K-Array's Truffle passive subwoofer line, designed for installations requiring extended low-frequency output in a concealable cylindrical form. It pairs a 6.5-inch active driver with a 6.5-inch passive radiator to deliver omnidirectional bass from an aluminium enclosure with a powder matte finish.
Specifications
- Type: Passive subwoofer
- Transducers: 6.5-inch woofer plus 6.5-inch passive radiator
- Frequency Response: 45 Hz to 150 Hz / 500 Hz (-6 dB, with dedicated preset)
- Maximum SPL: 120 dB peak (crest factor 4, measured at 1 m)
- Rated Power: 100 W
- Coverage: Omnidirectional
- Nominal Impedance: 2 ohm
- Connector: 2-pin Euroblock (included)
- Dimensions (W x H x D): 182 x 176 x 341 mm
- Weight: 3.5 kg
- Material: Aluminium
- Colour: Black
- Finish: Powder matte
- IP Rating: IP64
Applications
The Truffle-KTR26 is suited to professional audio installations, hotel audio systems, restaurants, retail environments, and home theatre setups where substantial bass output is needed without a visible enclosure. Its omnidirectional pattern eliminates placement orientation constraints, and the cylindrical profile conceals in joinery, ceiling voids, or riser spaces. It is typically paired with the Azimut-KAMUT2V25 system and requires a K-Array amplifier with a dedicated preset.
Frequently asked questions
How does the KTR26 differ from the KTR25?
The KTR26 uses 6.5-inch drivers versus the KTR25's 5.25-inch drivers, producing 5 dB more peak SPL (120 dB versus 115 dB) and handling 100 W versus 80 W. It is also physically larger at 182 x 176 x 341 mm and has a nominal impedance of 2 ohm rather than 4 ohm.
Does the Truffle-KTR26 need a K-Array amplifier?
Yes. As a passive loudspeaker, it requires a dedicated preset loaded on a K-Array amplifier to achieve its rated frequency response and SPL.
Is the low 2-ohm impedance a concern for amplifier matching?
The 2-ohm nominal impedance requires an amplifier rated for that load. K-Array amplifiers with dedicated presets for the KTR26 are designed to drive this impedance correctly.
