Vyper-KV102 II

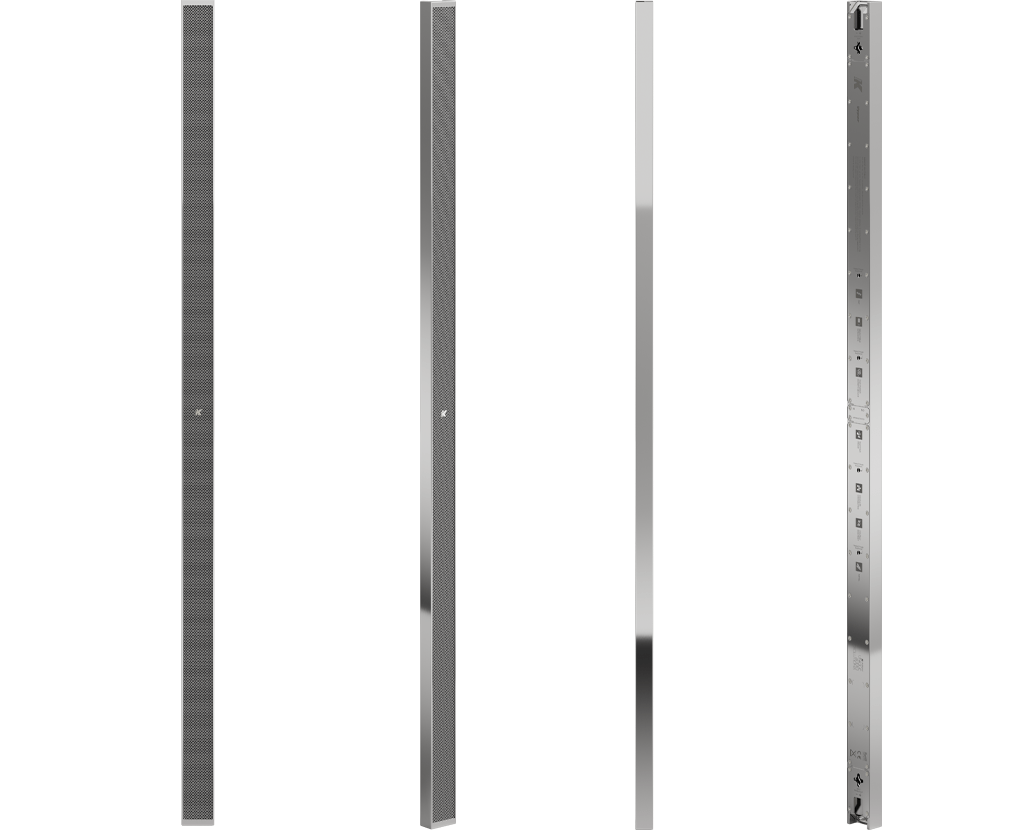

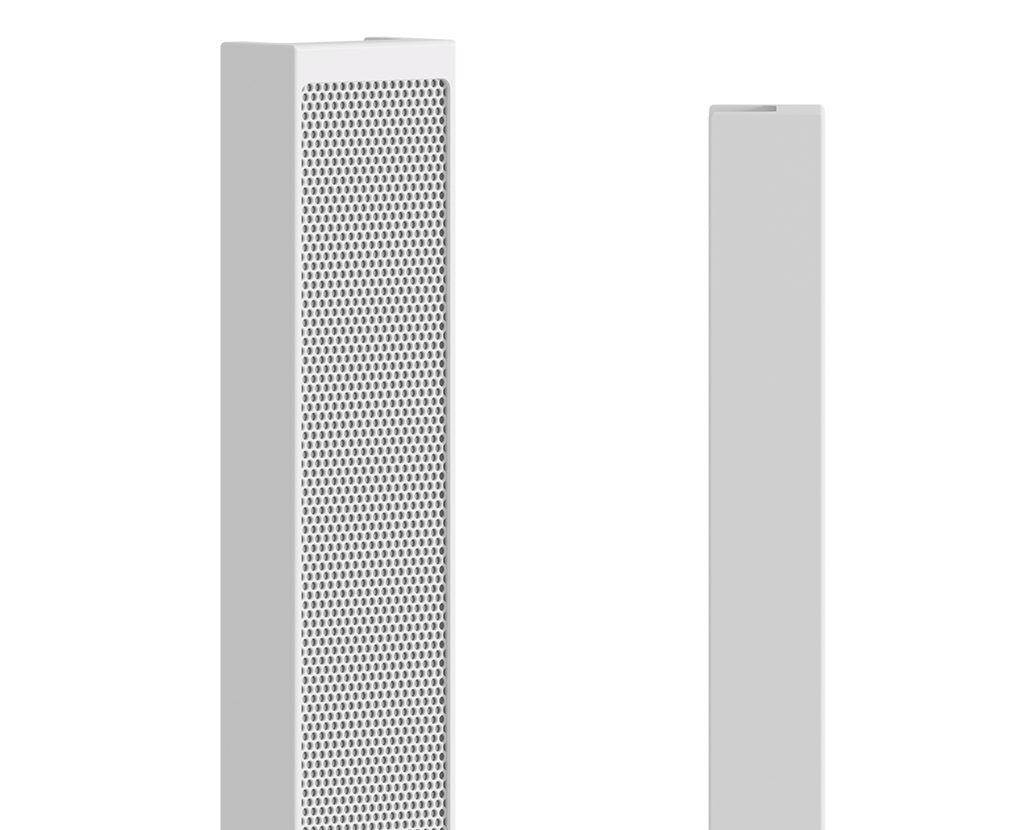

The Vyper-KV102 II is a one-metre passive line array loudspeaker from K-Array, housing sixteen 1-inch neodymium drivers in an ultra-flat frameless aluminium chassis. Its bracketless design allows discreet surface mounting in hospitality, corporate, and installed sound applications where aesthetics are critical.
Specifications
- Type: Passive line array loudspeaker
- Transducers: 16 x 1-inch neodymium magnet woofers
- Frequency response: 150 Hz to 18 kHz (-6 dB, with dedicated preset)
- Max SPL: 120 dB peak (crest factor 4, measured at 8 m, scaled to 1 m)
- Power handling: 300 W
- Coverage: Vertical 7 degrees, horizontal 140 degrees
- Nominal impedance: 8 ohm / 32 ohm selectable
- Connectors: 2 x Euroblock 2-pin (included)
- Dimensions (W x H x D): 40 x 1000 x 22 mm (1.56 x 39.37 x 0.85 in)
- Weight: 1.8 kg (3.96 lb)
- Material: Aluminium

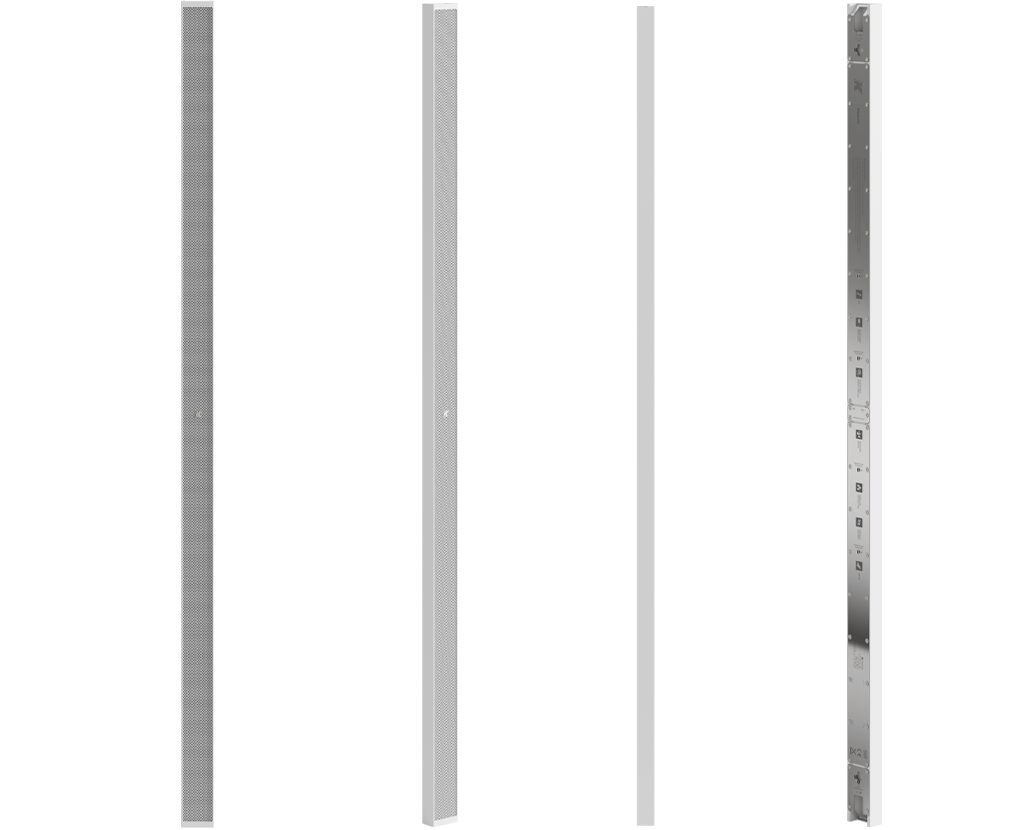

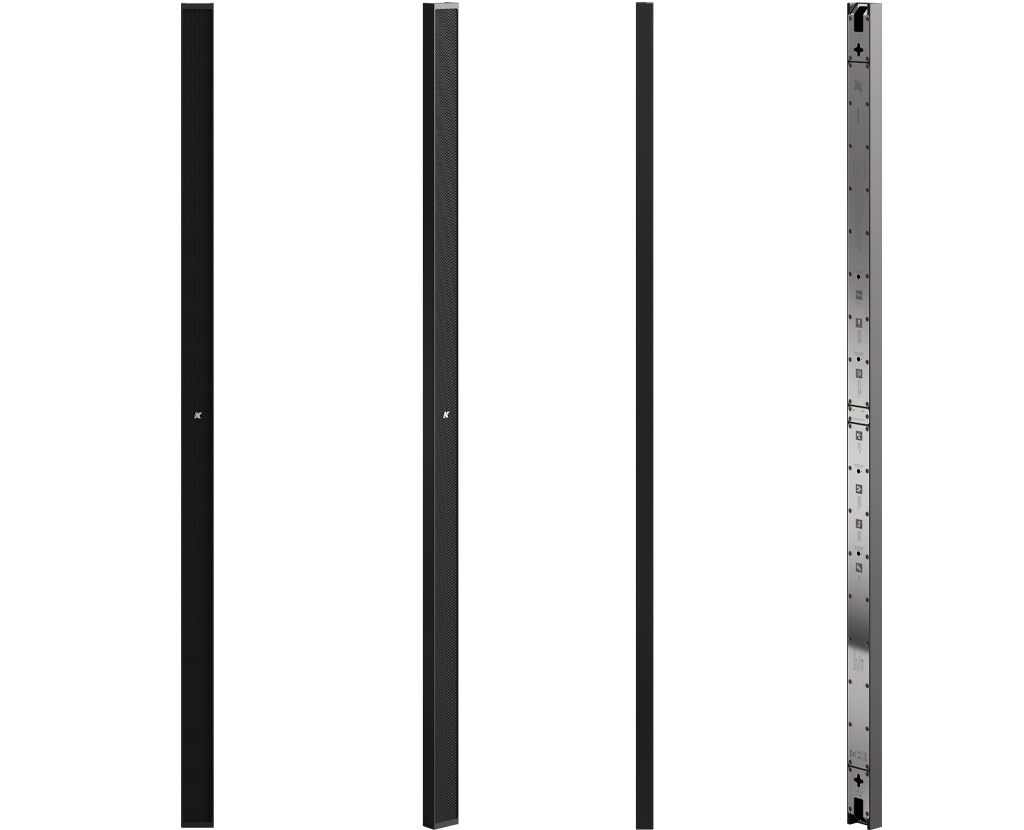

- Colours: Black, White, Custom RAL

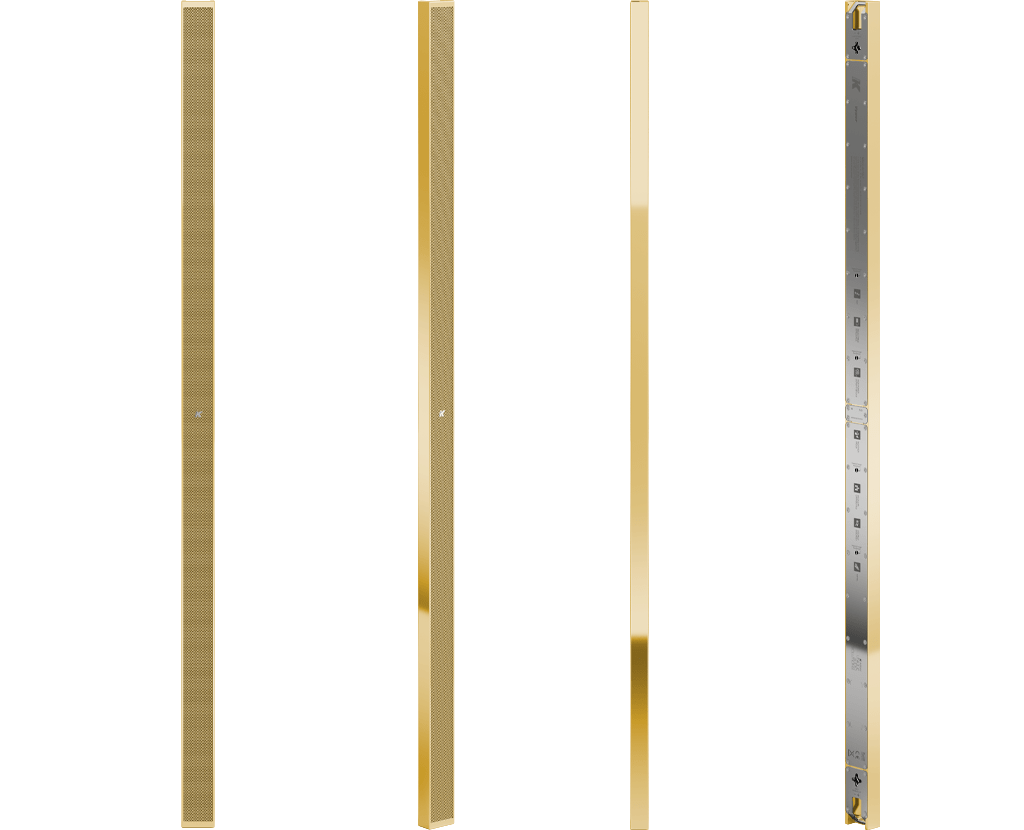

- Finishes: 24K Gold, Polished, Brushed (premium options)
- IP rating: IP65 (with included sealing accessory)
Applications
Suited to wide distributed installed sound systems in hotels, retail spaces, restaurants, houses of worship, and marine environments including yachts and beach clubs. The selectable 32-ohm impedance allows up to eight units to run from a single 4-ohm amplifier output, removing the need for 70 V transformer lines. Multiple units can be joined end-to-end to form longer arrays. Requires dedicated presets loaded on K-Array amplifiers.
Frequently asked questions
How many Vyper-KV102 II units can connect to one amplifier channel?
Up to eight units at 32-ohm impedance can be wired to a single 4-ohm amplifier output channel.
Can this speaker be used outdoors?
Yes. With the included IP sealing accessory the enclosure achieves IP65 protection, making it suitable for outdoor and marine installations.
Does the frameless chassis require a separate bracket?
No. The frameless design allows direct bracketless mounting on any flat surface.
