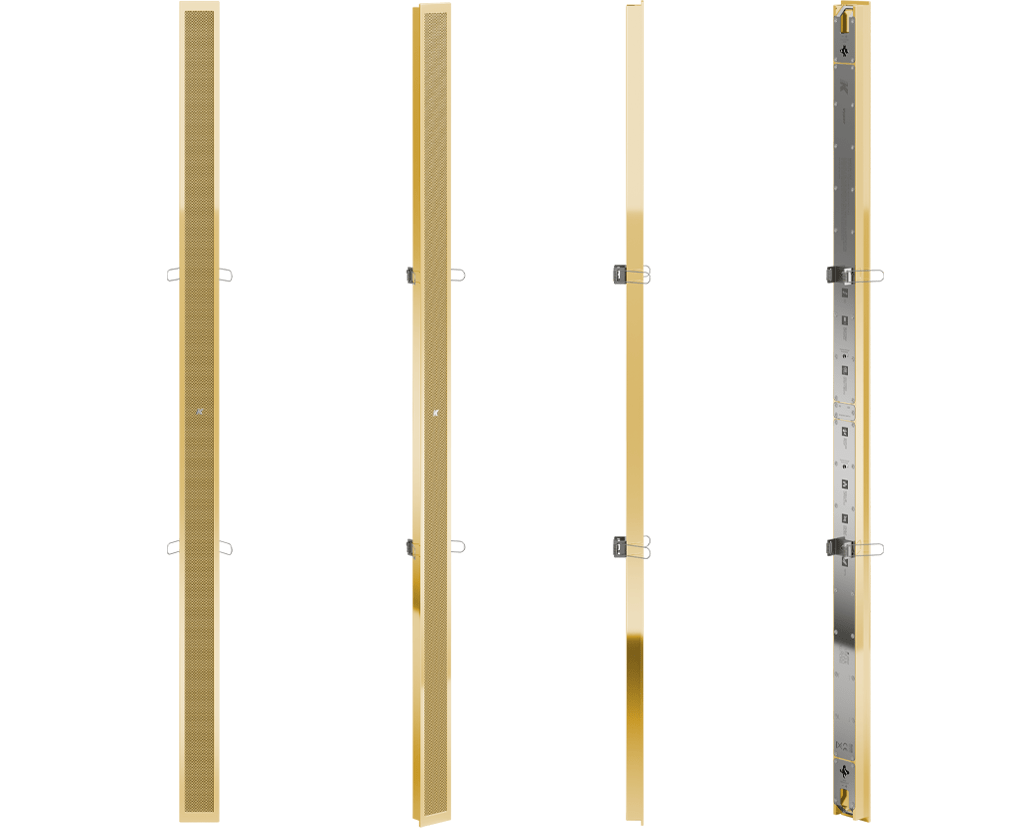

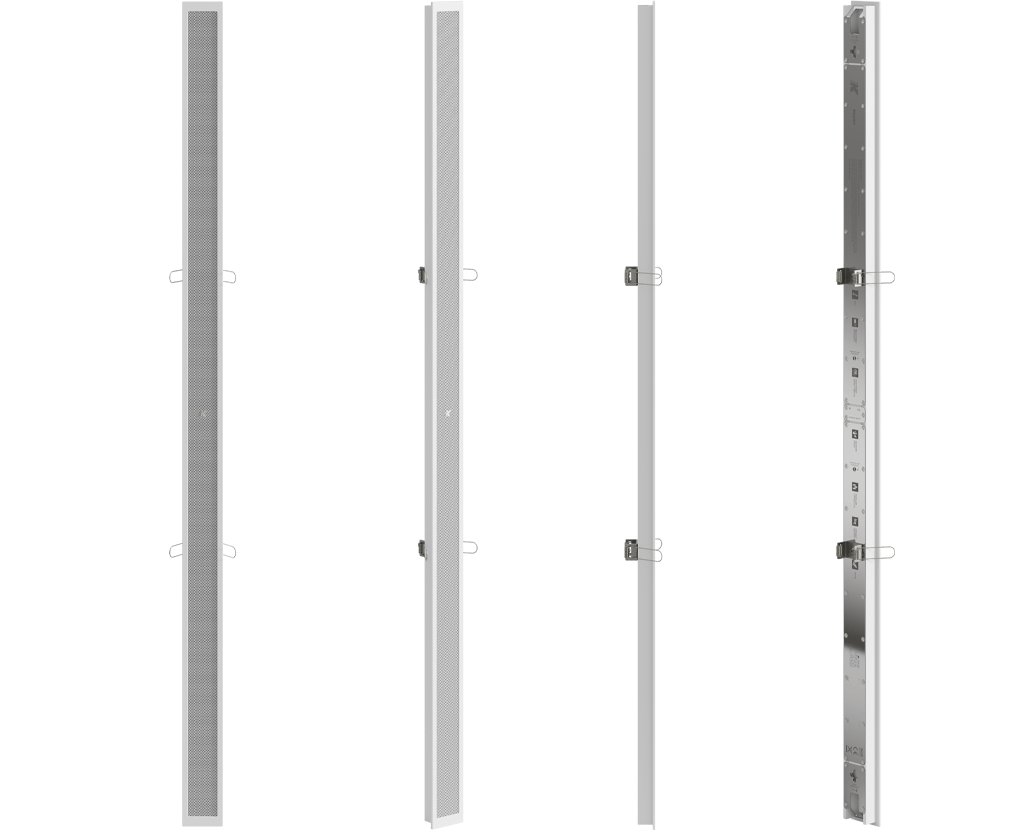

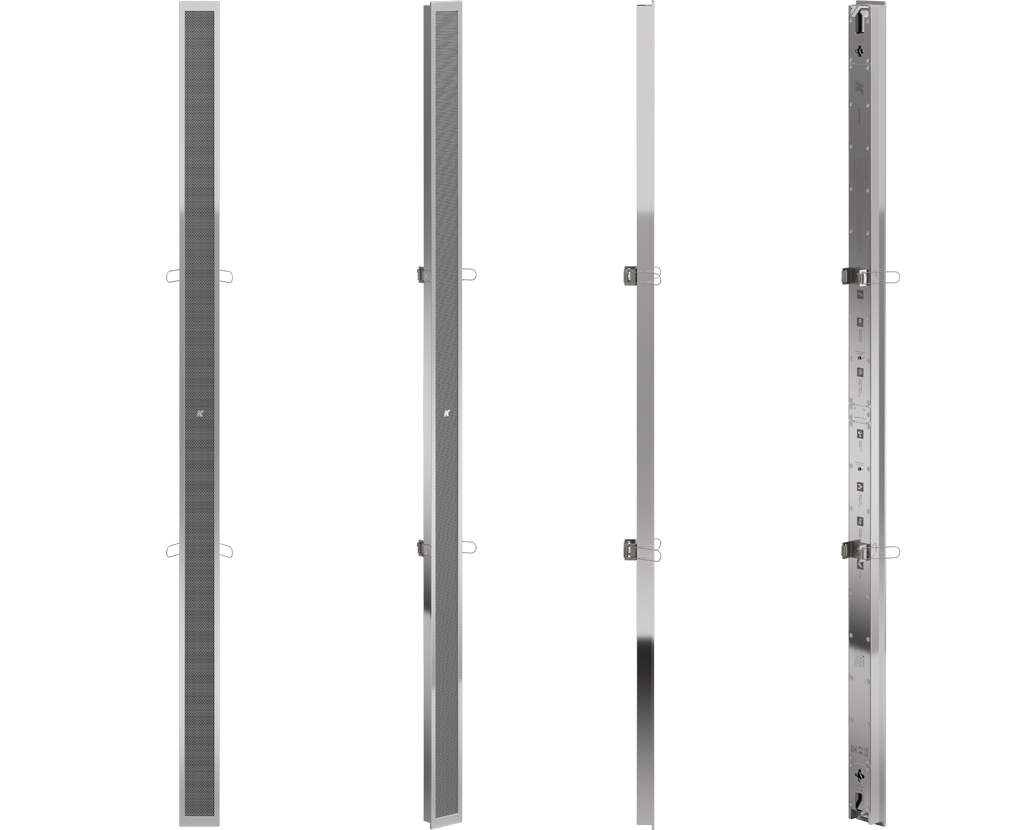

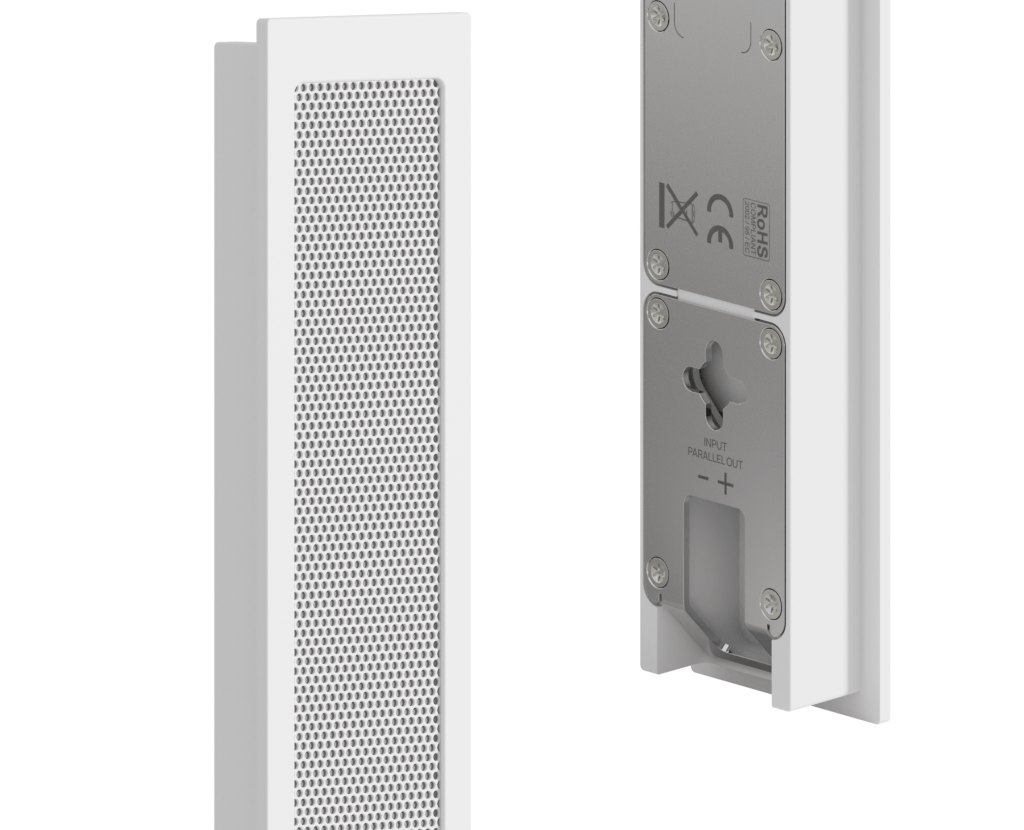

Vyper-KV102R II
The Vyper-KV102R II is a one-metre passive line array loudspeaker from K-Array, housing sixteen 1-inch neodymium drivers in an ultra-flat aluminium chassis engineered specifically for flush in-wall recessed installation. It shares the acoustic performance of the standard KV102 II while providing a fully recessed profile suited to high-end architectural environments.
Specifications
- Type: Passive line array loudspeaker (in-wall recessed)
- Transducers: 16 x 1-inch neodymium magnet woofers
- Frequency response: 150 Hz to 18 kHz (-6 dB, with dedicated preset)
- Max SPL: 120 dB peak (crest factor 4, measured at 8 m, scaled to 1 m)
- Power handling: 300 W
- Coverage: Vertical 7 degrees, horizontal 140 degrees
- Nominal impedance: 8 ohm / 32 ohm selectable
- Connectors: 2-pin Euroblock (included)
- Dimensions (W x H x D): 50 x 1010 x 37 mm (1.95 x 39.76 x 1.45 in)
- Weight: 1.8 kg (3.96 lb)
- Material: Aluminium
- Colours: Black, White, Custom RAL
- Finishes: 24K Gold, Polished, Brushed (premium options)
- IP rating: IP65 (with included sealing accessory)
Applications
Designed for premium distributed audio installations where the loudspeaker must sit flush with the wall surface, including hotels, luxury residences, corporate boardrooms, and high-end retail. The recessed chassis adds depth for in-wall wiring while the front face disappears into the wall plane. Selectable 32-ohm impedance allows up to eight units per 4-ohm amplifier channel without 70 V transformer lines. Requires dedicated presets loaded on K-Array amplifiers.
Frequently asked questions
What is the difference between the KV102R II and the standard KV102 II?
The KV102R II is designed for flush in-wall recessed mounting. It is deeper (37 mm versus 22 mm) and wider (50 mm versus 40 mm) to accommodate a recessed rebate, while the acoustic drivers and performance specifications are identical.
Can the KV102R II be used outdoors?
Yes. With the included IP sealing accessory the unit achieves IP65 protection, making it suitable for outdoor and marine installations.
How many units can share one amplifier channel?
Up to eight units at 32-ohm impedance can connect to a single 4-ohm amplifier output channel.
