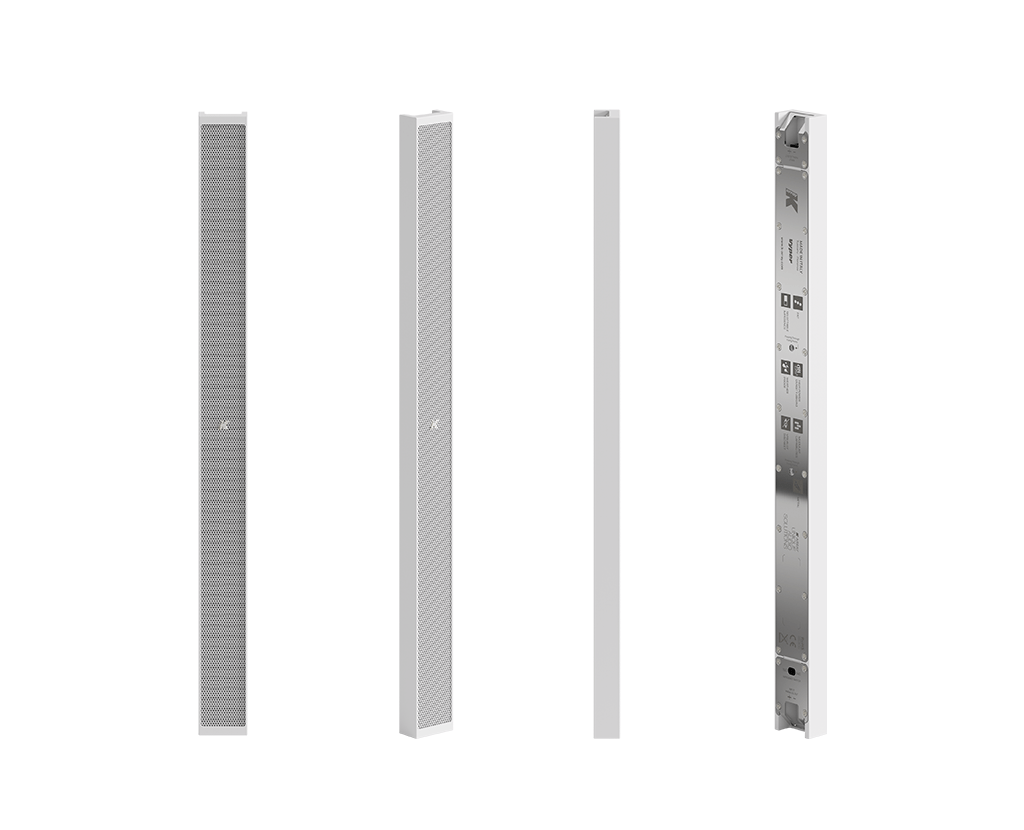

Vyper-KV52F II
The Vyper-KV52F II is an ultra-flat passive loudspeaker from K-Array, housing eight 1-inch neodymium magnet transducers in a frameless aluminium chassis. Unlike the standard KV52 II line array, the KV52F II uses electronically processed signals to expand its vertical dispersion to 60 degrees, making it a point-source solution where wide coverage in both planes is needed from a slim form factor.
Specifications
- Type: Passive point-source loudspeaker
- Transducers: 8 x 1-inch neodymium magnet woofers
- Frequency response: 150 Hz to 18 kHz (-6 dB, with dedicated preset)
- Max SPL: 114 dB peak (measured at 8 m, scaled to 1 m, crest factor 12 dB)
- Rated power: 150 W
- Coverage: 60 degrees vertical, 140 degrees horizontal
- Nominal impedance: 16 ohm or 64 ohm (selectable)
- Connectors: 2-pin Euroblock (included)
- Dimensions (W x H x D): 40 x 500 x 22 mm
- Weight: 0.8 kg
- Material: Extruded aluminium

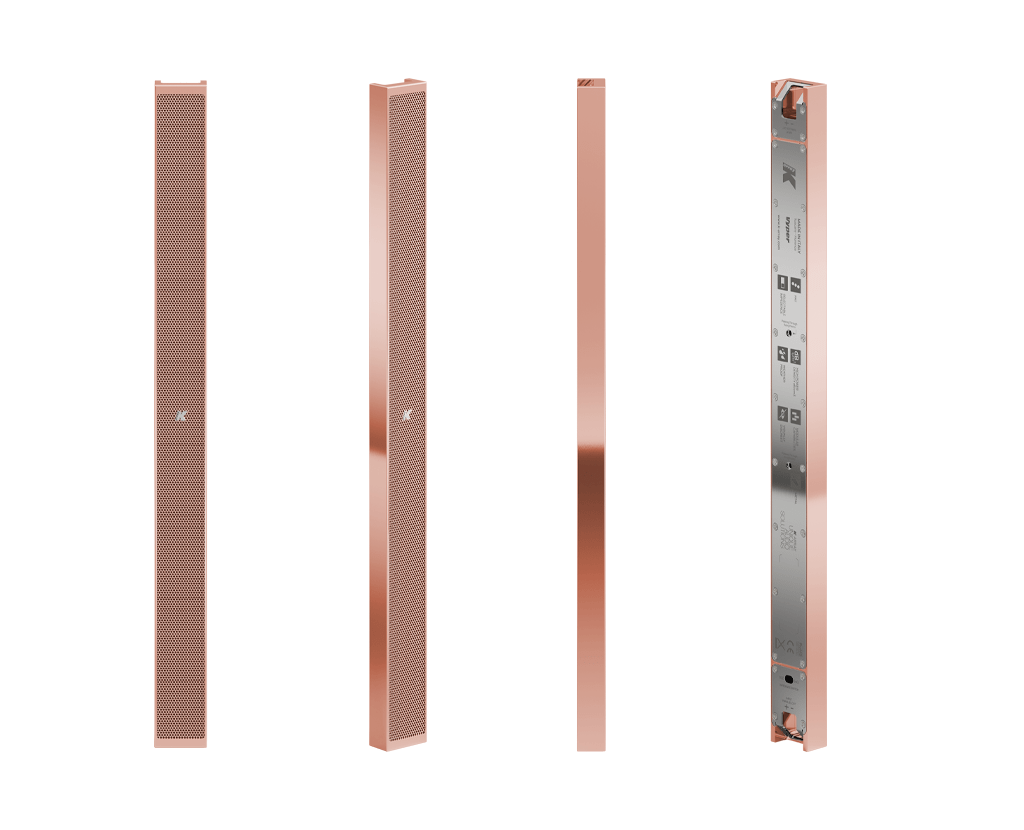

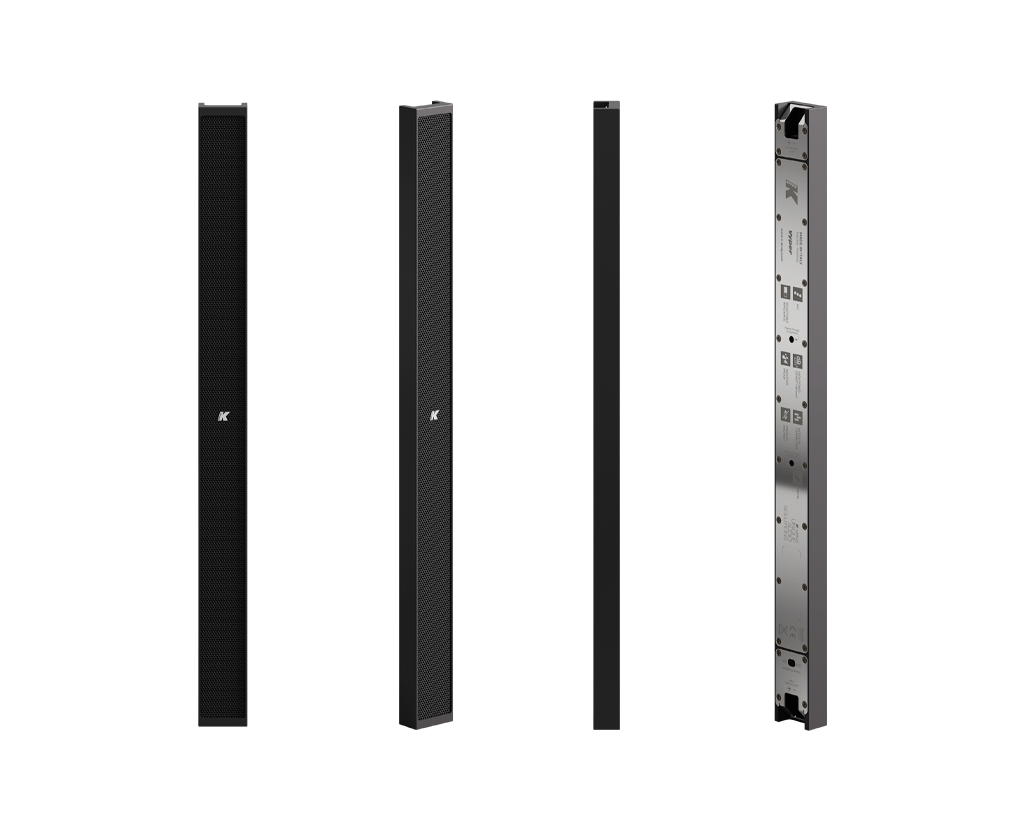

- Colours: Black, White, custom RAL

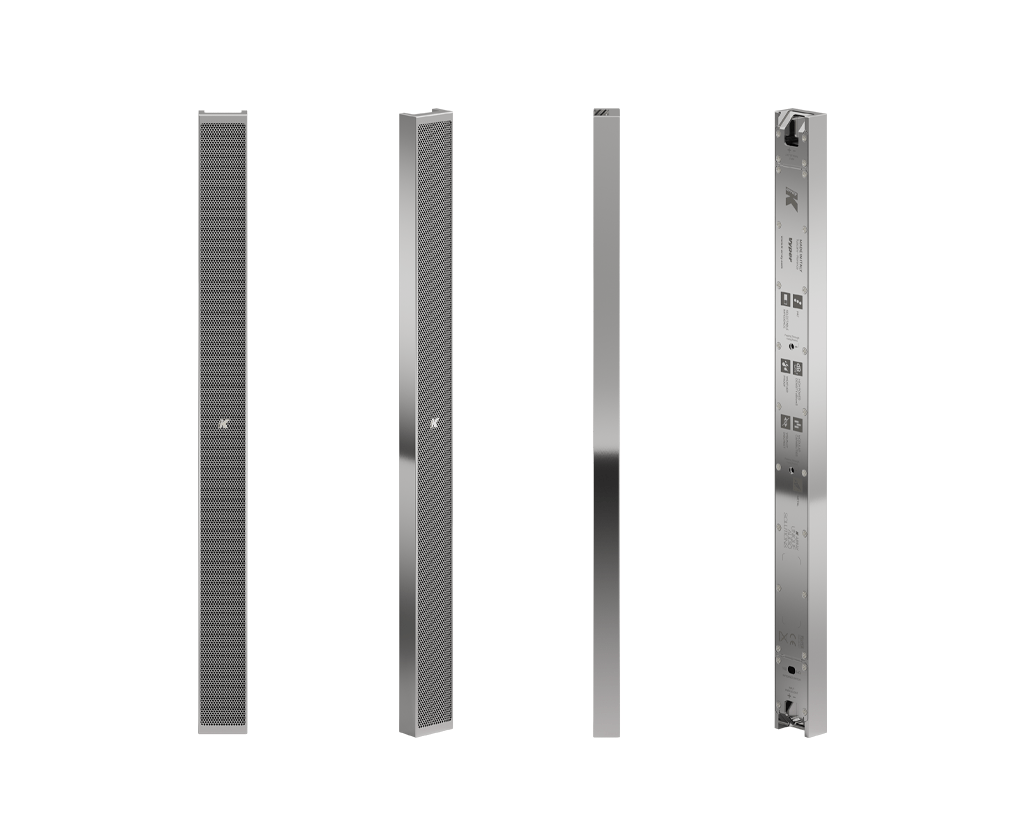

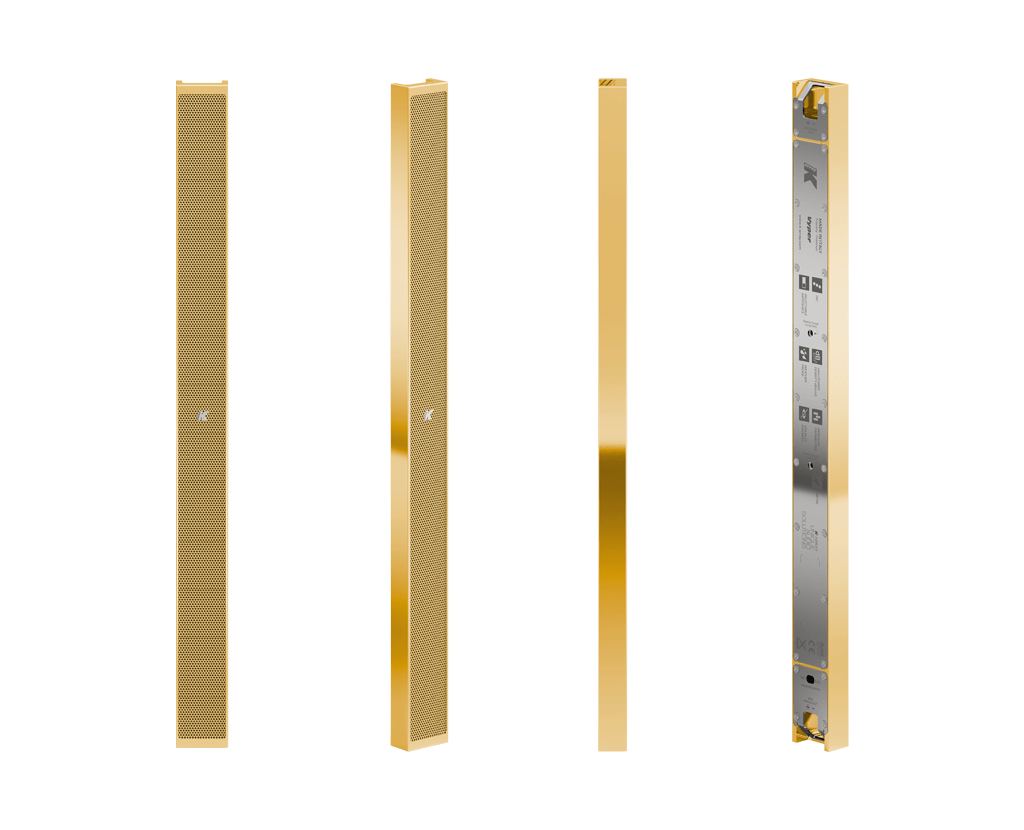

- Finishes: 24K Gold, Polished
- IP rating: IP65 (marine treatment models)
Applications
The Vyper-KV52F II is designed for installations that require wide vertical and horizontal coverage from a flat-profile speaker. The 60-degree vertical dispersion makes it suitable for lower ceiling environments, open-plan offices, hospitality spaces, and retail settings where the listening area spans multiple rows or levels. Its frameless chassis allows clean surface mounting on walls or ceilings without visible brackets. A recessed variant, the KV52FR II, is also available. Marine-treatment models suit coastal and marine environments. Requires K-Array amplifiers with dedicated presets.
Frequently asked questions
What is the difference between the KV52 II and the KV52F II?
The KV52 II is a true line array with a 10-degree vertical dispersion, suited to long throw and focused listening zones. The KV52F II uses electronically expanded dispersion to produce 60 degrees vertical, making it a point-source solution for wider coverage applications.
Can the KV52F II be used in a recessed installation?
The KV52F II is a surface-mount frameless model. The companion KV52FR II model provides the same audio characteristics in a recessed format with a complete frame and clamp system.
Is a standard amplifier compatible with the KV52F II?
No. As a passive loudspeaker, it requires dedicated presets loaded on a compatible K-Array amplifier to achieve its stated frequency response and SPL performance.
