A8H

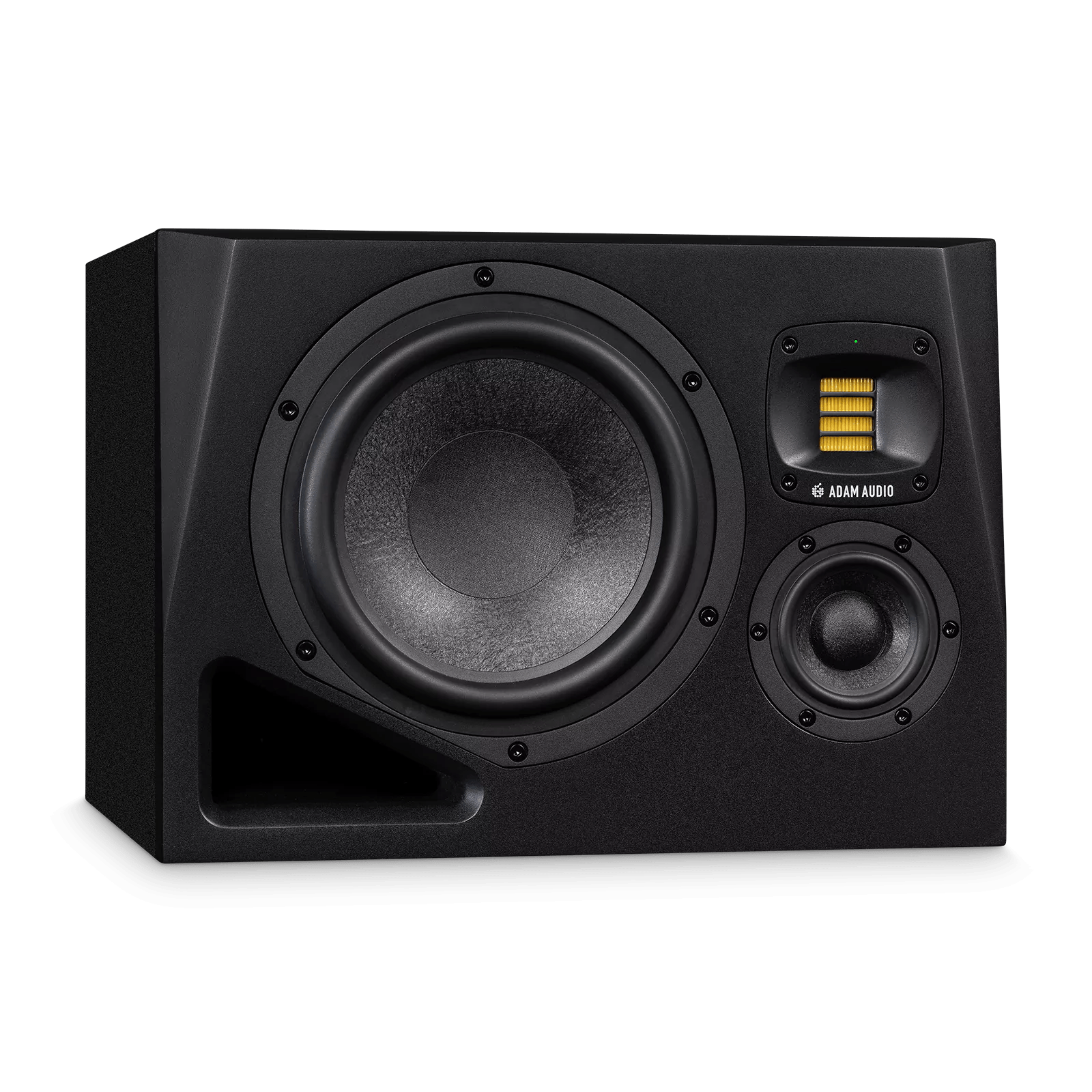

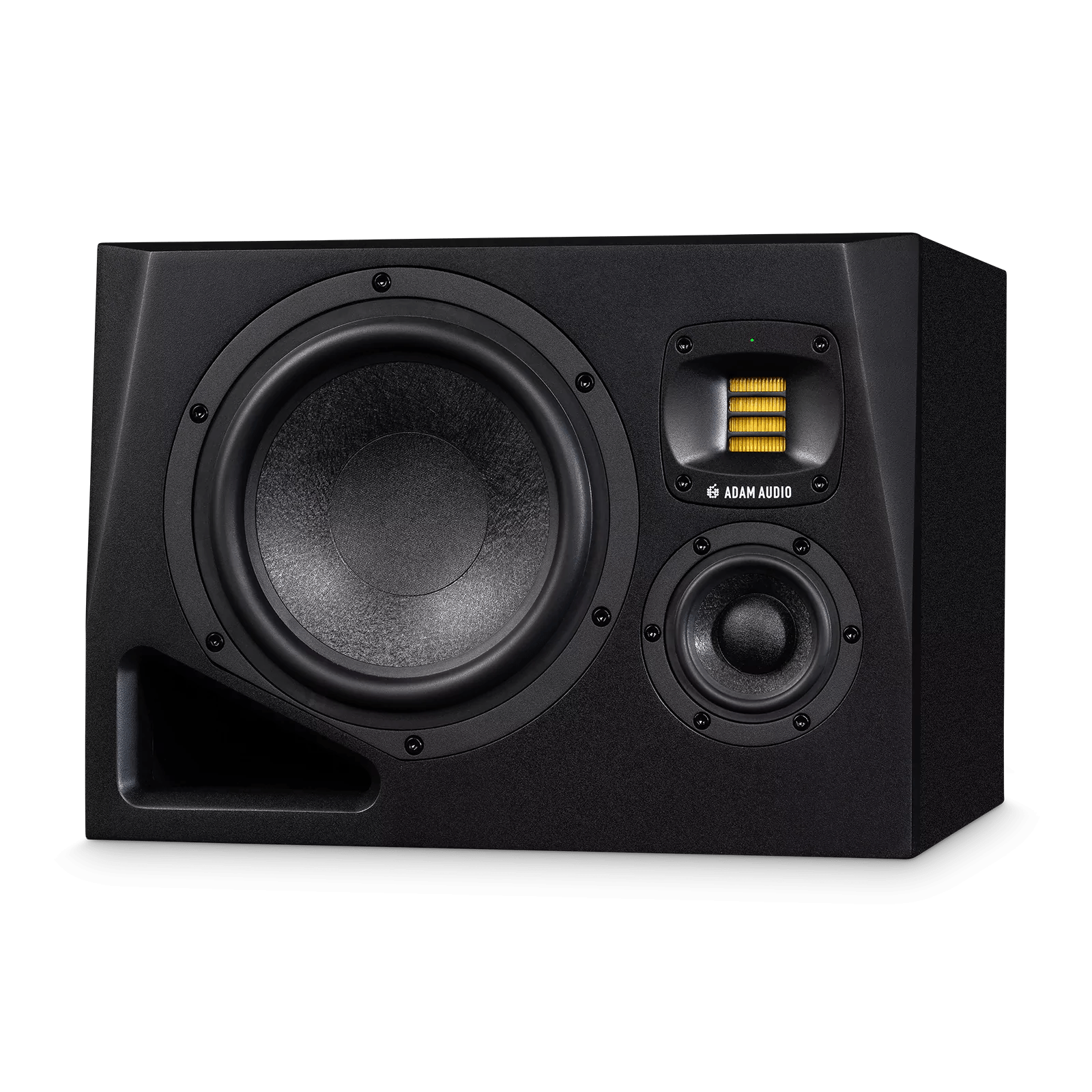

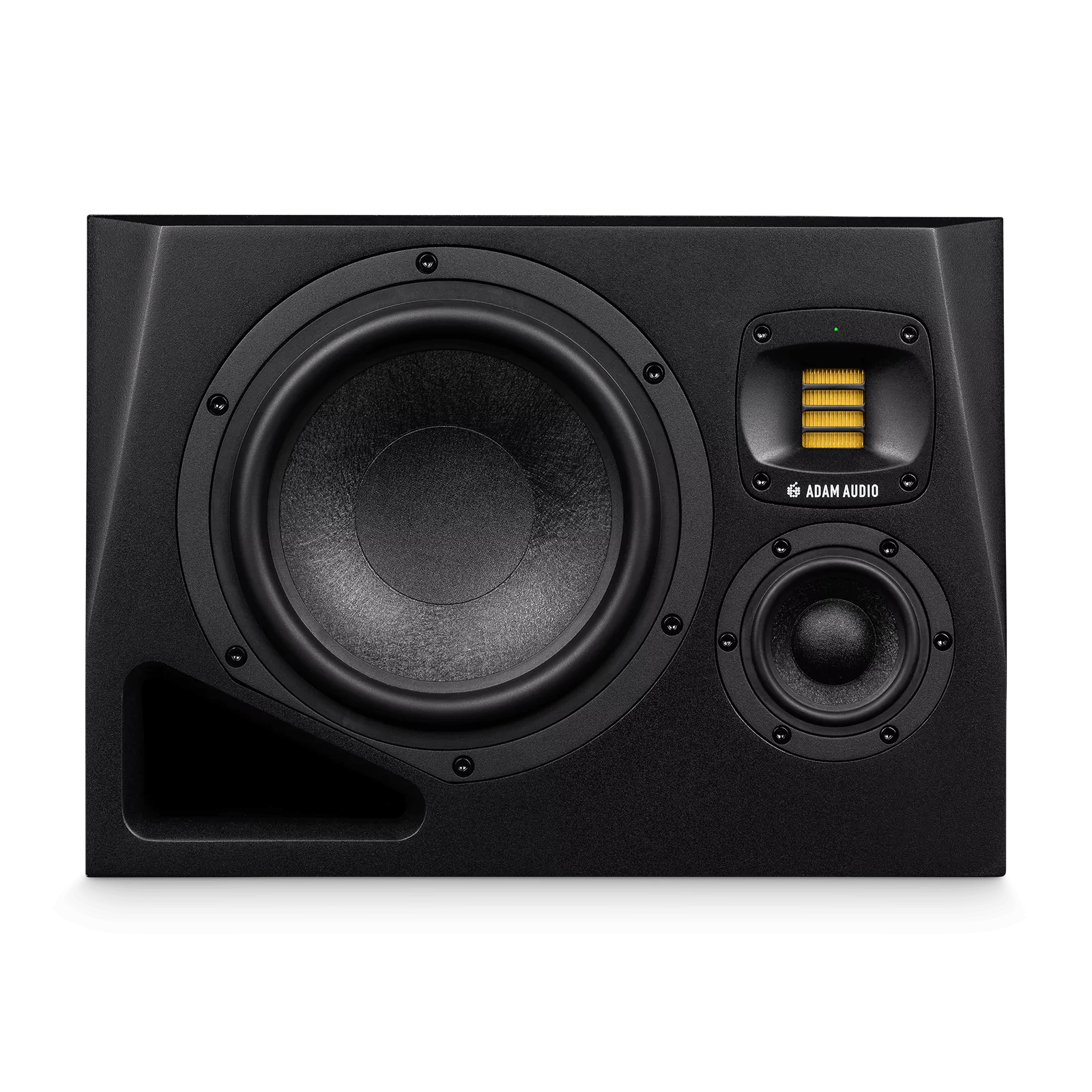

The A8H is a 3-way active studio monitor from ADAM Audio designed for mid- to full-sized listening environments. It combines an 8-inch Multi-Layer Mineral woofer, a 3.5-inch Dome Cone Hybrid midrange driver, and a handmade X-ART tweeter with rotatable HPS waveguide, reaching 105 dB peak SPL and a frequency response down to 31 Hz. Available in left and right configurations.

Specifications

• Woofer: 8-inch Multi-Layer Mineral (MLM) cone
• Midrange driver: 3.5-inch Dome Cone Hybrid (DCH) with MLM cone material
• Tweeter: X-ART with rotatable HPS waveguide (120 degrees horizontal, 70 degrees vertical dispersion)
• Woofer amplifier: 250 W peak PWM
• Midrange amplifier: 70 W peak Class A/B
• Tweeter amplifier: 20 W peak Class A/B
• Total peak amplifier power: 340 W
• Frequency response at -3 dB: 34 Hz to 41 kHz
• Frequency response at -6 dB: 31 Hz to 45 kHz
• Crossover frequencies: 400 Hz and 3.0 kHz
• Maximum peak SPL at 1 m: 105 dB (sine bursts); 116 dB IEC-weighted

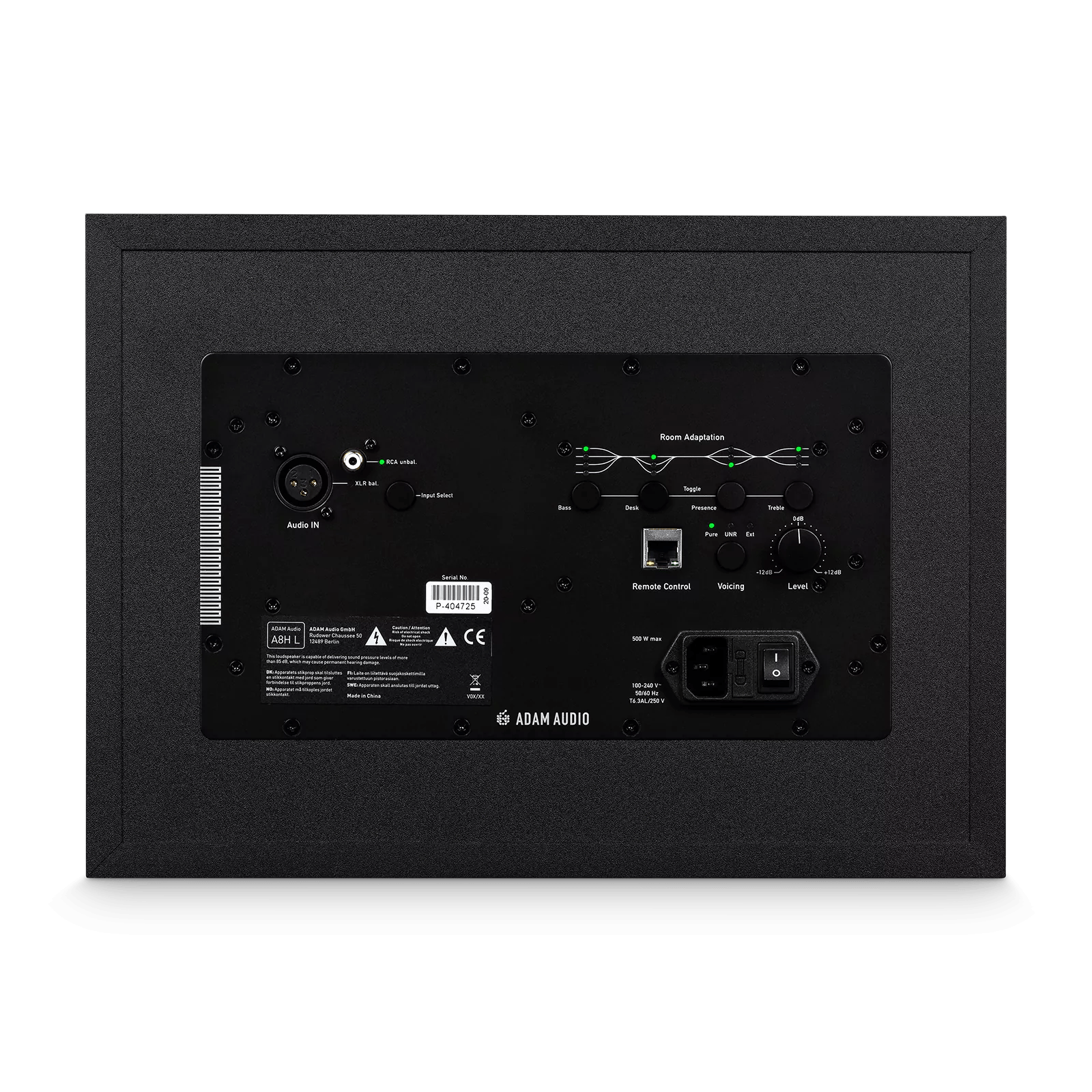

• Audio inputs: XLR (balanced), RCA (unbalanced); input impedance 9 kohm/3.3 kohm
• Maximum input level: +19 dBu
• Network: RJ45 Ethernet (OCA protocol)
• Cabinet design: Single front-ported bass reflex
• Cabinet material: Vinyl-wrapped MDF with painted MDF front panel
• Dimensions (H x W x D): 274 mm x 382 mm x 329 mm
• Weight: 13.6 kg
• Power consumption: 220 W max, 15 W idle, 3.5 W sleep
• AC input: 100-240 V, 50/60 Hz
• Warranty: 5 years (2 years standard plus 3 years with product registration)

Applications

Mid-field and full-range studio monitoring for recording, mixing, and mastering in medium to large rooms. The horizontal orientation and wide HPS waveguide dispersion suit wide-format mixing desks and multi-engineer environments. Available as left or right units to match asymmetric control room layouts.

Frequently asked questions

How does the DCH midrange driver differ from a standard cone or dome?
The 3.5-inch Dome Cone Hybrid (DCH) driver combines a dome and cone in a single one-piece unit, offering the imaging precision of a dome with the efficiency and low-distortion output of a cone. On the A8H it uses Multi-Layer Mineral cone material and is powered by a dedicated 70 W Class A/B amplifier.

What is the frequency range of the A8H?
The A8H reaches 34 Hz to 41 kHz at the -3 dB points, or 31 Hz to 45 kHz at the -6 dB points, with crossovers at 400 Hz and 3.0 kHz between the three driver stages.

Does the A8H require a subwoofer?
The A8H extends to 31 Hz at the -6 dB point, which covers the full range of most audio content. Whether a subwoofer is needed depends on the room acoustics and the specific low-frequency extension required for the application.
