S3H

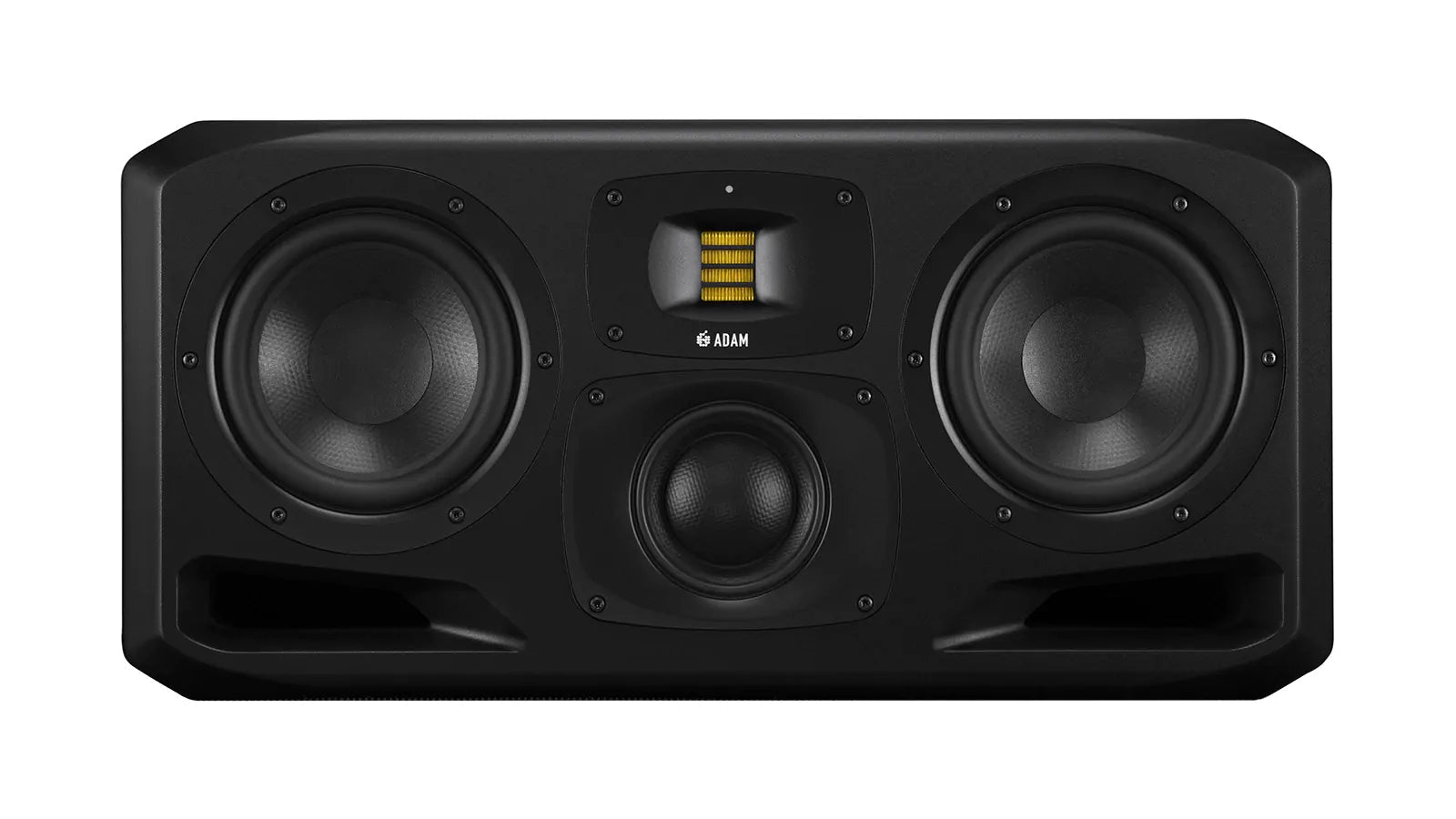

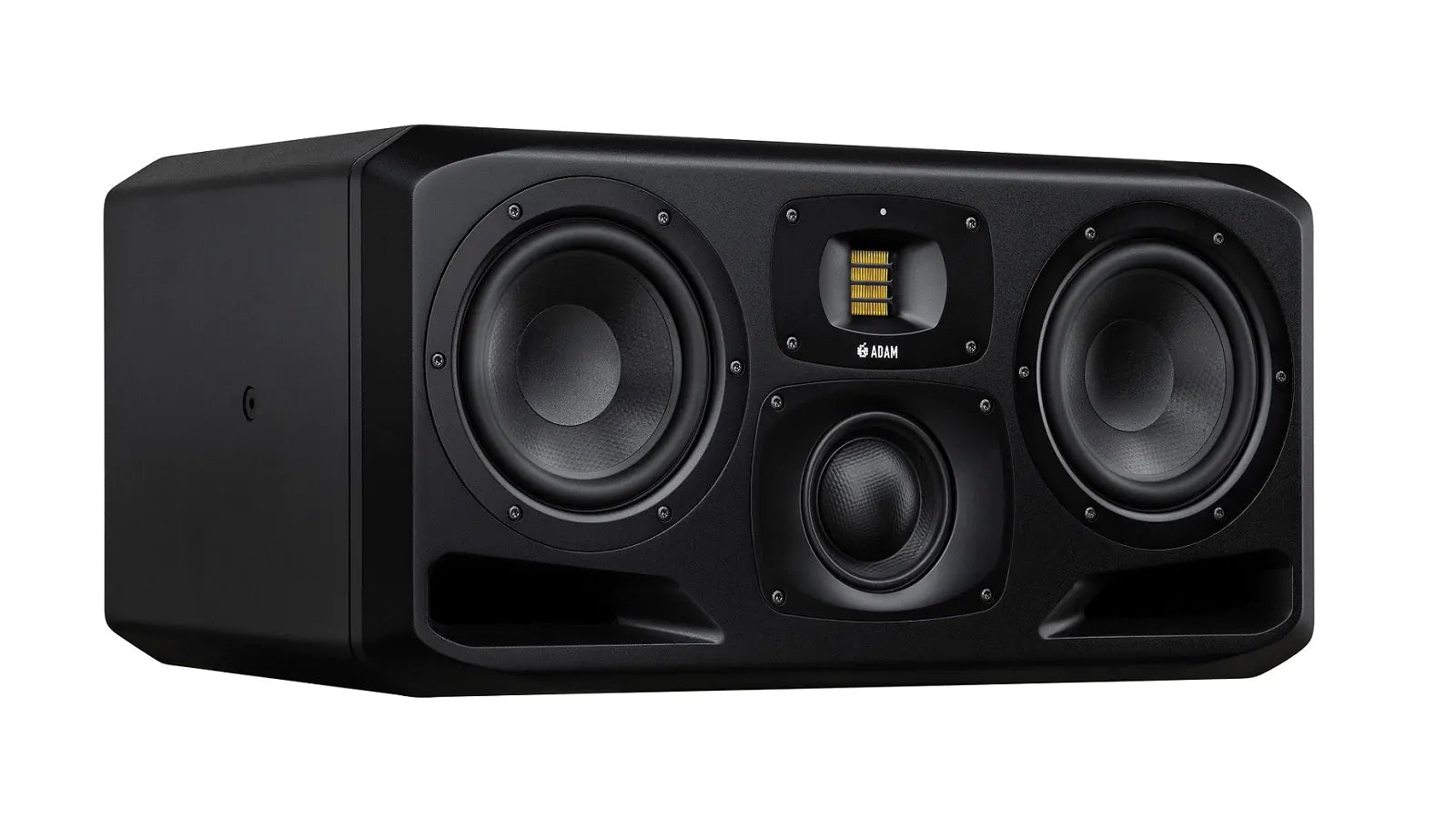

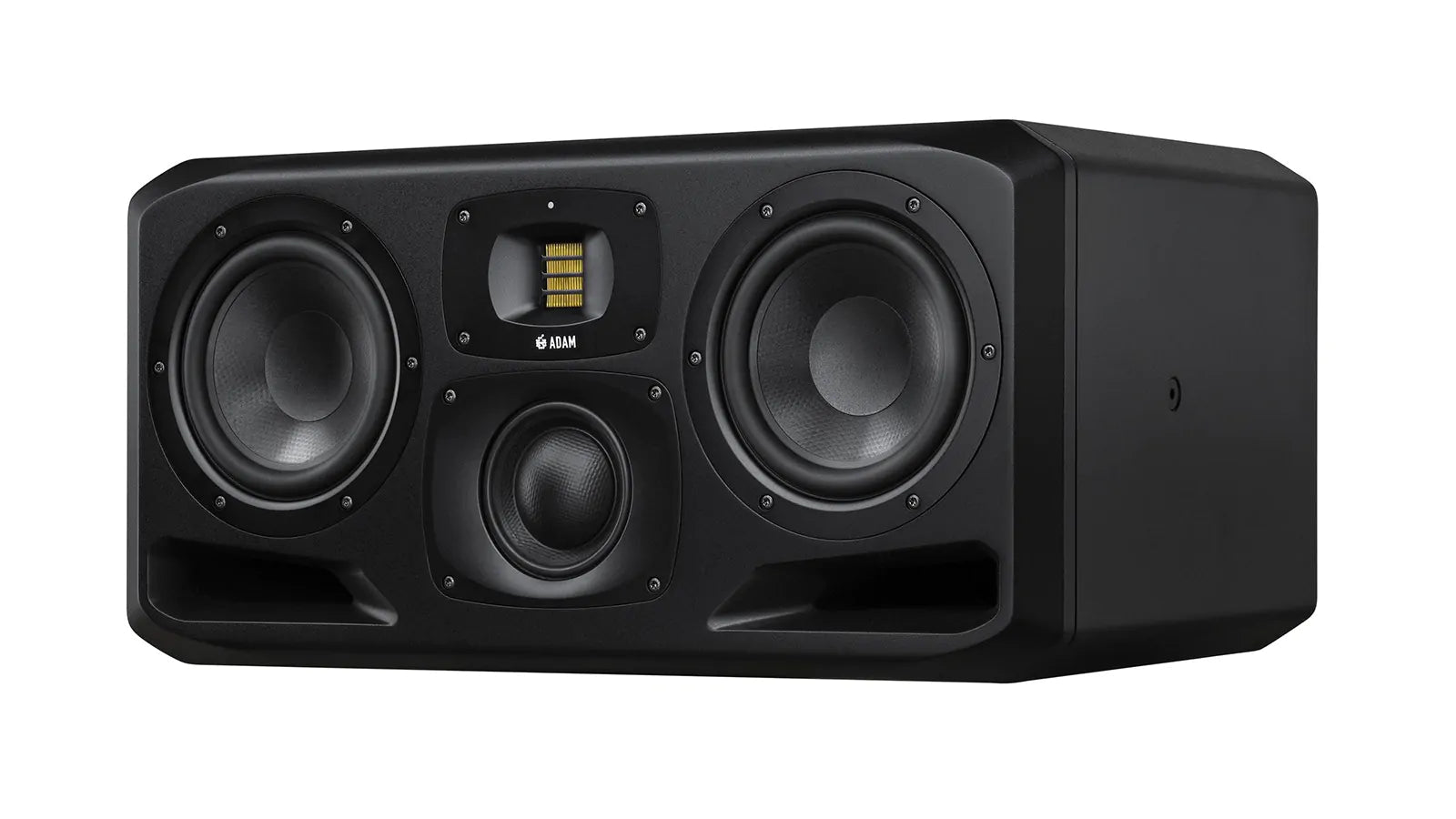

The S3H is a 3-way active mid-field studio monitor from ADAM Audio, designed for horizontal orientation in medium to large control rooms. It uses two 7-inch HexaCone woofers, a 4-inch Carbon Composite Dome Cone Hybrid midrange driver, and a handmade S-ART tweeter with HPS waveguide, delivering at least 126 dB peak SPL per pair and frequency response reaching 30 Hz. Total RMS amplifier power is 1350 W across three dedicated amplifier stages.

Specifications

• Woofers: 2 x 7-inch HexaCone cone
• Midrange driver: 4-inch Dome Cone Hybrid (DCH), Carbon Composite cone
• Tweeter: S-ART, handmade in Berlin, HPS waveguide
• Woofer amplifiers: 2 x 500 W PWM Class D
• Midrange amplifier: 300 W PWM Class D
• Tweeter amplifier: 50 W Class A/B
• Total RMS amplifier power: 1350 W
• Frequency response at -20 dB: 30 Hz to 50 kHz
• Crossover frequencies: 250 Hz and 3 kHz
• Maximum peak SPL per pair at 1 m: at least 126 dB
• THD (above 100 Hz): no more than 0.4%

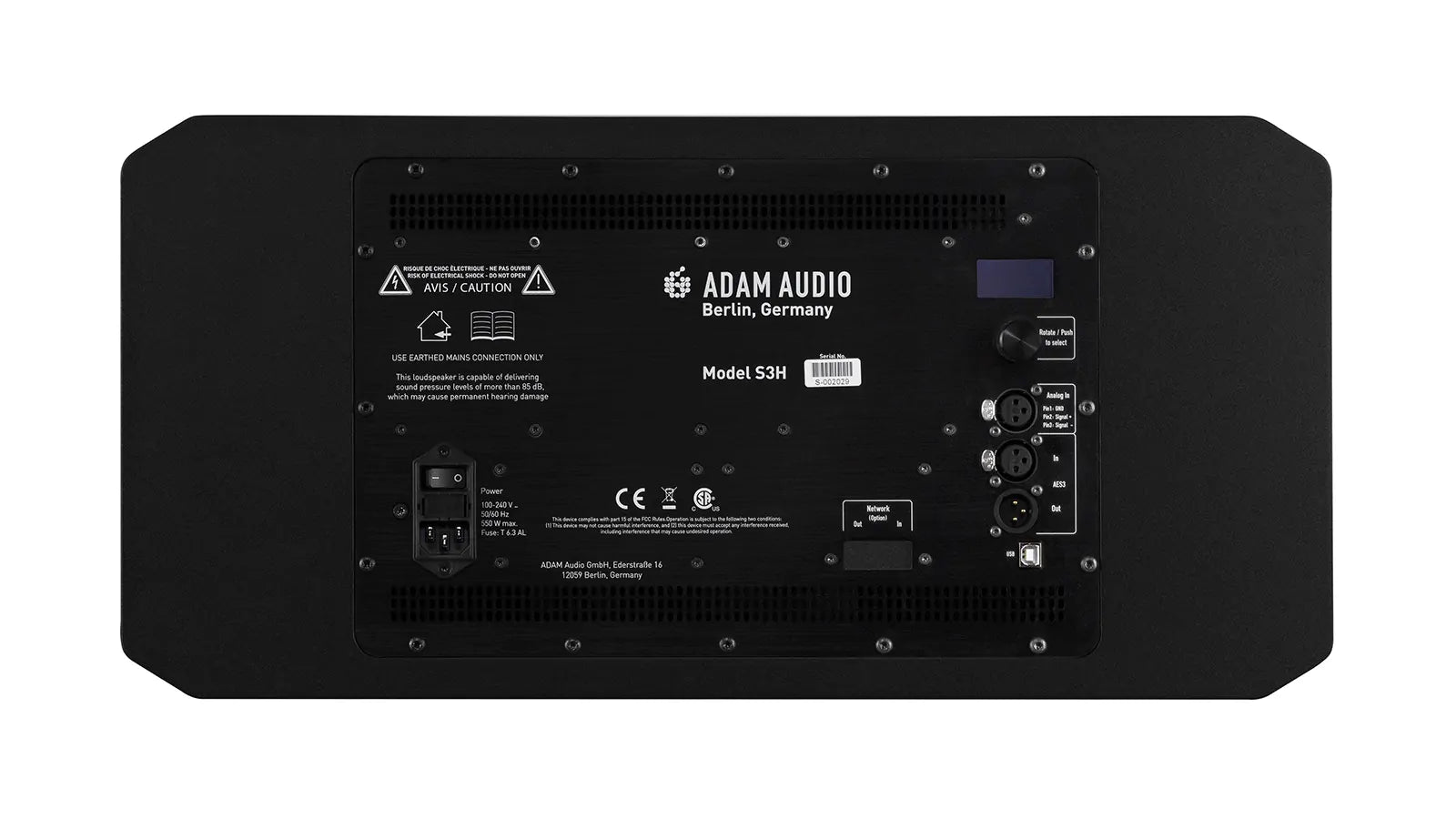

• Analog input: XLR balanced; input impedance 48 kohm, max input level +24 dBu
• Digital input: AES3
• DSP features: 6 parametric EQ bands, 5 preset memories, factory EQ preset emulating ADAM Audio S3A response
• Dimensions (H x W x D): 280 mm x 585 mm x 380 mm
• Weight: 26.6 kg
• Maximum power consumption: 550 W
• Warranty: 5 years (2 years standard plus 3 years with product registration)

Applications

Mid-field monitoring for professional recording studios, mastering facilities, broadcast control rooms, and post-production suites requiring full-range playback without a subwoofer. The horizontal 3-way configuration and wide sweet spot suit multi-engineer environments and wide format mixing desks. AES3 digital input enables direct connection to digital audio workstations. The built-in S3A emulation EQ preset allows direct comparison with ADAM Audio's earlier reference design.

Frequently asked questions

Does the S3H need a subwoofer?
The S3H reaches 30 Hz at the -20 dB point with 1350 W of onboard amplification and at least 126 dB peak SPL per pair, covering the full range of most professional audio content without additional subwoofer support.

What is the DCH midrange driver in the S3H?
The 4-inch Dome Cone Hybrid (DCH) uses a Carbon Composite cone in a one-piece dome-and-cone construction, handling frequencies from 250 Hz to 3 kHz. It is powered by a dedicated 300 W PWM Class D amplifier.

What DSP presets are available on the S3H?
The S3H provides 6 parametric EQ bands, 5 storable preset memories, and a unique factory EQ preset that emulates the frequency response of ADAM Audio's S3A monitor, allowing direct sonic comparison between the two designs.
