S5V

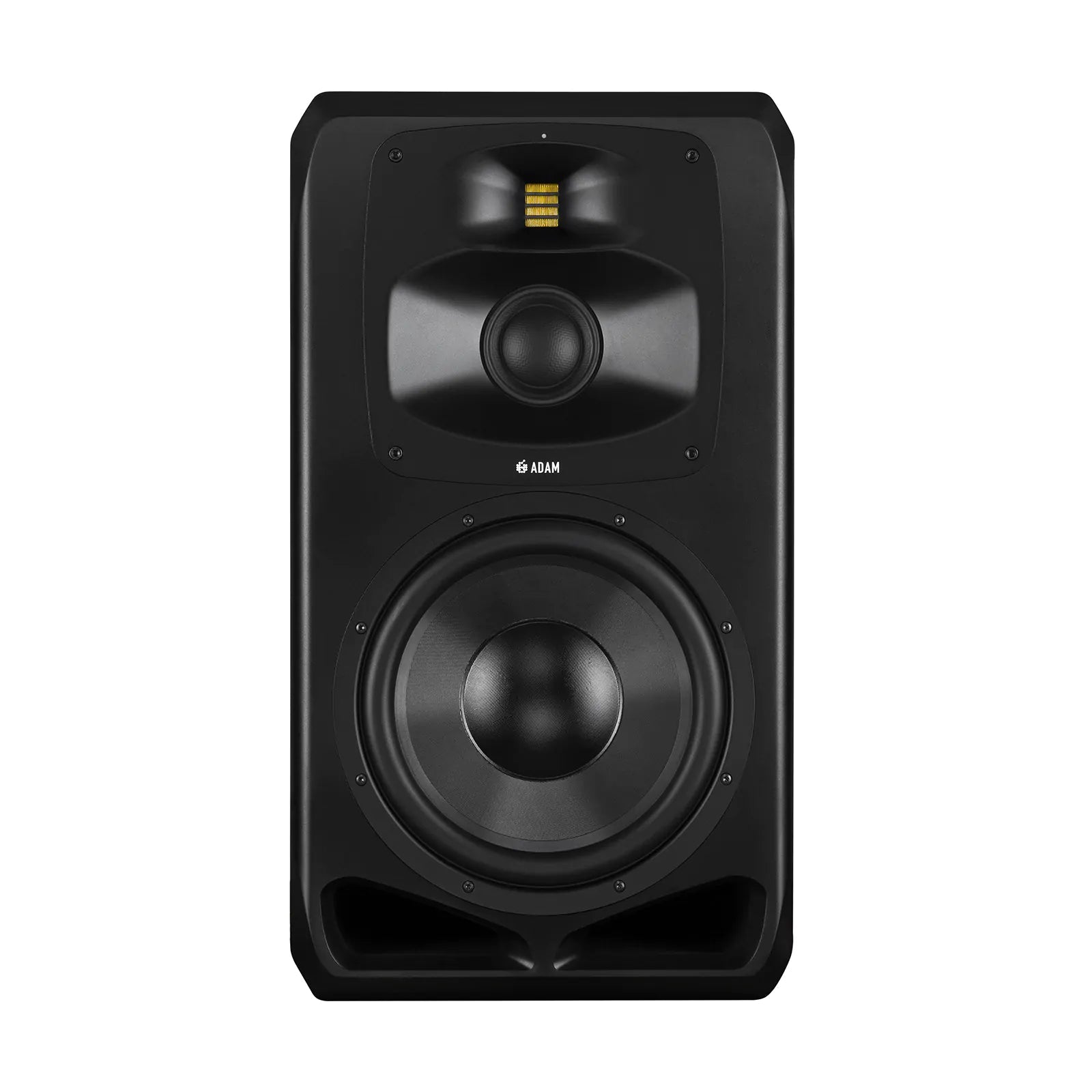

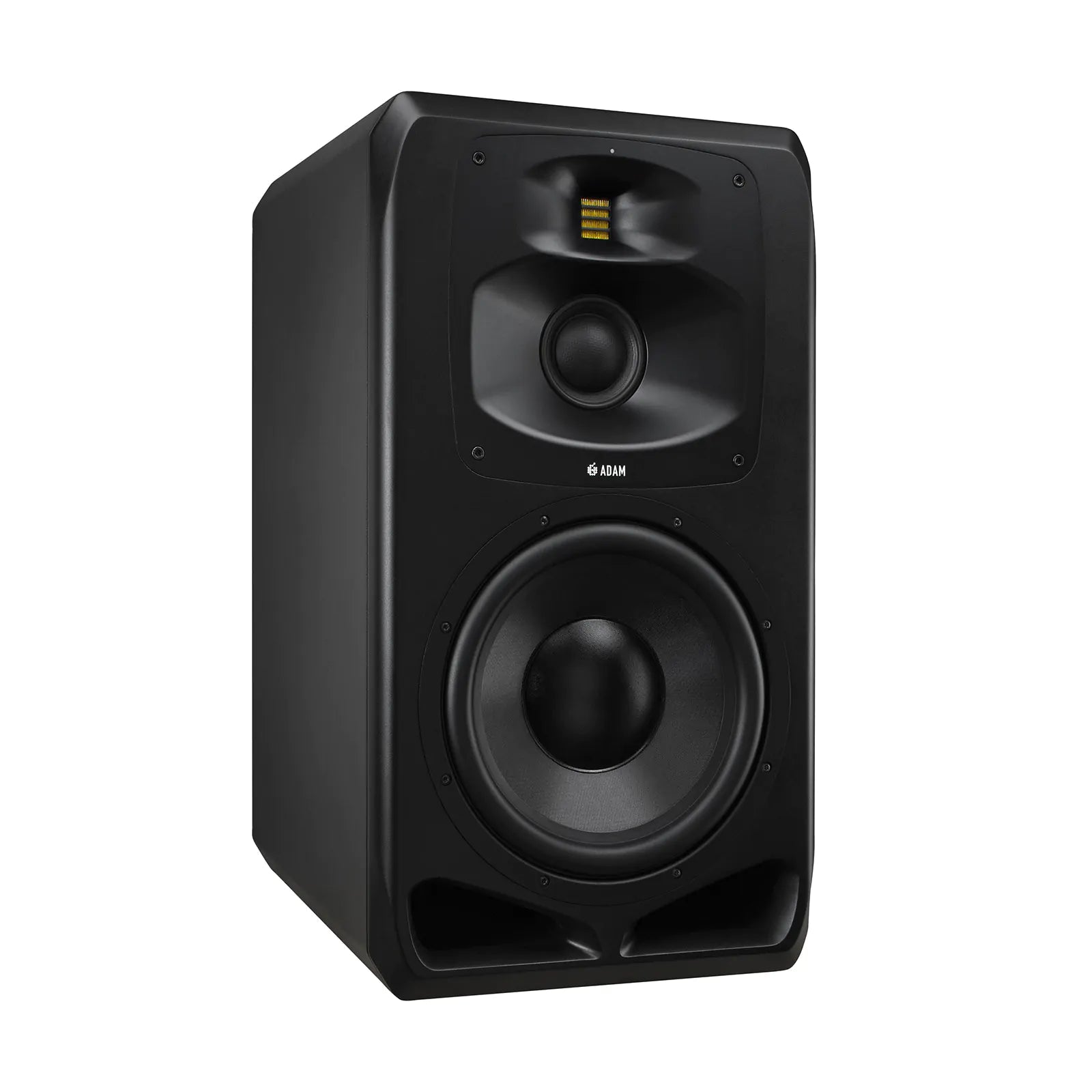

The ADAM Audio S5V is a three-way active studio reference monitor in a vertical cabinet configuration for large professional listening environments. It features a 12-inch HexaCone bass driver, a 4-inch carbon-composite Dome/Cone Hybrid midrange with MPS waveguide, and an S-ART folded-ribbon tweeter with HPS waveguide, delivering 25 Hz to 50 kHz with 1,100 W total amplification.
Specifications
- Configuration: Three-way active studio monitor, vertical orientation
- Tweeter: S-ART folded-ribbon with HPS waveguide, 100 W Class D amplifier
- Midrange driver: 4-inch carbon-composite Dome/Cone Hybrid (DCH) with MPS waveguide, 300 W Class D amplifier
- Bass driver: 12-inch HexaCone with Symmetrical Magnet Assembly, 700 W Class D amplifier
- Total amplifier power: 1,100 W RMS
- Frequency response: 25 Hz to 50 kHz (-20 dB)
- Crossover frequencies: 250 Hz and 3 kHz
- Maximum SPL (per pair at 1 m): 128 dB
- THD (above 100 Hz): 0.3% or less

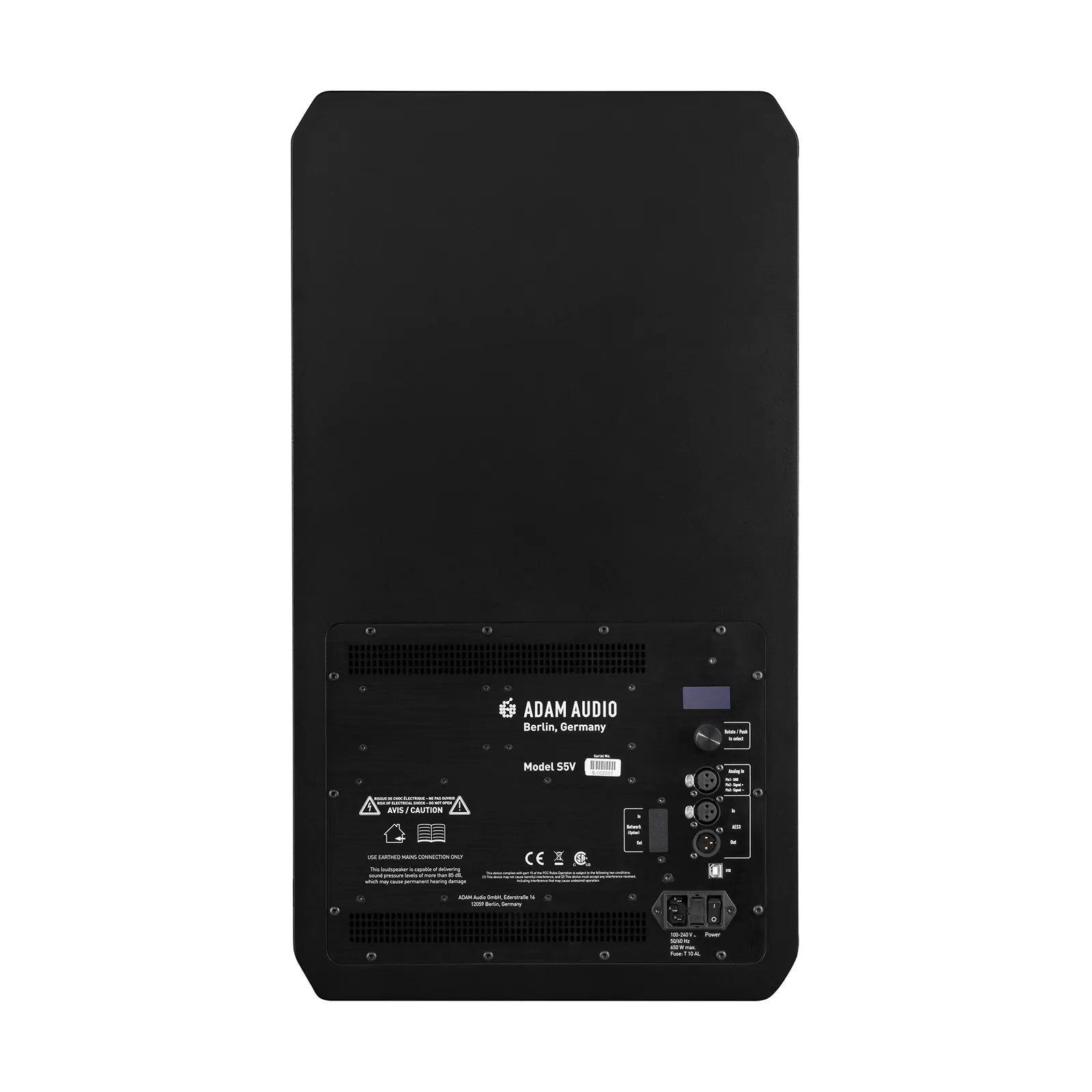

- Inputs: XLR analogue, AES3 digital
- DSP: 6 parametric EQs, high-shelf and low-shelf room compensation, 5 preset memories, 0 to 5 ms delay
- Maximum power consumption: 650 W
- Dimensions (H x W x D): 698 mm x 390 mm x 520 mm
- Weight: 52 kg
- Warranty: 5 years (2 years standard plus 3 years with registration)
Applications
The S5V suits large professional recording studios, broadcast suites, and film mixing stages where a full-range main monitor with extended bass reach and high maximum output is required. Solid-aluminium MPS and HPS waveguides maintain controlled dispersion for accurate imaging when multiple engineers are working in the room.
Frequently asked questions
How does the S5V differ from the S5H?
The S5V uses a single 12-inch bass driver in a vertical cabinet, while the S5H uses two 10-inch bass drivers in a horizontal cabinet. Both share the same total amplifier power (1,100 W RMS) and tweeter, but their bass extension and SPL figures differ slightly: the S5V reaches 25 Hz vs 22 Hz for the S5H, and maximum SPL is 128 dB vs 131 dB per pair.
What DSP functions are built into the S5V?
The S5V includes 6 parametric EQ bands, high-shelf and low-shelf room compensation filters, 5 user-storable preset memories, and a delay of up to 5 ms for time-alignment in the listening room.
What digital connectivity does the S5V support?
The S5V accepts AES3 digital input in addition to XLR analogue, with a maximum input level of 24 dBu and 48 kOhm input impedance. A USB port allows DSP control via computer software and facilitates firmware updates.
