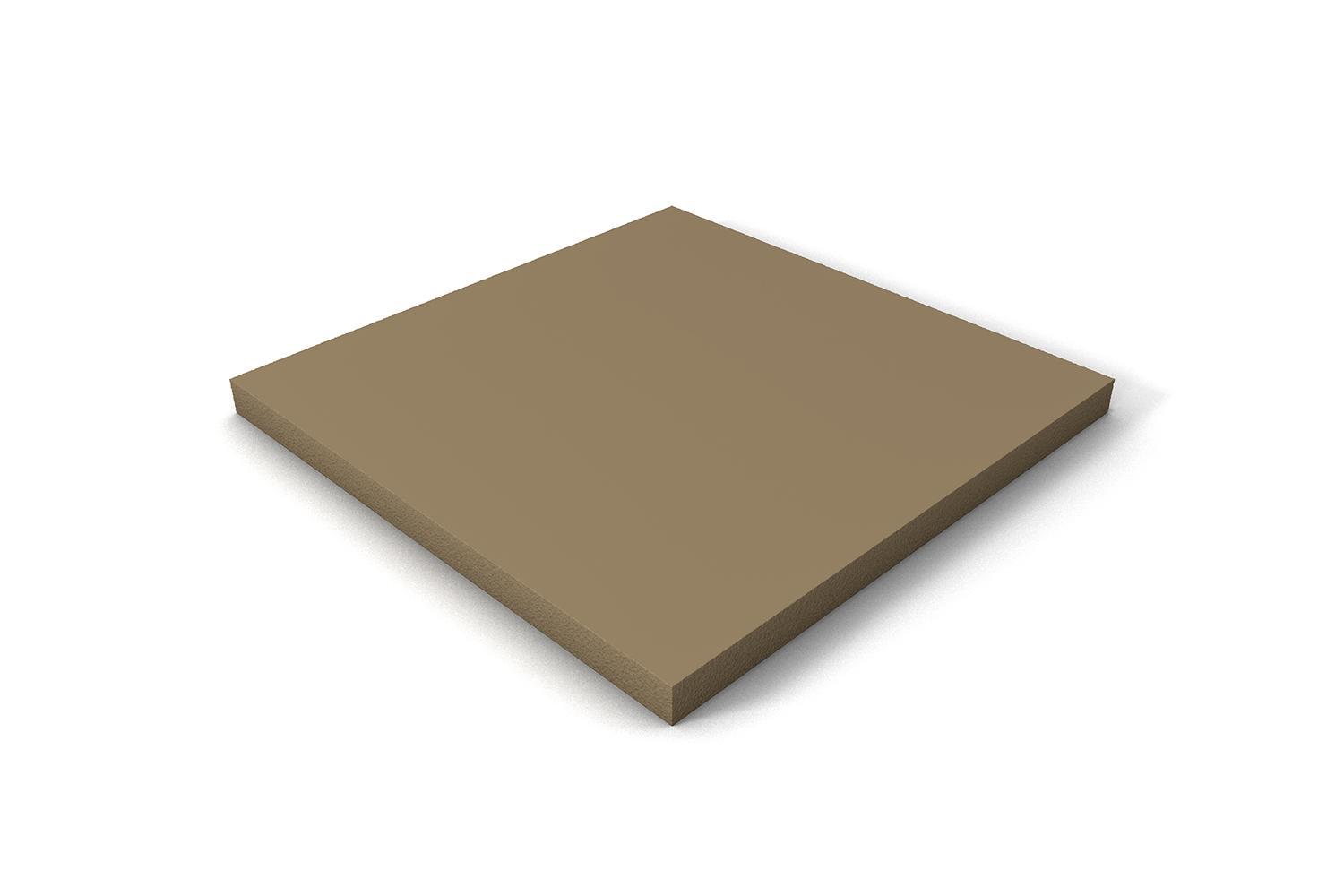

REGUFOAM vibration 510plus
Vibration isolation
The approved material REGUFOAM vibration 510plus is used in the load range up to 0.22 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.
REGUFOAM vibration 510plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.22 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 8 Hz, depending on load and material thickness.
Features
- Approved by building authorities
- Load range up to 0.22 N/mm²
- Natural frequency of down to 8 Hz
- Minimal material deflection
Technical Specifications
Material
Mixed cellular polyurethane foam
Dimensions
Length: 1,500 mm, width: 1,000 mm,
thickness: 12.5 mm and 25.0 mm
Weight per m²
5.6 kg – thickness 12.5 mm
11.1 kg – thickness 25.0 mm
Documents
Click here to view the Product Brochure: Urban Densification
Click here to view the Product Brochure: Mixed Use
Click here to view the Technical Data
