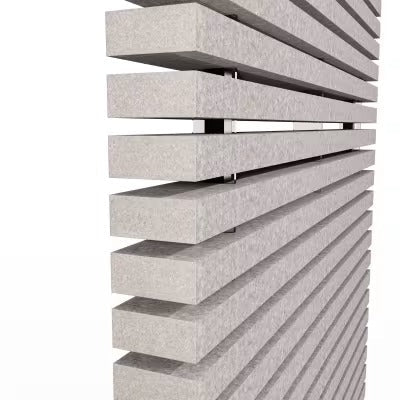

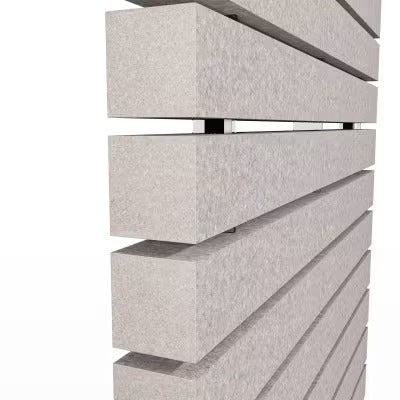

Double Sided Sticks
Dimensions

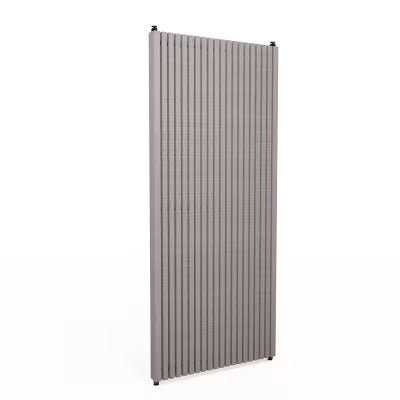

- Portrait:
- Narrow Set 20 pcs: 2820mm (111") h x 1191mm (46.9") w x 96.5mm (3.8") d
Each Stick Width: 42mm (1.66") - Wide Set 10 pcs: 2820mm (111") h x 1191mm (46.9") w x 96.5mm (3.8") d
Each Stick Width: 102mm (4") - Landscape Full Height:
- Narrow Set 40 pcs: 2820mm (111") h x 1219mm (48") w x 96.5mm (3.8") d
Each Stick Width: 42mm (1.66") - Wide Set 20 pcs: 2820mm (111") h x 1219mm (48") w x 96.5mm (3.8") d
Each Stick Width: 102mm (4") - Landscape Half Height:
- Narrow Set 20 pcs: 1174mm (46.2") h x 1219mm (48") w x 96.5mm (3.8") d
Each Stick Width: 42mm (1.66") - Wide Set 10 pcs: 1174mm (46.2") h x 1219mm (48") w x 96.5mm (3.8") d
Each Stick Width: 102mm (4")
NOTE: Overall Height Range: 2819mm (111") - 2920mm (115") max.
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg/m² (0.5 lb/ft²)
Sustainability
Zintra is made from 100% recyclable materials:
- 60% post-consumer recycled content from PET bottles
- 35% pre-consumer recycled content from PET chips
- 5% polylactic acid (PLA)
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Supplied As
- Portrait:

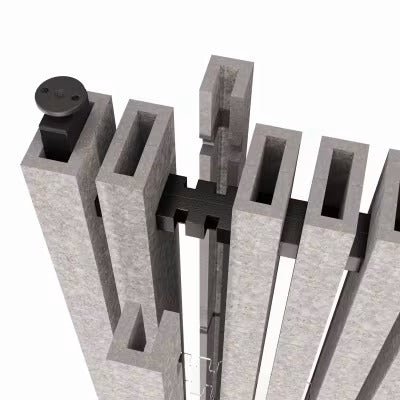

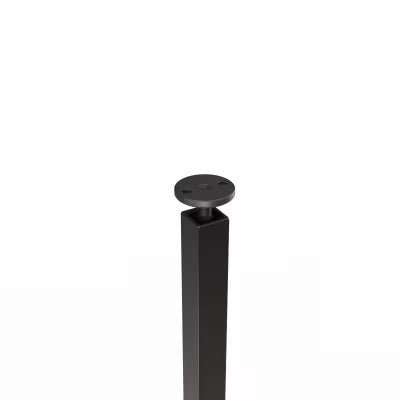

- Aluminium Tube

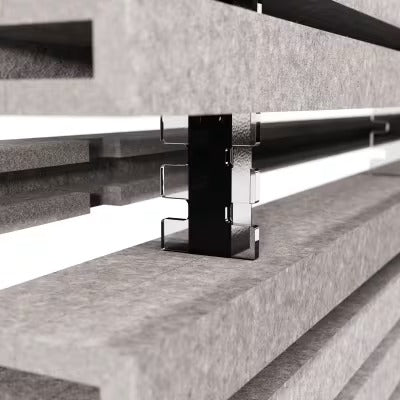

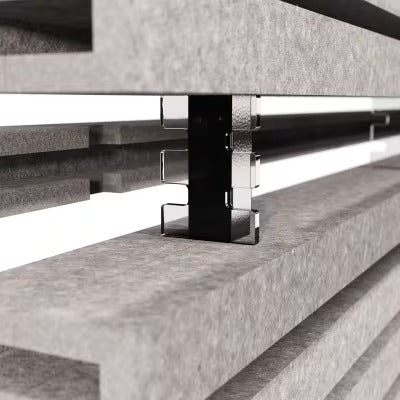

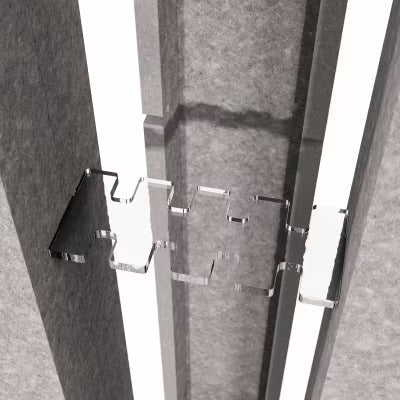

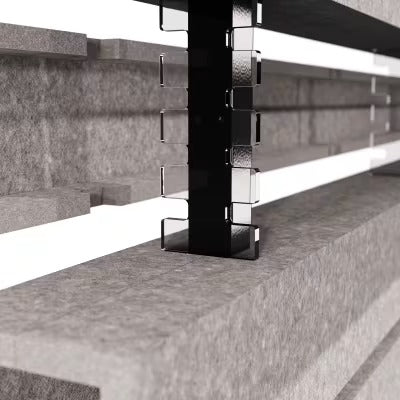

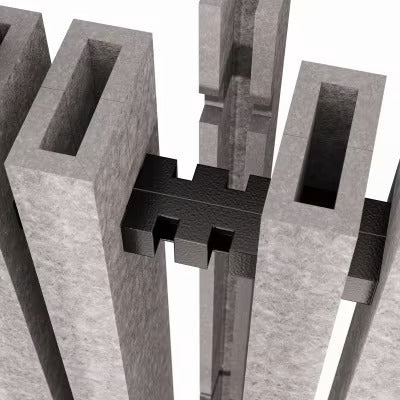

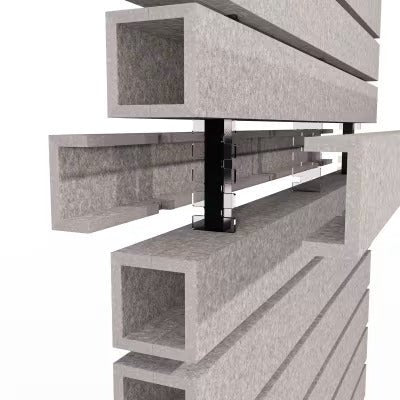

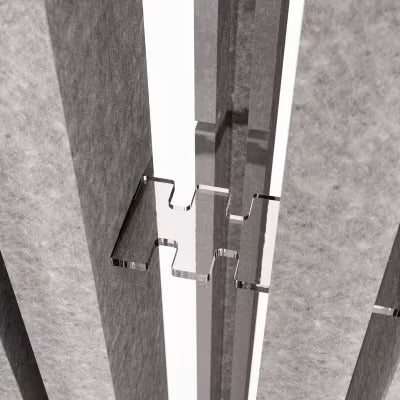

- Acrylic Comb
- 20 Narrow Sticks or 10 Wide Sticks

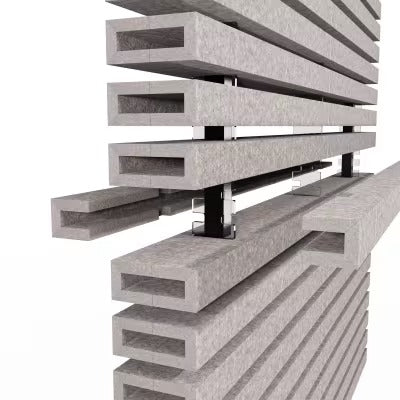

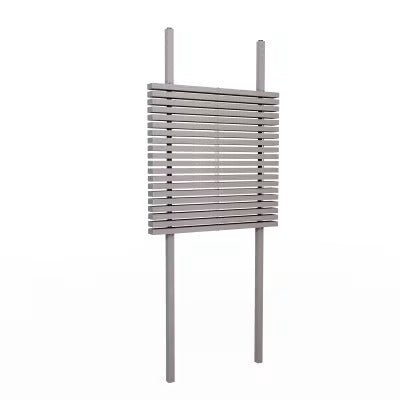

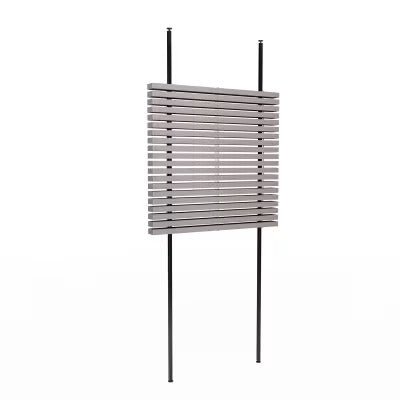

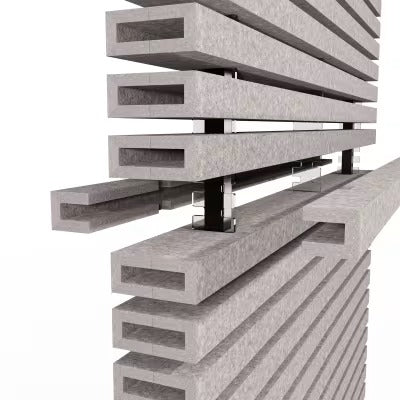

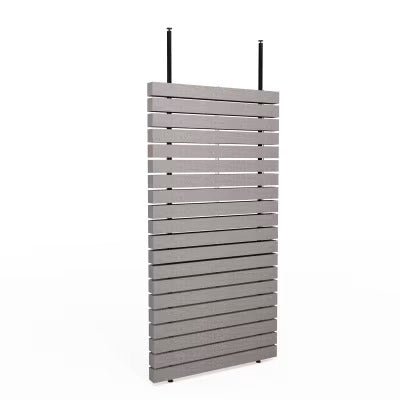

- Landscape Full Height:
- Aluminium Tube

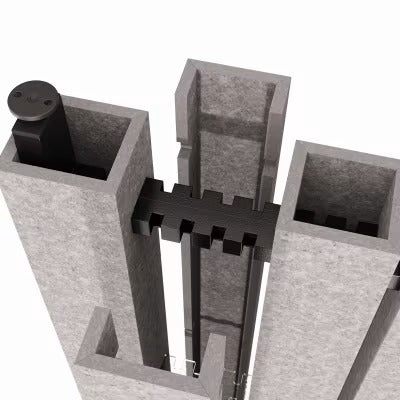

- Acrylic Comb

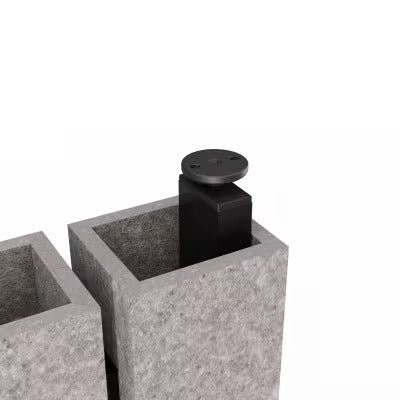

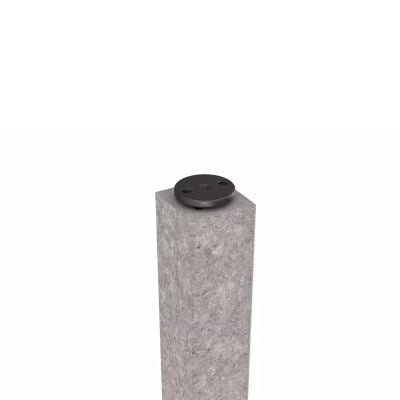

- End Capping
- 40 Narrow Sticks or 20 Wide Sticks

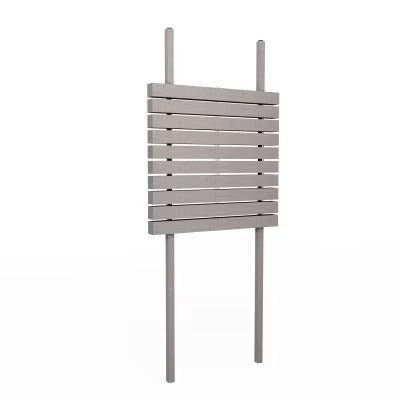

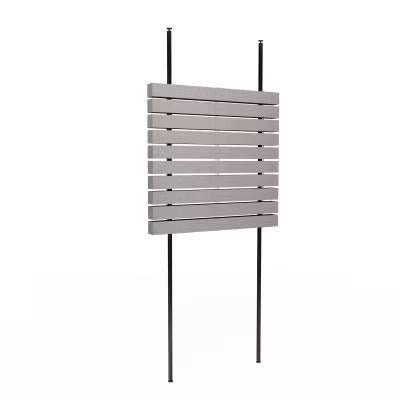

- Landscape Half Height:
- Aluminium Tube
- Acrylic Comb
- End Capping
- Tube Cover
- 20 Narrow Sticks or 10 Wide Sticks
How to Specify
- Select Stick Width - Narrow or Wide
- Select Landscape or Portrait
- Select Half or Full Height if Landscape
- Select Zintra Colour
- Quantity
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and a mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first. If care instructions don't deliver the expected results, contact us.
Customizable
The Zintra Acoustic Solutions range is customizable to your project. Please get in touch with your local contact for details.
Additional Comments
NRC: 0.85
