Zintra Baffle Systems - Louvre

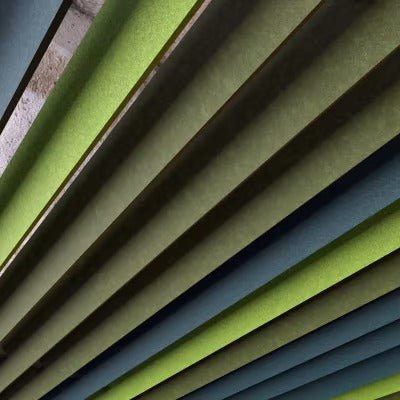

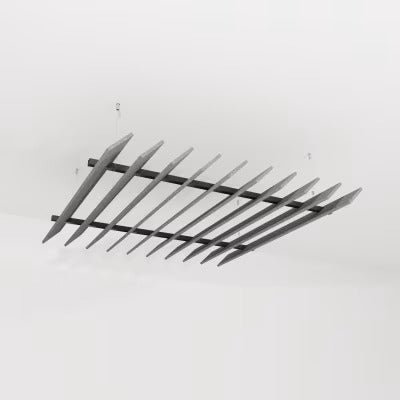

Zintra Baffle Systems Louvre is a ceiling-mounted acoustic baffle from Zintra with a sleek, linear blade arrangement. Ten parallel blades of 12mm solution-dyed polyester are held in a shared aluminium frame, producing a clean horizontal grid of fins. The format suits contemporary interiors where a uniform, structured ceiling element is preferred alongside noise control.
Specifications
- Material: 100% solution-dyed polyester (PET), 12mm thickness
- Density: 2.4 kg/m2
- Blade count: 10 blades per baffle
- Blade height: 94mm (3.7 in)
- Small size: 1220mm (48 in) w x 1200mm (48 in) d
- Large size: 1220mm (48 in) w x 2745mm (108 in) d
- NRC (no air gap): up to 0.95
- NRC (with 610mm air gap): up to 1.00
- Fire rating: ASTM-E84 Class A; AS ISO 9705:2003 Group 1; EN 13501 B-s2-d0
- Recycled content: 60% post-consumer PET bottles, 35% pre-consumer PET chips, 5% polylactic acid (PLA)
- Delivery: flat-packed with suspension hardware
Applications
The Louvre baffle suits educational facilities, retail, restaurants, offices, and airports. The linear blade pattern works well in spaces with rectilinear geometry, reinforcing architectural lines while reducing reflected noise. The aluminium frame can be ordered in 12 powder-coat colours at an additional cost.
Standards and compliance
ASTM-E84 Class A (flame spread and smoke development); AS ISO 9705:2003 Group 1 (Australian/New Zealand room fire test); EN 13501-1 B-s2-d0 (European reaction to fire classification).
Frequently asked questions
What is the blade height of the Louvre design?
Each blade is 94mm (3.7 in) high, shorter than the 120mm or 240mm options available on other Zintra baffle designs.
Can the Louvre frame be powder-coated?
Yes. The aluminium frame is available in 12 powder-coat colours at an additional cost.
What is the NRC rating?
Up to 0.95 without an air gap, and up to 1.00 with a 610mm (24 in) air gap above the baffle plane.
