Zintra Baffle Systems - Ridge

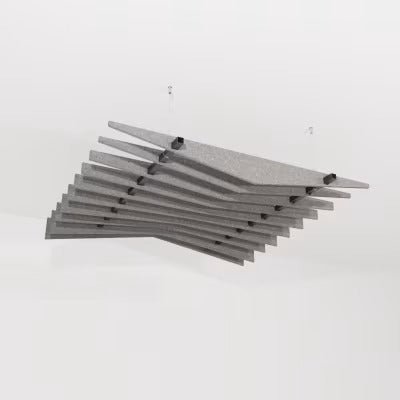

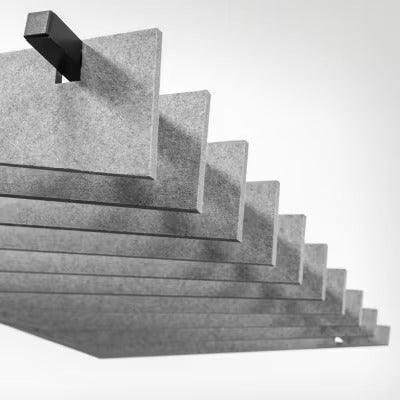

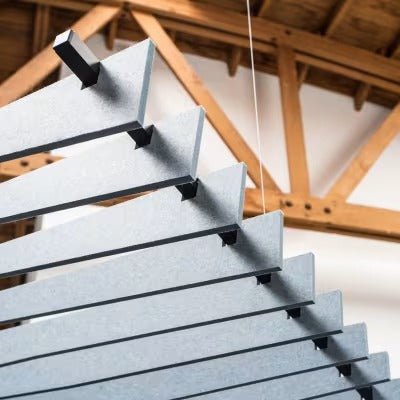

Zintra Baffle Systems Ridge is a ceiling-mounted acoustic baffle from Zintra with an undulating blade profile that alternates in height to produce a peaks-and-valleys silhouette. Ten blades of 12mm solution-dyed polyester are held in a shared aluminium frame. The varied geometry adds visual depth to the ceiling while maintaining the same acoustic performance as flat-blade Zintra systems.
Specifications
- Material: 100% solution-dyed polyester (PET), 12mm thickness
- Density: 2.4 kg/m2
- Blade count: 10 blades per baffle
- Available heights: 120mm (4.7 in) or 240mm (9.5 in)
- Small size: 1220mm (48 in) w x 1220mm (48 in) d
- Large size: 1220mm (48 in) w x 2745mm (108 in) d
- Spacing options: 122mm gap (10 blades), 203mm gap (6 blades), or 300mm gap (4 blades); overall frame size unchanged
- NRC (no air gap): up to 0.95
- NRC (with 610mm air gap): up to 1.00
- Fire rating: ASTM-E84 Class A; AS ISO 9705:2003 Group 1; EN 13501 B-s2-d0
- Recycled content: 60% post-consumer PET bottles, 35% pre-consumer PET chips, 5% polylactic acid (PLA)
- Delivery: flat-packed with suspension hardware
Applications
The Ridge baffle suits educational facilities, retail, restaurants, offices, and airports. The undulating blade profile is well matched to spaces where a textured ceiling is desired; blade spacing selection also tunes the surface area presented to the room.
Standards and compliance
ASTM-E84 Class A; AS ISO 9705:2003 Group 1; EN 13501-1 B-s2-d0.
Frequently asked questions
What blade spacing options are available?
Three spacings fit within the same outer frame: 122mm gap (10 blades), 203mm gap (6 blades), and 300mm gap (4 blades). The frame dimension stays the same regardless of spacing chosen.
What height options are available?
Ridge blades are available in 120mm (4.7 in) or 240mm (9.5 in) high in both small and large frame sizes.
What is the NRC rating?
Up to 0.95 without an air gap, and up to 1.00 with a 610mm (24 in) air gap above the baffle plane.
