Zintra Beams Open Rafter

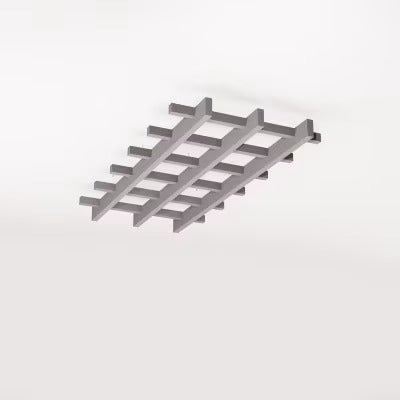

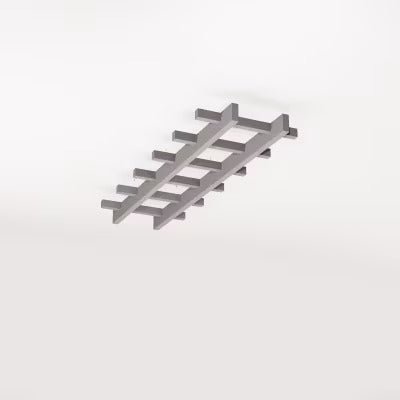

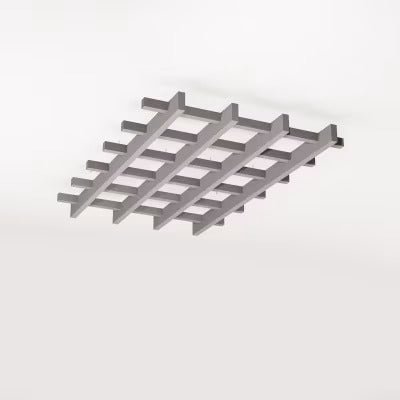

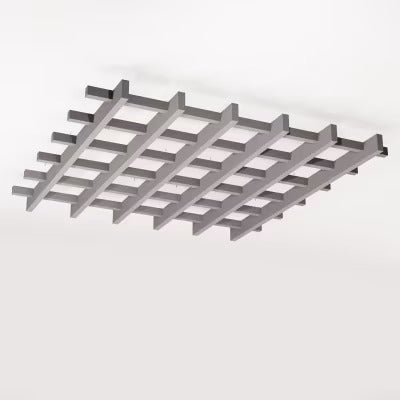

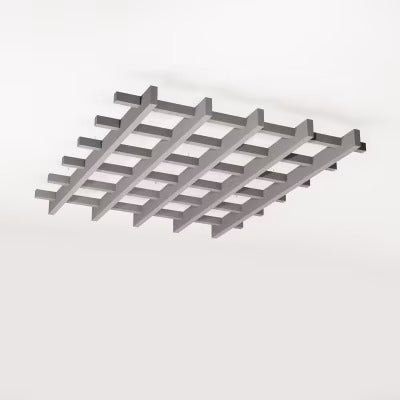

The Zintra Beams Open Rafter is a ceiling-mounted acoustic beam system from Zintra, featuring an open-edge rafter design built from 12 mm solution-dyed polyester panels. It functions as a porous absorber across the full frequency range and comes in five modular size configurations for large commercial and institutional spaces.
Specifications
- Design: Open Rafter (open edge)
- 5 x 5 size: 3658 mm wide x 203 mm high x 3658 mm deep
- 4 x 5 size: 3048 mm wide x 203 mm high x 3658 mm deep
- 3 x 5 size: 2438 mm wide x 203 mm high x 3658 mm deep
- 2 x 5 size: 1829 mm wide x 203 mm high x 3658 mm deep
- 1 x 5 size: 1219 mm wide x 203 mm high x 3658 mm deep
- Panel thickness: 12 mm (0.5")
- Panel density: 2.4 kg/m2
- Material: 100% solution-dyed polyester (colour-through PET)
- NRC: 1.0
- NRC with coffers: 1.5
- Recycled content: 60% post-consumer PET bottles, 35% pre-consumer PET chips, 5% polylactic acid (PLA)
- Beam clips per kit: 5x5: 144, 4x5: 122, 3x5: 100, 2x5: 78, 1x5: 56
- Installation method: cable suspension or Unistrut (installer's choice)
Applications
Open Rafter beams suit large interiors where an exposed, rustic ceiling aesthetic is desired alongside high acoustic performance. The open-edge profile is available in solid PET colours and realistic timber prints, making it suited to offices, retail spaces, hospitality venues, and education facilities. Optional Coffer panels are available to raise the NRC to 1.5 in compatible Open Rafter, Closed Rafter, and Square installations.
Standards and compliance
ASTM E84: Class A. AS ISO 9705:2003: Group 1. EN 13501: B-s2-d0.
Frequently asked questions
What is the difference between Open Rafter and Closed Rafter?
Open Rafter has an open edge on the perimeter, giving a lighter, more rustic look. Closed Rafter has a framed edge for a more structured, enclosed appearance. Both share the same modular grid sizes and NRC ratings.
Can coffers be added to an Open Rafter installation?
Yes. Zintra Coffer panels (sold separately, in sets of 8) are compatible with Open Rafter and raise the installation NRC from 1.0 to 1.5. Coffers are not compatible with Rectangular or Parallel Beams designs.
How does the Open Rafter install?
Kits ship flat-packed and are assembled on-site. Beams can be suspended via cable suspension or Unistrut. The specified number of 24 mm beam clips is included in each size-specific kit.
