Zintra Beams Rectangle Beam
Description
Large spaces require acoustic solutions that match their scale. The Zintra Beams collection addresses this need perfectly, offering substantial proportions that exude a sense of structure and architectural grandeur. Their modular design allows for a variety of configurations across a range of styles and sizes, with connectors for effortless customization to suit any space.
There are 5 different geometric designs available:
- Open Rafter
- Closed Rafter
- Rectangular
- Square
- Parallel Beams
Available in various sizes (please refer to the dimensions for design-specific details). For added acoustic comfort, optional coffer panels are available to suit open, closed, and square designs.

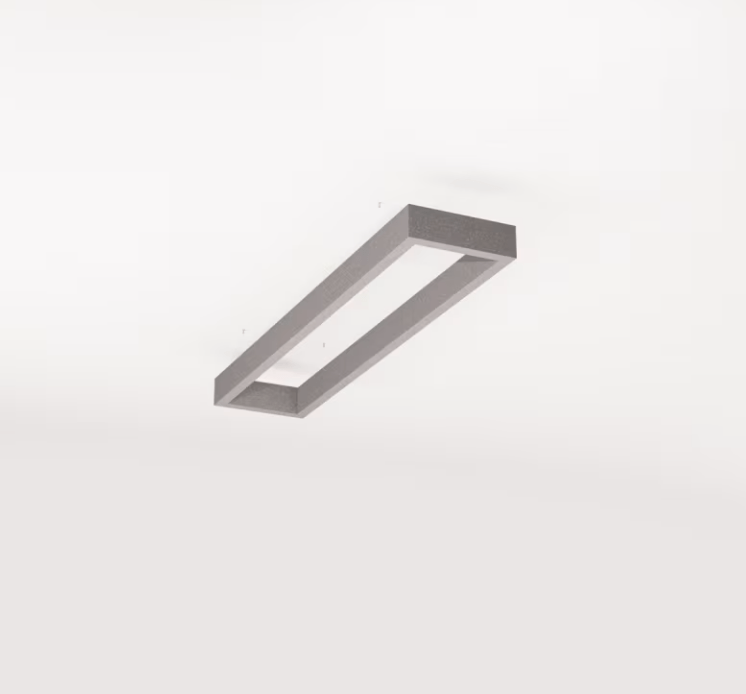

Rectangle Beam
Mix and match colours and heights to add dimension and depth effortlessly. Available individually, Rectangle Beams offer easy installation and superior acoustics, making them perfect for creating artistic spaces. Please note, the optional Coffer panel is not compatible with this design.
Engineered for superior sound absorption, Zintra Beams function as porous absorbers across the entire frequency range. This significantly enhances the NRC rating, up to a maximum of 1.5.
Dimensions
Rectangular Beam:
- 686mm (27") w x 203mm (8") h x 3124mm (123") d
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Sustainability
Zintra is made from 100% recyclable materials.
- 60% post-consumer recycled content from PET bottles.
- 35% pre-consumer recycled content from PET chips.
- 5% polylactic acid (PLA).
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Assembly & Delivery
- Ships Flat Pack
- Assembly Required.
- Choose Cable Suspension or Unistrut. Refer to your preferred installation method in the Installation Guide.
- Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
- Rectangle Beam: 1 x Kit including: Clear 24mm (1") Beams Clip x 20
How to Specify
- Select Design
- Select Size
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and a mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
- NRC: 1.0
- NRC with Coffers: 1.5
