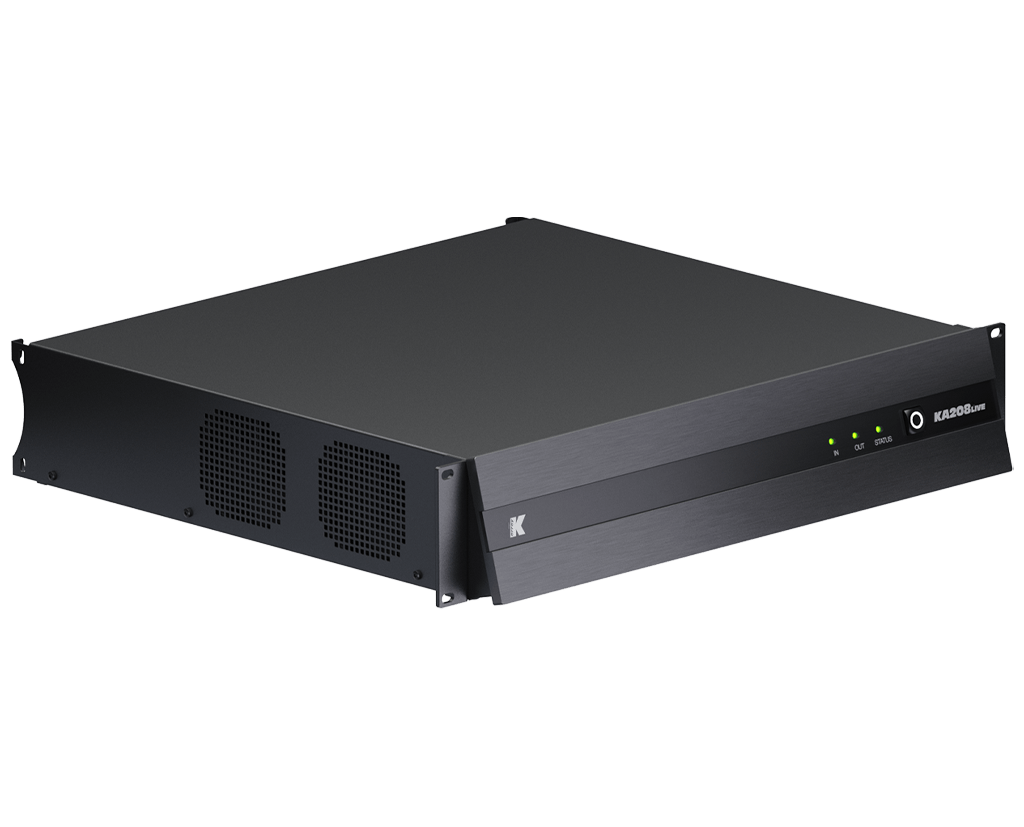

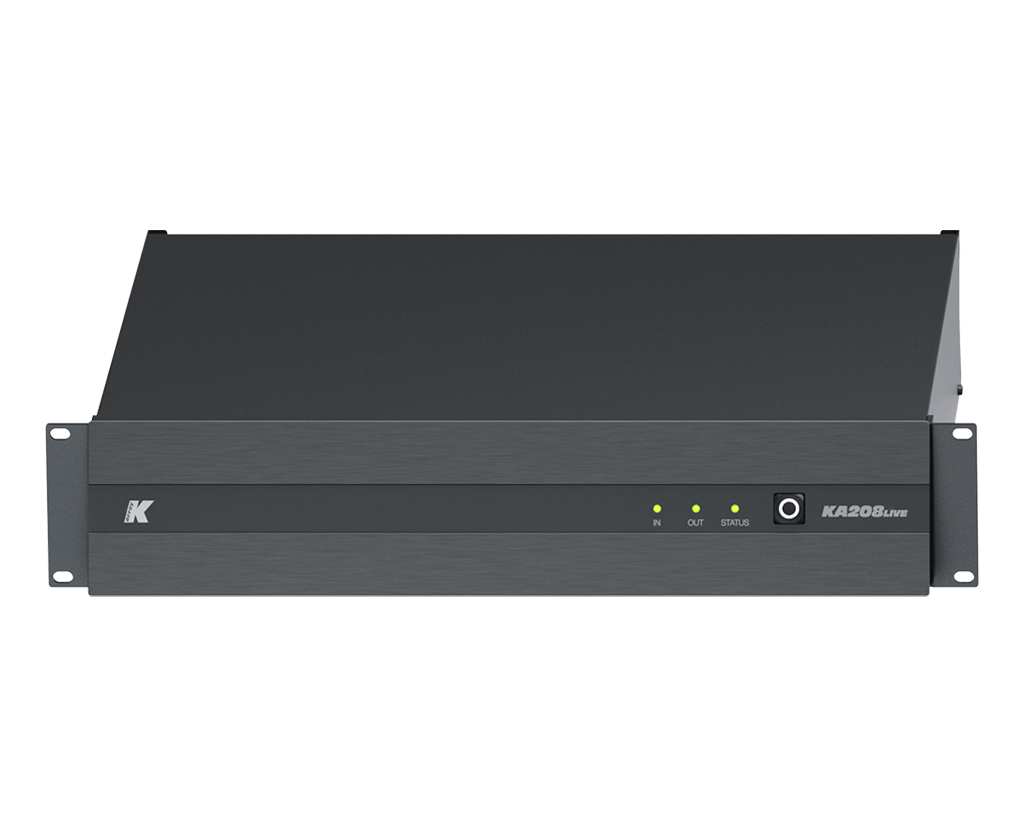

Kommander-KA208LIVE
The Kommander-KA208LIVE is a powerful amplifier platform from K-array electronics, delivering 8x 2500W @ 4Ω and featuring the renowned DSP functionalities of the Kommander-KA208. Designed specifically for live entertainment applications, it includes SpeakON and CA-COM connections, ensuring pristine sound quality and complete control over connected line array elements or systems.
Software Integration
The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.
K-framework3 is the managing and control software designed for professionals and operators looking for a powerful tool for loudspeaker system design and tuning over a wired LAN.
Specifications
- Type: 8ch switching mode, Class D Amplifier
- Output Power: 8 x 2500W @ 4Ω (1)
- Impedance: Minimum 4 Ω
- Frequency Response: 20 Hz - 20 kHz (±1 dB)

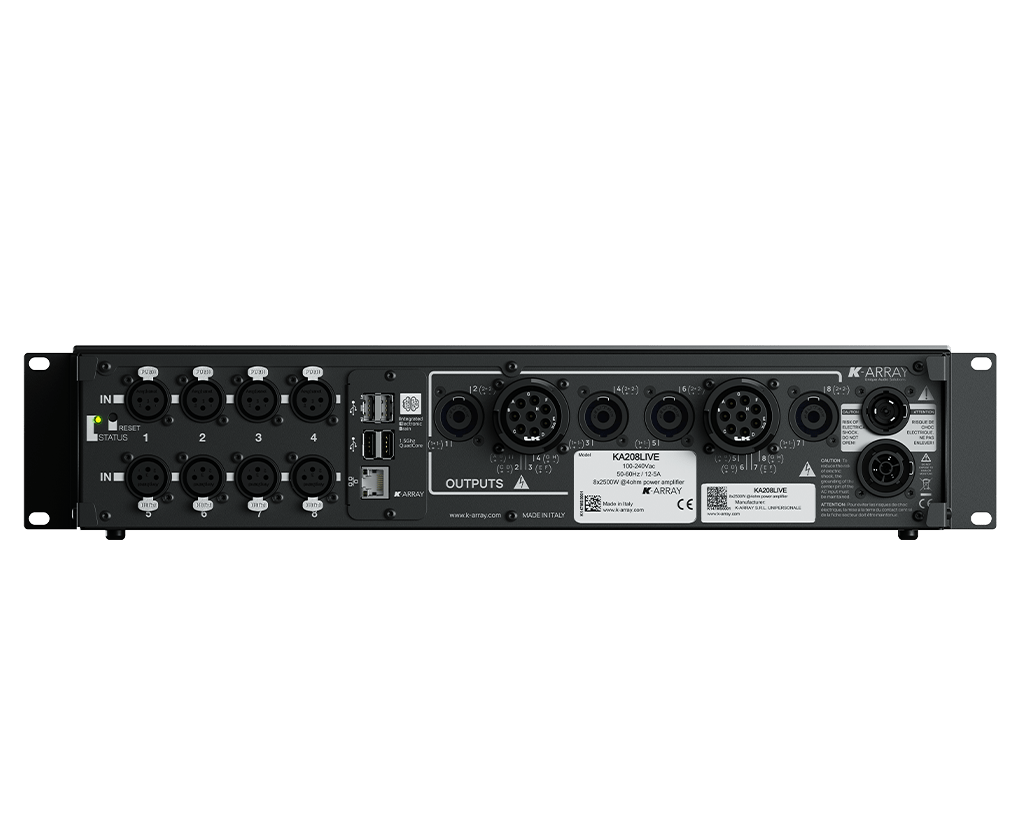

Connections
- Input: 8x XLR-F balanced input
- Output: 4x SpeakON NL4 speaker output, 2x CA-COM connections
-
Remote Connectivity:
- 1x Ethernet RJ45 (2IN Digital channel counts - DANTE compatible with up to 2x2 Dante Channels - activatable via Dante Ready license)
- 4x USB-A
- Wi-Fi IEEE 802.11 b/g/n
-
Power:
- 1x PowerCon TRUE IN
- 1x PowerCon TRUE Link
Built-in DSP
- Grouping
- Equalization
- Limiters
- Routing
- Level control
- Loudspeaker presets
Remote Control
Wi-Fi and Ethernet control via dedicated mobile app and desktop software.
Power Handling
- Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
- Main Operating Range: 100-240V AC, 50-60 Hz with PFC
- Power Consumption: 1200 W @ 4 Ω load, Pink noise, 1/8 rated power
Handling and Finishes
- Color: Black
- Material: Stainless Steel
- Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3.4 x 17 in)
- Weight: 10 kg (22 lb)
Regulations
- IP Rating: IP20
(1) CTA-2006 Standard single channel driven
