Zintra Baffle Systems - Canyon

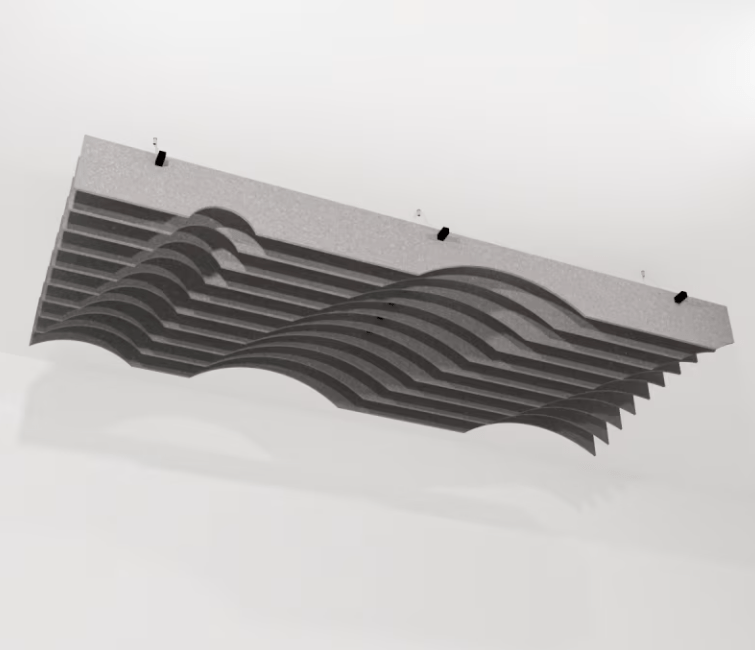

Zintra Baffle Systems Canyon is a ceiling-mounted acoustic baffle from Zintra with a blade profile evoking layered canyon terrain. Made from 12mm solution-dyed polyester, the system ships flat-packed and is designed for installation in open commercial and institutional interiors where the ceiling structure remains exposed and acoustic control is required.
Specifications
- Small size: 1220mm (48 in) wide x 1220mm (48 in) deep
- Large size: 1220mm (48 in) wide x 2745mm (108 in) deep
- Blade height options: 120mm (4.7 in) or 240mm (9.5 in)
- Blades per kit: 10
- NRC (no air gap): up to 0.95
- NRC (with 610mm air gap): up to 1.00
- Composition: 100% solution-dyed (colour-through) polyester, 12mm
- Density: 2.4 kg/m2
- Recycled content: 60% post-consumer recycled PET bottles, 35% pre-consumer recycled PET chips, 5% polylactic acid (PLA)
Applications

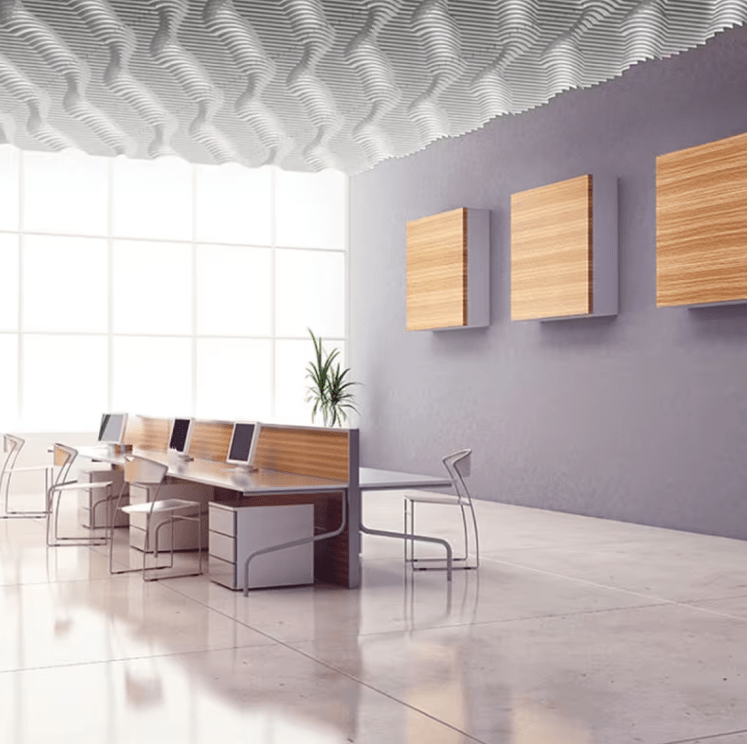

Suited to large, noisy interior spaces including educational institutions, shopping centres, restaurants, and airports. The vertical blade configuration increases the sound-absorptive surface area relative to a flat panel while keeping services and the structural ceiling visible. One of 11 blade designs available within the Zintra Baffle Systems range. Suspension hardware is included.
Standards and compliance
ASTM E84: Class A. AS ISO 9705:2003: Group 1. EN 13501: B-s2-d0.
Frequently asked questions
What hardware is included with the Canyon kit?
Each kit includes 10 Zintra blades and, depending on size: 2 or 3 aluminium tubes with notches, 4 or 6 aluminium end caps, and 2 or 3 x 24mm Zintra connectors, along with the Adjustable Suspension Kits (ASK) required for ceiling mounting.
How does the Canyon differ from the Bolt design?
The Canyon blade has a terrain-like textured profile while the Bolt blade uses a lightning-bolt silhouette. Both designs share the same size options, blade height choices, NRC ratings, and fire classifications. The hardware kits differ slightly: the Bolt kit includes hanger bolts and adjustable fasteners not listed in the Canyon kit.
