Sticks Transition
Zintra Sticks Transition is an inside-corner accessory from Zintra, designed to join Zintra Sticks Bundles at internal wall junctions. Available in landscape and portrait orientations for both narrow and wide stick profiles, it maintains a continuous finish where two bundle runs meet at an inside corner.
Specifications
- Landscape Transition, narrow set: 2745mm (w) x 296mm (h)
- Landscape Transition, wide set: 2745mm (w) x 326mm (h)
- Portrait Transition, narrow set: 289mm (h) x 953mm (w)
- Portrait Transition, wide set: 289mm (h) x 953mm (w)
- Material: 100% solution-dyed (colour-through) polyester, 12mm thickness
- Density: 2.4 kg/m2
- NRC, direct mount: 0.80
- NRC, 152mm air gap: up to 0.95
- Recycled content: 60% post-consumer (PET bottles), 35% pre-consumer (PET chips), 5% polylactic acid (PLA)
- Landscape Transition pack contents: 7 x Zintra cover supports, 2 x 25mm SHS tubes (no notches), plus narrow (7) or wide (4) Zintra sticks
- Portrait Transition pack contents: 2 x 24mm SHS tubes (notched), plus narrow (16) or wide (8) Zintra sticks
- Frame powdercoat: 12 standard colours available (additional charge)
Applications

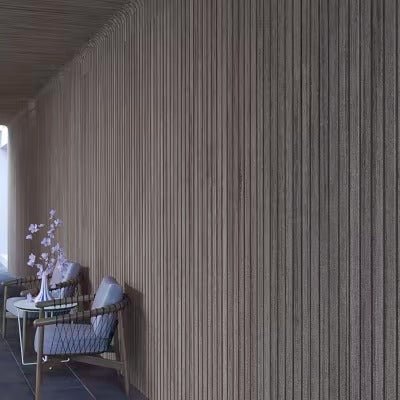

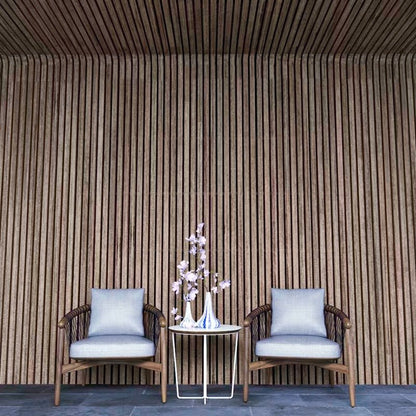

Zintra Sticks Transition is used at inside corners where two Sticks Bundle runs meet, such as where a wall treatment wraps around a room or alcove. It is part of the Sticks system used in offices, hospitality venues, retail spaces, and commercial interiors where a continuous linear acoustic wall treatment is specified.
Standards and compliance
ASTM E84 Class A (flame spread and smoke development). AS ISO 9705:2003 Group 1 (Australian room-fire growth test). EN 13501 B-s2-d0 (European reaction-to-fire classification).
Frequently asked questions
What is the difference between landscape and portrait Transition?

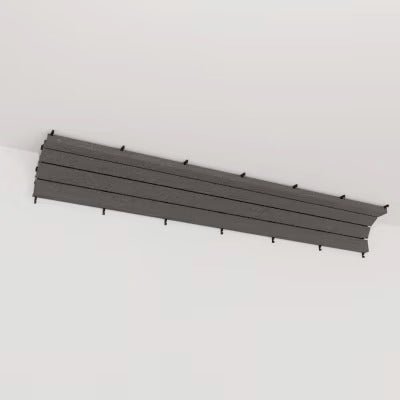

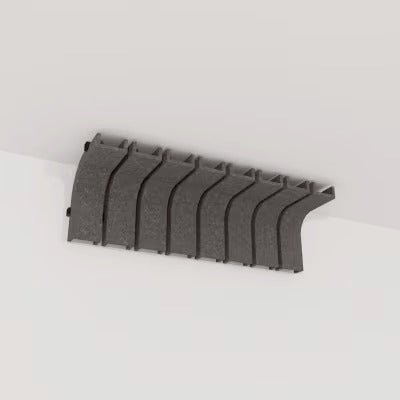

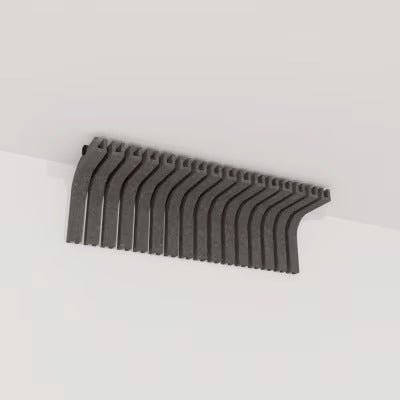

Landscape Transition spans the full 2745mm horizontal length and steps up to 296mm (narrow) or 326mm (wide) in height, joining bundles that run horizontally along a wall. Portrait Transition is 289mm tall and 953mm wide, joining bundles that run vertically. The orientation must match the bundle orientation used on both adjoining walls.
Does Sticks Transition need to be ordered separately from Sticks Bundles?
Yes. Sticks Transition is a separate product. It ships flat pack and is assembled on site. Bundles, Transition, External Corner, and Trim are each specified and ordered individually to suit the layout of the space.
